8.2 Typical Application
The LP5891 are typically connected in series in a daisy-chain to drive the LED matrix with only a few controller ports. Figure 8-1 shows a typical application diagram with two LP5891 devices stackable connection to drive 32 × 32 RGB LED pixels.

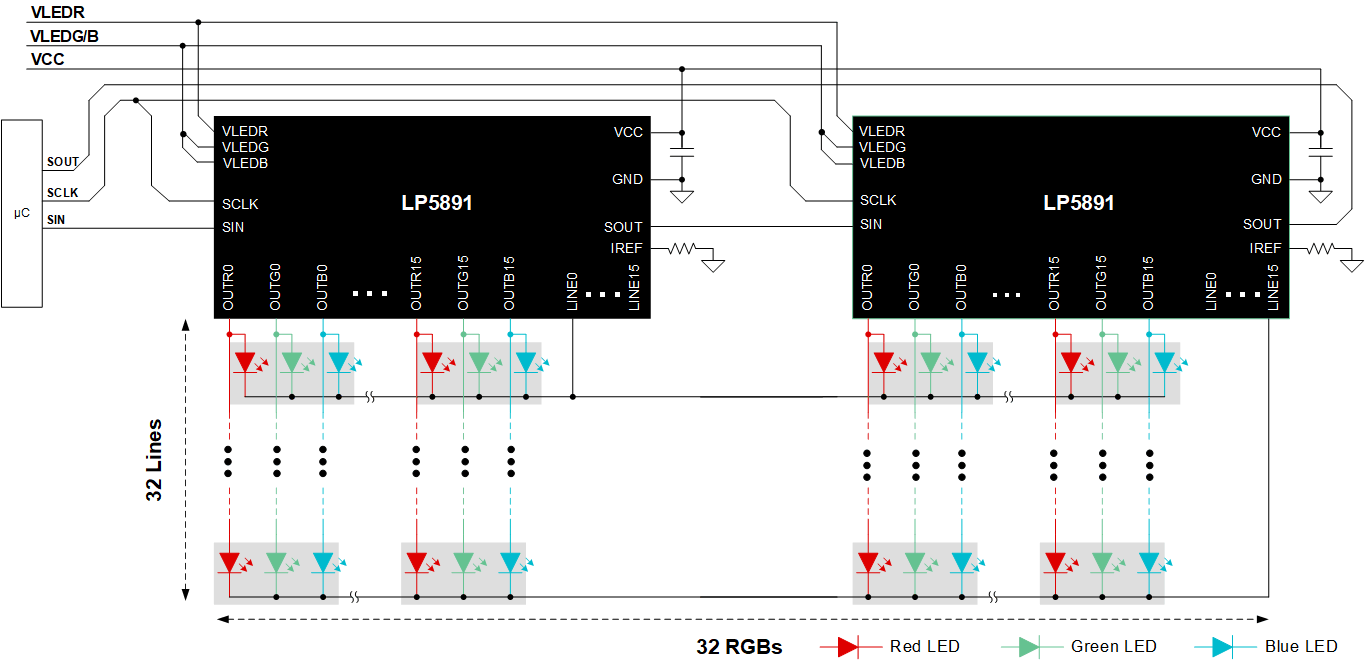

Figure 8-1 LP5891 with Dual Devices Stackable
Connection
