7.7 Switching Characteristics
At VCC = VR = 2.8 V, VG/B = 3.8V and TA = –40°C to +85°C; Typical values
are at TA = 25°C (unless otherwise specified)
| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| tr | Rise time (SOUT) | VCC = 3.3 V, CSOUT = 30 pF | 2 | 10 | ns | |
| tf | Fall time (SOUT) | VCC = 3.3 V, CSOUT = 30 pF | 2 | 10 | ns | |
| tpd(0) | Propagation delay | SCLK↑ to SOUT↑↓, full temperature, CSOUT = 30 pF | 3.5 | 14.2 | ns | |

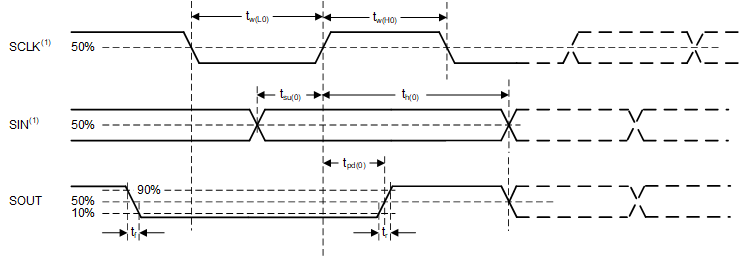

Figure 7-1 Timing and Switching Diagram
(1). Input pulse rise and fall time is 2 ns
typically.
