5 Pin Configuration and Functions

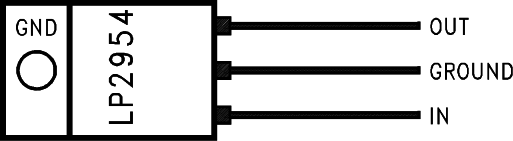

NDE Package
3-Pin TO-220
Front View

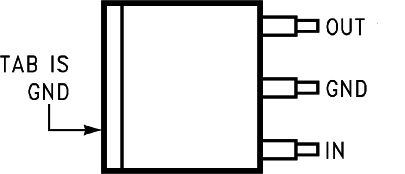

KTT Package
3-Pin DDPAK/TO-263
Front View
D Package
8-Pin SOIC
Top
Pin Functions
| PIN | I/O | DESCRIPTION | |||
|---|---|---|---|---|---|
| NAME | NDE | KTT | D | ||
| ERROR | — | — | 5 | O | Error output |
| FEEDBACK | — | — | 7 | I | Voltage feedback input |
| IN | 1 | 1 | 8 | I | Unregulated input voltage |
| GND | 2 | 2 | 4 | — | Ground |
| OUT | 3 | 3 | 1 | O | Regulated output voltage. This pin requires an output capacitor to maintain stability. See Detailed Design Procedure for output capacitor details |
| SENSE | — | — | 2 | I | Output voltage sense |
| SHUTDOWN | — | — | 3 | I | Disable device |
| 5V TAP | — | — | 6 | O | Internal resistor divider |
