7 Typical Characteristics (PVIN = VIN = 12 V)
The electrical characteristic data has been developed from actual products tested at 25°C. This data is considered typical for the converter. Applies to Figure 1, Figure 2, and Figure 3. The temperature derating curves represent the conditions at which internal components are at or below the manufacturer's maximum operating temperatures. Derating limits apply to devices soldered directly to a 100-mm × 100-mm, 4-layer PCB with 2-oz. copper. Applies to Figure 4.

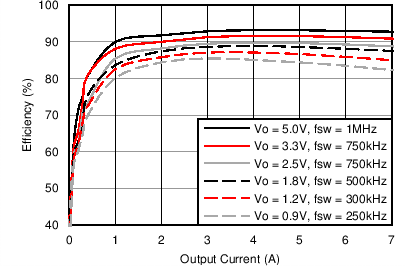

Figure 1. Efficiency versus Output Current

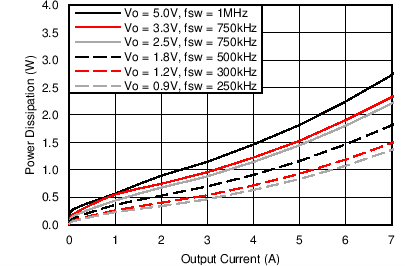

Figure 3. Power Dissipation versus Output Current

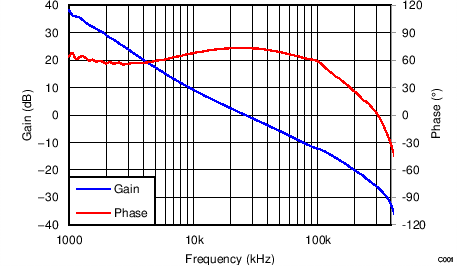

Figure 5. VOUT = 1.8 V, IOUT = 7 A, COUT = 200 µF Ceramic, fSW = 500 kHz

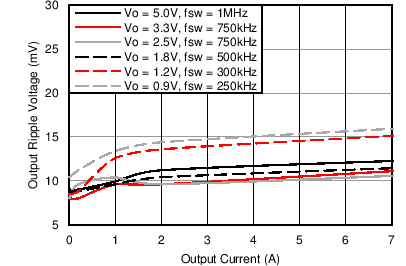

Figure 2. Voltage Ripple versus Output Current

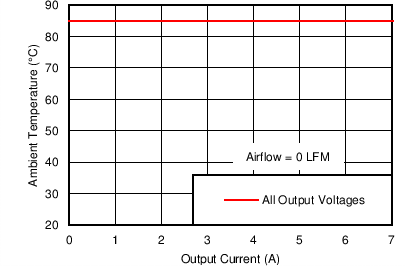

Figure 4. Safe Operating Area
