8.2.3.5 VOUT = 5.0 V
Figure 68. Typical Applications Circuit

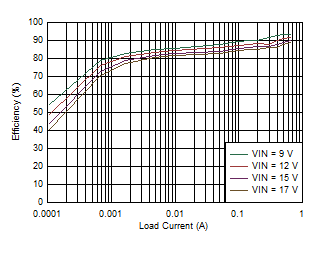

Figure 70. Efficiency VOUT = 5.0 V

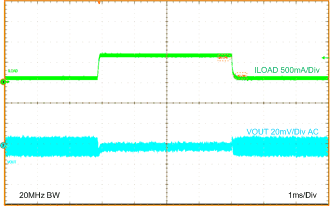

Figure 72. Load Transient VOUT = 5.0 V

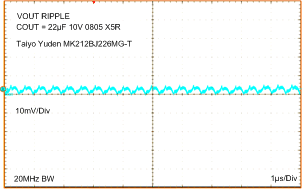

Figure 74. 20 MHz Oscilloscope Bandwidth
Output Voltage Ripple VOUT = 5.0 V

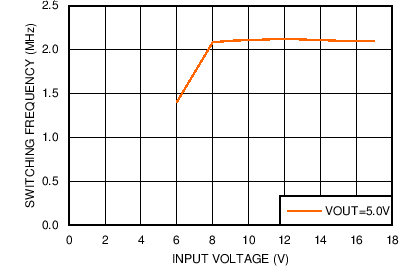

Figure 76. Typical Switching Frequency at 650 mA Load VOUT = 5.0 V

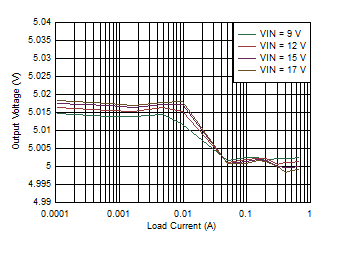

Figure 78. Line and Load Regulation VOUT = 5.0 V
Figure 69. External Component Values
(VOUT = 5.0V)

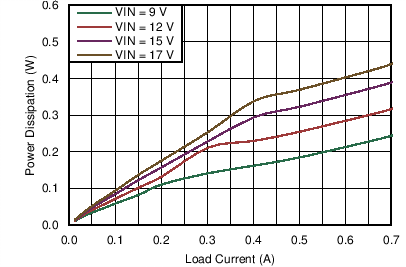

Figure 71. Power Dissipation VOUT = 5.0 V

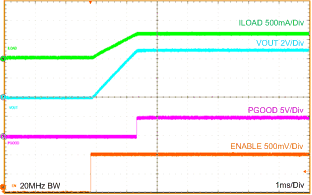

Figure 73. Startup VOUT = 5.0 V

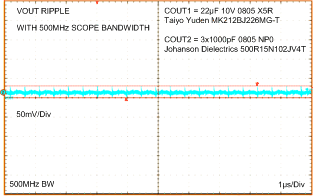

Figure 75. 500 MHz Oscilloscope Bandwidth, 3x1000 pF additional output capacitance
Output Voltage Ripple and HF Noise VOUT = 5.0 V
Figure 77. Typical Current Limit VOUT = 5.0 V, TA = 85 °C

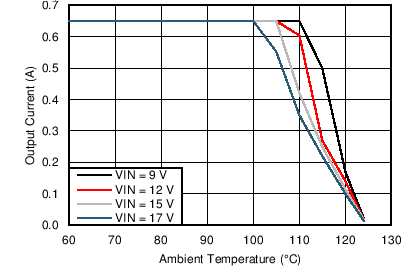

Figure 79. Thermal Derating for θJA = 47ºC/W, VOUT = 5.0 V
