6 Pin Configuration and Functions
DCK Package
5-Pin SOT (SC70)
Top View

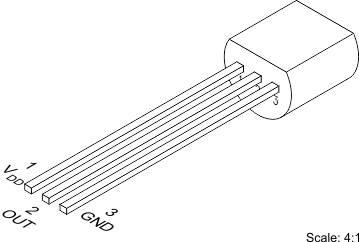

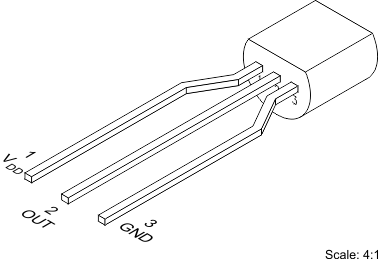

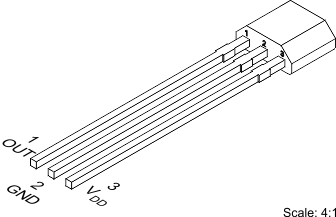

LP Package
3-Pin TO-92
(Top View)
Pin Functions
| PIN | TYPE | DESCRIPTION | ||||
|---|---|---|---|---|---|---|
| NAME | SOT (SC70) | TO-92 | TO-92S | EQUIVALENT CIRCUIT | FUNCTION | |
| GND | 2(1) | 3 | 2 | Ground | N/A | Power Supply Ground |
| OUT | 3 | 2 | 1 | Analog Output |
 |
Outputs a voltage that is inversely proportional to temperature |
| VDD | 1, 4, 5 | 1 | 3 | Power | N/A | Positive Supply Voltage |
(1) Direct connection to the back side of the die
