11 Layout
11.1 Layout Guidelines
The LMT85-Q1 is extremely simple to layout. If a power-supply bypass capacitor is used, it should be connected as shown in the Layout Example
11.2 Layout Example

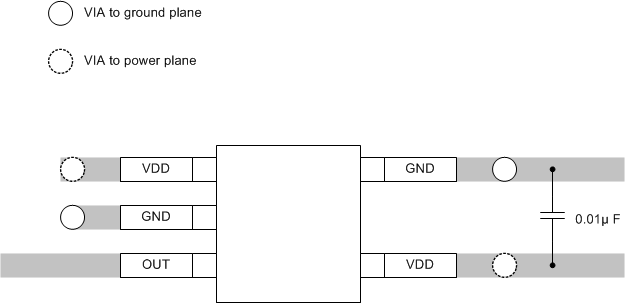

Figure 19. SC70 Package Recommended Layout
