Using Electrical Characteristics - TO-92/LPG Pulse Count to Temperature LUT
VP – VN = 2.15 V

Figure 2. Accuracy vs LMT01 Junction Temperature

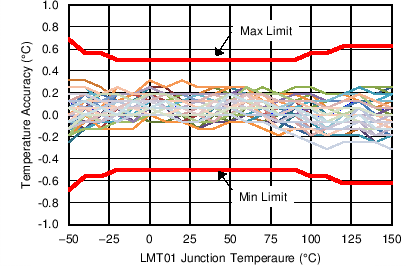

Using Electrical Characteristics - TO-92/LPG Pulse Count to Temperature LUT
VP – VN = 2.7 V

Figure 4. Accuracy vs LMT01 Junction Temperature

Using Electrical Characteristics - TO-92/LPG Pulse Count to Temperature LUT
VP – VN = 4 V

Figure 6. Accuracy vs LMT01 Junction Temperature

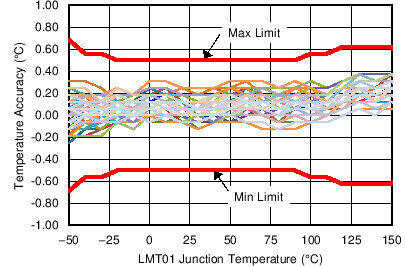

Using Electrical Characteristics - TO-92/LPG Pulse Count to Temperature LUT
VP – VN = 5.5 V

Figure 8. Accuracy vs LMT01 Junction Temperature

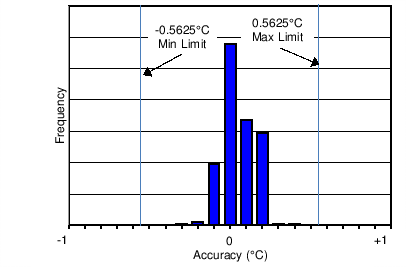

Using Electrical Characteristics - TO-92/LPG Pulse Count to Temperature LUT
VP – VN = 2.15 V to 5.5 V

Figure 10. Accuracy Histogram at 30°C

Using LUT Electrical Characteristics - TO-92/LPG Pulse Count to Temperature LUT
VP – VN = 2.15 V to 5.5 V

Figure 12. Accuracy Histogram at -30°C


Using LUT Electrical Characteristics - TO-92/LPG Pulse Count to Temperature LUT
VP – VN = 2.15 V to 5.5 V

Figure 14. Accuracy Histogram at -50°C

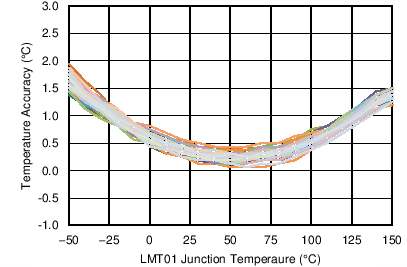

Using Temp = (PC/4096 × 256°C ) – 50°C
VP – VN = 5.5V

Figure 16. Accuracy Using Linear Transfer Function

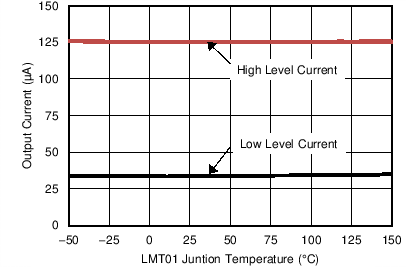

Figure 18. Output Current vs Temperature

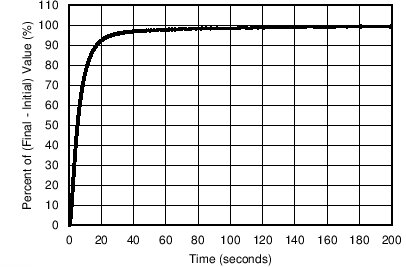

Figure 20. Thermal Response in Moving Air (TO92S/LPG Package)

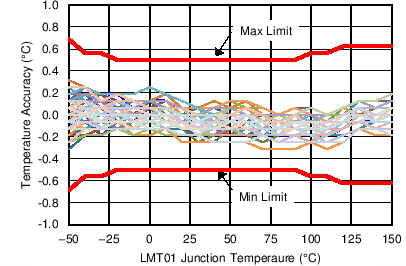

Using Electrical Characteristics - TO-92/LPG Pulse Count to Temperature LUT
VP – VN = 2.4 V

Figure 3. Accuracy vs LMT01 Junction Temperature

Using Electrical Characteristics - TO-92/LPG Pulse Count to Temperature LUT
VP – VN = 3 V

Figure 5. Accuracy vs LMT01 Junction Temperature

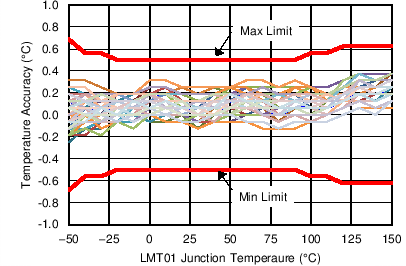

Using Electrical Characteristics - TO-92/LPG Pulse Count to Temperature LUT
VP – VN = 5 V

Figure 7. Accuracy vs LMT01 Junction Temperature

Using Electrical Characteristics - TO-92/LPG Pulse Count to Temperature LUT
VP – VN = 2.15 V to 5.5 V

Figure 9. Accuracy Histogram at 150°C

Using Electrical Characteristics - TO-92/LPG Pulse Count to Temperature LUT
VP – VN = 2.15 V to 5.5 V

Figure 11. Accuracy Histogram at –20°C

Using Electrical Characteristics - TO-92/LPG Pulse Count to Temperature LUT
VP – VN = 2.15 V to 5.5 V

Figure 13. Accuracy Histogram at -40°C

Figure 15. Accuracy Using Linear Transfer Function


T_A = 30°C

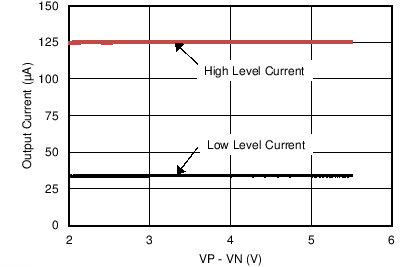

Figure 17. Output Current vs VP-VN Voltage

Figure 19. Thermal Response in Still Air (TO92S/LPG Package)

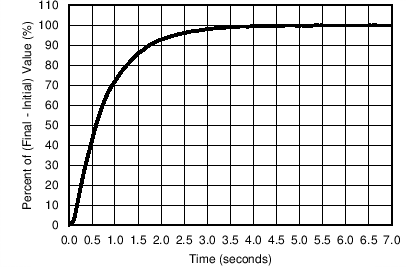

Figure 21. Thermal Response in Stirred Oil (TO92S/LPG Package)
