7.9 Typical Characteristics
Unless otherwise specified the following conditions apply: VIN = 12 V, TA = 25°C. Specified temperatures are ambient.

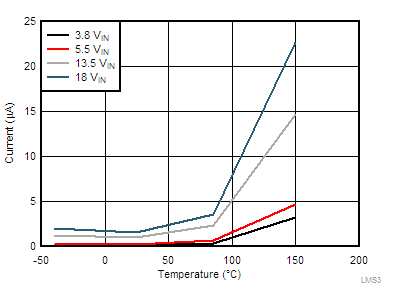

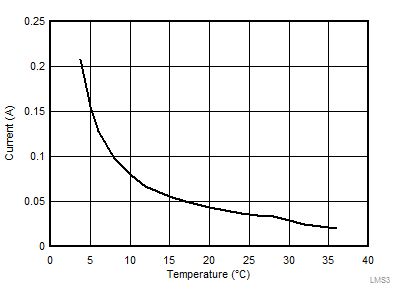

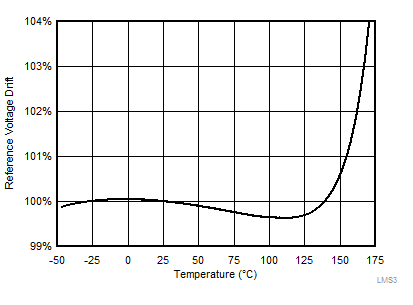

| VIN = 12 V |
| VIN = 12 V |
| VIN = 12 V |
Figure 7-7 RESET Threshold Fixed 5-V Output

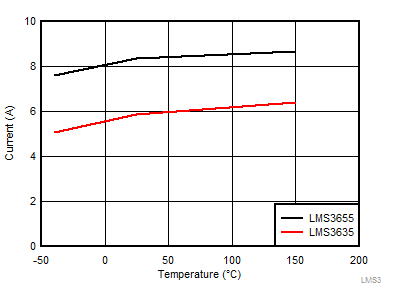

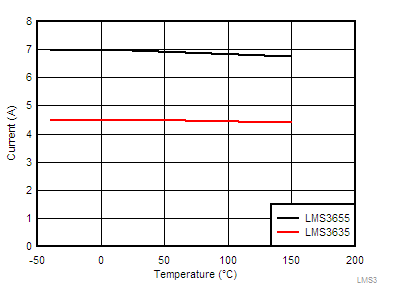

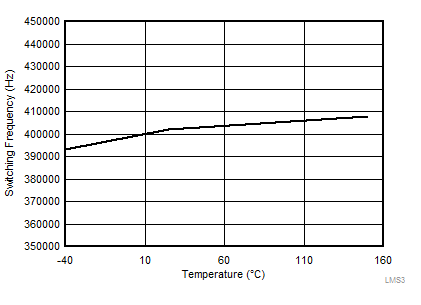

| VIN = 12 V |
| VIN = 12V |
| VIN = 12 V |

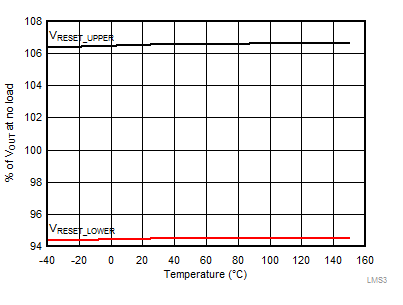

Figure 7-8 RESET Threshold as Percentage of Output Voltage
