7.8 Typical Characteristics
Unless otherwise specified the following conditions apply: TA = 25°C. VIN = 24 V.

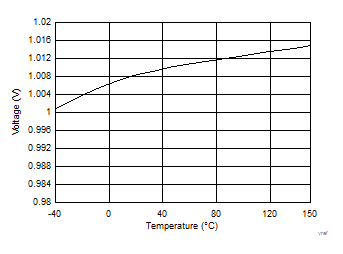

| VFB = 1 V | ||
| VIN = 24 V |

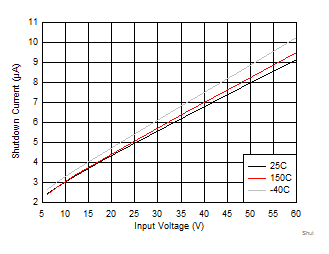

| EN = 0 V | ||
| VIN = 24 V |

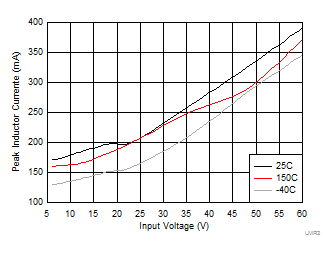

| IOUT = 0 A | VOUT = 3.3 V | |
| ƒSW = 1000 kHz |
