Unless otherwise specified the following conditions apply: VIN = 12 V, TA = 25°C. The circuit is shown in Figure 9-31, with the appropriate BOM from Table 9-3 or Table 9-4.
| VOUT = 5 V | 400 kHz | DDA Package |
| VOUT = 5 V | 1.4 MHz | DDA Package |
| VOUT = 5
V |
2.1
MHz |
DDA
Package |

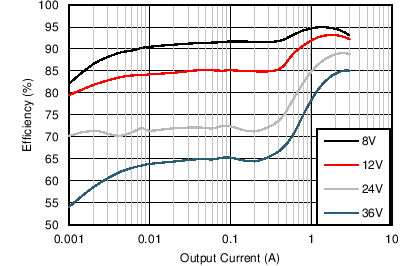

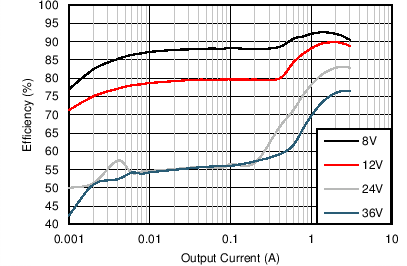

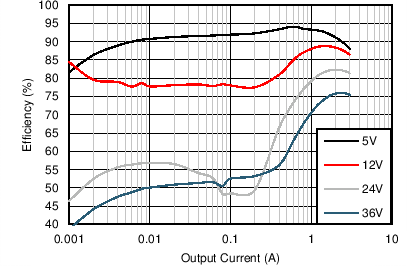

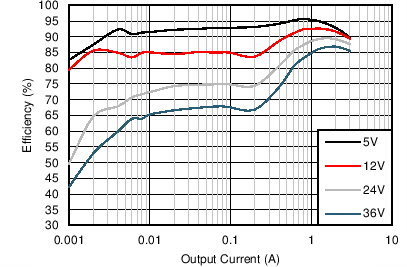

Figure 9-11 Efficiency
| VOUT = 5
V |
400
kHz |
RNX
Package |

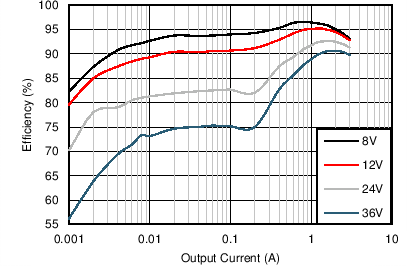

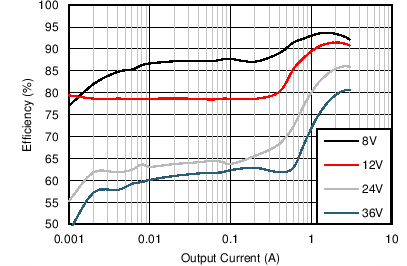

Figure 9-13 Efficiency
| VOUT = 5
V |
1.4
MHz |
RNX
Package |

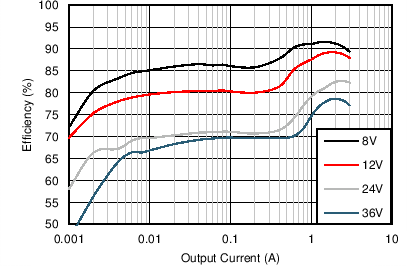

Figure 9-15 Efficiency
| VOUT = 5
V |
2.1
MHz |
RNX
Package |

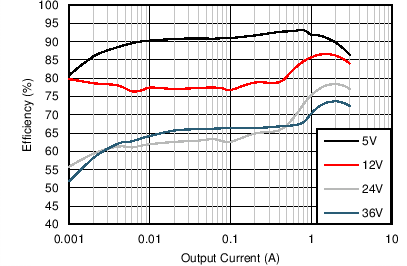

Figure 9-17 Efficiency

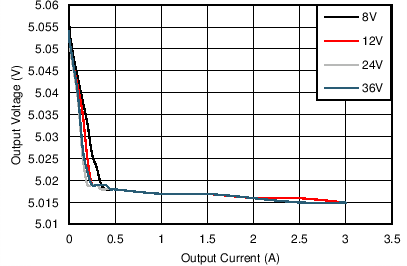

Figure 9-19 Line and Load Regulation
Figure 9-21 Mode Change Thresholds
| VIN = 12 V |
|
VOUT = 5
V |
| tf = tr
= 2 μs |
IOUT = 0 A to 3 A |

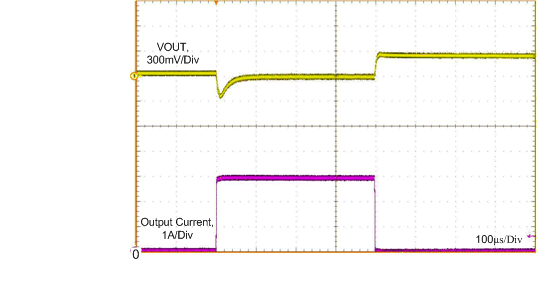

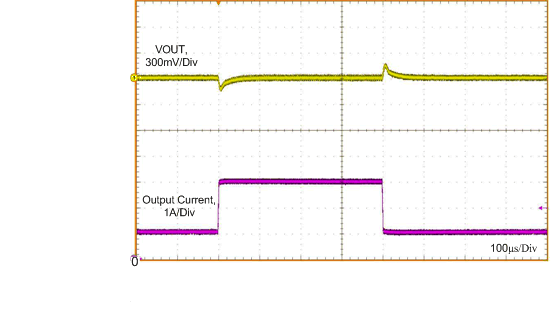

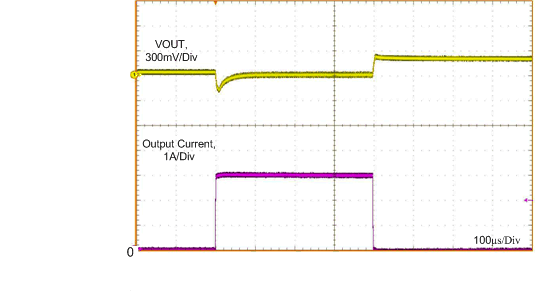

Figure 9-23 Load Transient

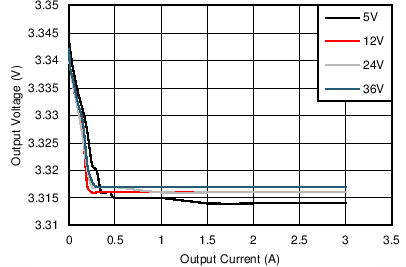

Figure 9-25 Line and Load Regulation
| VOUT = 3.3
V |
?SW = 400
kHz |
|

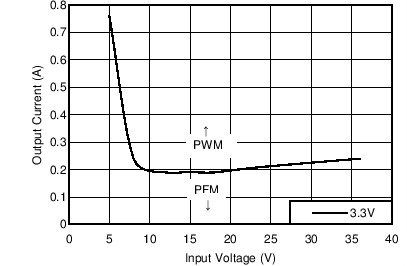

Figure 9-27 Mode Change Thresholds
| VIN = 12
V |
|
VOUT = 3.3
V |
| tf =
tr = 2 μs |
IOUT = 0 A to 3 A |
Figure 9-29 Load Transient
| VOUT = 3.3 V | 400 kHz | DDA Package |
| VOUT = 3.3 V | 1.4 MHz | DDA Package |
| VOUT = 3.3
V |
2.1 MHz |
DDA Package |

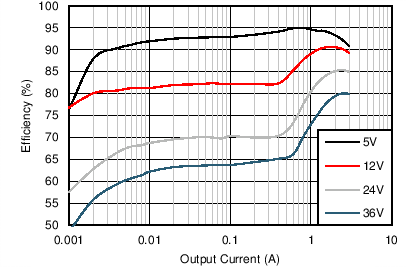

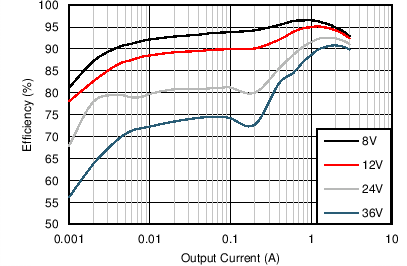

Figure 9-12 Efficiency
| VOUT = 3.3
V |
400
kHz |
RNX
Package |

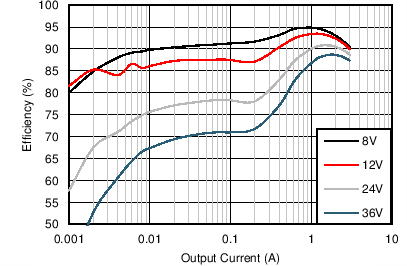

Figure 9-14 Efficiency
| VOUT = 3.3
V |
1.4
MHz |
RNX
Package |
Figure 9-16 Efficiency
| VOUT = 3.3
V |
2.1 MHz |
RNX Package |
Figure 9-18 Efficiency
| VOUT = 5
V |
IOUT = 0
A |
RFBT = 1
MΩ |

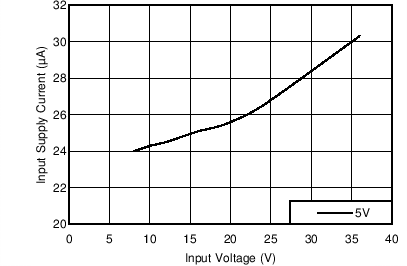

Figure 9-20 Input Supply Current

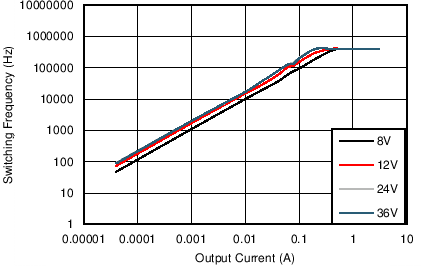

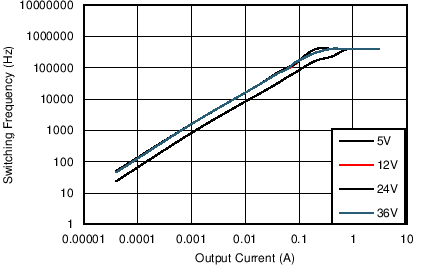

Figure 9-22 Switching Frequency versus Output Current
| VIN = 12 V |
|
VOUT = 5
V |
| tf = tr
= 2 μs |
IOUT = 1 A to 3 A |
Figure 9-24 Load Transient
| VOUT = 3.3
V |
IOUT = 0
A |
RFBT = 1
MΩ |

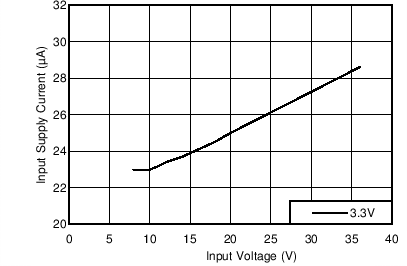

Figure 9-26 Input Supply Current
| VOUT = 3.3
V |
?SW = 400
kHz |
|
Figure 9-28 Switching Frequency versus Output Current
| VIN = 12 V |
VOUT =
3.3V |
IOUT = 1 A to 3
A |
| tf = tr = 2 μs |
|
Figure 9-30 Load Transient

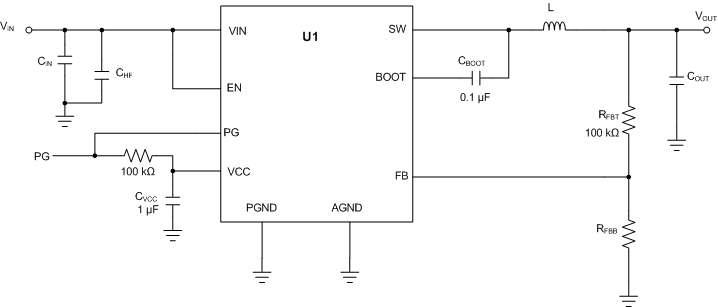

Figure 9-31 Circuit for Application CurvesThe values in this table were selected to enhance certain performance criteria and
may not represent typical values.
Table 9-3 BOM for Typical Application Curves DDA
Package| VOUT | FREQUENCY | RFBB | COUT | CIN + CHF | L | U1 |
|---|
| 3.3 V | 400 kHz | 43.3 kΩ | 4 × 22 μF | 1 × 10 μF + 1 × 220 nF | 6.8 μH, 14 mΩ | LMR33630ADDA |
| 3.3 V | 1400 KHz | 43.3 kΩ | 4 × 22 μF | 1 × 10 μF + 1 × 220 nF | 2.2 μH, 11.4 mΩ | LMR33630BDDA |
| 3.3 V | 2100 kHz | 43.3 kΩ | 4 × 22 μF | 1 × 10 μF + 1 × 220 nF | 1.2 μH, 16 mΩ | LMR33630CDDA |
| 5 V | 400 kHz | 24.9 kΩ | 4 × 22 μF | 1 × 10 μF + 1 × 220 nF | 8 μH, 14 mΩ | LMR33630ADDA |
| 5 V | 1400 KHz | 24.9 kΩ | 4 × 22 μF | 1 × 10 μF + 1 × 220 nF | 2.2 μH, 11.4 mΩ | LMR33630BDDA |
| 5 V | 2100 kHz | 24.9 kΩ | 4 × 22 μF | 1 × 10 μF + 1 × 220 nF | 1.5 μH, 8.2 mΩ | LMR33630CDDA |
Table 9-4 BOM for Typical Application Curves RNX
Package| VOUT | FREQUENCY | RFBB | COUT | CIN + CHF | L | U1 |
|---|
| 3.3 V | 400 kHz | 43.3 kΩ | 4 × 22 μF | 2 × 4.7 μF + 2 × 100 nF | 6.8 μH, 14 mΩ | LMR33630ARNX |
| 3.3 V | 1400 KHz | 43.3 kΩ | 4 × 22 μF | 2 × 4.7 μF + 2 × 100 nF | 2.2 μH, 11.4 mΩ | LMR33630BRNX |
| 3.3 V | 2100 kHz | 43.3 kΩ | 4 × 22 μF | 2 × 4.7 μF + 2 × 100 nF | 1.2 μH, 7 mΩ | LMR33630CRNX |
| 5 V | 400 kHz | 24.9 kΩ | 4 × 22 μF | 2 × 4.7 μF + 2 × 100 nF | 8 μH, 25 mΩ | LMR33630ARNX |
| 5 V | 1400 KHz | 24.9 kΩ | 4 × 22 μF | 2 × 4.7 μF + 2 × 100 nF | 2.2 μH, 11.4 mΩ | LMR33630BRNX |
| 5 V | 2100 kHz | 24.9 kΩ | 4 × 22 μF | 2 × 4.7 μF + 2 × 100 nF | 1.5 μH, 8.2 mΩ | LMR33630CRNX |
