ZHCSA29F October 2011 – June 2019 LMR24220
PRODUCTION DATA.

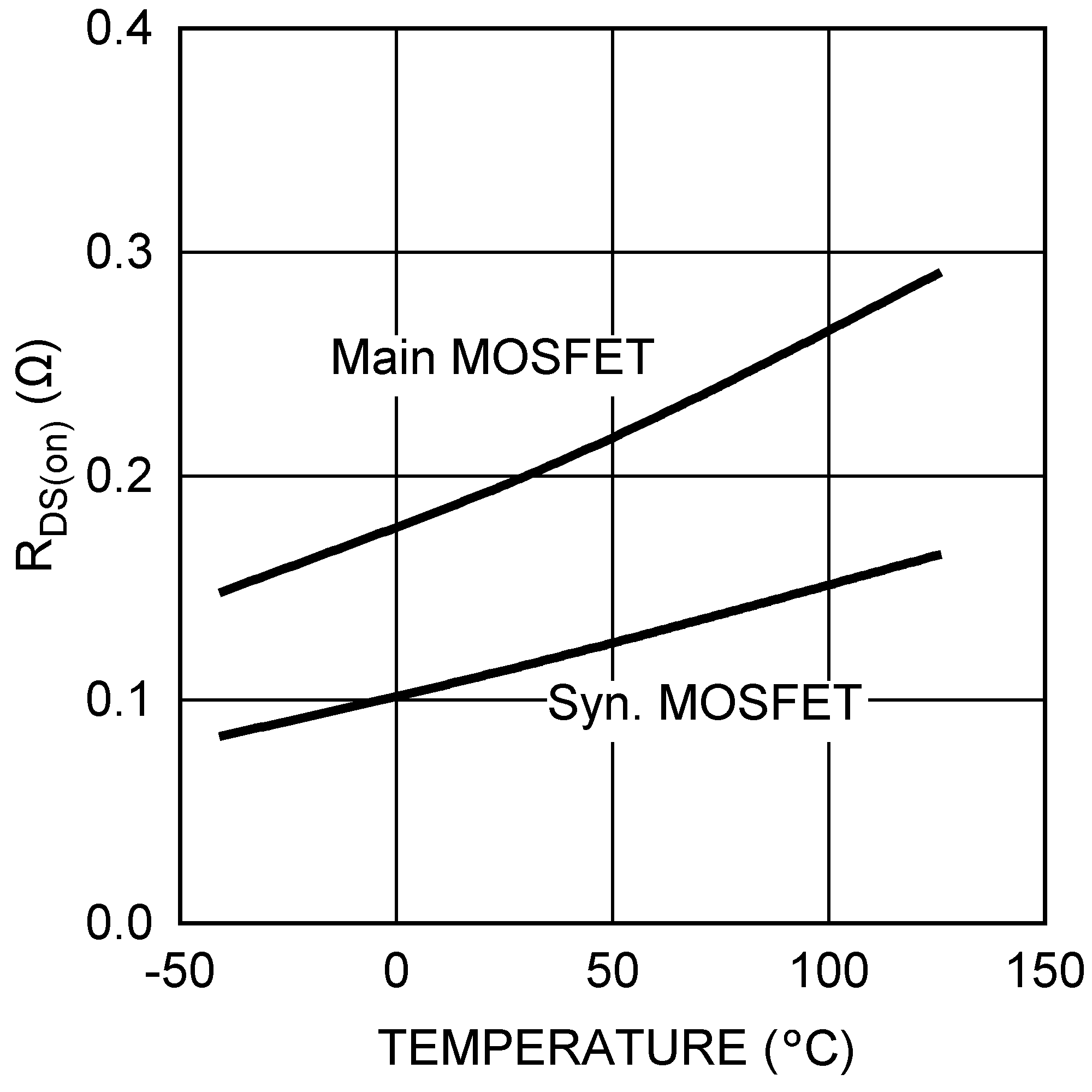

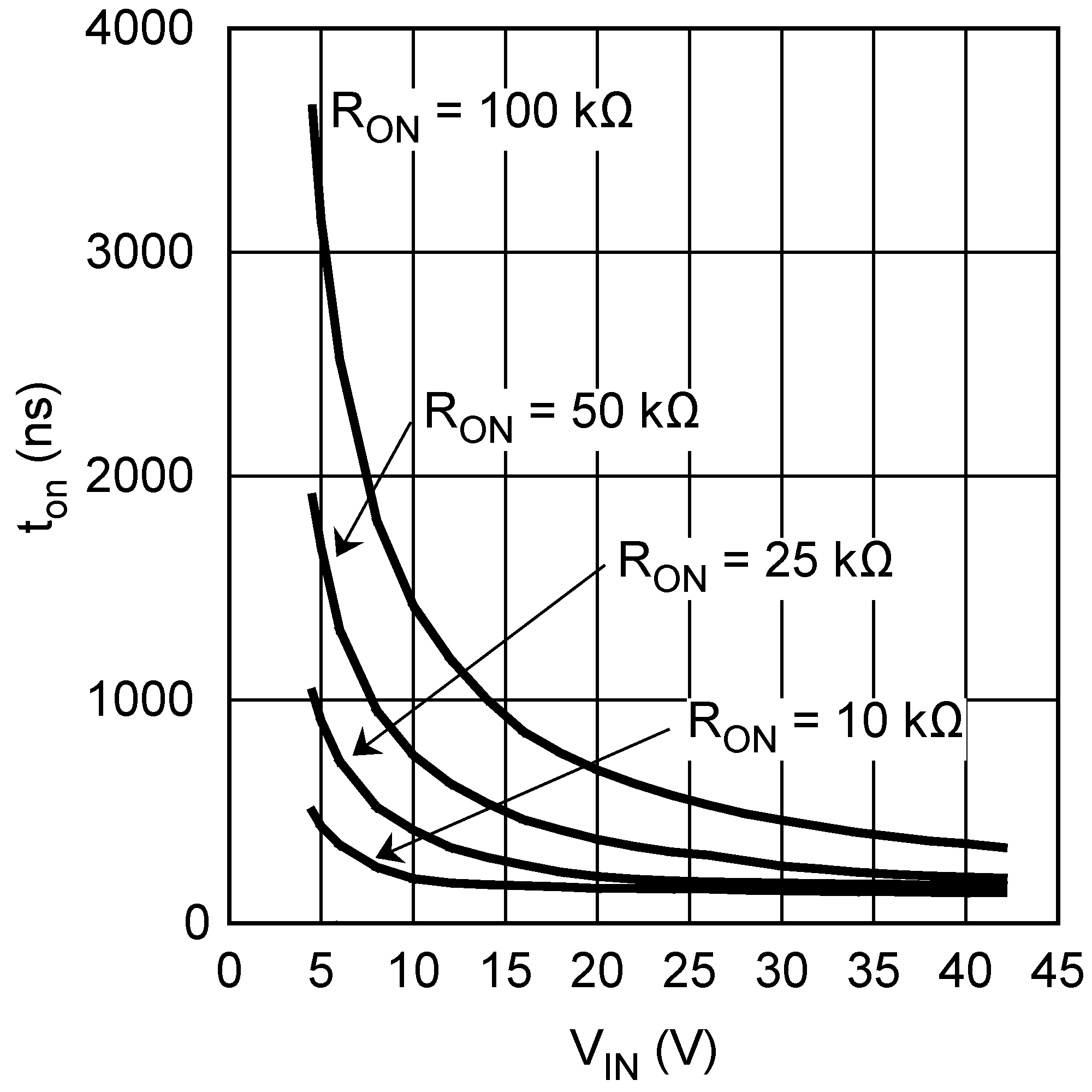

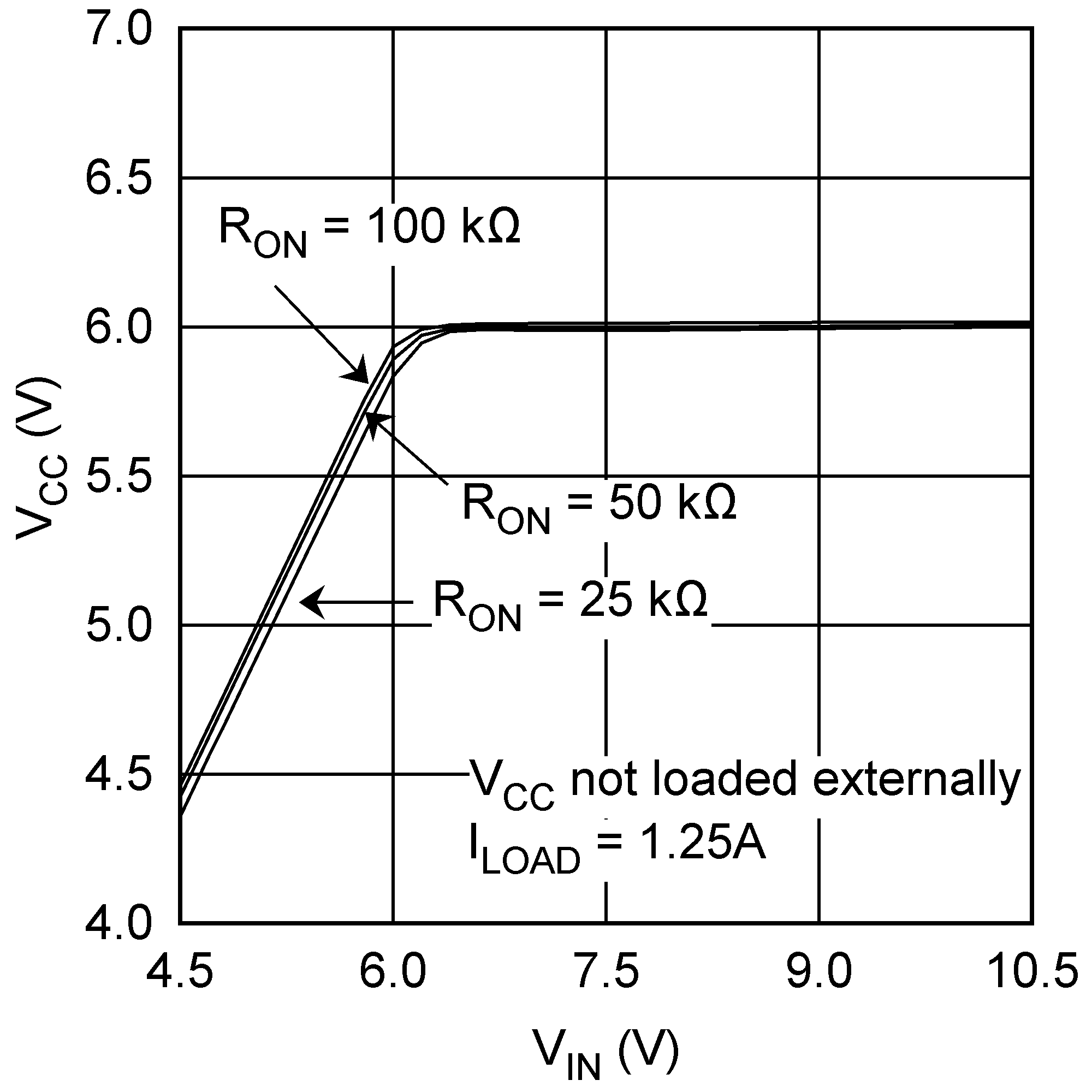

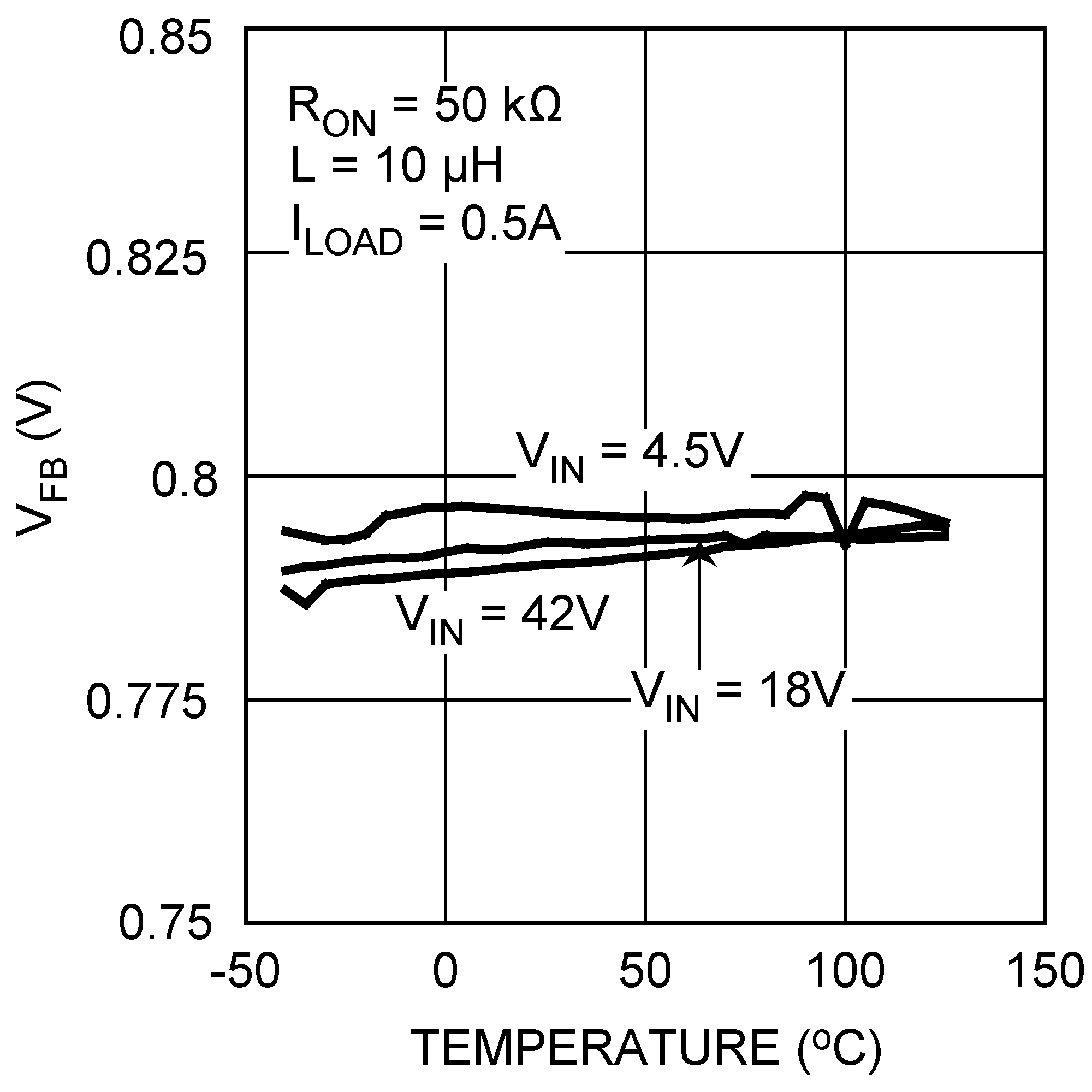

6.4 Typical Characteristics
Unless otherwise specified all curves are taken at VIN = 18 V with the configuration in the typical application circuit forVOUT = 3.3 V (Figure 25) TA = 25°C.
| VOUT = 3.3 V |
| VOUT = 0.8 V |
| VOUT = 3.3 V, 2 A Loaded | ||
| VOUT = 3.3 V, 2 A Loaded | ||
| VOUT = 3.3 V, 0.5 A Loaded | ||
| VOUT = 0.8 V |
| VOUT = 3.3 V |
| VOUT = 0.8 V |
| VOUT = 3.3 V, 2 A Loaded | ||
| VOUT = 3.3 V, 2 A Loaded | ||
| VOUT = 3.3 V, 0.5 A to 2 A Loaded | ||
