10.4 WSON Package

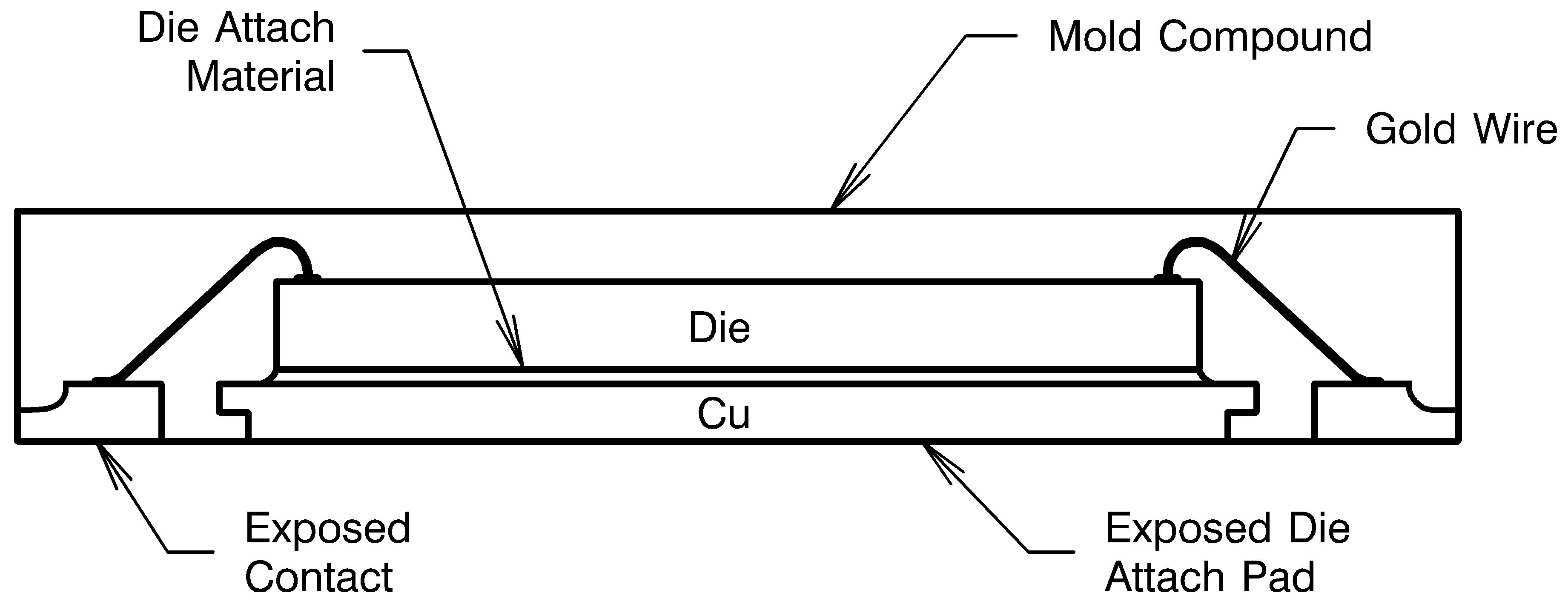

Figure 27. Internal WSON Connection For certain high power applications, the PCB land may be modified to a "dog bone" shape (see ). By increasing the size of ground plane, and adding thermal vias, the RθJA for the application can be reduced.
