When designing with the LMQ664x0, slow rise in output voltage due to recovery from dropout and soft start must be considered as two separate operating conditions, as shown in Figure 8-7 and Figure 8-8. Soft start is triggered by any of the following conditions:
After soft start is triggered, the IC takes the following actions:

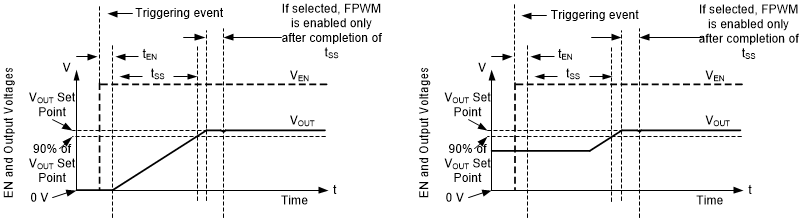

Figure 8-7 Soft Start
with and Without Pre-bias Voltage
