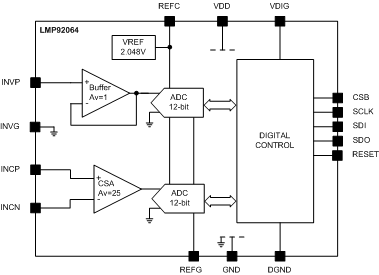

7.3.1 Current Sense Input Channel

The current sensing channel of the LMP92064 has a high impedance differential amplifier followed by a 12-bit analog-to-digital converter. The binary code result of a conversion is stored as a right-justified 16-bit number as shown in Table 1, where the 4 most significant bits are always 0. Due to an offset auto-calibration feature of the current sense channel path, the top 256 codes are clipped at code 3840, denoted by the trailing zeros found in the equivalent binary code of the maximum positive input voltage.

The output data of the current sense channel is accessible on registers 0x0203 and 0x0202.

7.3.2 Current Sense Input Channel Common-Mode and Differential Voltage Range (Dynamic Range Considerations)

The input voltage should be in the range of –0.2 V to 2 V. The input can withstand voltage up to VDD + 0.3 V absolute maximum but the operational range is limited to 2 V. Operation below –0.2 V or above 2 V on either input pin will introduce severe gain errors and nonlinearity.

The maximum differential voltage (defined as the voltage difference between INCP and INCN) for which the part is designed to work is 75 mV. Larger differential or common mode input voltages will not damage the part (as long as the input pins remain between GND – 0.3 V and VDD + 0.3 V), however, exposure for extended periods may affect device reliability. The ADC output code will not roll over and will clip at minimum or maximum scale when the maximum differential voltage is exceeded.

7.3.3 Voltage Sense Input Channel

The voltage sensing channel of the LMP92064 has a high impedance buffer amplifier followed by a 12-bit analog-to-digital converter. The binary code result of a conversion is also stored as a right-justified 16-bit number as shown in Table 2, where the 4 most significant bits are always 0.

The output data of the voltage sense channel is accessible on registers 0x0201 and 0x0200.

7.3.4 Reference

The LMP92064 includes an internal 2.048-V band-gap reference for the ADCs, which eliminates the need of an external reference and reduces component count and board space. The REFC pin is provided to allow bypassing this internal reference for low noise operation. A 1-µF ceramic decoupling capacitor is required between the REFC and REFG pins of the converter. The capacitor should be placed as close as possible to the pins of the device.

7.3.5 Reset

There are two methods to reset the LMP92064. A soft reset is done by setting bit7=1 in the CONFIG_A register. In a soft reset, the SPI state machine and the contents of registers 0x0000 and 0x0001 are unaffected.

A hardware reset is done by connecting the RESET pin of the LMP92064 to VDIG. If the pin is driven by a switch or a GPIO, TI recommends adding an external RC filter to prevent reset glitches.

7.3.6 Device Power-Up Sequence

The sources providing power to the analog and digital supply pins of the LMP92064, VDD and VDIG, must ramp up at the same time to have a proper power-on reset (POR) event. The easiest way to achieve it is to tie VDD and VDIG to the same power source using a star configuration.

7.4.1 ADC Operation

The LMP92064 includes two 12-bit ADCs that are continuously running in the background. The device is configured, and data is read, using a four-wire SPI interface: CSB, SCLK, SDO and SDI. The device outputs its data on SDO, and the data for both channels is synchronized such that all data read would be from the same instant in time. New conversion data for both channels will only be made available after all registers are read in descending sequential order (addresses 0x0203-0x0200). All registers must be read otherwise new conversion data will not be available. Three different output data formats are available as detailed in Figure 20, Figure 21 and Figure 22.

Figure 20. Timing Diagram With Byte Read Frames

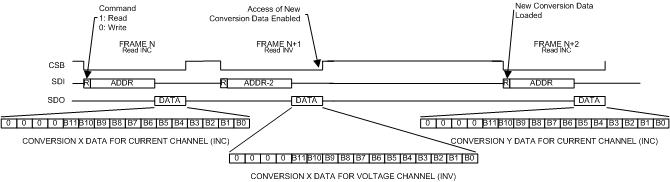

Figure 21. Timing Diagram With Word Read Frames

The register address to read can automatically decrement if the CSB line is kept low longer. For example, to read all the conversion data, keep the CSB line low for 48 SPI clock cycles (16 clocks for command/address, 8 clocks for MSB of current channel, 8 clocks for LSB of current channel, 8 clocks for MSB of voltage channel and 8 clocks for LSB of voltage channel). The read command should start from address 0x0203.

Figure 22. Timing Diagram With All Data Read Frames

Table 3. Register Map

Table 1. CONFIG_A: Interface Configuration A

Table 2. CONFIG_B: Interface Configuration B

Table 3. CHIP_TYPE: Chip Type

Table 4. CHIP_ID: Chip ID LSB

Table 5. CHIP_ID: Chip ID MSB

Table 6. CHIP_REV: Chip Revision

Table 7. MFR_ID: Manufacturer ID LSB

Table 8. MFR_ID: Manufacturer ID MSB

Table 9. REG_UPDATE: Register Update

Table 10. CONFIG_REG: Lmp92064 Specific Configuration Register

Table 11. STATUS: Status Register

Table 12. DATA_VOUT: Voltage Channel Output Data LSB

Table 13. DATA_VOUT: Voltage Channel Output Data MSB

Table 14. DATA_COUT: Current Channel Output Data LSB

Table 15. DATA_COUT: Current Channel Output Data MSB
