6.8 Typical Characteristics
Unless otherwise specified: TA = 25°C, VS= V+– V–, VSENSE= +IN – (–IN), RL = 10 M?.
Figure 6-1 Supply Current vs. Supply Voltage
Figure 6-3 AC PSRR vs. Frequency
Figure 6-5 Gain vs. Frequency

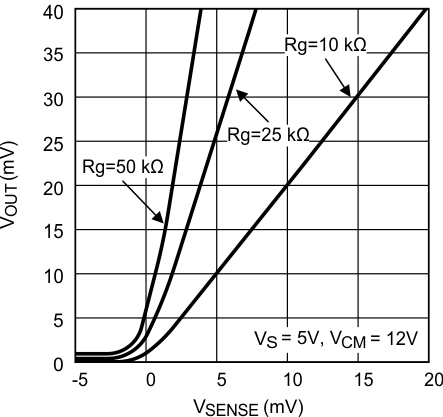

Figure 6-7 Output Voltage vs. VSENSE
Figure 6-9 Large Step Response
Figure 6-11 Settling Time (Rise)
Figure 6-13 Common-Mode Step Response (Rise)

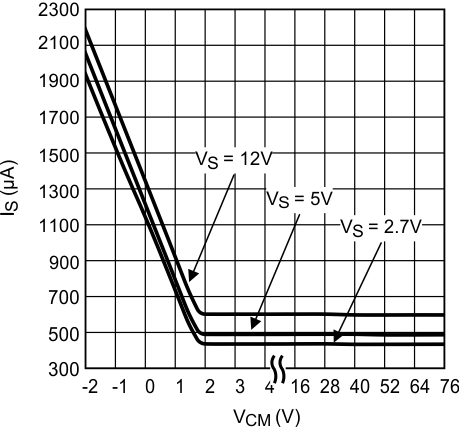

Figure 6-2 Supply Current vs. VCM

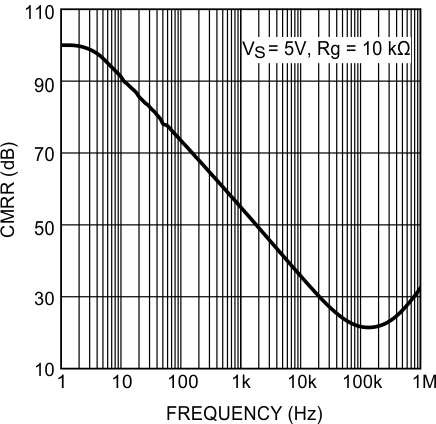

Figure 6-4 AC CMRR vs. Frequency

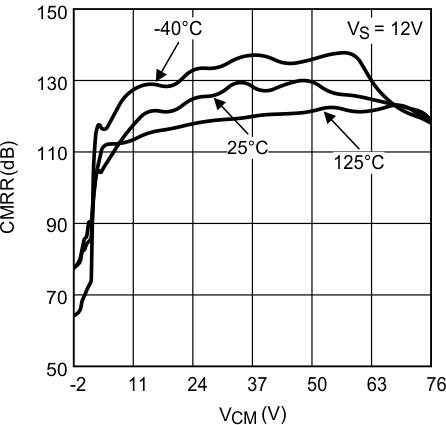

Figure 6-6 CMRR vs. VCM
Figure 6-8 Output Voltage vs. VSENSE (ZOOM Close to 0 V)
Figure 6-10 Small Step Response
Figure 6-12 Settling Time (Fall)
Figure 6-14 Common-Mode Step Response (Fall)
