ZHCSUW0D March 1998 – February 2024 LMC660 , LMC662
PRODUCTION DATA
5.7 Typical Characteristics
at TA = 25°C, VS = ±7.5V, VOUT = mid-supply, RL≥ 1MΩ (unless otherwise specified)

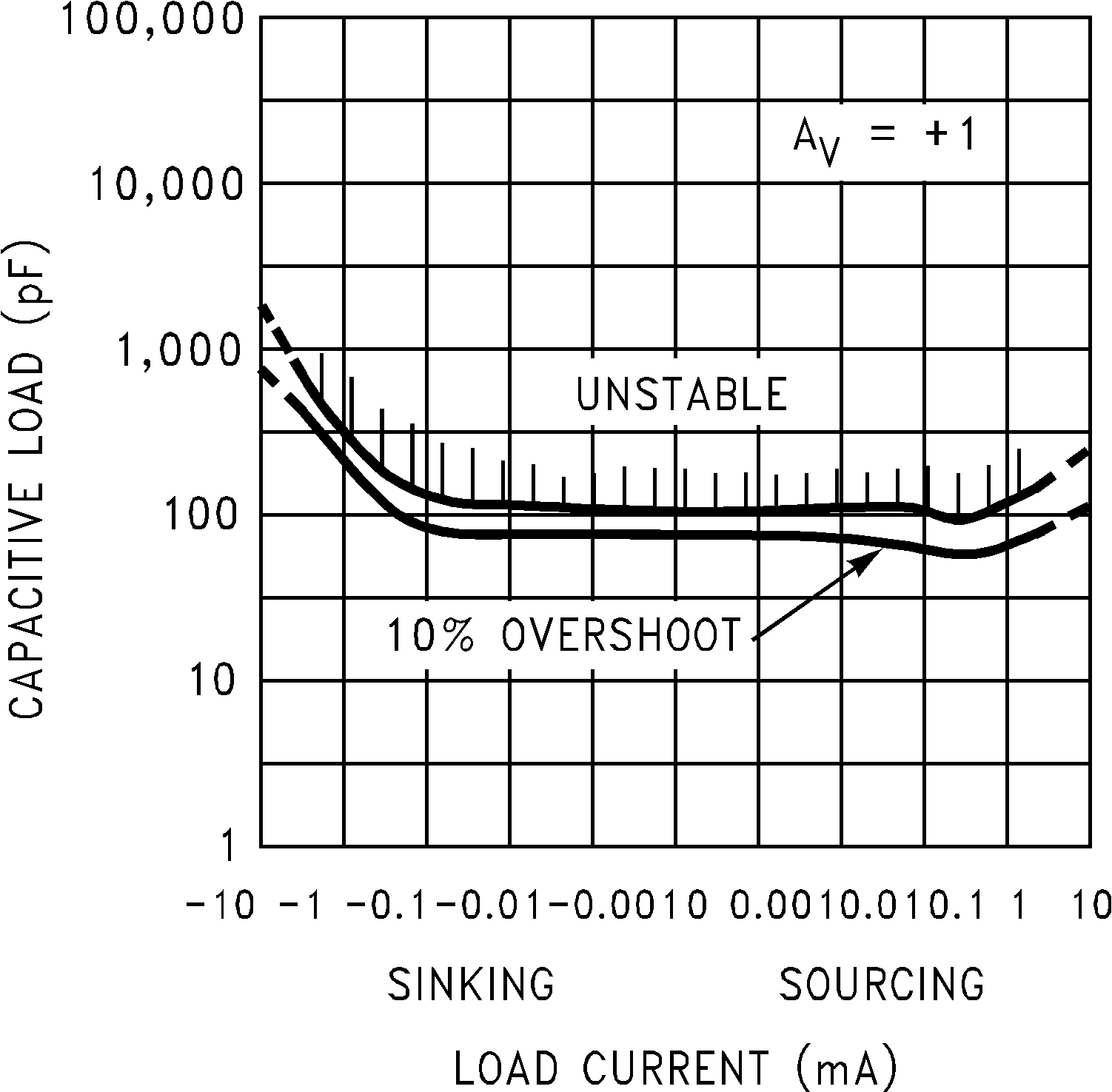

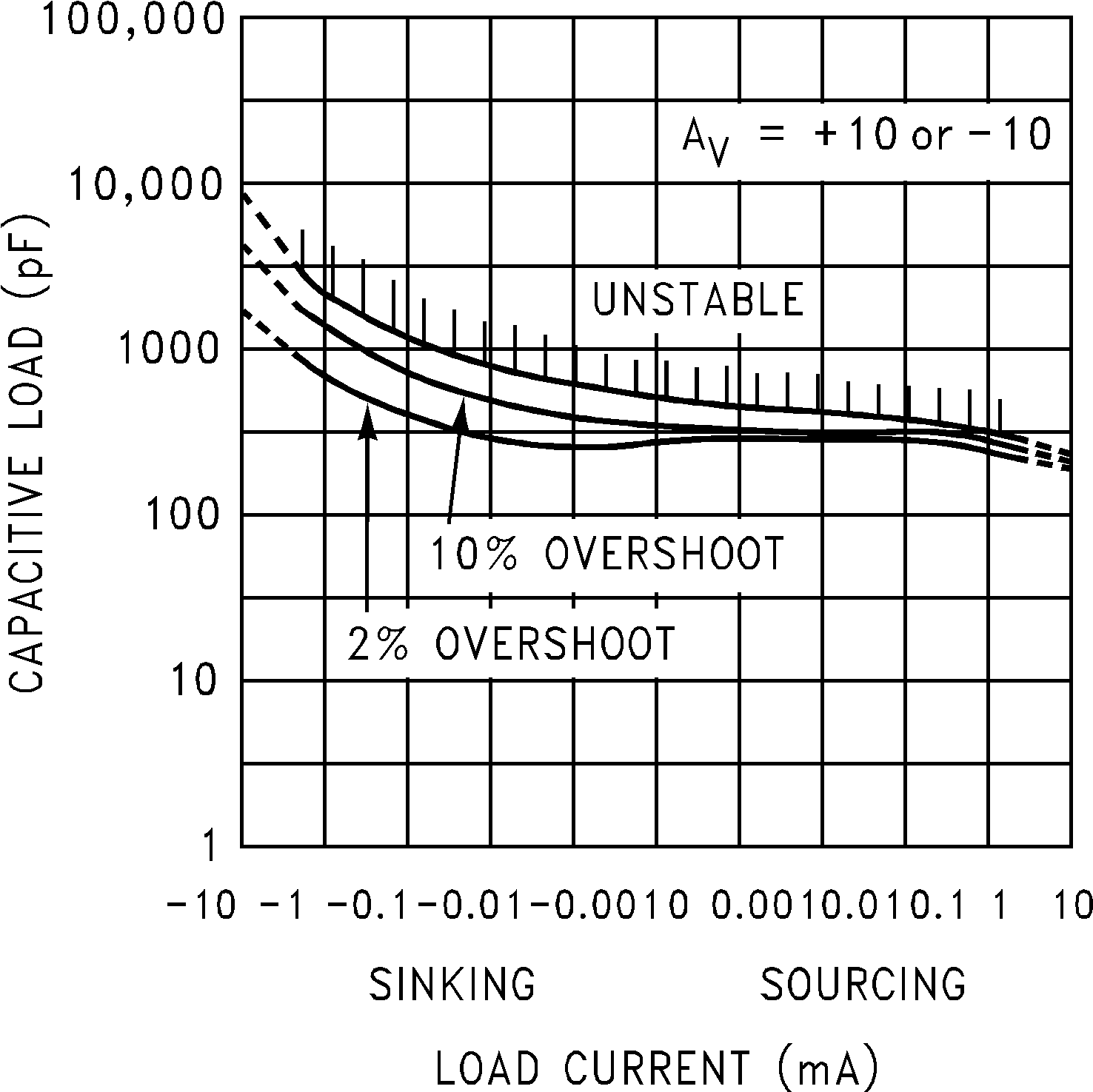

| Avoid resistive loads < 500Ω because of possible instability | ||
| VS = ±2.5V | ||
| Avoid resistive loads < 500Ω because of possible instability | ||
