ZHCSUM4D November 1994 – February 2024 LMC6032 , LMC6034
PRODUCTION DATA

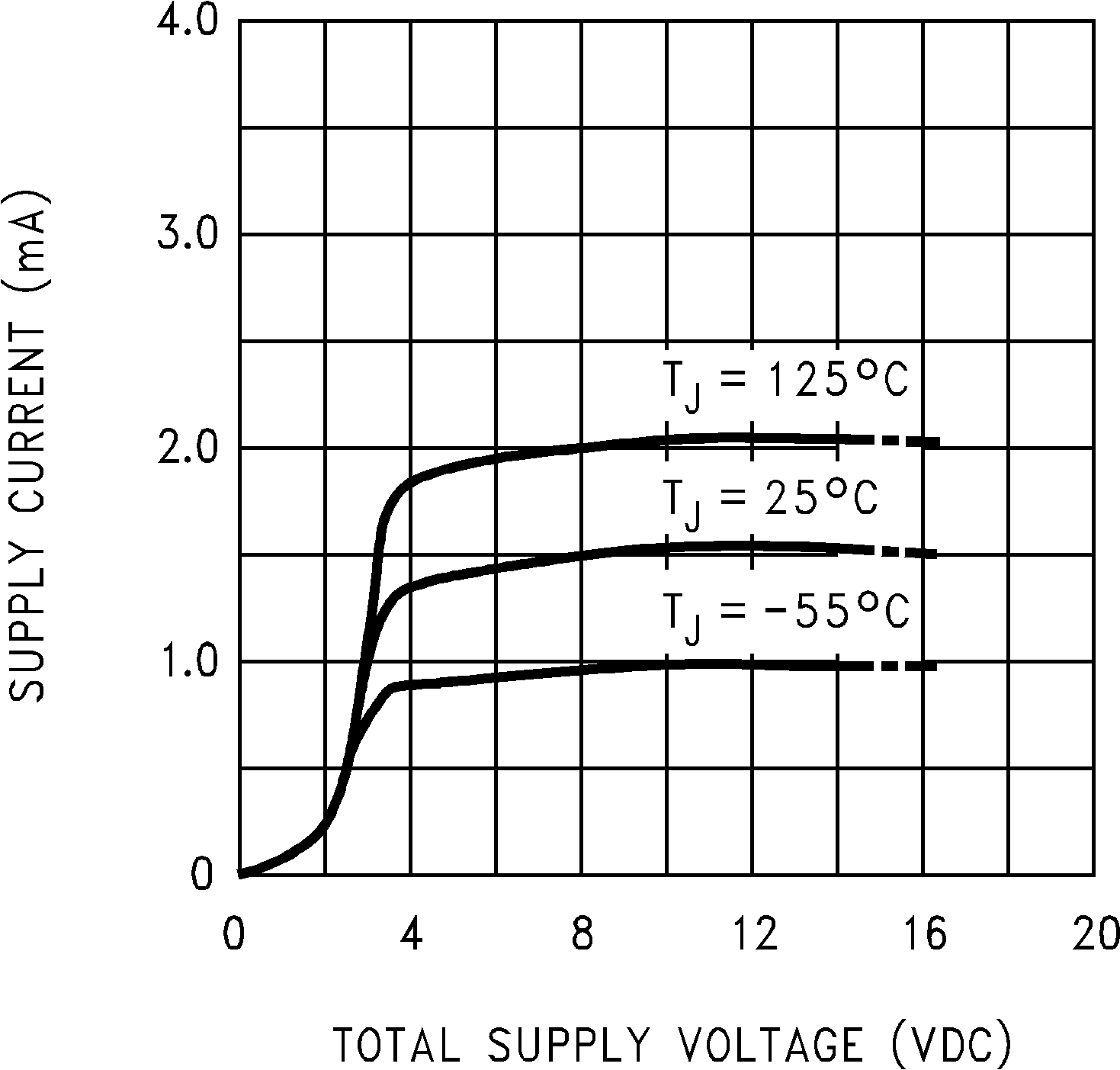

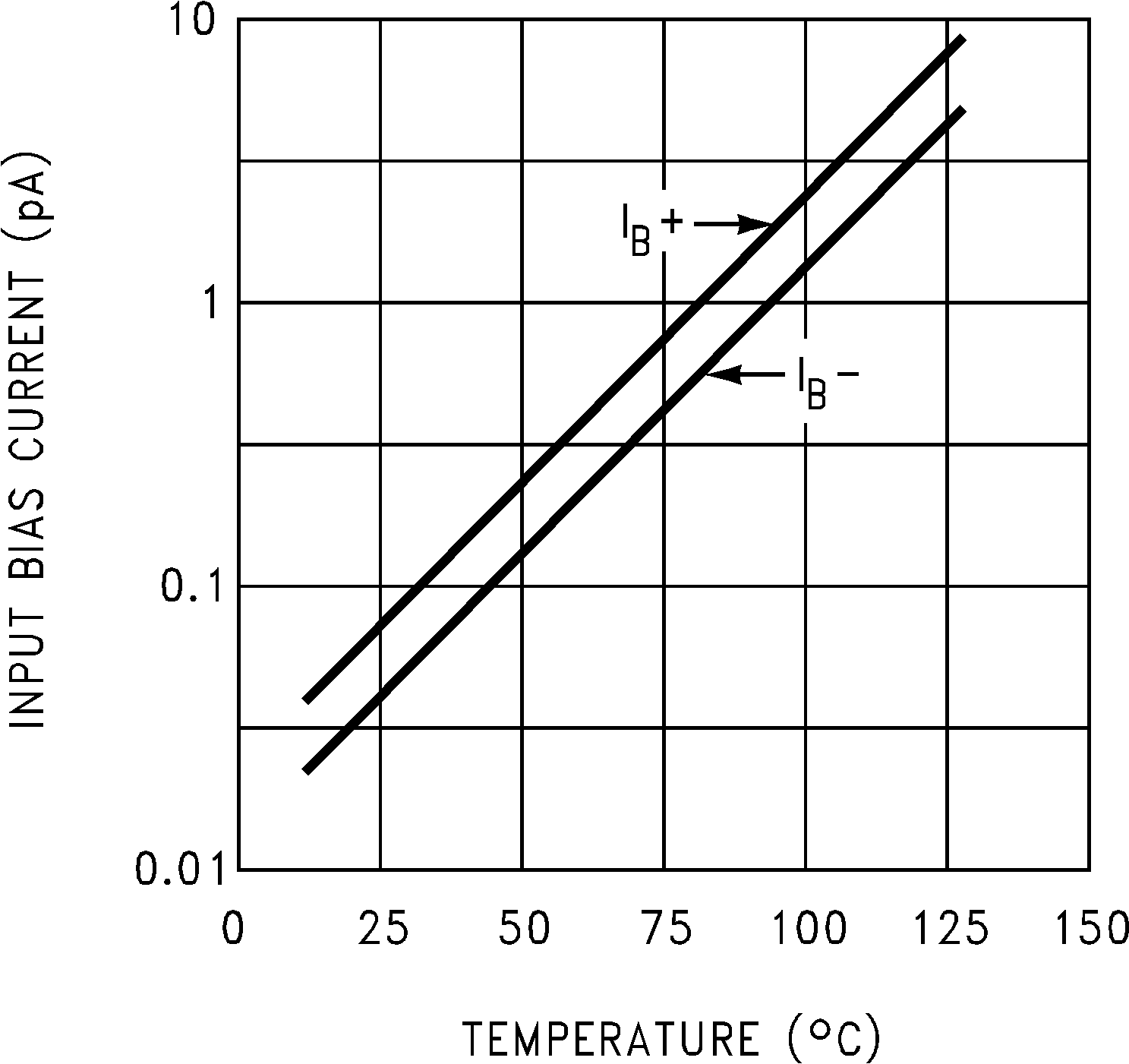

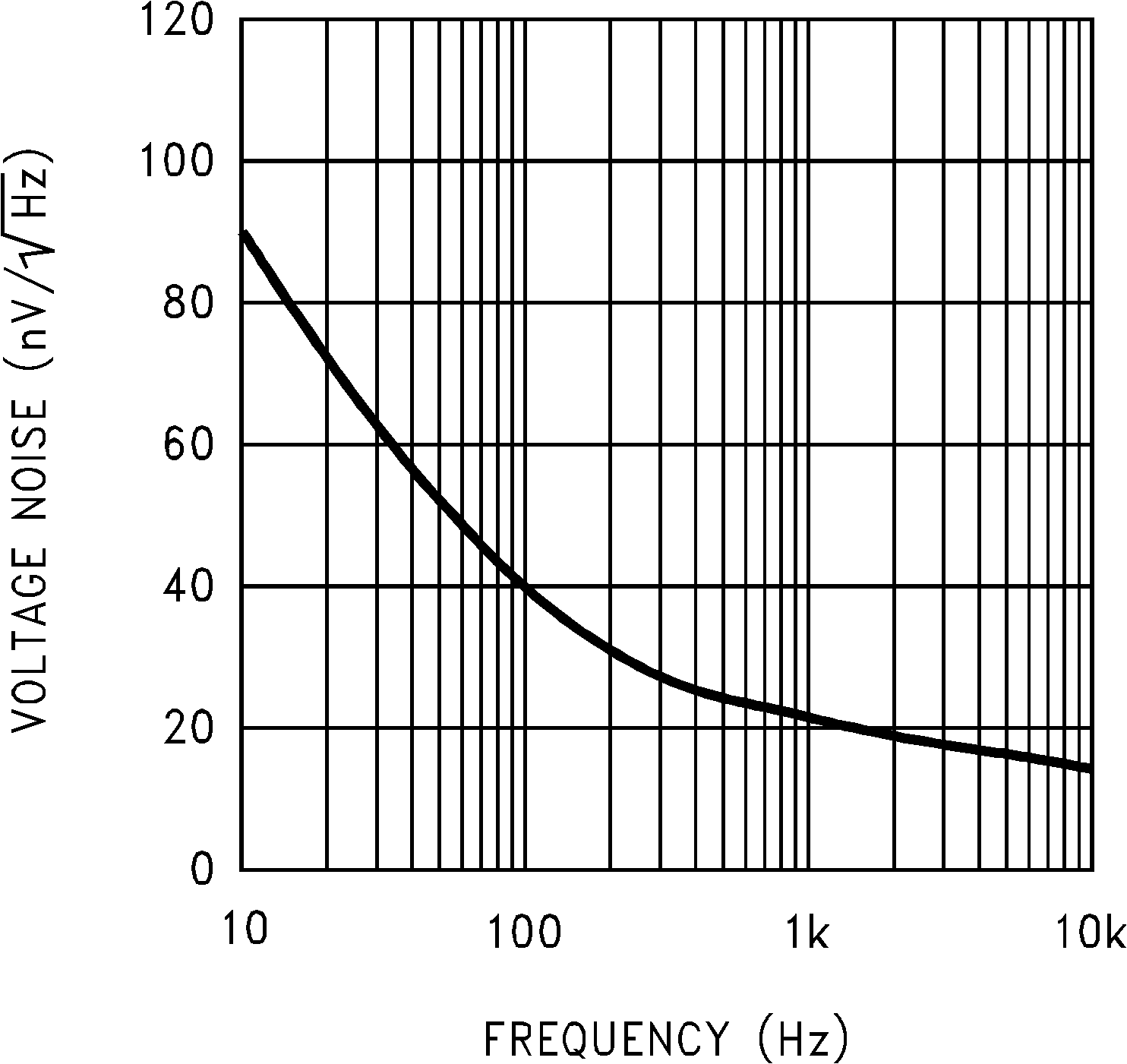

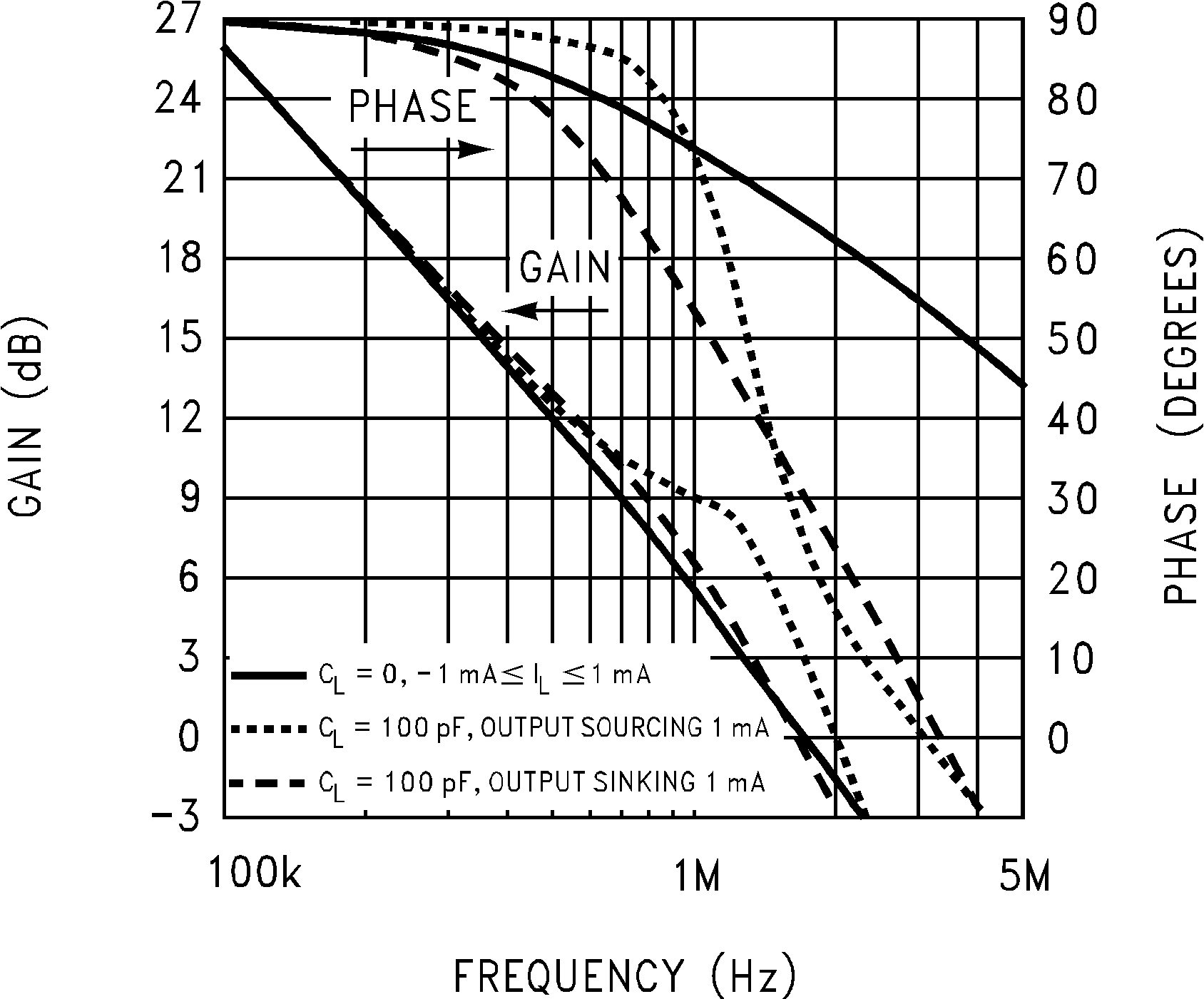

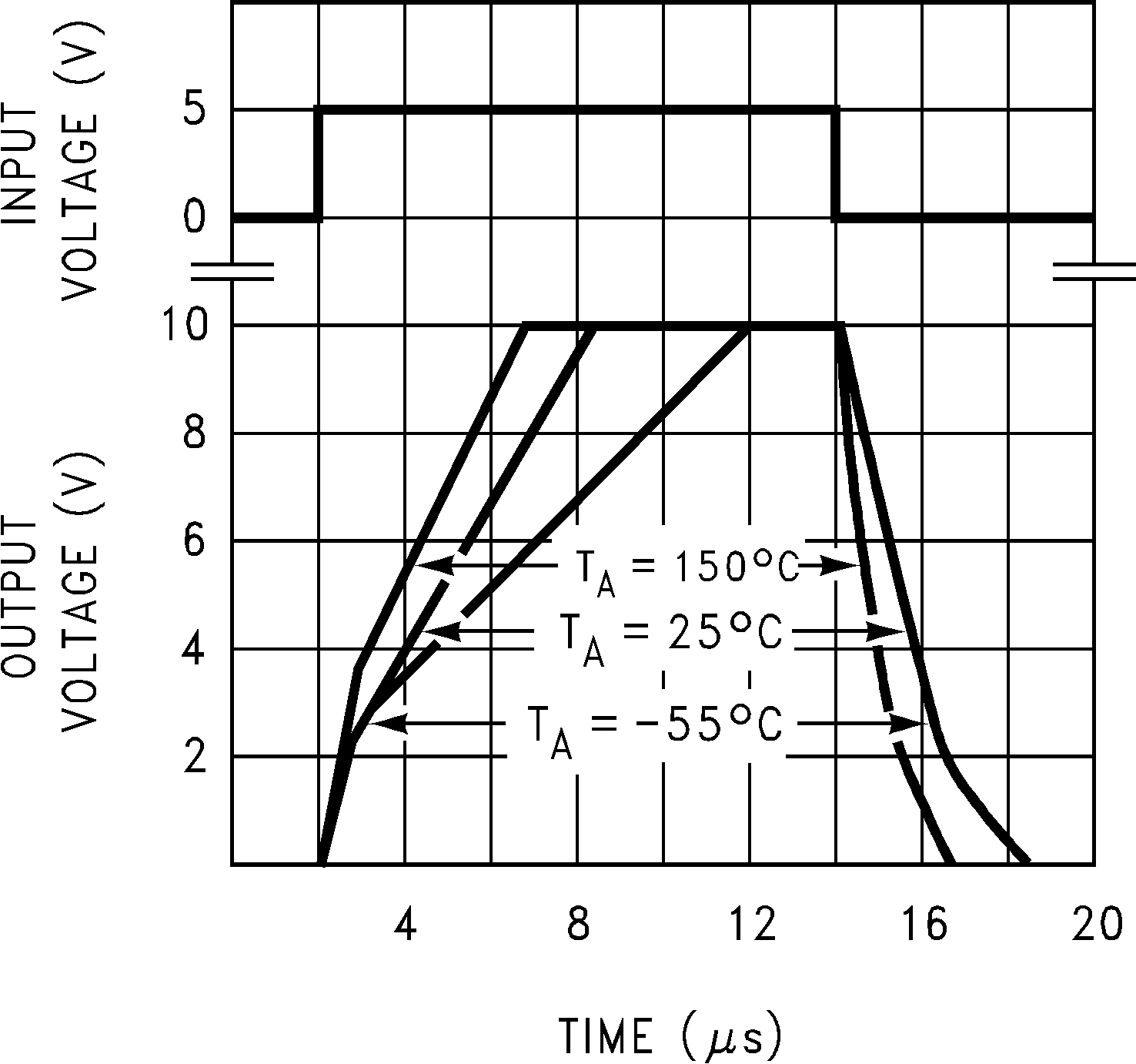

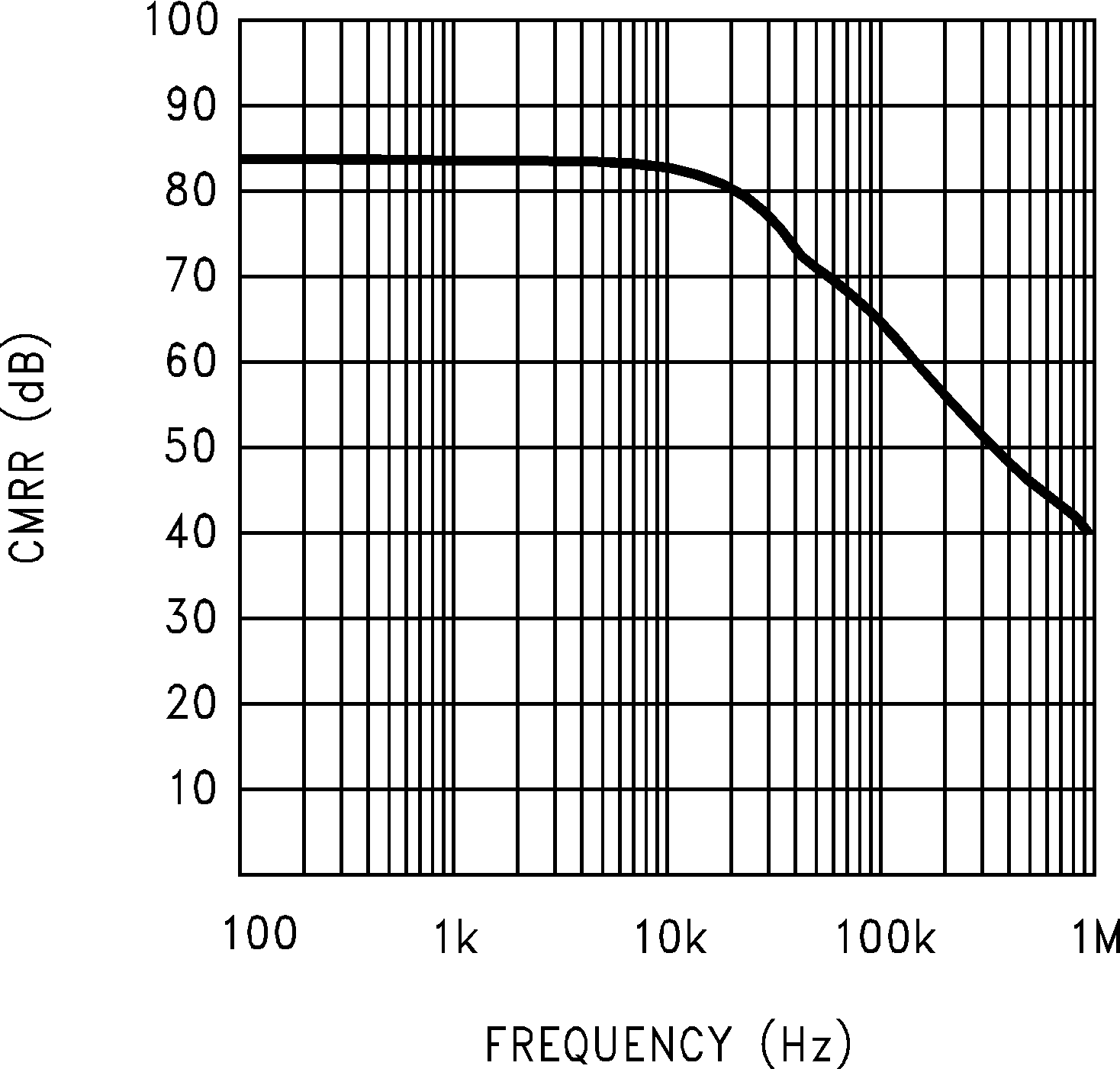

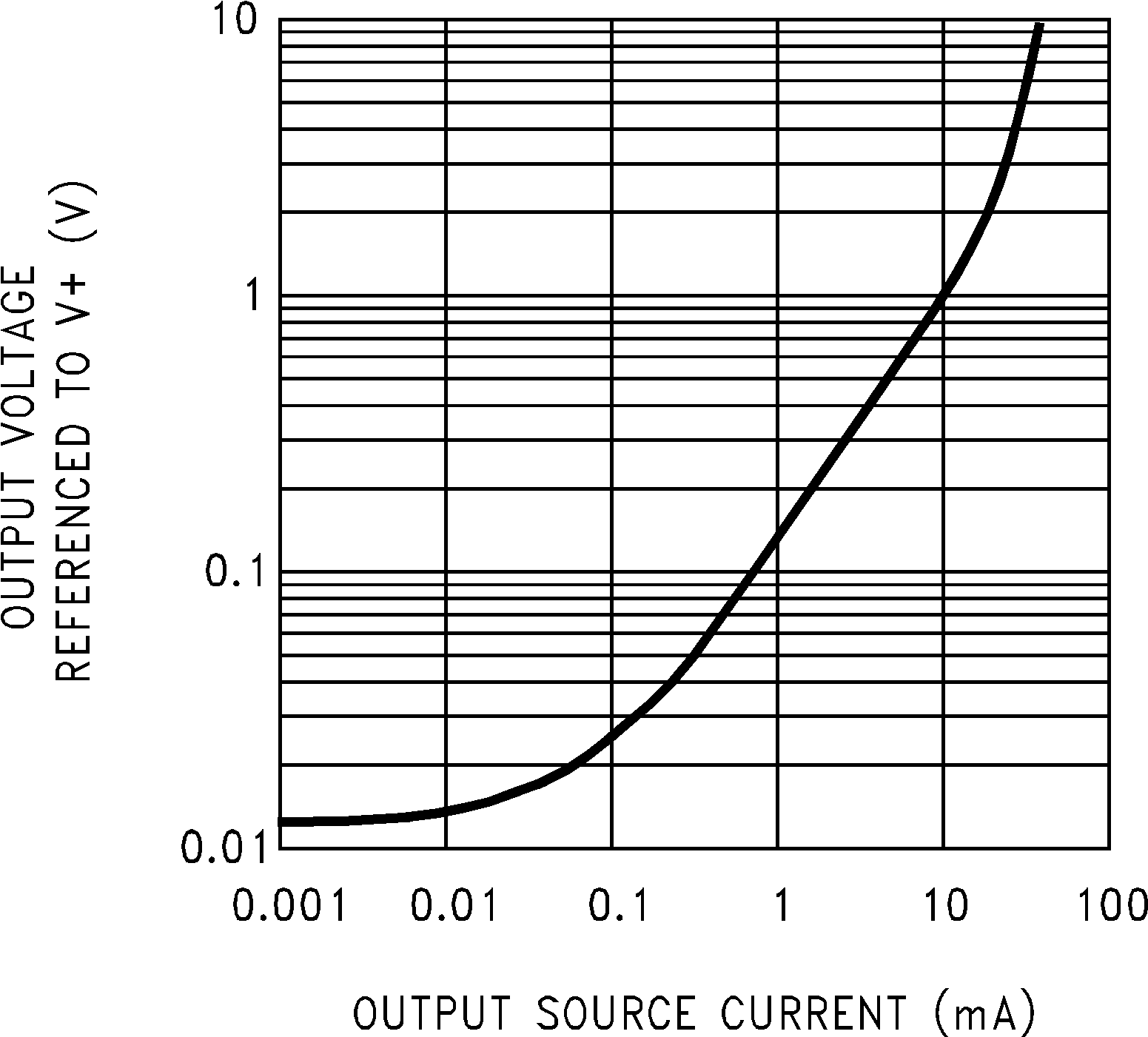

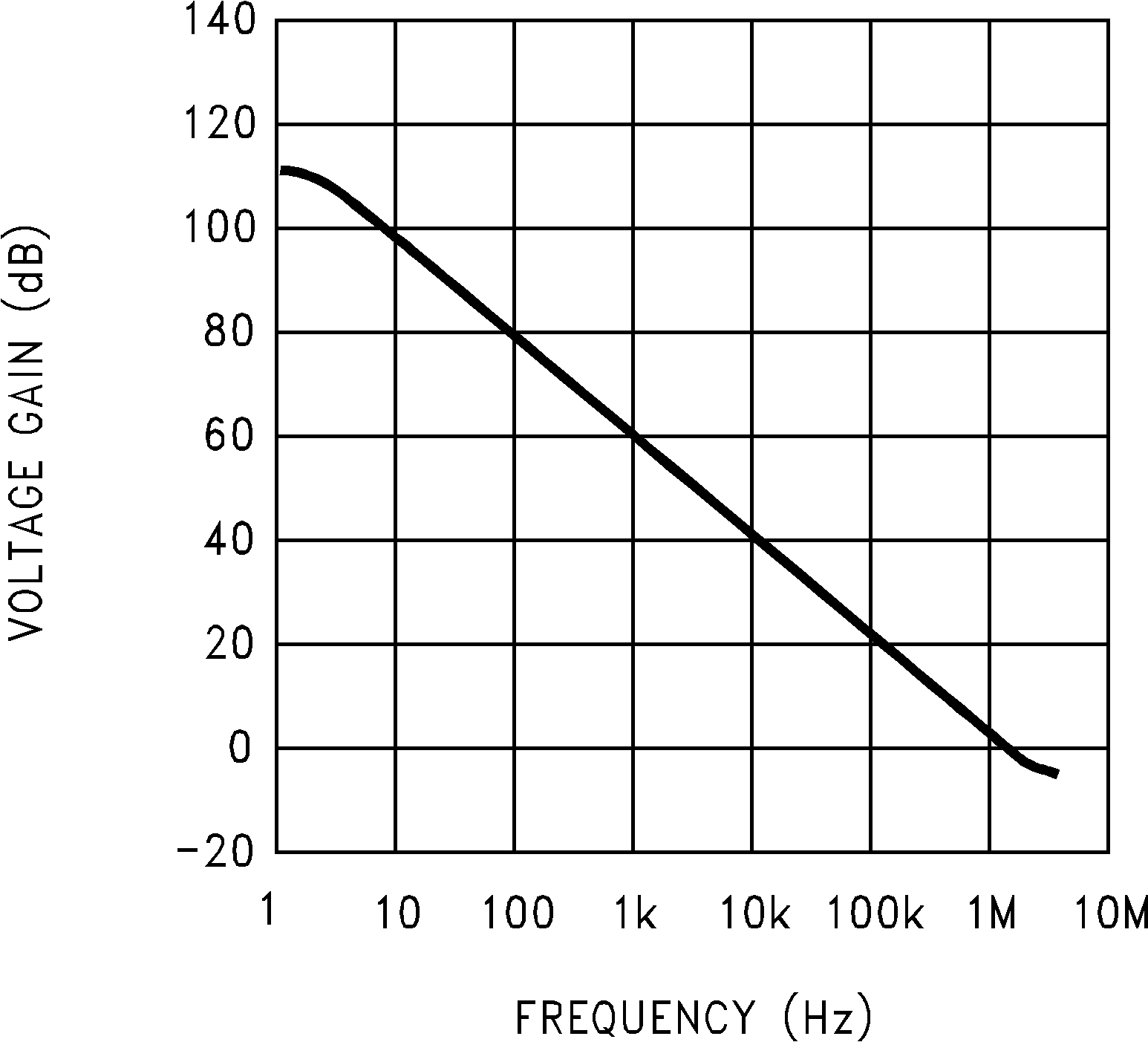

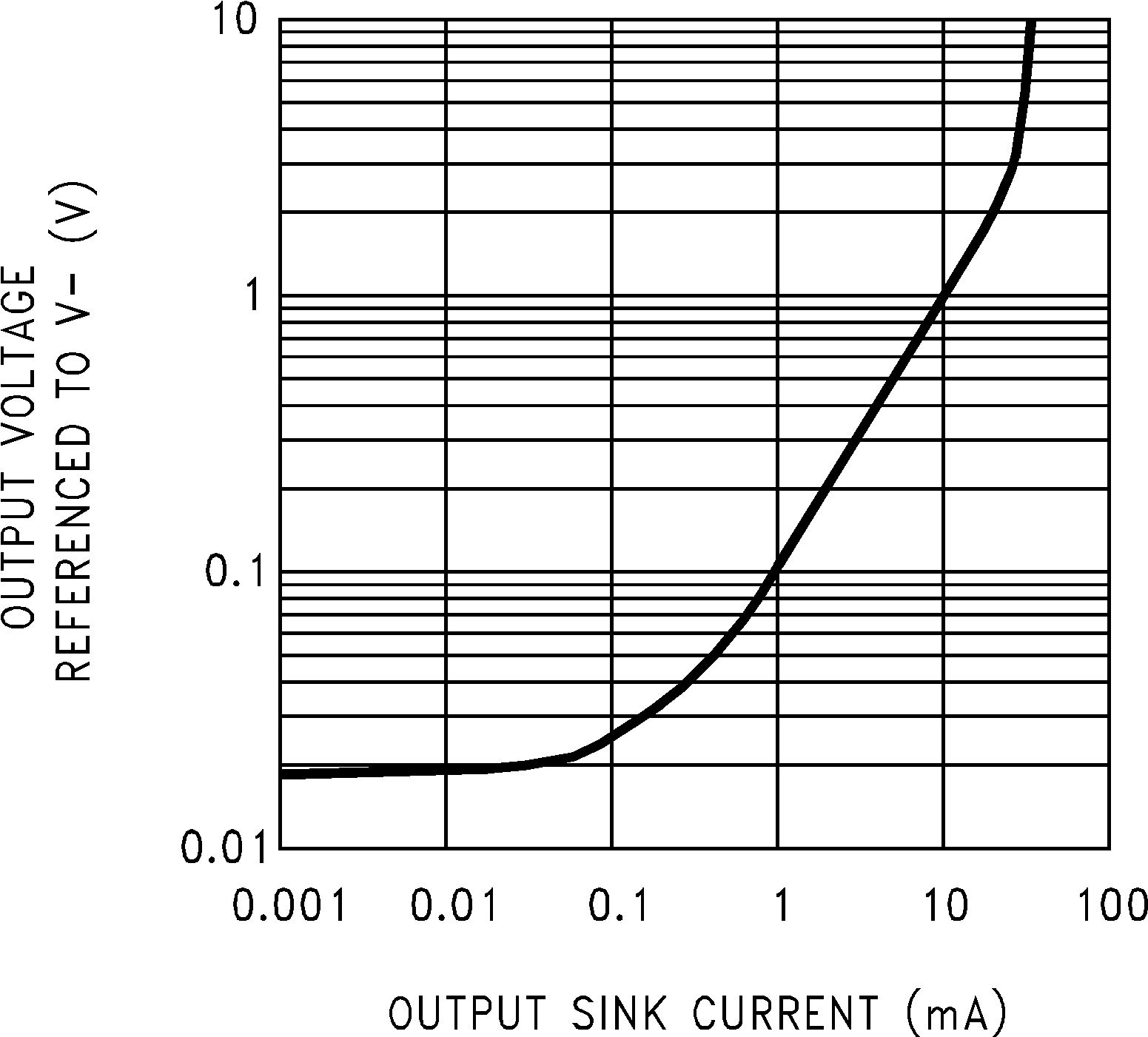

Typical Characteristics
at TA = 25°C, VS = ±7.5V, VOUT = mid-supply, and RL > 1MΩ (unless otherwise noted)
| VS = ±2.5V | ||

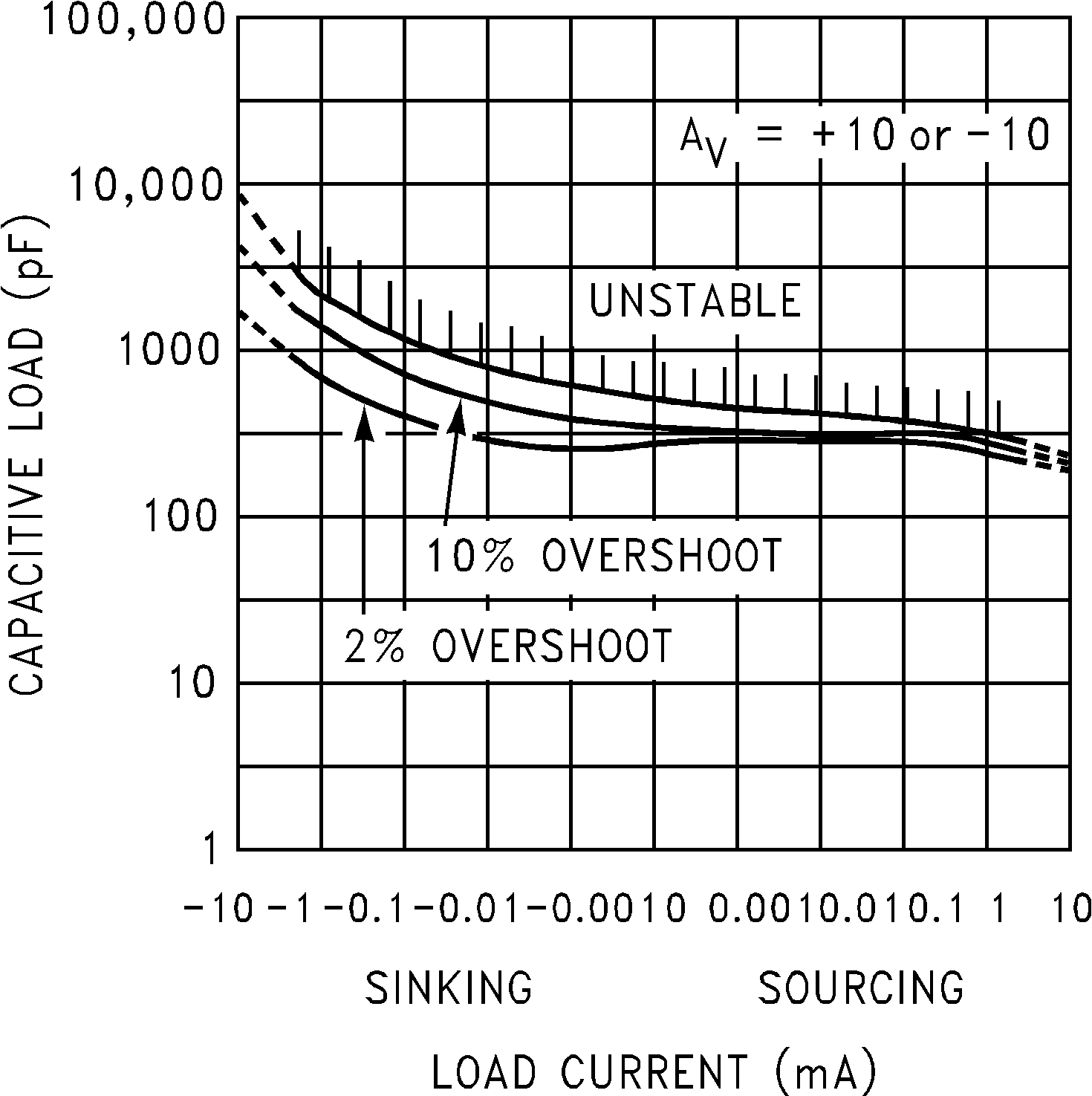

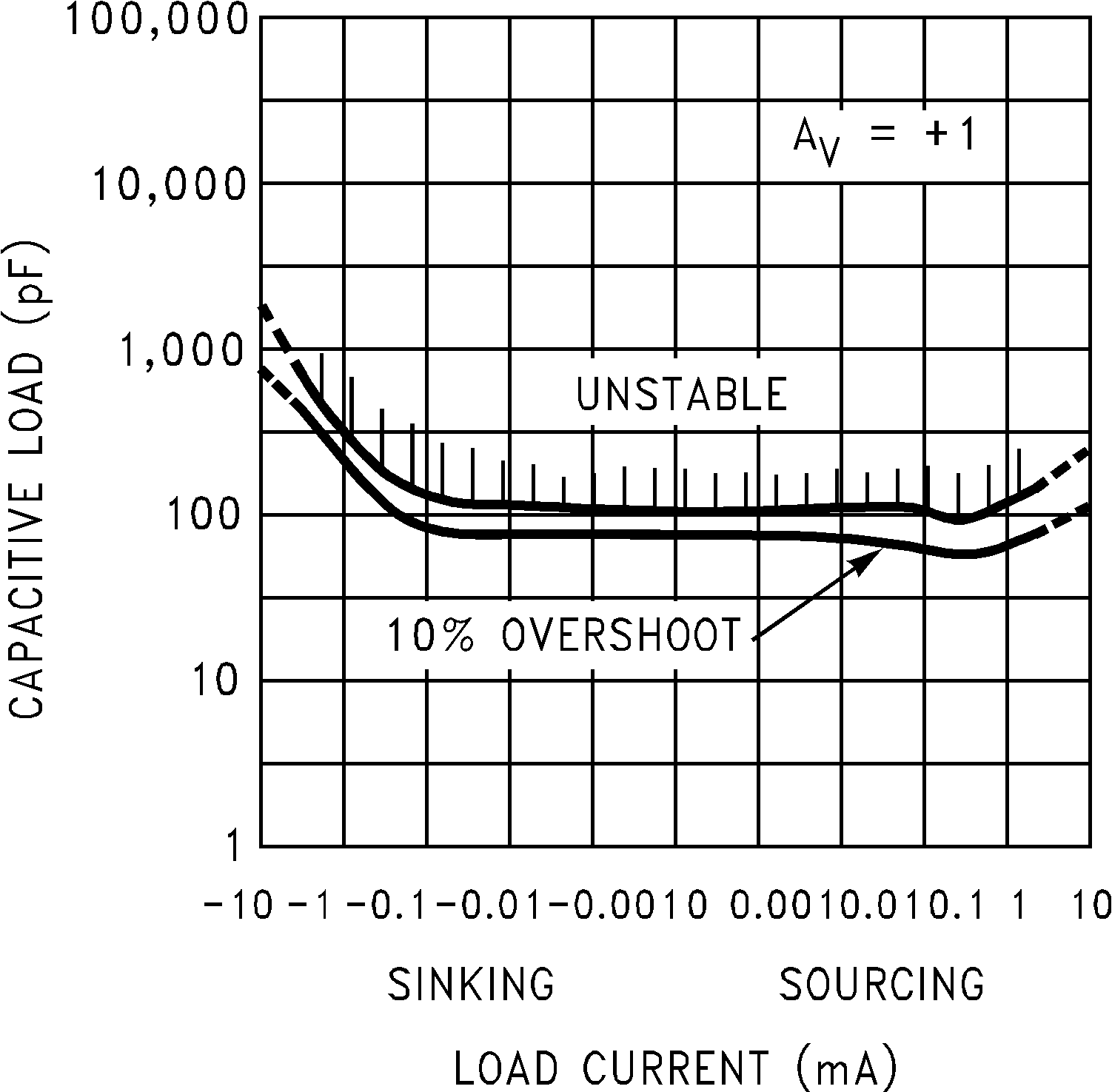

| Avoid resistive loads of less than 500Ω because these loads can cause instability. |
