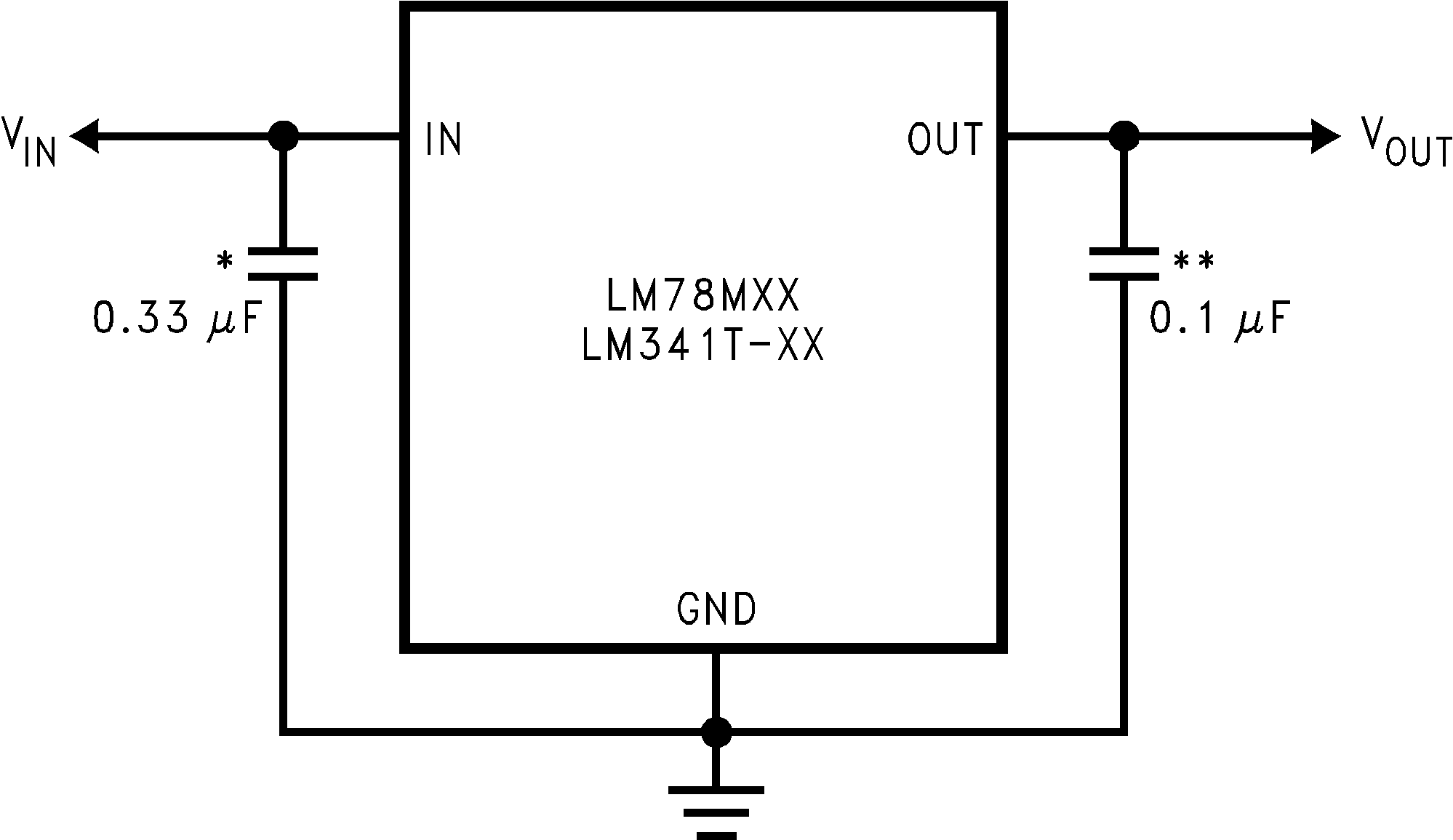

9.2 Typical Application
*Required if regulator input is more than 4 inches from input filter capacitor (or if no input filter capacitor is used).
**Optional for improved transient response.
Figure 11. Typical Application **Optional for improved transient response.
