7 Typical Characteristics

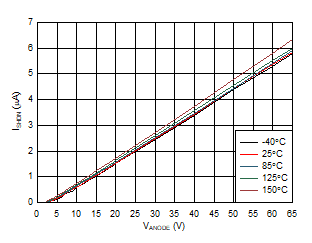

Figure 7-1 Shutdown Supply Current vs Supply Voltage
Figure 7-3 Enable Sink Current vs Supply Voltage
Figure 7-5 Charge Pump Current vs Supply Voltage at VCAP = 6 V
Figure 7-7 Charge Pump V-I Characteristics at VANODE = 3.2 V

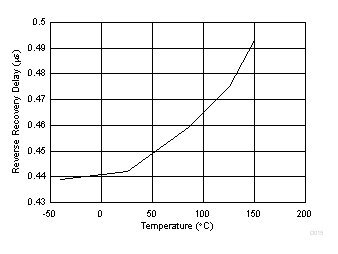

Figure 7-9 Reverse Current Blocking Delay vs Temperature

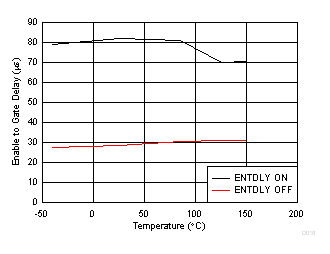

Figure 7-11 Enable to Gate Delay vs Temperature

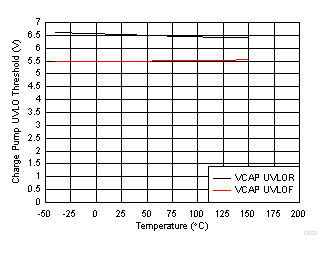

Figure 7-13 Charge Pump UVLO Threshold vs Temperature

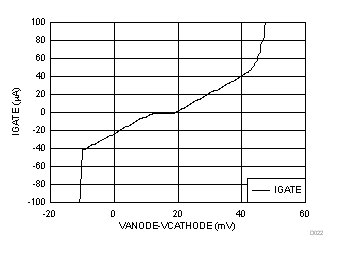

Figure 7-15 Gate
Current vs Forward Voltage Drop

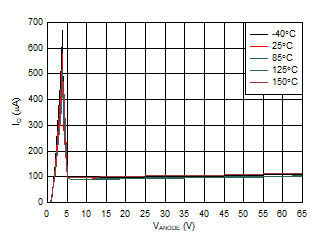

Figure 7-2 Operating Quiescent Current vs Supply Voltage

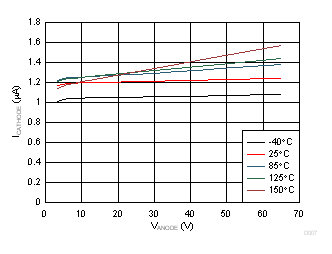

Figure 7-4 CATHODE Sink Current vs Supply Voltage

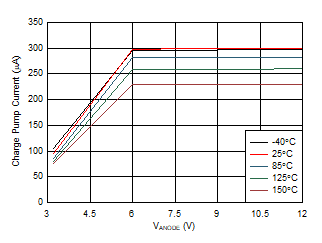

Figure 7-6 Charge Pump V-I Characteristics at VANODE > = 12 V

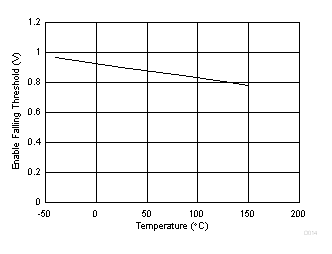

Figure 7-8 Enable Falling Threshold vs Temperature

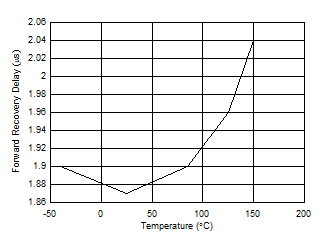

Figure 7-10 Forward Recovery Delay vs Temperature

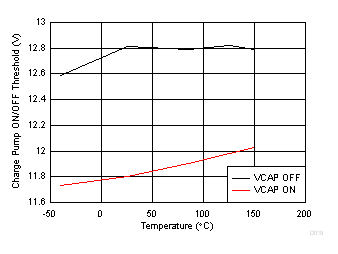

Figure 7-12 Charge Pump ON/OFF Threshold vs Temperature
Figure 7-14 VANODE POR Threshold vs Temperature
