7.1.2 Power Supply Bypassing
Bypassing the power supply is necessary to maintain low power-supply impedance across frequency. Individually bypass both positive and negative power supplies by placing 0.01?μF ceramic capacitors directly to power-supply pins and 2.2?μF tantalum capacitors close to the power-supply pins.

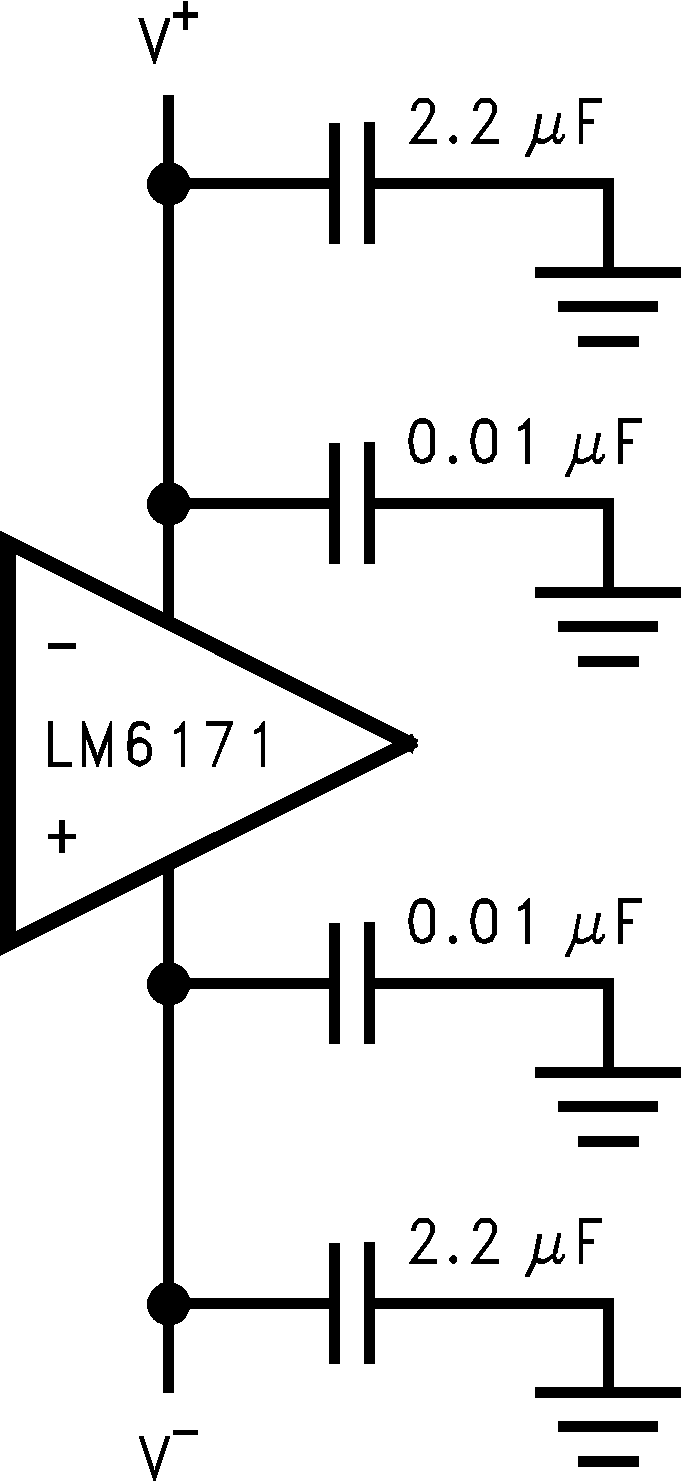

Figure 7-2 Power Supply Bypassing
