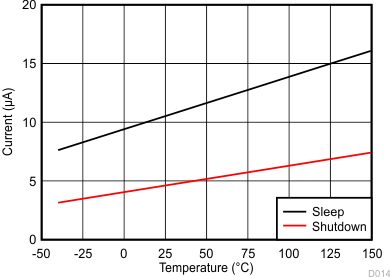

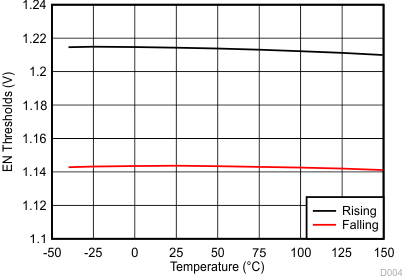

6.7 Typical Characteristics
Unless otherwise specified, VIN = 12 V, VOUT = 5 V. Please refer to Typical Applications for circuit designs.

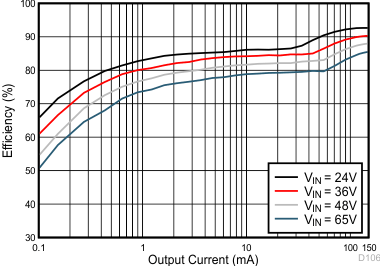

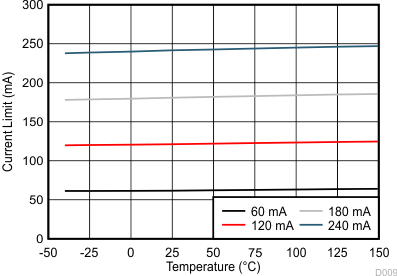

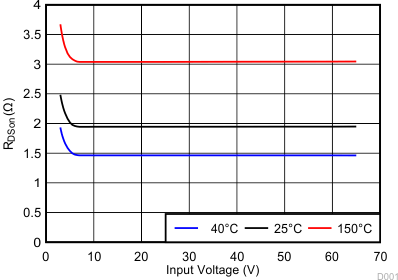

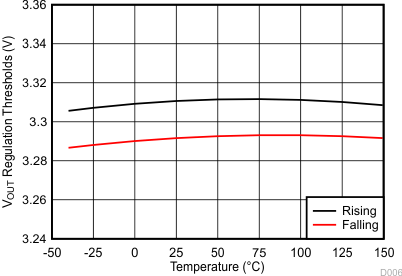

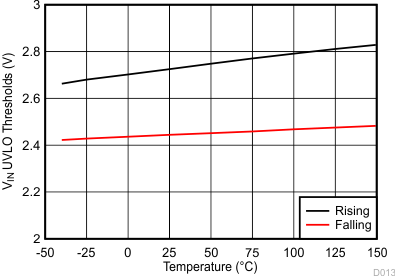

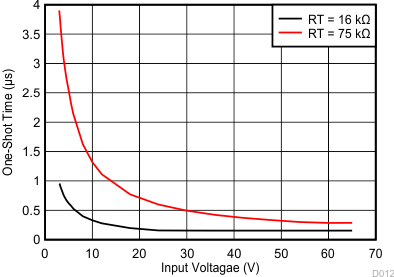

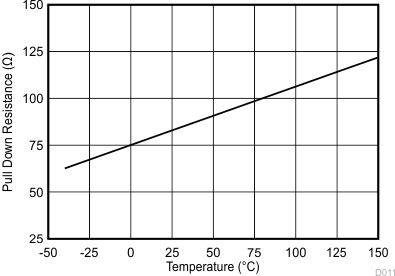

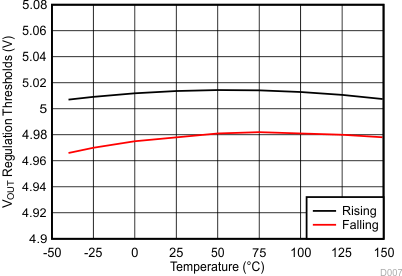

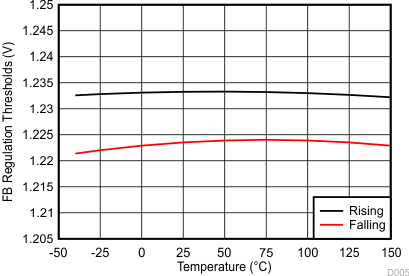

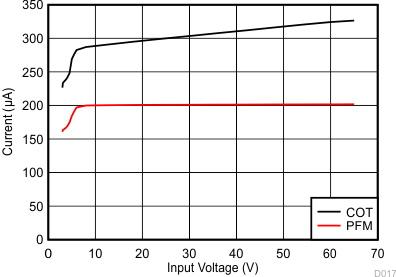

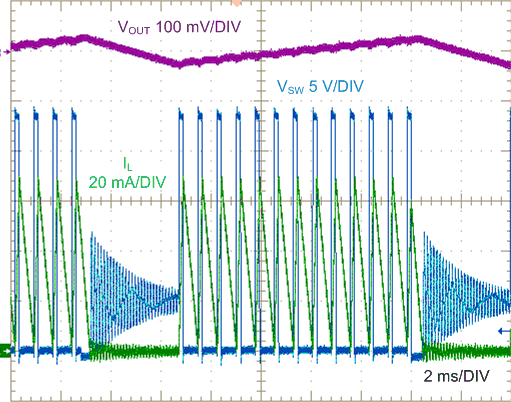

| 5-V, 25-mA Design | LF = 470 μH COUT = 47 μF |
FSW(nom) = 100 kHz RILIM ≥ 100 kΩ |
| See schematic, Figure 8-14 |

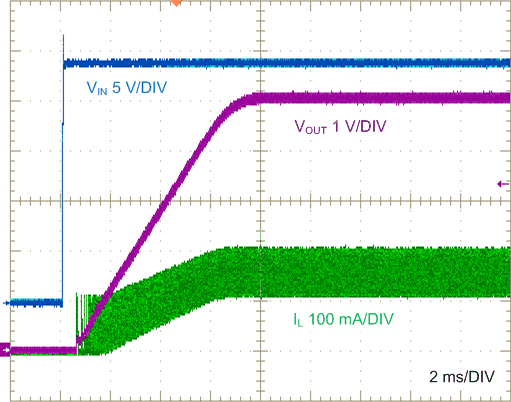

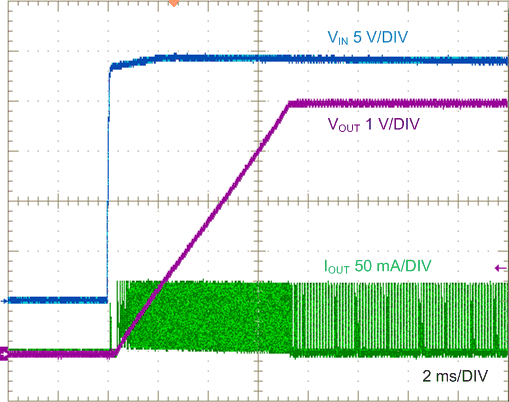

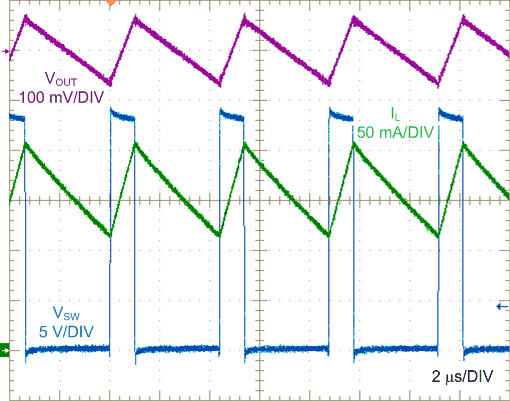

LF = 47 μH COUT = 10 μF |
FSW(nom) = 350 kHz RILIM = 56.2 kΩ |
| See schematic, Figure 8-21 |

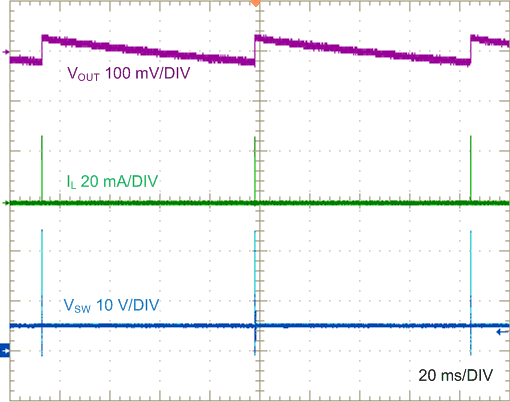

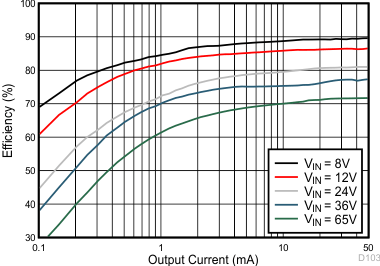

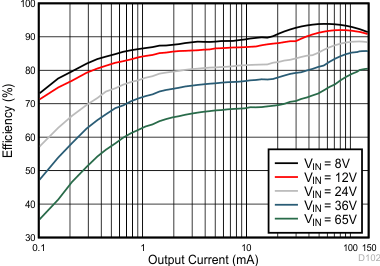

LF = 47 μH COUT = 10 μF |
FSW(nom) = 500 kHz RILIM = 24.9 kΩ |

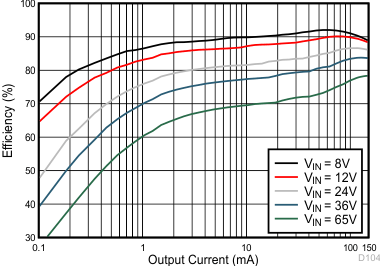

| LM5165X |
| RRT = 75 kΩ |
| See schematic, Figure 8-1 |

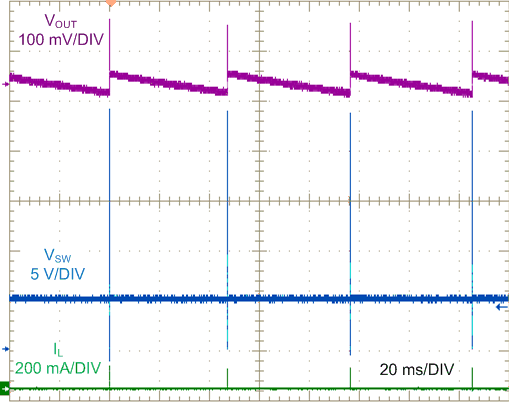

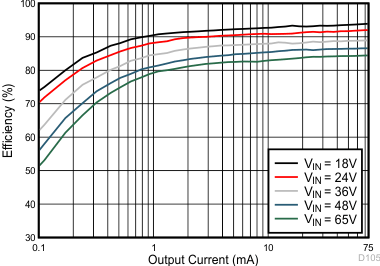

LF = 220 μH COUT = 22 μF |
FSW(nom) = 230 kHz RRT = 133 kΩ |
| See schematic, Figure 8-26 |

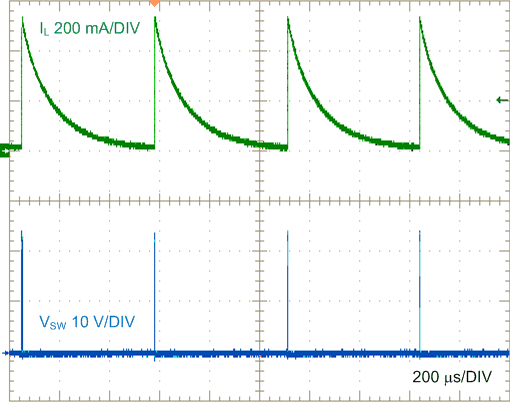

LF = 150 μH COUT = 22 μF |
FSW(nom) = 160 kHz RRT = 121 kΩ |
| See schematic, Figure 8-29 |

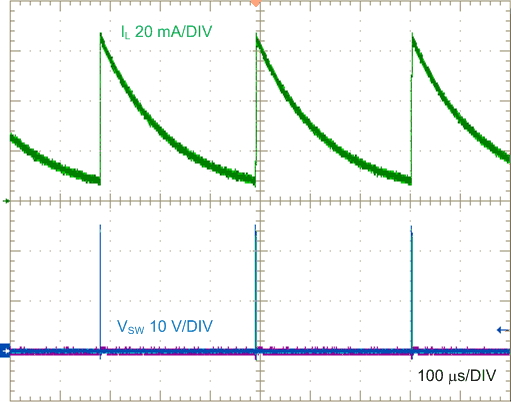

LF = 150 μH COUT = 10 μF |
FSW(nom) = 600 kHz RRT = 143 kΩ |
| LM5165Y |
| RRT = 75 kΩ |
