9.3 System Examples

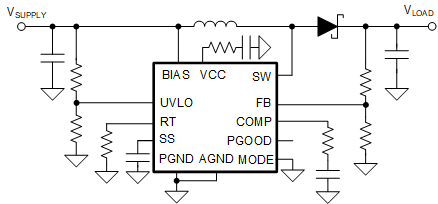

Figure 9-3 Typical Boost
Application

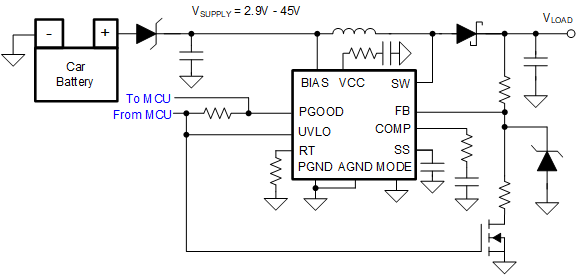

Figure 9-4 Typical Start-Stop
Application

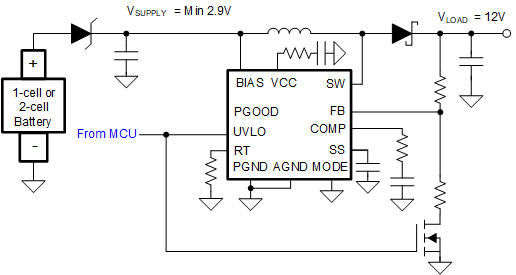

Figure 9-5 Emergency-Call/Boost
On-Demand/Portable Speaker

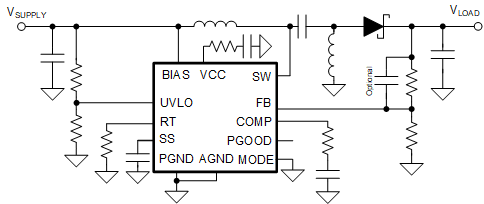

Figure 9-6 Typical SEPIC
Application

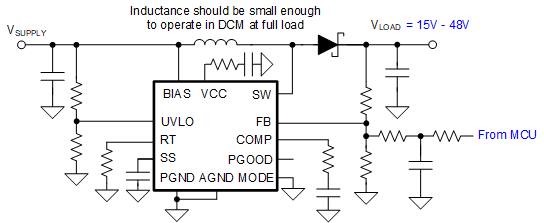

Figure 9-7 LiDAR Bias Supply 1 (DCM
Operation)

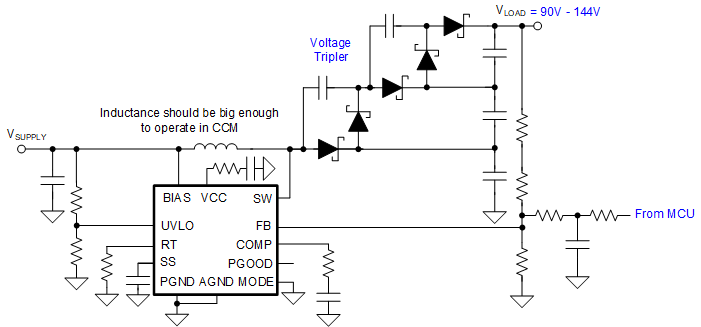

Figure 9-8 LiDAR Bias Supply 2 (CCM
Operation)
Figure 9-9 Low-Cost Single String LED
Driver

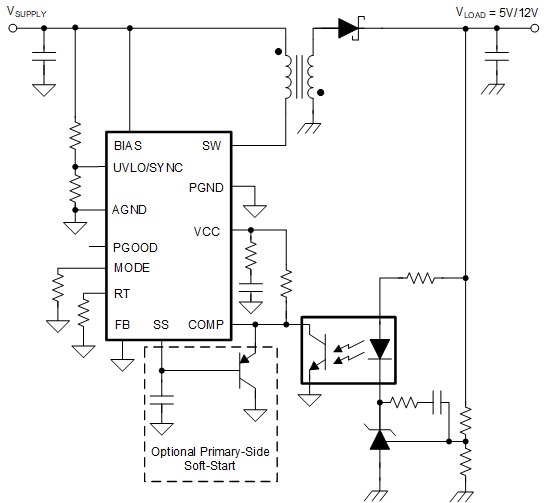

Figure 9-10 Secondary-Side Regulated
Isolated Flyback

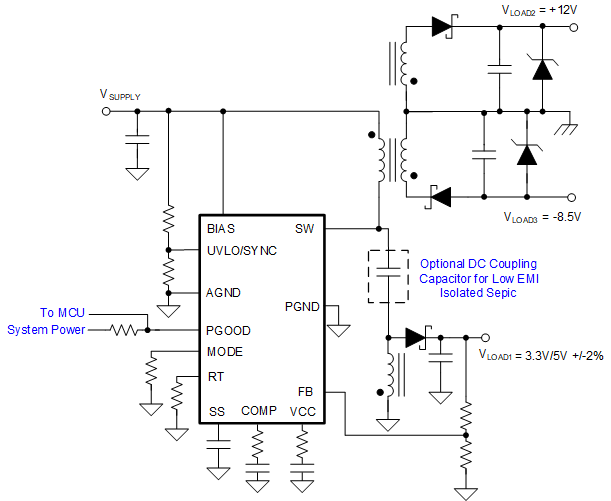

Figure 9-11 Primary-Side Regulated
Multiple-Output Isolated Flyback/Isolated SEPIC

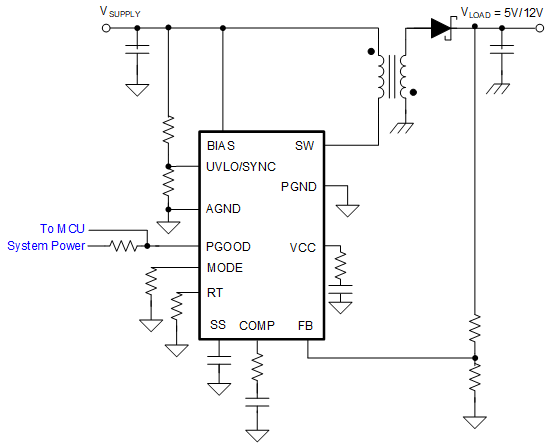

Figure 9-12 Typical Non-Isolated
Flyback
