6 Pin Configuration and Functions

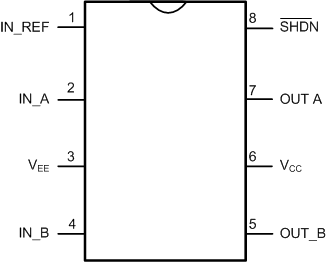

D Package
8-Pin SOIC
Top View

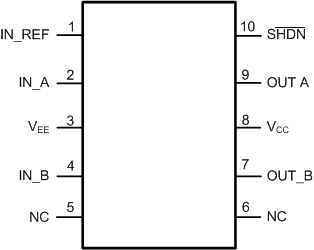

DPR Package
10-Pin WSON
Top Pin
Pin Functions
| PIN | I/O(2) | DESCRIPTION | APPLICATION INFORMATION | ||
|---|---|---|---|---|---|
| SOIC | WSON(1) | NAME | |||
| 1 | 1 | IN_REF | G | Ground reference for control inputs | Connect to VEE for standard positive only output voltage swing. Connect to system logic ground reference for positive and negative output voltage swing. |
| 2 | 2 | IN_A | I | ‘A’ side control input | TTL compatible thresholds. |
| 3 | 3 | VEE | G | Power ground of the driver outputs | Connect to either power ground or a negative gate drive supply. |
| 4 | 4 | IN_B | I | ‘B’ side control input | TTL compatible thresholds. |
| 5 | 7 | OUT_B | O | Output for the ‘B’ side driver. | Capable of sourcing 3A and sinking 5A. Voltage swing of this output is from VCC to VEE. |
| 6 | 8 | VCC | P | Positive supply | Locally decouple to VEE and IN_REF. |
| 7 | 9 | OUT_A. | O | Output for the ‘A’ side driver. | Capable of sourcing 3A and sinking 5A. Voltage swing of this output is from VCC to VEE . |
| 8 | 10 | nSHDN | I | Shutdown input pin | Pull below 1.5V to activate low power shutdown mode. |
(1) Pins 5 and 6 are No Connect for WSON-10 packages.
(2) P = Power, G = Ground, I = Input, O = Output, I/O = Input/Output.
