ZHCS558H June 2011 – July 2014 LM5066

PRODUCTION DATA.

封裝選項

機械數據 (封裝 | 引腳)

PWP|28
- MPDS373B

散熱焊盤機械數據 (封裝 | 引腳)

PWP|28
- PPTD290A

訂購信息

8 Specifications

8.1 Absolute Maximum Ratings ⁽¹⁾

over operating free-air temperature (unless otherwise noted)

		MIN	MAX	UNIT
Input voltage	VIN, VIN_K, GATE, UVLO/EN, SENSE, PGD to GND	–0.3	100	V
	OVLO, FB, TIMER, PWR to GND	–0.3	7
	OUT to GND	–0.3	100
	OUT to GND (1-ms transient)	–1	100
	SCL, SDAI, SDAO, CL, ADR0, ADR1, ADR2, VDD, VAUX, DIODE, RETRY to GND	–0.3	6
	SENSE to VIN_K, VIN to VIN_K, AGND to GND	–0.3	0.3
Junction temperature			150	°C

(1) Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any conditions beyond those indicated under recommended operating conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

8.2 Handling Ratings

			MIN	MAX	UNIT
T_stg	Storage temperature		–65	150	°C
V_ESD⁽¹⁾	Electrostatic discharge	Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins except GATE⁽²⁾	–2	2	kV
V_ESD⁽¹⁾	Electrostatic discharge	Charged device model (CDM), per JEDEC specification JESD22-C101, all pins⁽³⁾	–500	500	V

(1) The human body model is a 100-pF capacitor discharged through a 1.5-kΩ resistor into each pin. 2-kV rating for all pins except GATE which is rated for 1 kV.

(2) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.

(3) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

8.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)

		MIN	NOM	MAX	UNIT
VIN, SENSE, OUT voltage		10		80	V
Junction temperature		–40		125	°C

8.4 Thermal Information

THERMAL METRIC⁽¹⁾		LM5066	UNIT
		PWP
		28 PINS
R_θJA	Junction-to-ambient thermal resistance⁽²⁾	35.6	°C/W
R_θJC(top)	Junction-to-case (top) thermal resistance⁽³⁾	19.9
R_θJB	Junction-to-board thermal resistance⁽⁴⁾	16.8
ψ_JT	Junction-to-top characterization parameter⁽⁵⁾	0.5
ψ_JB	Junction-to-board characterization parameter⁽⁶⁾	16.7
R_θJC(bot)	Junction-to-case (bottom) thermal resistance⁽⁷⁾	2.9

(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

(2) The junction-to-ambient thermal resistance under natural convection is obtained in a simulation on a JEDEC-standard, high-K board, as specified in JESD51-7, in an environment described in JESD51-2a.

(3) The junction-to-case (top) thermal resistance is obtained by simulating a cold plate test on the package top. No specific JEDEC-standard test exists, but a close description can be found in the ANSI SEMI standard G30-88.

(4) The junction-to-board thermal resistance is obtained by simulating in an environment with a ring cold plate fixture to control the PCB temperature, as described in JESD51-8.

(5) The junction-to-top characterization parameter, ψ_JT, estimates the junction temperature of a device in a real system and is extracted from the simulation data for obtaining θ_JA, using a procedure described in JESD51-2a (sections 6 and 7).

(6) The junction-to-board characterization parameter, ψ_JB, estimates the junction temperature of a device in a real system and is extracted from the simulation data for obtaining θ_JA, using a procedure described in JESD51-2a (sections 6 and 7).

(7) The junction-to-case (bottom) thermal resistance is obtained by simulating a cold plate test on the exposed (power) pad. No specific JEDEC standard test exists, but a close description can be found in the ANSI SEMI standard G30-88.

8.5 Electrical Characteristics

Limits in standard type are for T_J = 25°C only; limits in boldface type apply over the junction temperature (T_J) range of -40°C to +125°C unless otherwise stated. Minimum and maximum limits are ensured through test, design, or statistical correlation. Typical values represent the most likely parametric norm at T_J = 25°C, and are provided for reference purposes only. Unless otherwise stated the following conditions apply: VIN = 48 V. See ⁽¹⁾ and ⁽³⁾.

PARAMETER		TEST CONDITIONS	MIN	TYP	MAX	UNIT
INPUT (VIN PIN)

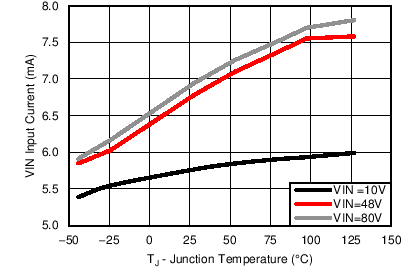

I_IN-EN	Input current, enabled	V_UVLO = 3 V and V_OVLO = 2 V		7.2	9.5	mA
POR_IT	Power-on reset threshold at VIN to trigger insertion timer	VIN increasing		7.8	9.0	V
POR_EN	Power-on reset threshold at VIN to enable all functions	VIN increasing		8.6	9.9	V
POR_HYS	POR_EN hysteresis	VIN decreasing		120		mV
V_DD REGULATOR (VDD PIN)
V_DD		I_VDD = 0 mA	4.60	4.90	5.15	V
V_DD		I_VDD = 10 mA		4.85		V
V_DDILIM	VDD current limit		–25	–30	–42	mA
V_DDPOR	VDD voltage reset threshold	V_DD rising		4.1		V
UVLO/EN, OVLO PINS

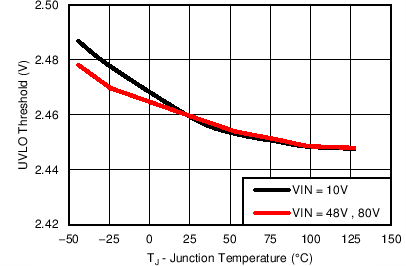

UVLO_TH	UVLO threshold	V_UVLO falling	2.41	2.48	2.55	V

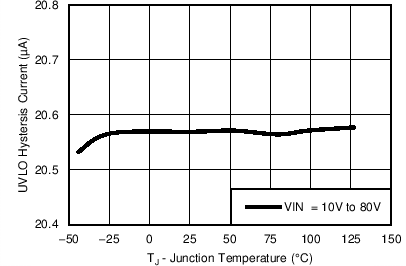

UVLO_HYS	UVLO hysteresis current	UVLO = 1 V	13	20	26	µA
UVLO_BIAS	UVLO bias current	UVLO = 3 V			1	µA

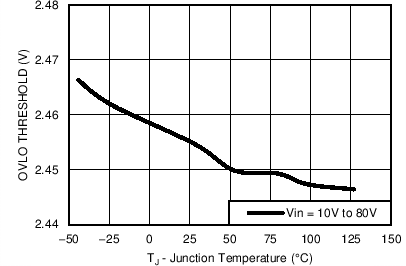

OVLO_TH	OVLO threshold	V_OVLO rising	2.39	2.46	2.53	V

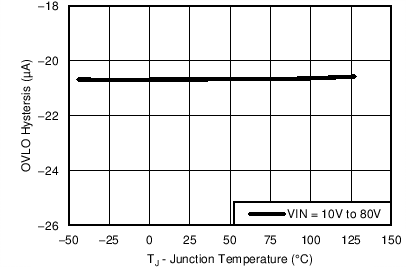

OVLO_HYS	OVLO hysteresis current	OVLO = 1 V	–26	–21	–13	µA
OVLO_BIAS	OVLO bias current	OVLO = 1 V			1	µA
POWER GOOD (PGD PIN)
PGD_VOL	Output low voltage	I_SINK = 2 mA		60	110	mV
PGD_IOH	Off leakage current	V_PGD= 80 V			1	µA
FB PIN

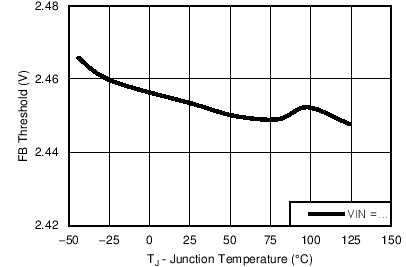

FB_TH	FB threshold	V_UVLO = 3 V and V_OVLO = 2 V	2.41	2.46	2.52	V

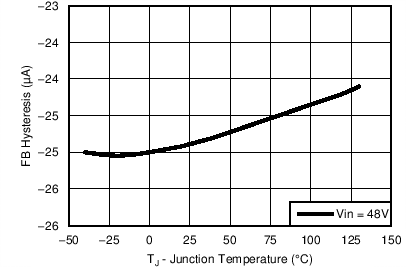

FB_HYS	FB hysteresis current		–25	–20	–15	µA
FB_LEAK	Off leakage current	V_FB = 2.3 V			1	µA
POWER LIMIT (PWR PIN)

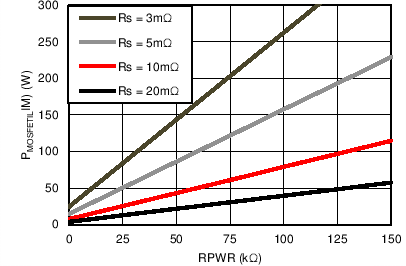

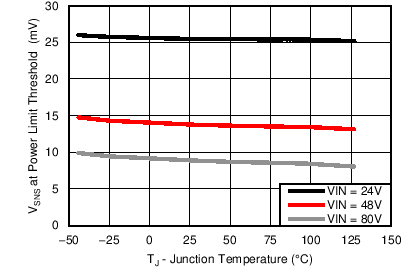

PWR_LIM	Power limit sense voltage (VIN-SENSE)	SENSE-OUT = 48 V, R_PWR = 121 kΩ	16.5	19.5	22.5	mV
PWR_LIM	Power limit sense voltage (VIN-SENSE)	SENSE-OUT = 24 V, R_PWR = 75 kΩ		23		mV
I_PWR	PWR pin current	V_PWR = 2.5 V		–20		µA
R_SAT(PWR)	PWR pin impedance when disabled	UVLO = 2 V		135		Ω
GATE CONTROL (GATE PIN)

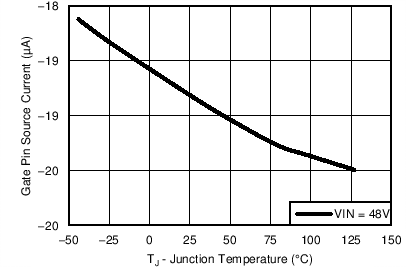

I_GATE	Source current	Normal Operation	–26	–20	–10	µA

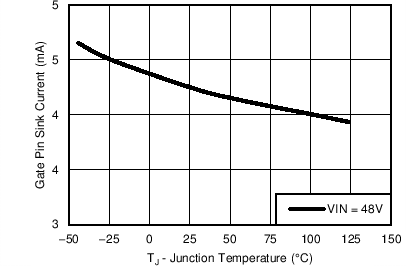

	Fault sink current	UVLO = 2 V	3.4	4.2	5.3	mA
	POR circuit breaker sink current	VIN – SENSE = 150 mV or VIN < POR_IT, V_GATE = 5 V	50	115	180	mA

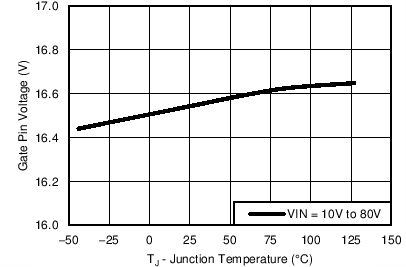

V_GATEZ	Reverse-bias voltage of GATE to OUT zener diode	GATE – OUT	15	16.5	18	V
V_GATECP	Peak charge pump voltage in normal operation (V_IN = V_OUT)	GATE – OUT		13.6		V
OUT PIN

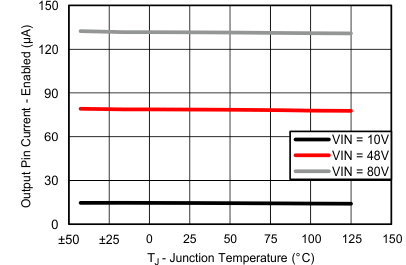

I_OUT-EN	OUT bias current, enabled	OUT = VIN, Normal operation		78		µA

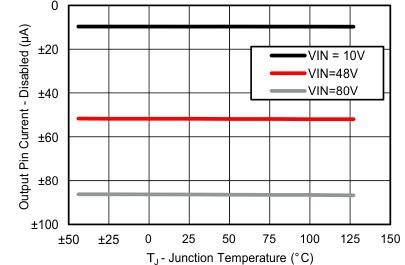

I_OUT-DIS	OUT bias current, disabled ⁽²⁾	Disabled, OUT = 0 V, SENSE = VIN		–50		µA
CURRENT LIMIT

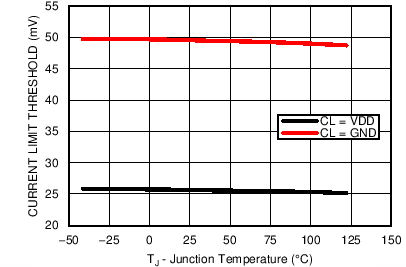

V_CL	Current limit threshold voltage (V_IN – V_SENSE)	CL = VDD	23	26	29	mV
V_CL	Current limit threshold voltage (V_IN – V_SENSE)	CL = GND	47	50	53	mV

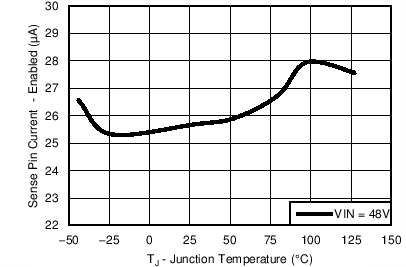

I_SENSE	SENSE input current	Enabled, SENSE = OUT		25		µA
		Disabled, OUT = 0 V		66
		Enabled, OUT = 0 V		220
CIRCUIT BREAKER
RT_CB	Circuit breaker to current limit ratio: (V_IN -V_SENSE)_CB/V_CL	CB/CL ratio bit = 0, ILim = 50 mV	1.64	1.94	2.23	V/V
		CB/CL ratio bit = 1, ILim = 50 mV	3.28	3.87	4.45
		CB/CL ratio bit = 0, ILim = 26 mV		1.88
		CB/CL ratio bit = 1, ILim = 26 mV		3.75

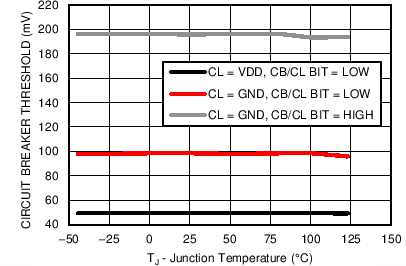

V_CB	Circuit breaker threshold voltage: (V_IN – V_SENSE)	CB/CL ratio bit = 0, ILim = 50 mV	80	96	110	mV
		CB/CL ratio bit = 1, ILim = 50 mV	164	193	222
		CB/CL ratio bit = 0, ILim = 26 mV	39	48	57
		CB/CL ratio bit = 1, ILim = 26 mV	79	96	113
TIMER (TIMER PIN)
V_TMRH	Upper threshold		3.74	3.9	4.07	V
V_TMRL	Lower threshold	Restart cycles	0.98	1.1	1.24	V
		End of eighth cycle		0.3		V
		Re-enable threshold		0.3		V
I_TIMER	Insertion time current	TIMER pin = 2 V	–5.9	–4.8	–3.3	µA
	Sink current, end of insertion time		1.0	1.5	2.0	mA
	Fault detection current		–95	–75	–50	µA
	Fault sink current		1.7	2.5	3.2	µA
DC_FAULT	Fault restart duty cycle			0.5		%
INTERNAL REFERENCE

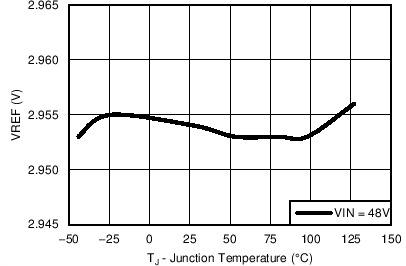

V_REF	Reference voltage		2.93	2.97	3.02	V
ADC AND MUX
	Resolution			12		Bits
INL	Integral non-linearity	ADC only		±4		LSB
t_ACQUIRE	Acquisition + Conversion time	Any channel		100		µs
t_RR	Acquisition round robin time	Cycle all channels		1		ms
TELEMETRY ACCURACY
I_INFSR	Current input full-scale range	CL = GND		75.8		mV
I_INFSR	Current input full-scale range	CL = VDD		38.2		mV
I_INLSB	Current input LSB	CL = GND		18.5		µV
I_INLSB	Current input LSB	CL = VDD		9.3		µV
V_AUXFSR	VAUX input full-scale range			2.97		V
V_AUXLSB	VAUX input LSB			725		µV
V_INFSR	Input voltage full-scale range			89.3		V
V_INLSB	Input voltage LSB			21.8		mV

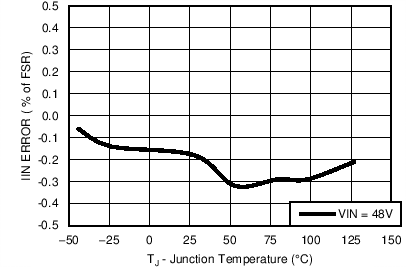

I_INACC	Input current accuracy	VIN – SENSE = 50 mV, CL = GND	–3.0		+3.0	%
I_INACC	Input current accuracy	VIN – SENSE = 25 mV, CL = VDD	-4.25		4.25	%
V_ACC	VAUX, VIN, VOUT	VIN, VOUT = 48 V VAUX = 2.8V	–2.7		+2.7	%

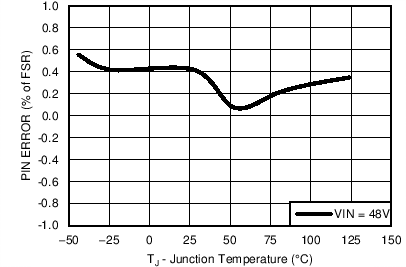

P_INACC	Input power accuracy	VIN = 48 V, VIN – SENSE = 50mV, CL = VDD	–4.5		+4.5	%
REMOTE DIODE TEMPERATURE SENSOR
T_ACC	Temperature accuracy using local diode	T_A = 25°C to 85°C		2	10	°C
T_ACC	Remote diode resolution			9		bits
I_DIODE	External diode current source	High level		250	325	µA
I_DIODE	External diode current source	Low level		9.4		µA
	Diode current ratio			25.9
PMBus PIN THRESHOLDS (SMBA, SDA, SCL)
V_IL	Data, clock input low voltage				0.9	V
V_IH	Data, clock input high voltage		2.1		5.5	V
V_OL	Data output low voltage	I_SINK = 3 mA	0		0.4	V
I_LEAK	Input leakage current	SDAI, SMBA,SCL = 5 V			1	µA
CONFIGURATION PIN THRESHOLDS (CL, RETRY)
V_IH	Threshold voltage		3			V
I_LEAK	Input leakage current	CL, RETRY = 5 V		5		µA

(1) Current out of a pin is indicated as a negative value.

(2) OUT bias current (disabled) due to leakage current through an internal 1 MΩ resistance from SENSE to VOUT.

(3) All electrical characteristics having room temperature limits are tested during production at T_A = 25°C. All hot and cold limits are specified by correlating the electrical characteristics to process and temperature variations and applying statistical process control.

8.6 SMBus Communications Timing Requirements and Definitions

PARAMETER		MIN	MAX	UNIT
ƒ_SMB	SMBus operating frequency	10	400	kHz
t_BUF	Bus free time between stop and start condition	1.3		µs
t_HD:STA	Hold time after (repeated) start condition. After this period, the first clock is generated.	0.6		µs
t_SU:STA	Repeated start condition setup time	0.6		µs
t_SU:STO	Stop condition setup time	0.6		µs
t_HD:DAT	Data hold time	85		ns
t_SU:DAT	Data setup time	100		ns
t_TIMEOUT	Clock low time-out⁽¹⁾	25	35	ms
t_LOW	Clock low period	1.5		µs
t_HIGH	Clock high period⁽²⁾	0.6		µs
t_LOW:SEXT	Cumulative clock low extend time (slave device)⁽³⁾		25	ms
t_LOW:MEXT	Cumulative low extend time (master device)⁽⁴⁾		10	ms
t_F	Clock or data fall time⁽⁵⁾	20	300	ns
t_R	Clock or data rise time⁽⁵⁾	20	300	ns

(1) Devices participating in a transfer will timeout when any clock low exceeds the value of t_TIMEOUT,MIN of 25 ms. Devices that have detected a timeout condition must reset the communication no later than t_TIMEOUT,MAX of 35 ms. The maximum value must be adhered to by both a master and a slave as it incorporates the cumulative stretch limit for both a master (10 ms) and a slave (25 ms).

(2) t_{HIGH MAX} provides a simple method for devices to detect bus idle conditions.

(3) t_LOW:SEXT is the cumulative time a slave device is allowed to extend the clock cycles in one message from the initial start to the stop. If a slave exceeds this time, it is expected to release both its clock and data lines and reset itself.

(4) t_LOW:MEXT is the cumulative time a master device is allowed to extend its clock cycles within each byte of a message as defined from start-to-ack, ack-to-ack, or ack-to-stop.

(5) Rise and fall time is defined as follows: t_R = ( V_ILMAX – 0.15) to (V_IHMIN + 0.15); t_F = 0.9 VDD to (V_ILMAX – 0.15)

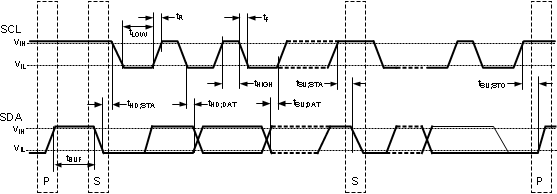

Figure 1. SMBus Timing Diagram

8.7 Switching Characteristics

Unless otherwise stated, the following conditions apply: V_VIN= 48 V, –40°C < T_J < 125°C, V_UVLO = 3 V , V_OVLO = 0 V, R_PWR= 20 kΩ.

PARAMETER		CONDITIONS	TYP	MAX	UNIT
UVLO/EN, OVLO PINS
UVLO_DEL	UVLO delay	Delay to GATE high	9		µs
UVLO_DEL	UVLO delay	Delay to GATE low	13		µs
OVLO_DEL	OVLO delay	Delay to GATE high	13		µs
OVLO_DEL	OVLO delay	Delay to GATE low	10		µs
FB PIN
FB_DEL	FB Delay	Delay to PGD high	7.6		µs
FB_DEL	FB Delay	Delay to PGD low	9.2		µs
CURRENT LIMIT
t_CL	Response time	VIN-SENSE stepped from 0 to 80 mV; CL = GND	45		µs
CIRCUIT BREAKER
t_CB	Response time	VIN-SENSE stepped from 0 to 150 mV, time to GATE low, no load	0.42	0.83	µs
TIMER (TIMER PIN)
t_{FAULT_DELAY}	Fault to GATE low delay	TIMER pin reaches the upper threshold	12		µs
