8.1.6 Restart After Overcurrent Fault Event
When a VDS fault condition has occurred and the TIMER pin voltage has reached 2 V, the LM5060 latches off the external MOSFET. In order to initiate a restart, either the EN pin, the VINpin, or the UVLO pin must be toggled low and then high.

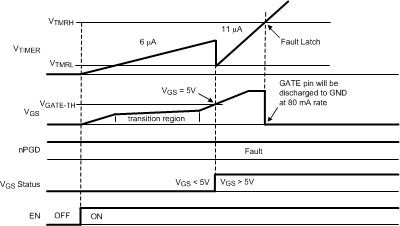

Figure 23. Voltages During Startup with VDS Fault Condition
