9.4.2 Layout Example

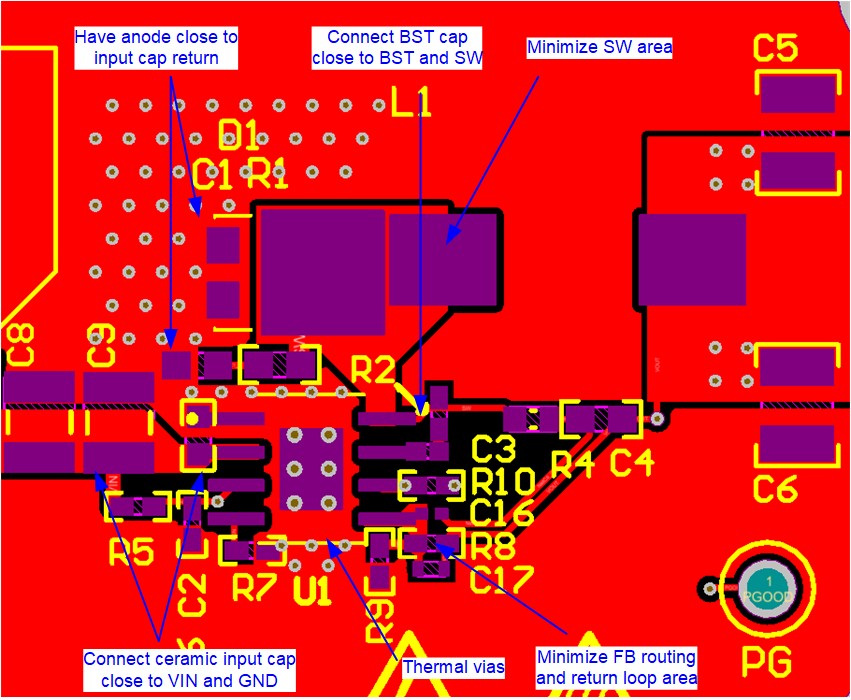

Figure 9-14 shows an example layout for the PCB top layer of a 2-layer board with essential components placed on the top side.
Figure 9-14 LM5013 Layout Example
