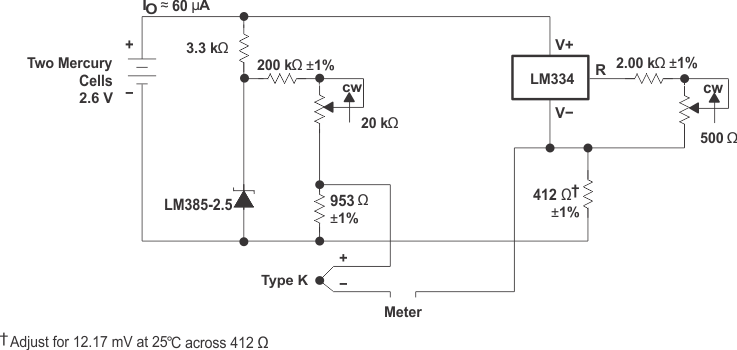

8.3.1 Thermocouple Cold-Junction Compensator
Figure 10 shows how to use the LM385-2.5 in a circuit for thermocouple cold-junction compensation.
Figure 10. Thermocouple Cold-Junction Compensator
