8.2.1.3 Application Curves
Figure 23. Efficiency at 750 kHz, VOUT1 = 10 V

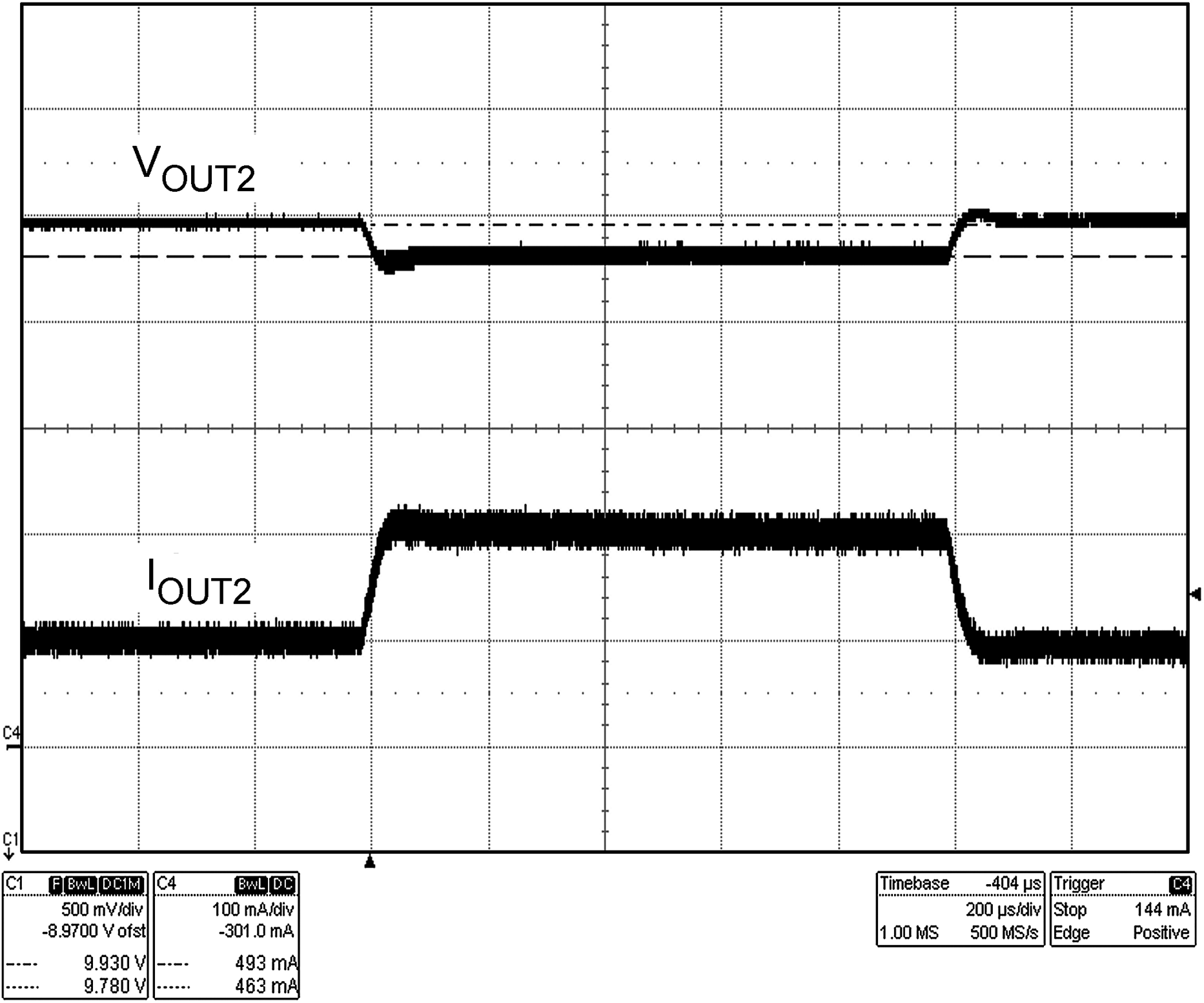

Figure 25. Step Load Response (VIN = 48 V, IOUT1 = 0, Step Load on IOUT2 = 100 mA to 200 mA)

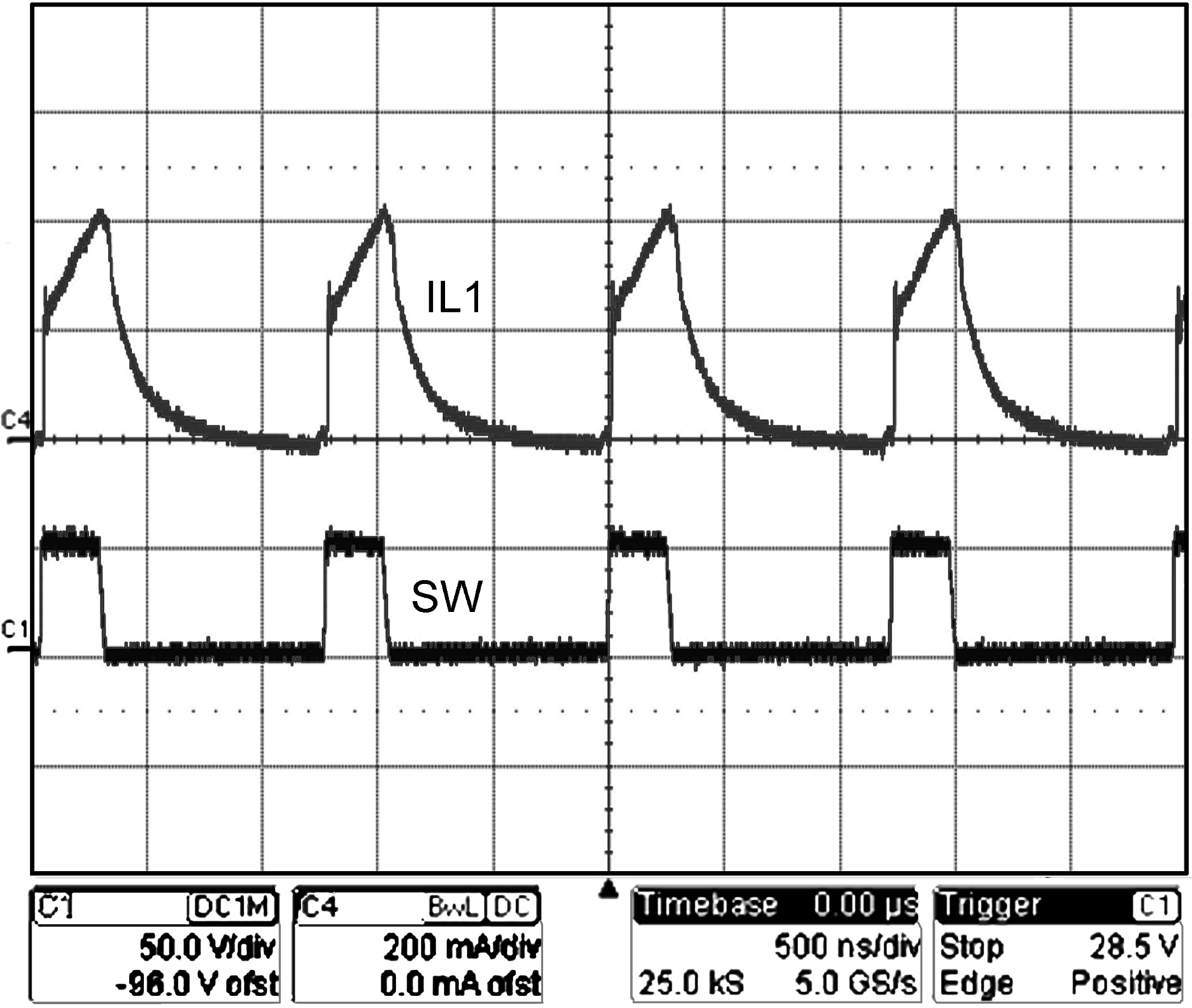

Figure 24. Steady State Waveform (VIN = 48 V, IOUT1 = 100 mA, IOUT2 = 200 mA)
