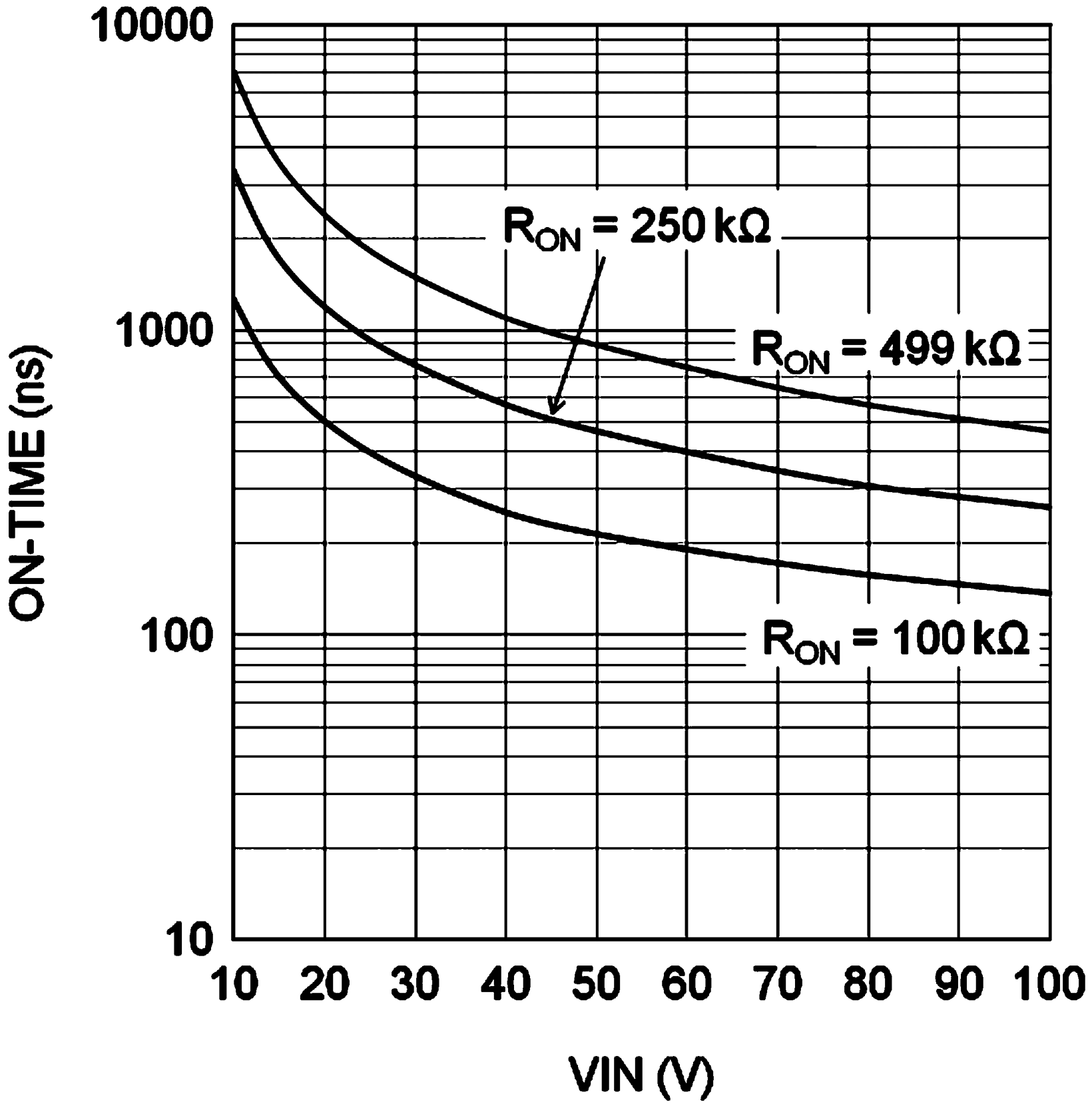

6.7 Typical Characteristics

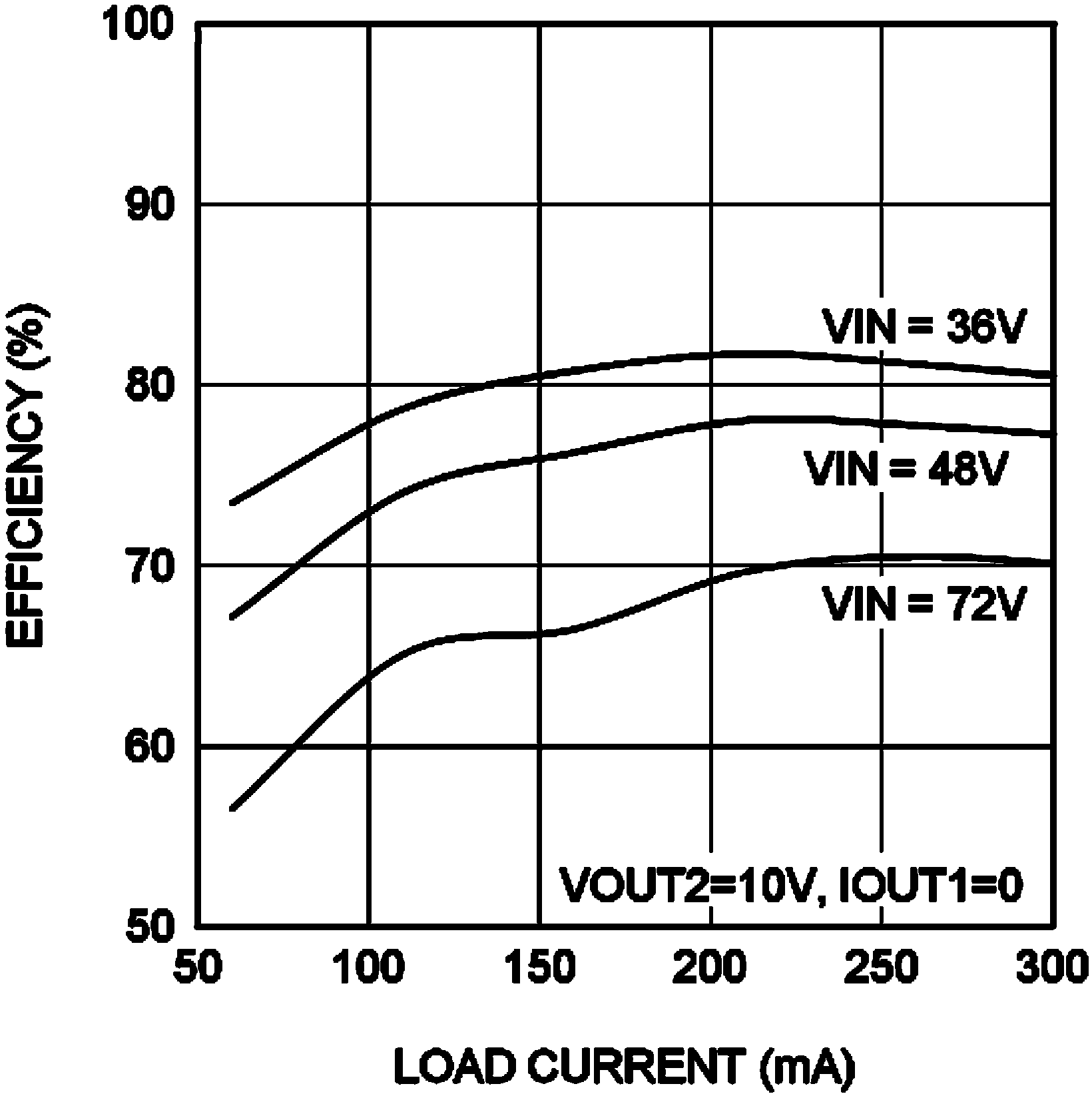

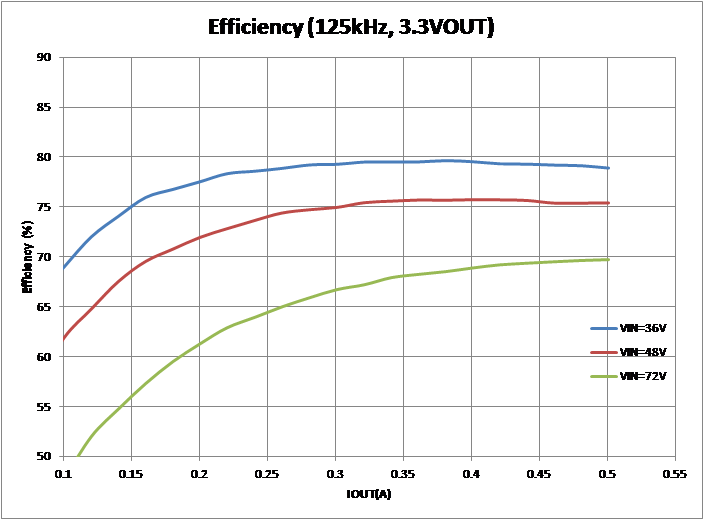

Figure 1. Efficiency at 750 kHz, VOUT1 = 10 V

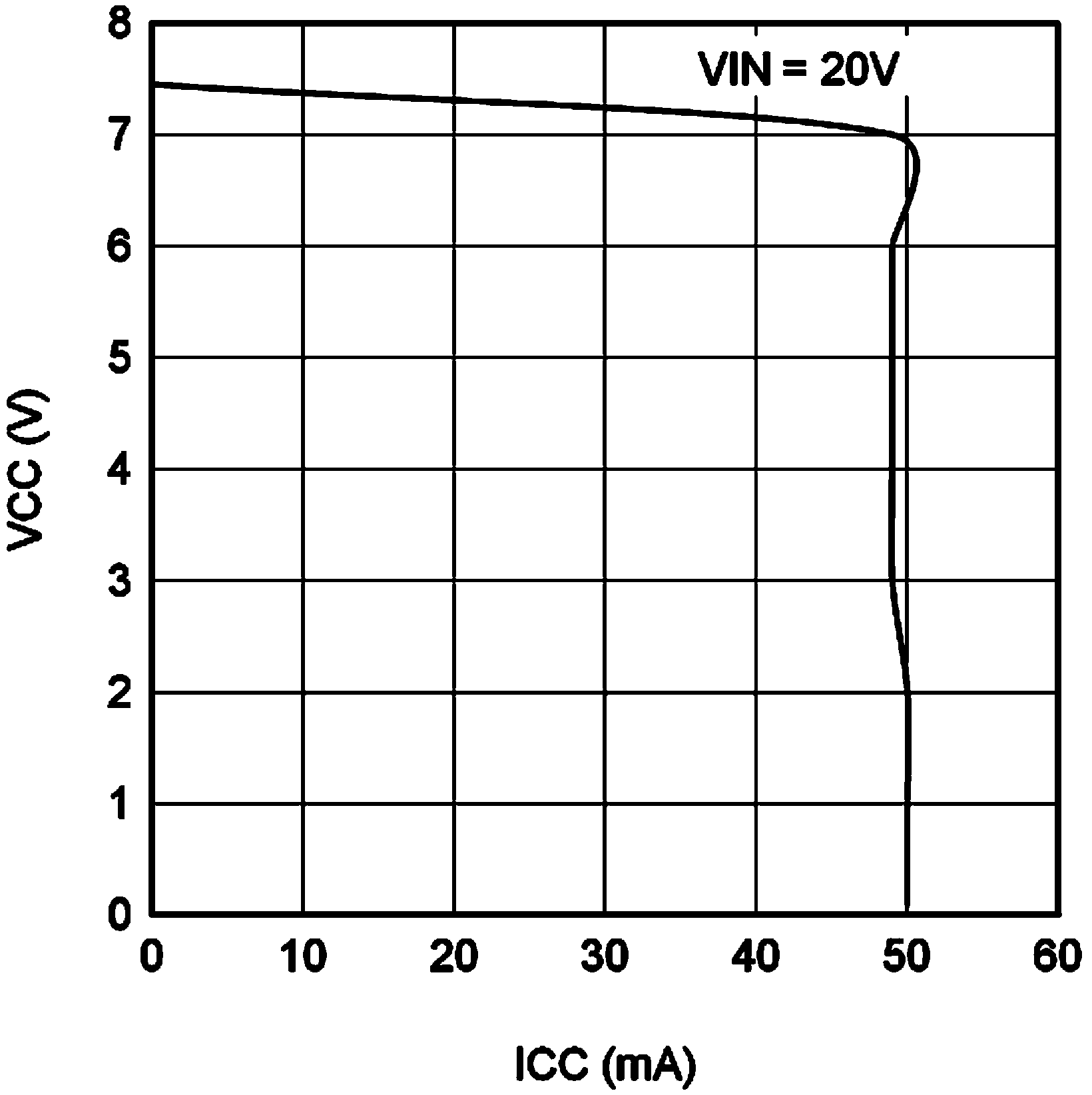

Figure 3. VCC vs ICC

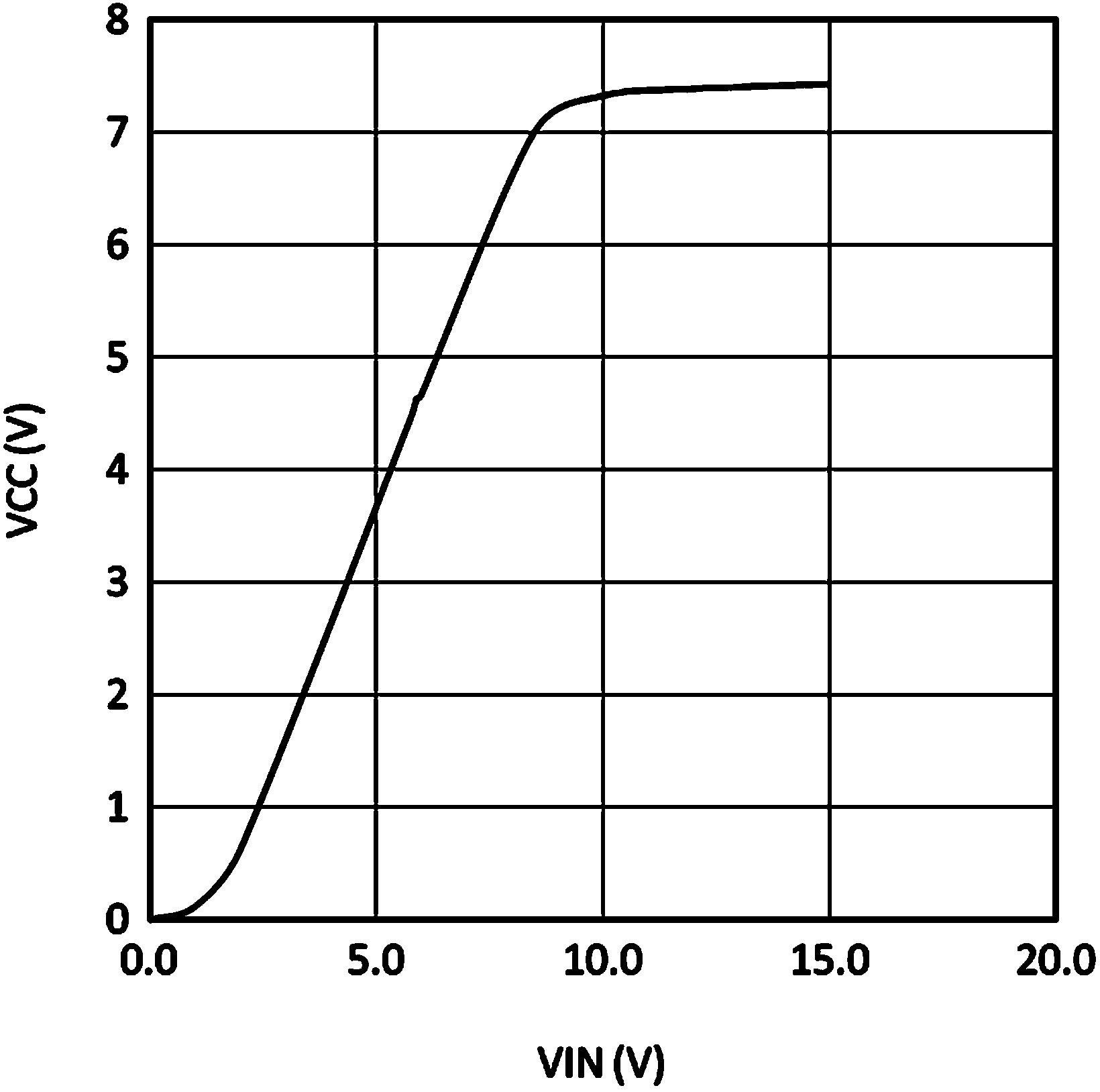

Figure 2. VCC vs VIN

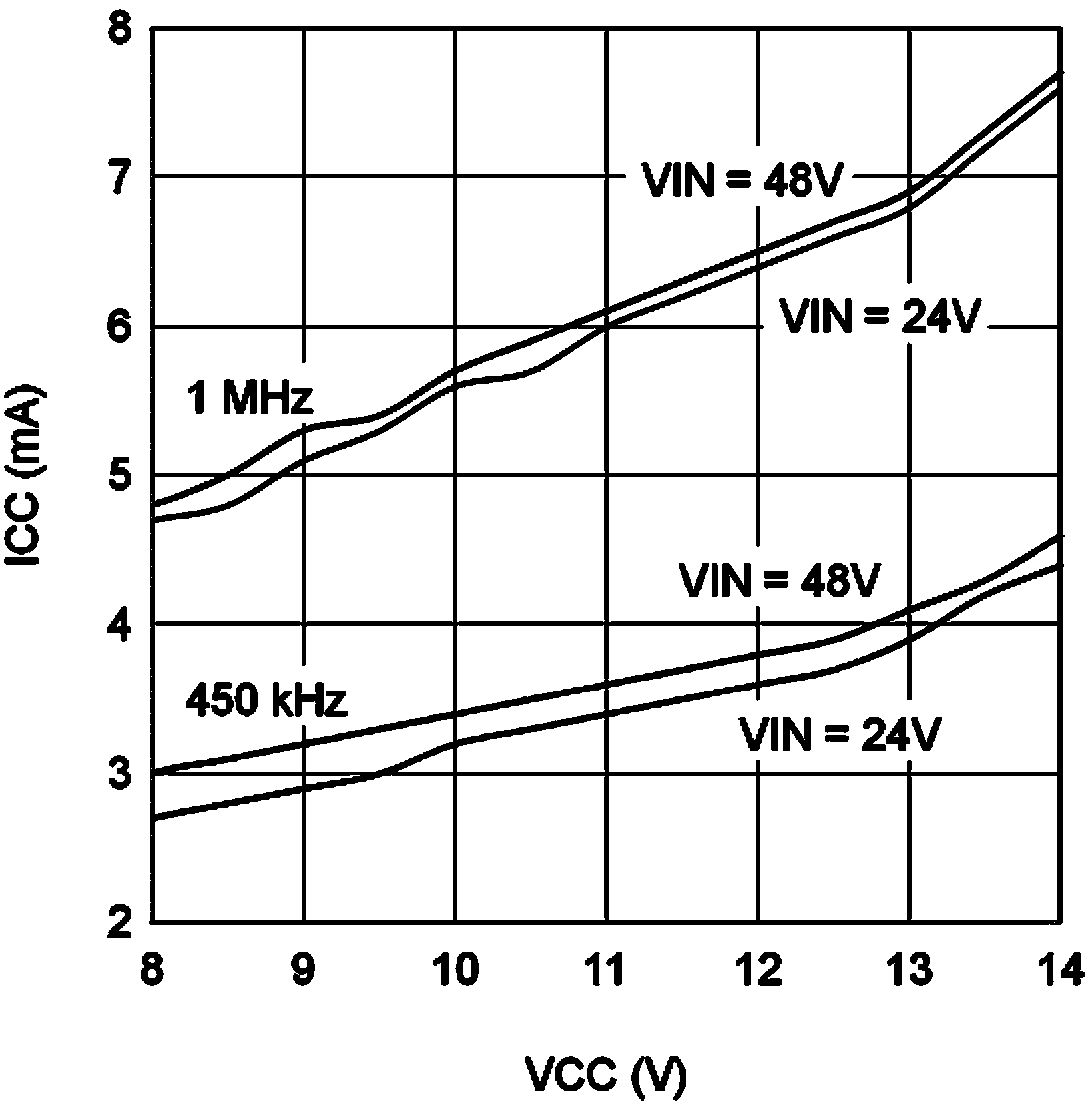

Figure 4. ICC vs External VCC

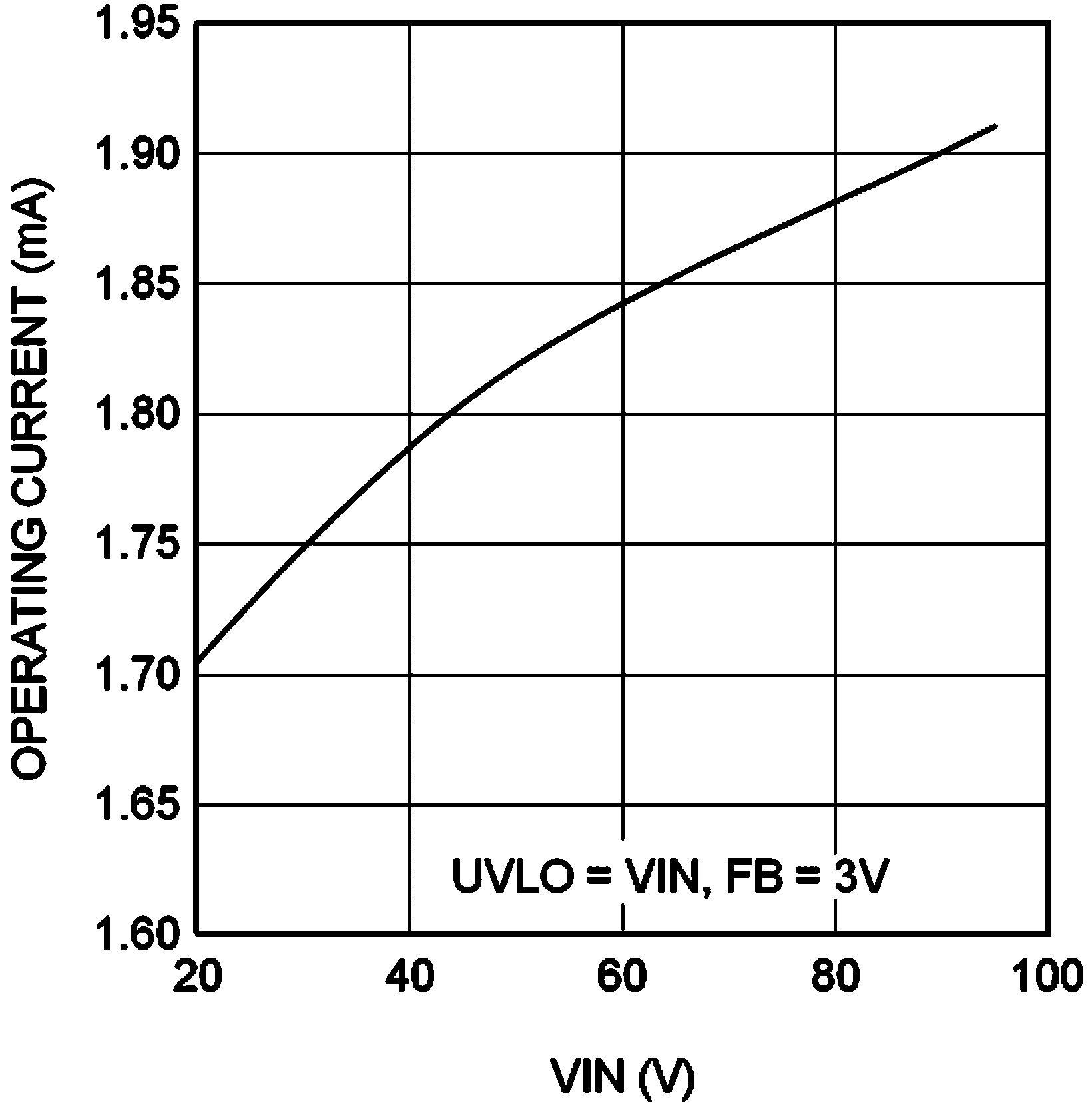

Figure 7. IIN vs VIN (Operating, Non-switching)
Figure 9. Efficiency

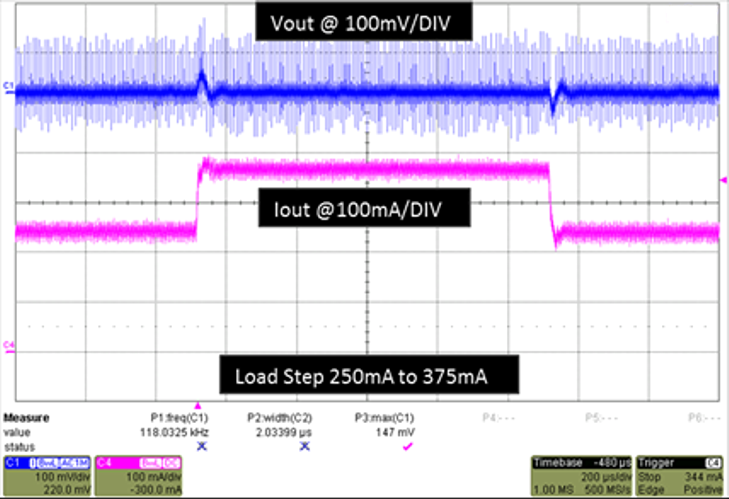

Figure 11. Buck Transient Response 36 VIN

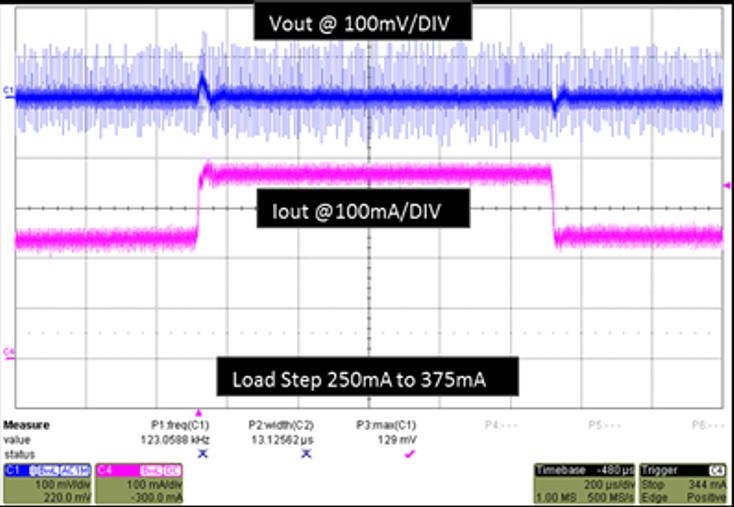

Figure 13. Buck Transient Response 48 VIN

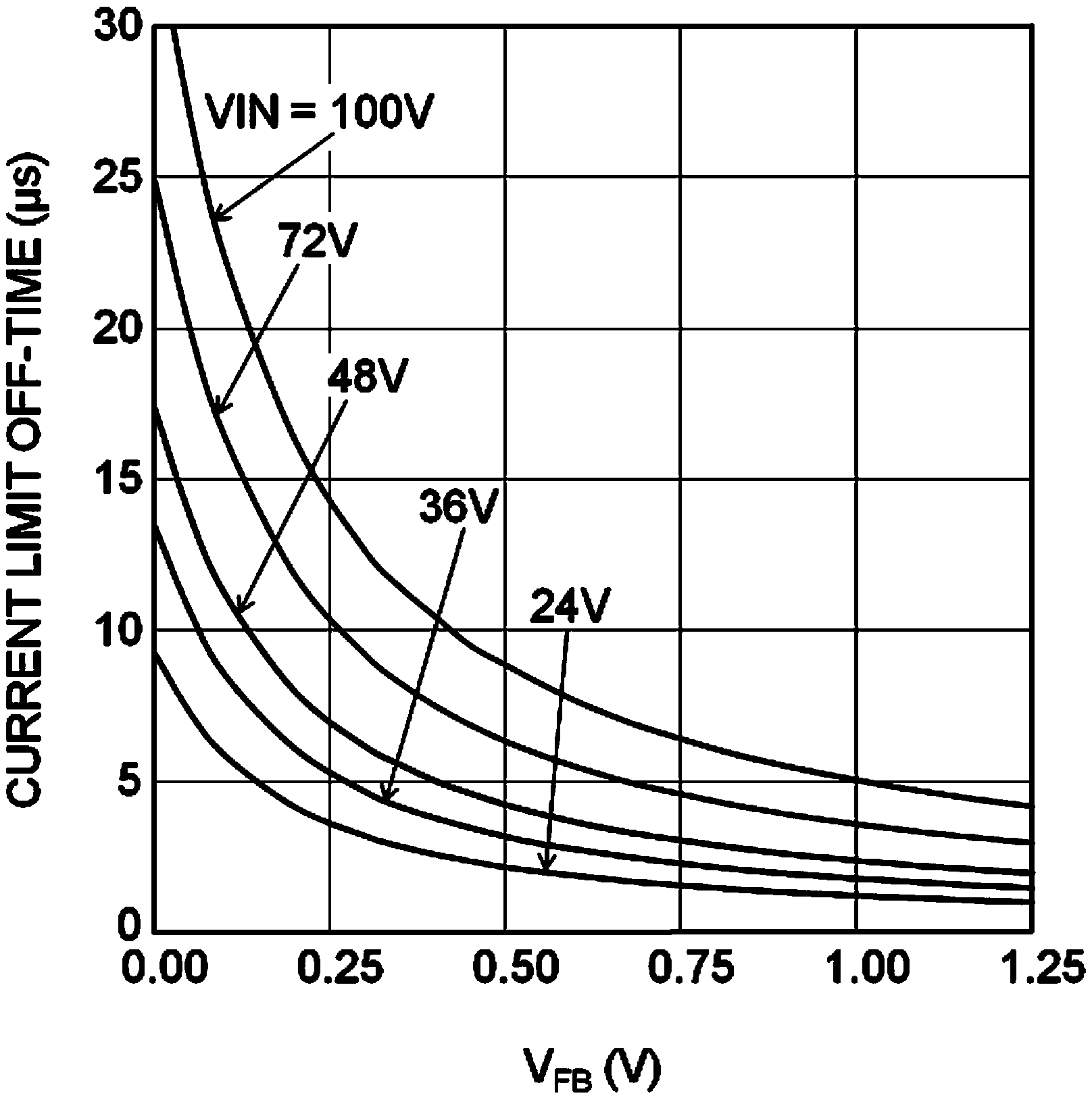

Figure 6. TOFF (ILIM) vs VFB and VIN

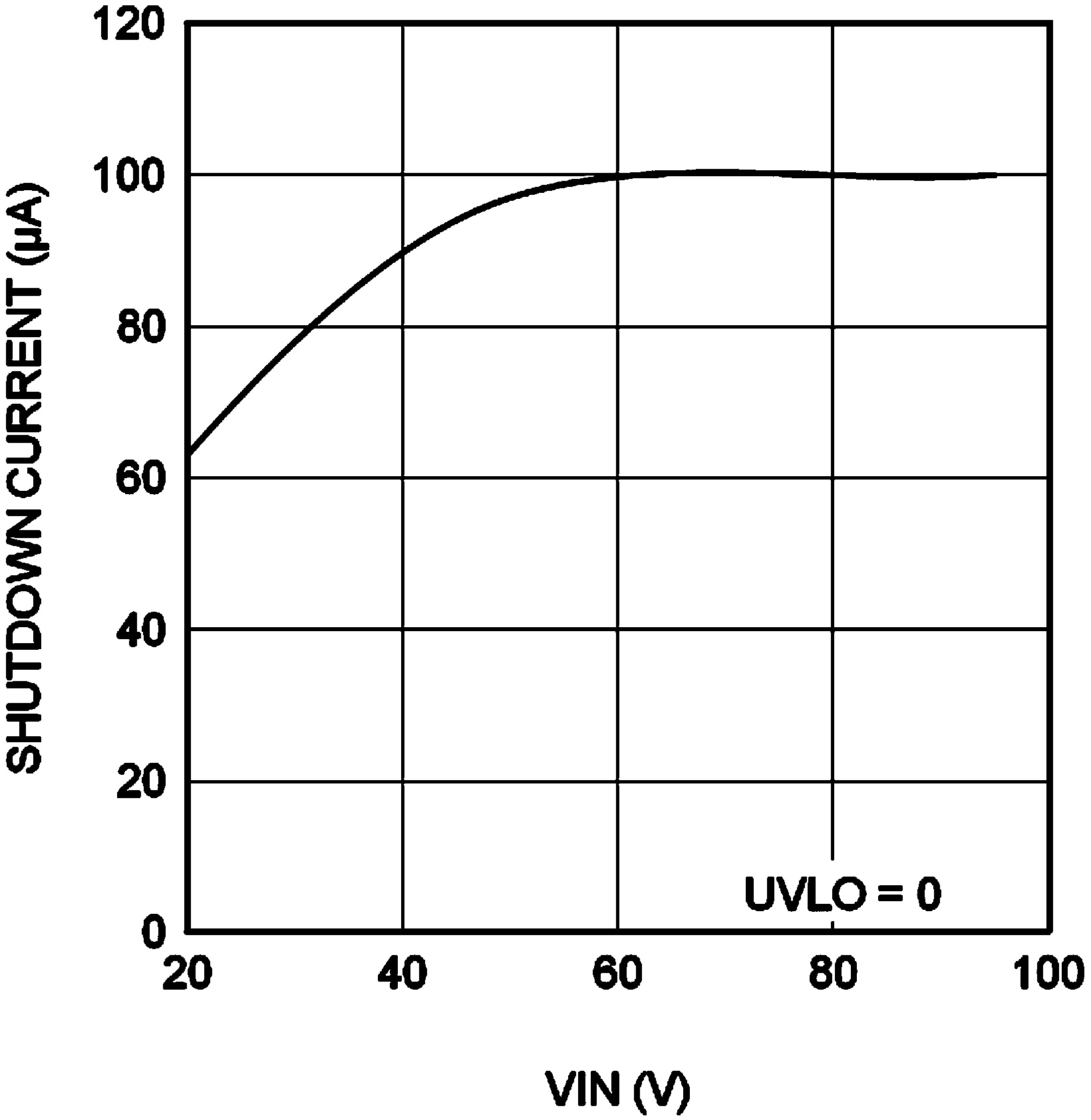

Figure 8. IIN vs VIN (Shutdown)

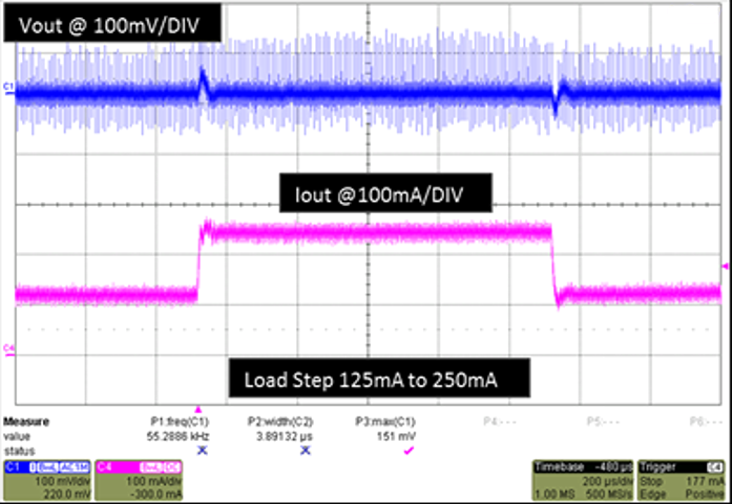

Figure 10. Buck Transient Response 36 VIN
Figure 12. Buck Transient Response 48 VIN

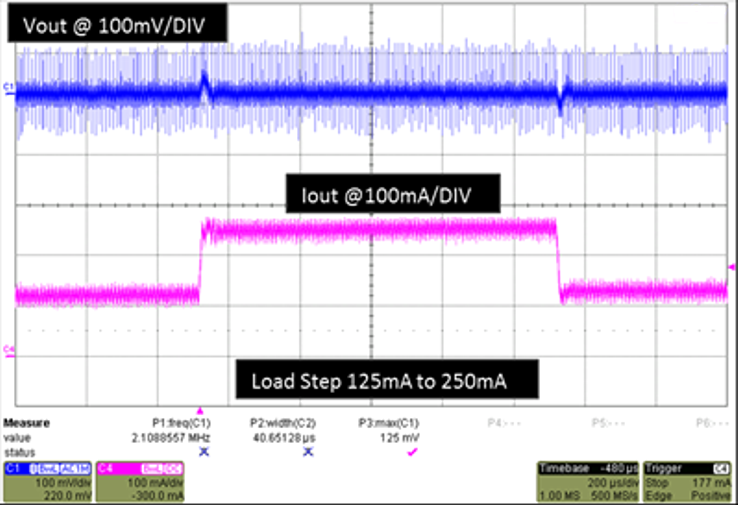

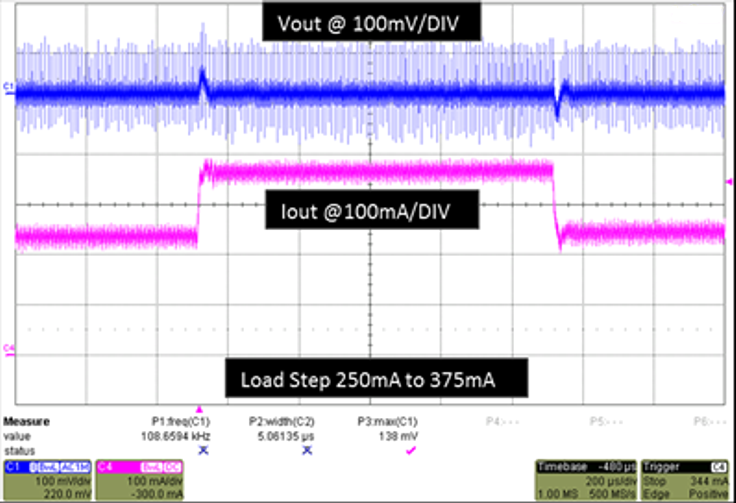

Figure 14. Buck Transient Response 72 VIN
