5 Pin Configuration and Functions

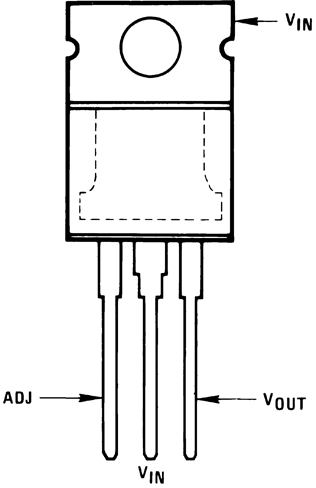

TO-220 Plastic Package
Package Number NDE0003B
Front View

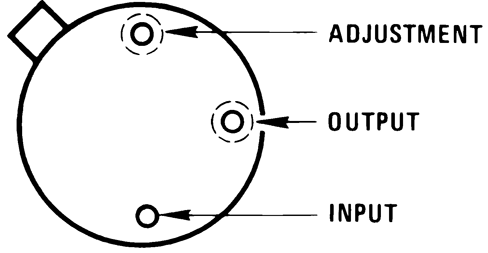

TO Metal Can Package
3-Pin Package Number NDT0003A
Bottom View

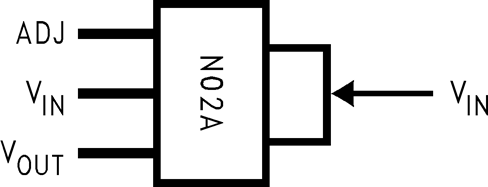

SOT-223
3-Lead Package Marked N02A
Front View
Pin Functions
| PIN | I/O | DESCRIPTION | |||
|---|---|---|---|---|---|
| NAME | TO-220 | TO | SOT-223 | ||
| ADJ | 1 | 1 | 1 | — | Adjust pin |
| VIN | 2, TAB | 3, CASE | 2, 4 | I | Input voltage pin for the regulator |
| VOUT | 3 | 2 | 3 | O | Output voltage pin for the regulator |
