5 Pin Configuration and Functions

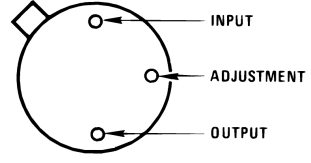

Metal Can NDT Package
3-Pin TO
Bottom View
CASE IS OUTPUT

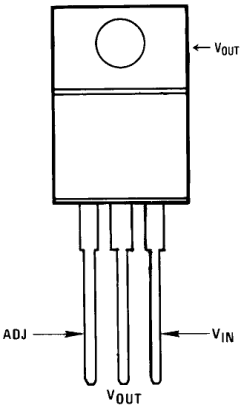

Plastic NDE Package
3-Pin TO-220
Front View

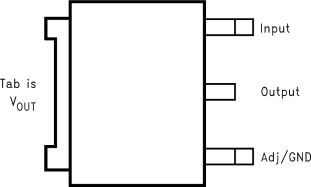

Surface-Mount DCY Package
4-Pin SOT-223
Top View
Surface-Mount NDP Package
4-Pin TO-252
Front View
Pin Functions
| PIN | I/O | DESCRIPTION | ||||
|---|---|---|---|---|---|---|
| NAME | TO-220 | SOT-223 | TO-252 | TO | ||
| ADJ | 1 | 1 | 1 | 2 | — | Adjust pin |
| VIN | 3 | 3 | 3 | 1 | I | Input voltage pin for the regulator |
| VOUT | 2, TAB | 2, 4 | 2, TAB | 3, CASE | O | Output voltage pin for the regulator |
