8.3.10 Current-Limited 6V Charger Circuit
When charge current increases, the voltage at the bottom resistor increases until the NPN starts sinking current from the ADJUST pin. The voltage at the ADJUST pin drops, and consequently the output voltage decreases until the NPN stops conducting. Figure 8-15 shows the current-limited circuit.

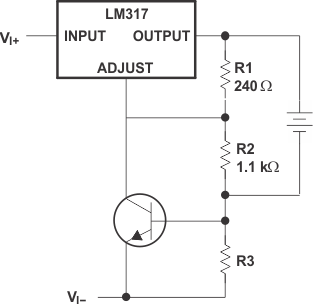

Figure 8-15 Current-Limited 6V
Charger Circuit
