ZHCSIY4G October 1999 – October 2018 LM193-N , LM2903-N , LM293-N , LM393-N
PRODUCTION DATA.
- 1 特性
- 2 應用
- 3 說明
- 4 修訂歷史記錄
- 5 Pin Configuration and Functions
-
6 Specifications
- 6.1 Absolute Maximum Ratings
- 6.2 ESD Ratings
- 6.3 Recommended Operating Conditions
- 6.4 Thermal Information
- 6.5 Electrical Characteristics: LM193A V+= 5 V, TA = 25°C
- 6.6 Electrical Characteristics: LM193A (V+ = 5 V)
- 6.7 Electrical Characteristics: LMx93 and LM2903 V+= 5 V, TA = 25°C
- 6.8 Electrical Characteristics: LMx93 and LM2903 (V+ = 5 V)
- 6.9 Typical Characteristics: LMx93 and LM193A
- 6.10 Typical Characteristics: LM2903
- 7 Detailed Description
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11器件和文檔支持
- 12機械、封裝和可訂購信息

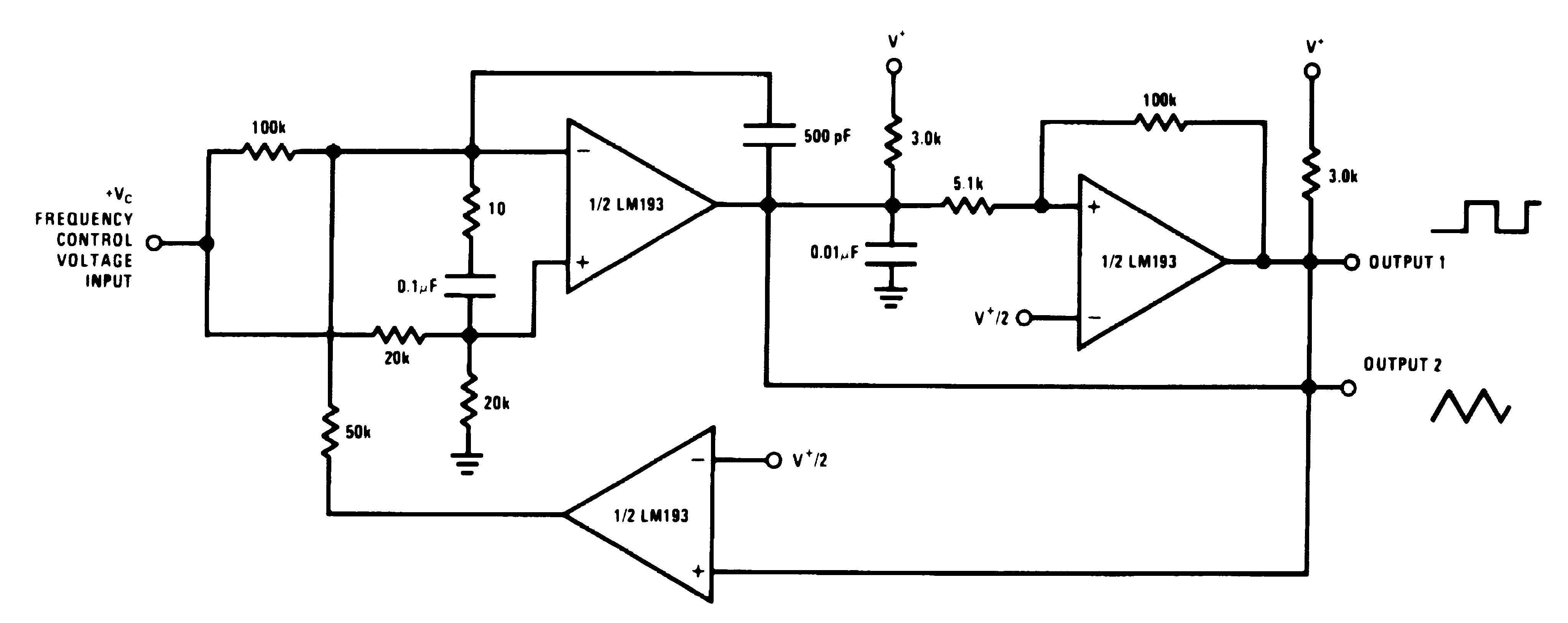

8.2.2.2 V+ = 5.0 VDC Application Circuits

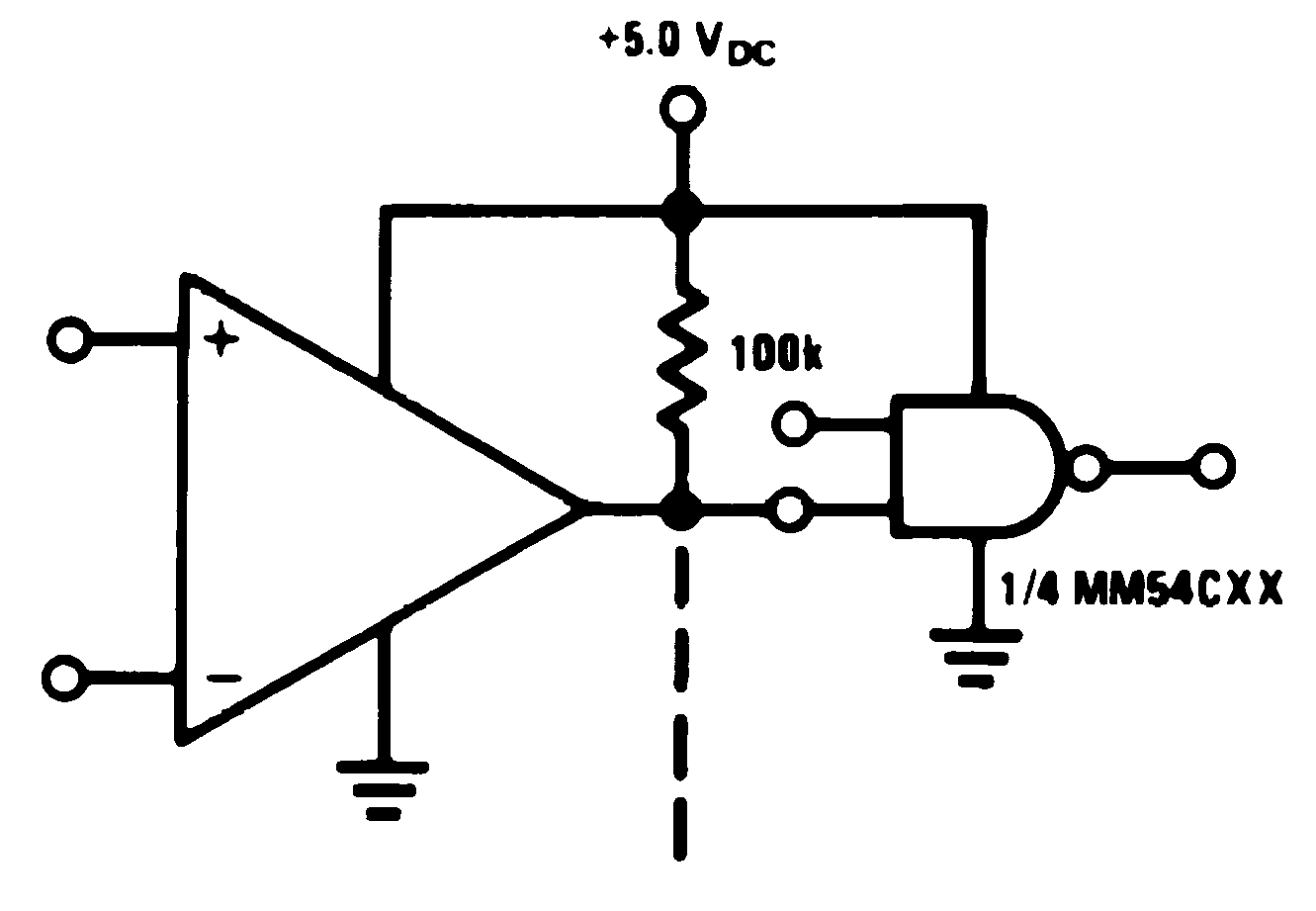

Figure 15. Driving CMOS

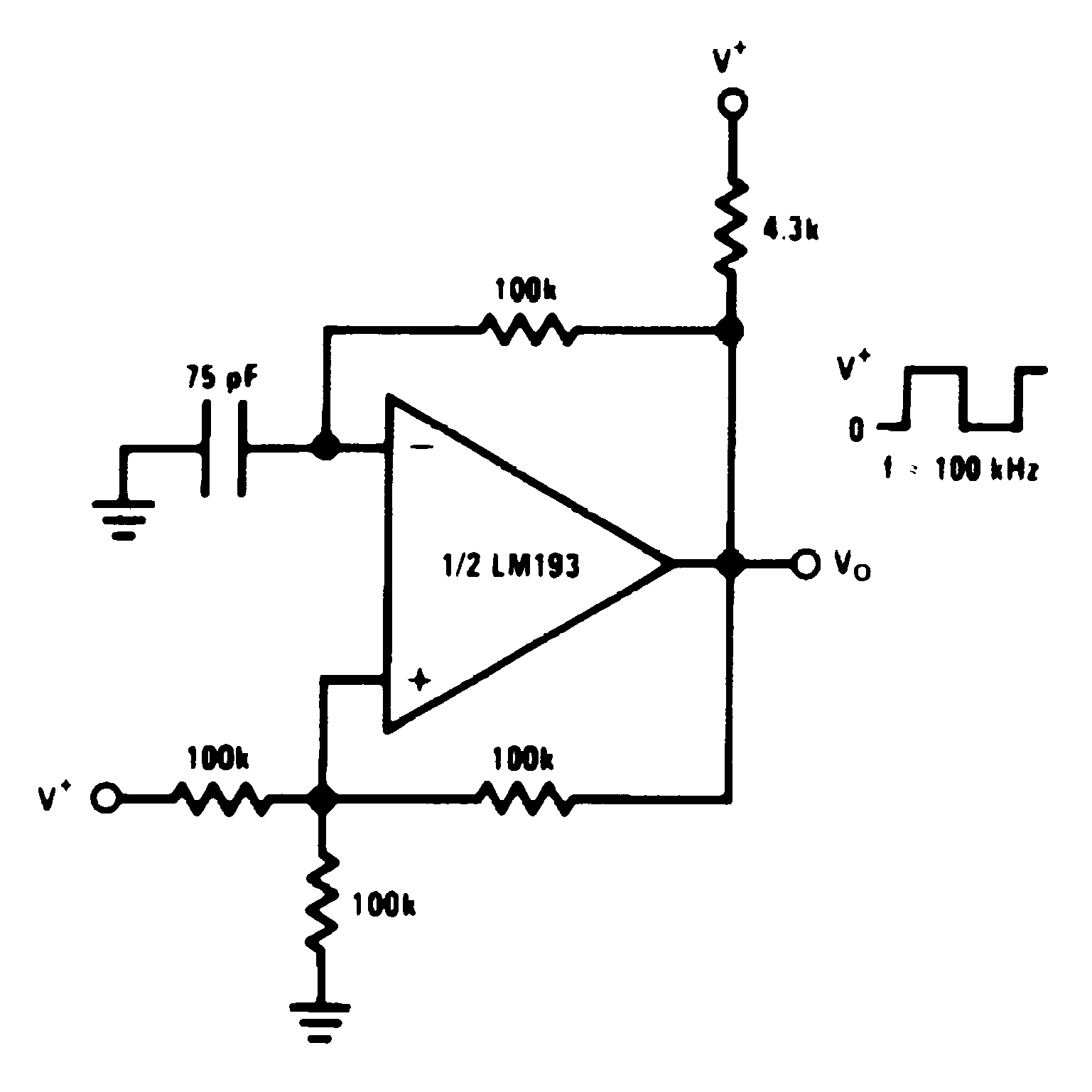

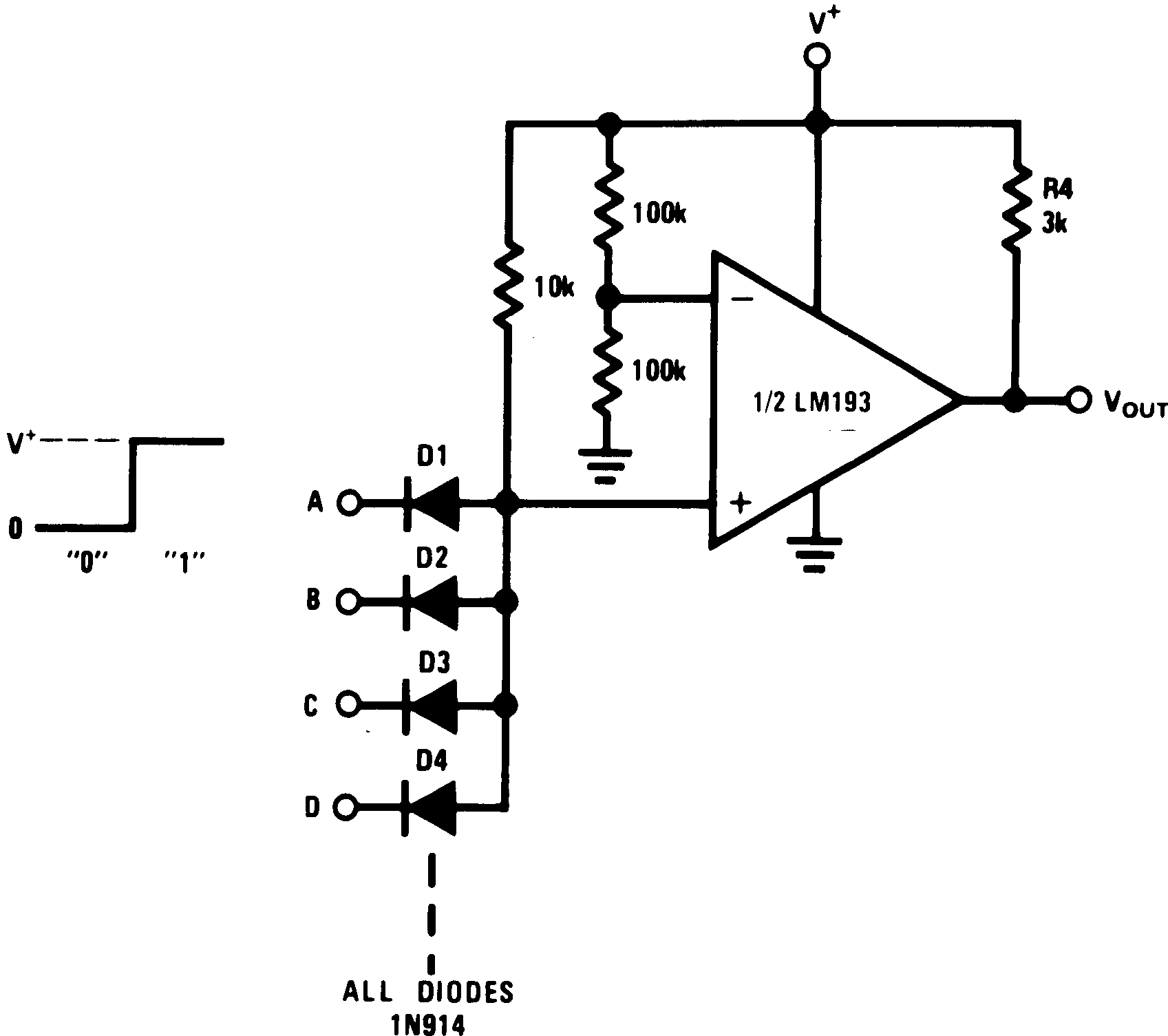

Figure 17. Squarewave Oscillator

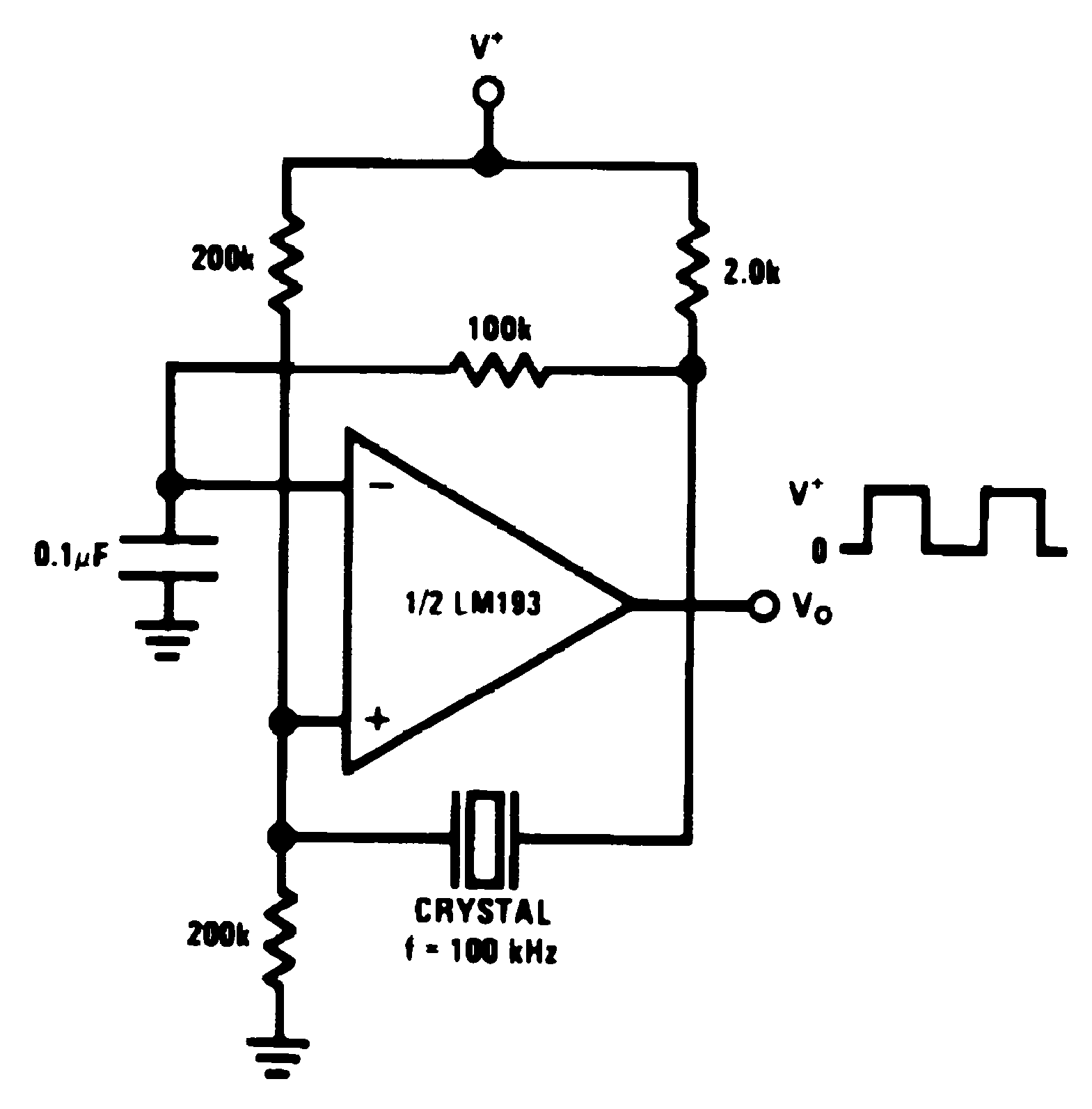

Figure 19. Crystal Controlled Oscillator

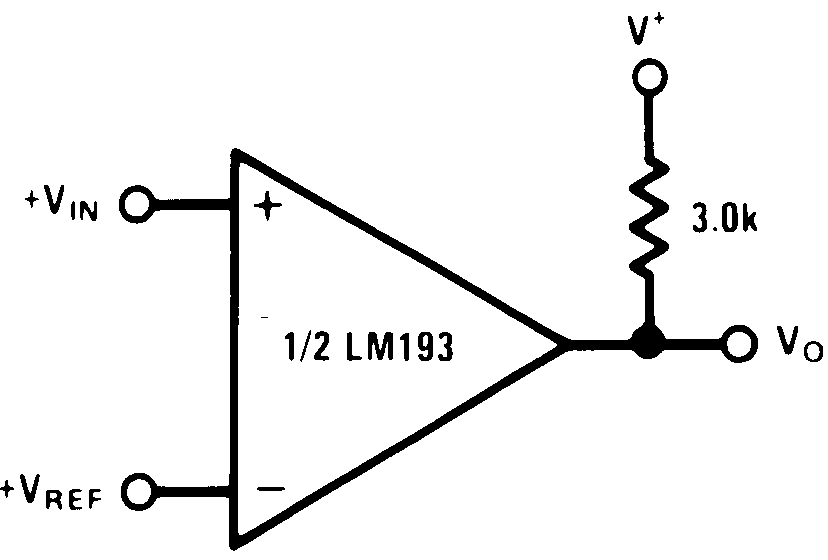

Figure 21. Basic Comparator

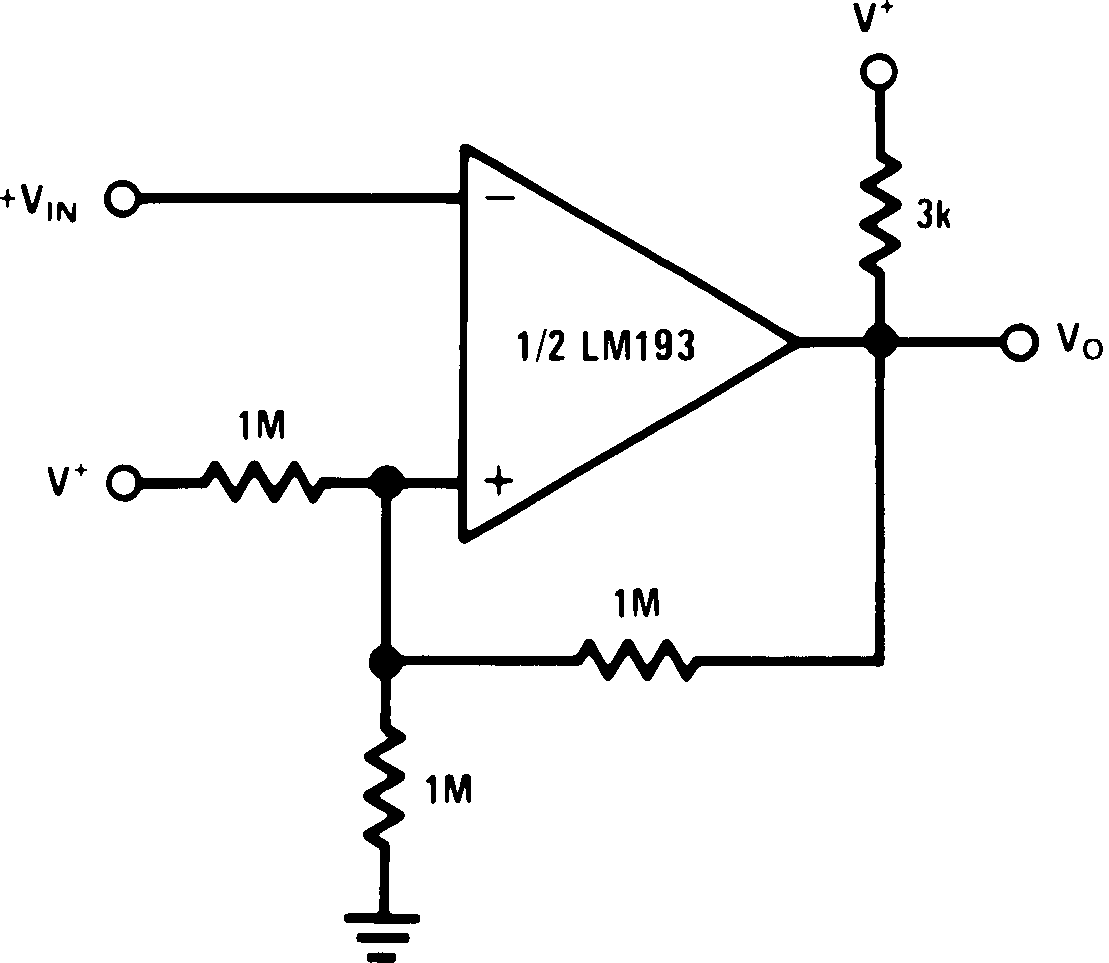

Figure 23. Inverting Comparator With Hysteresis

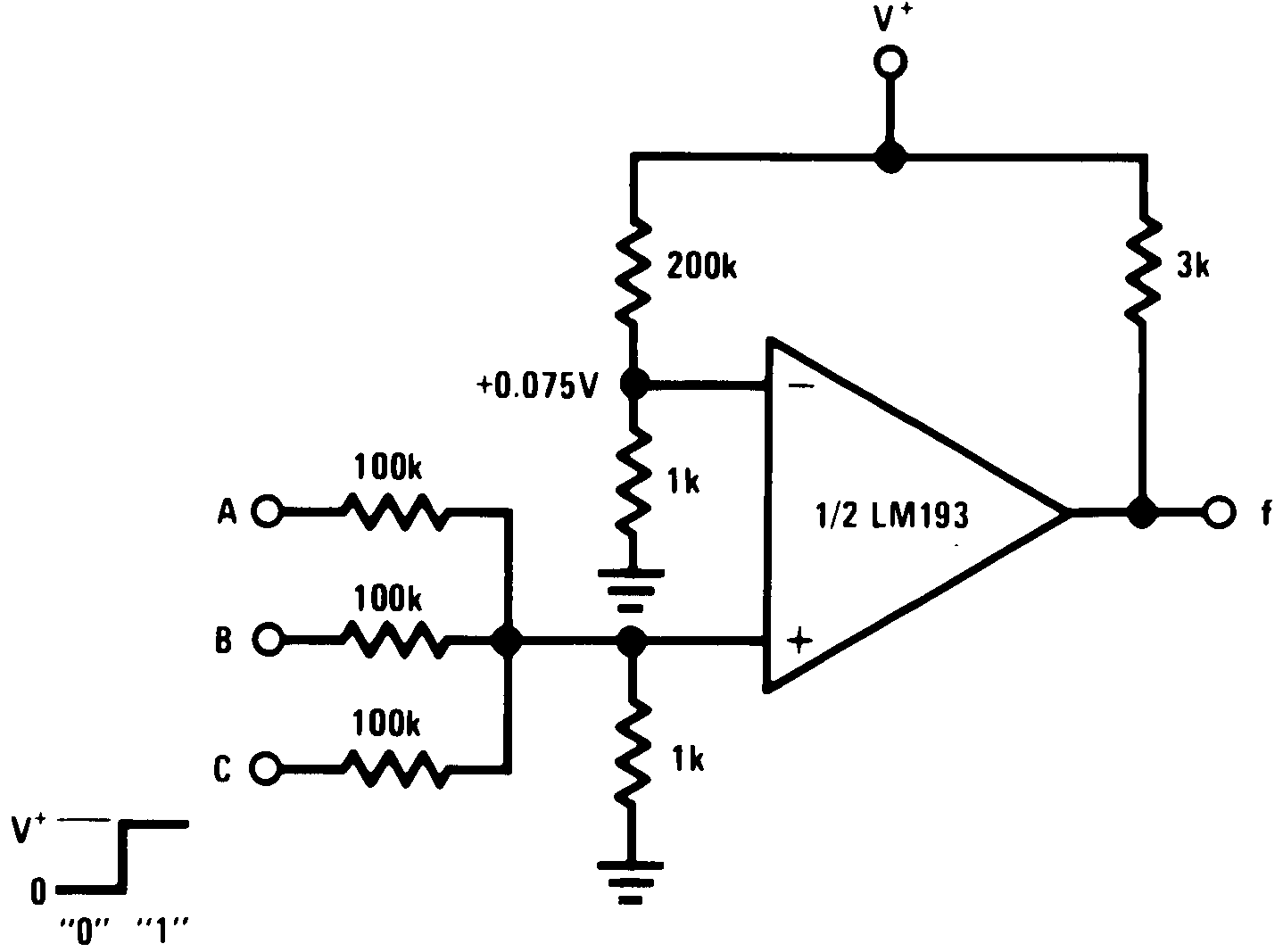

Figure 25. And Gate
Figure 27. Large Fan-In and Gate

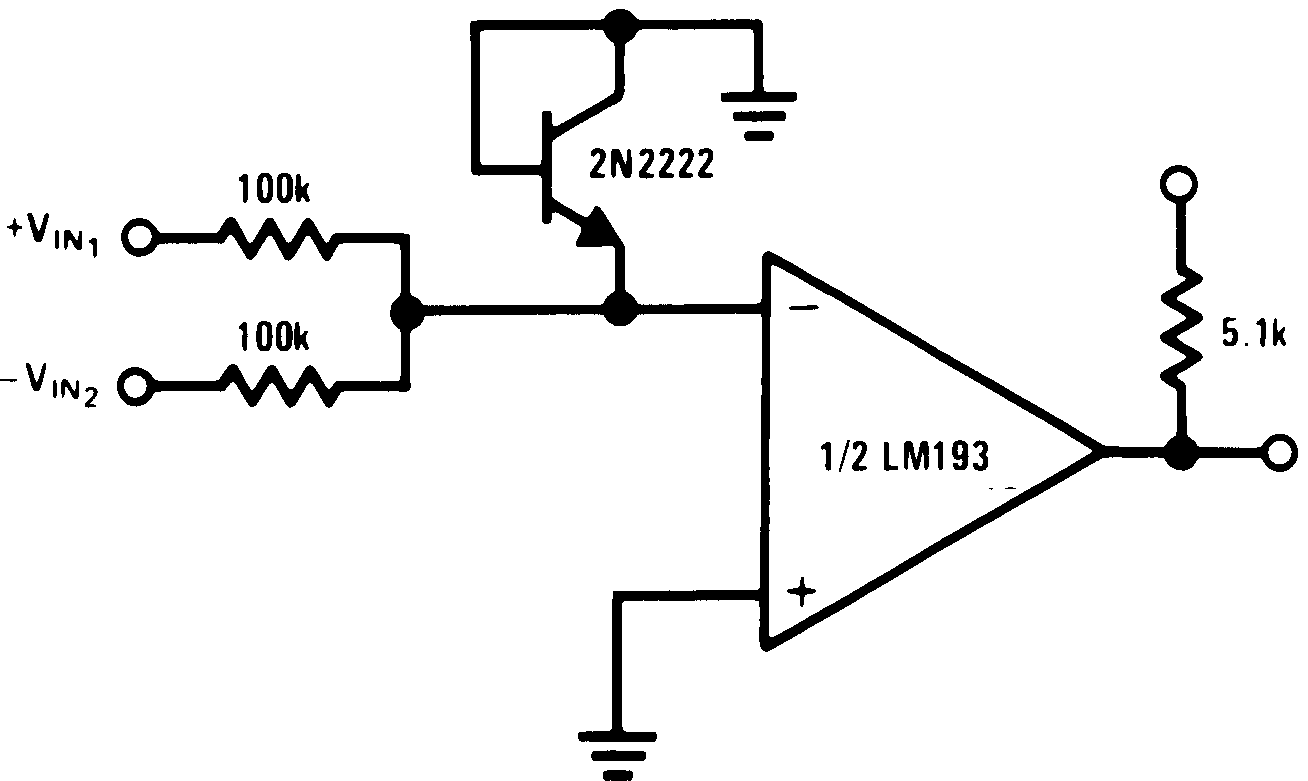

Figure 29. Comparing Input Voltages of Opposite Polarity
Figure 31. Zero Crossing Detector (Single Power Supply)

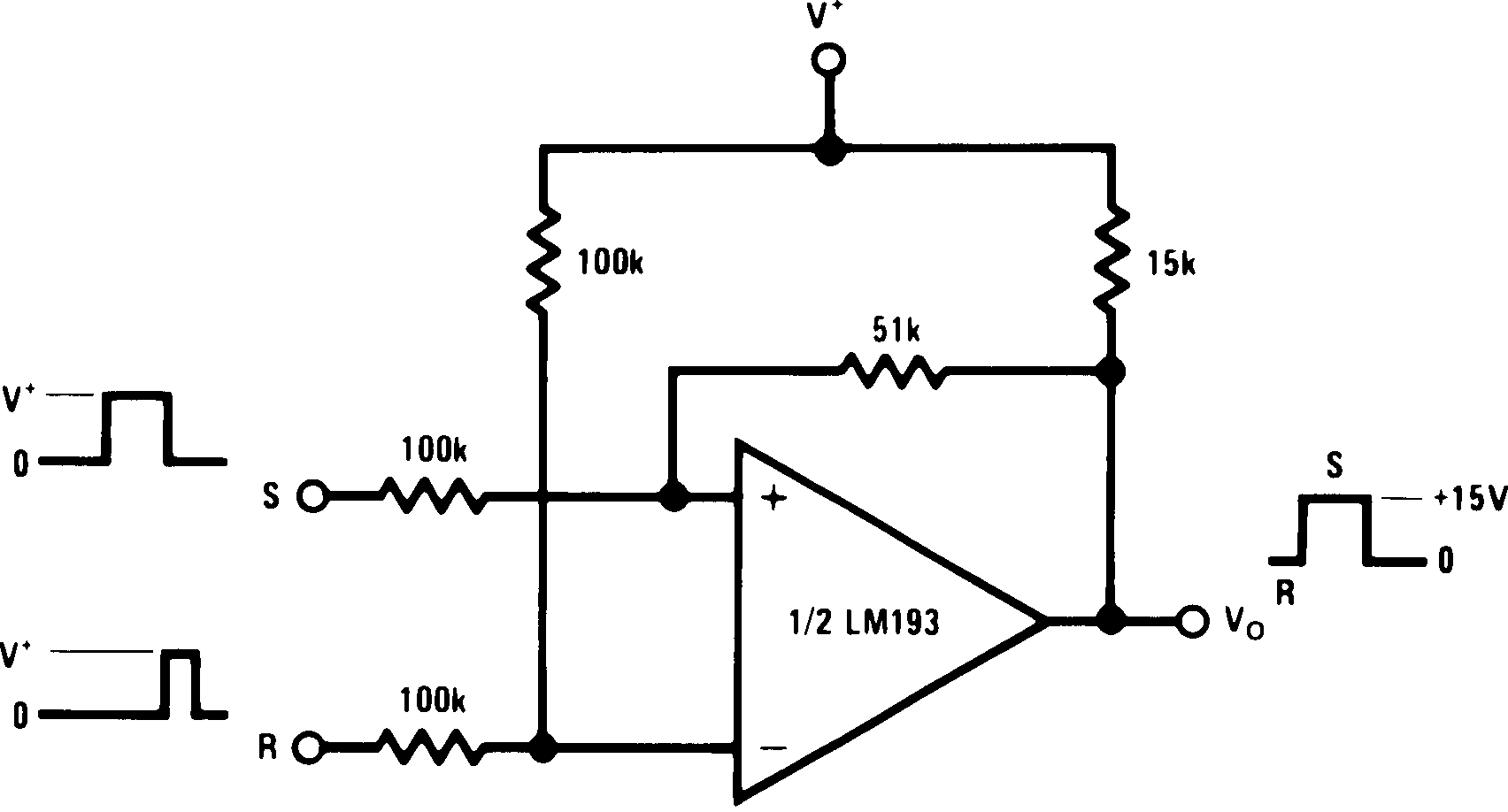

Figure 33. Bi-Stable Multivibrator

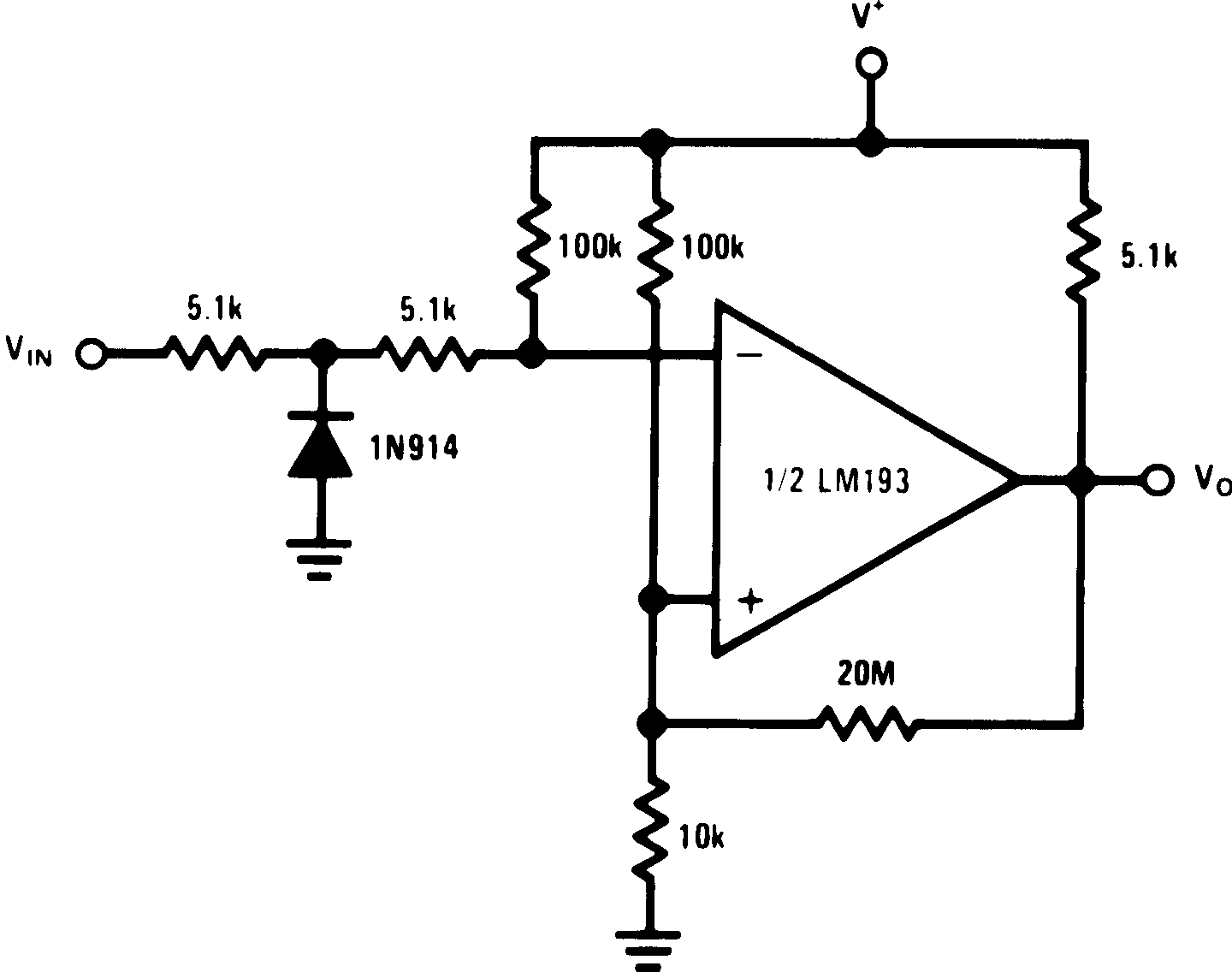

Figure 35. Zero Crossing Detector

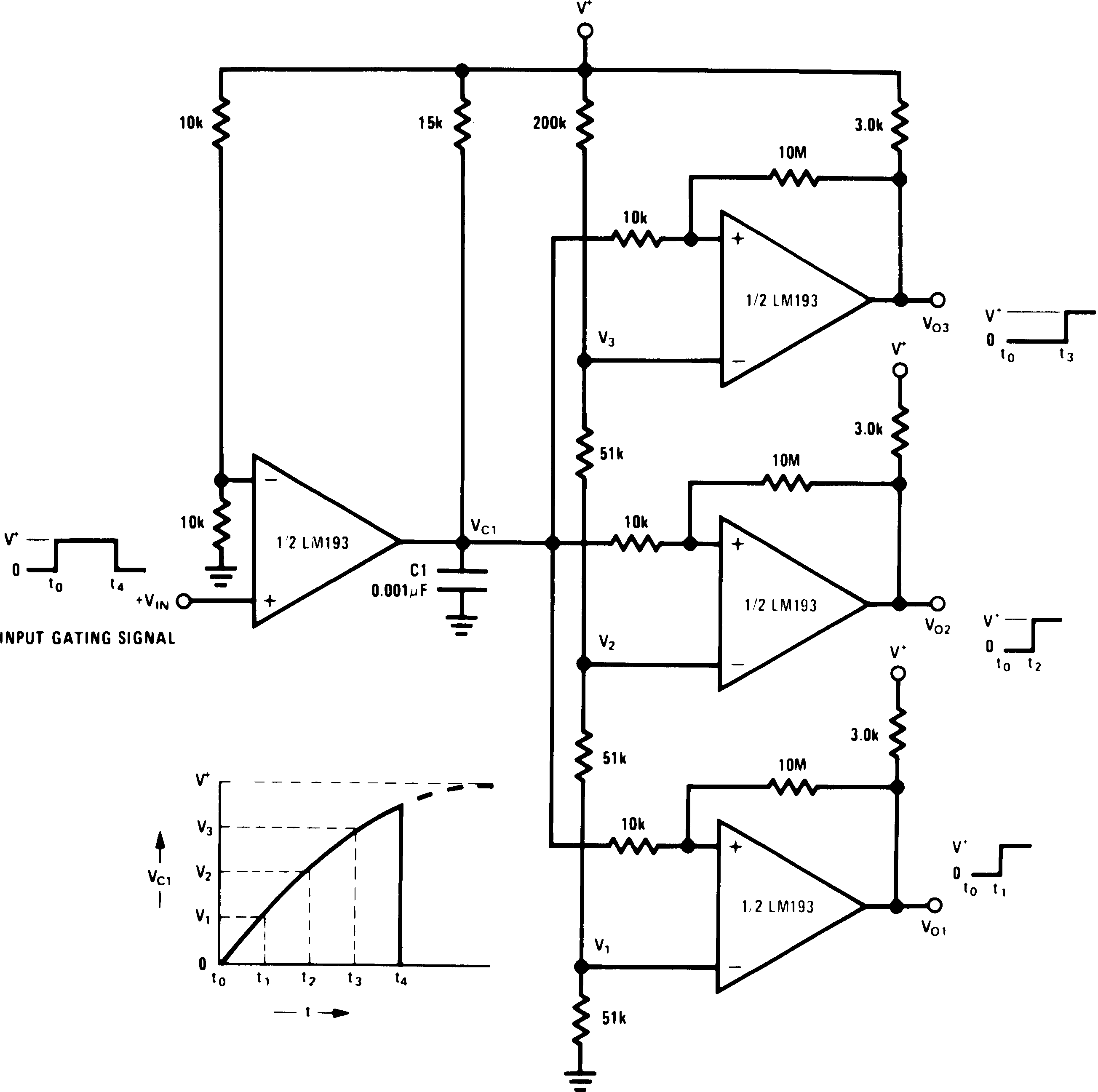

Figure 37. Time Delay Generator

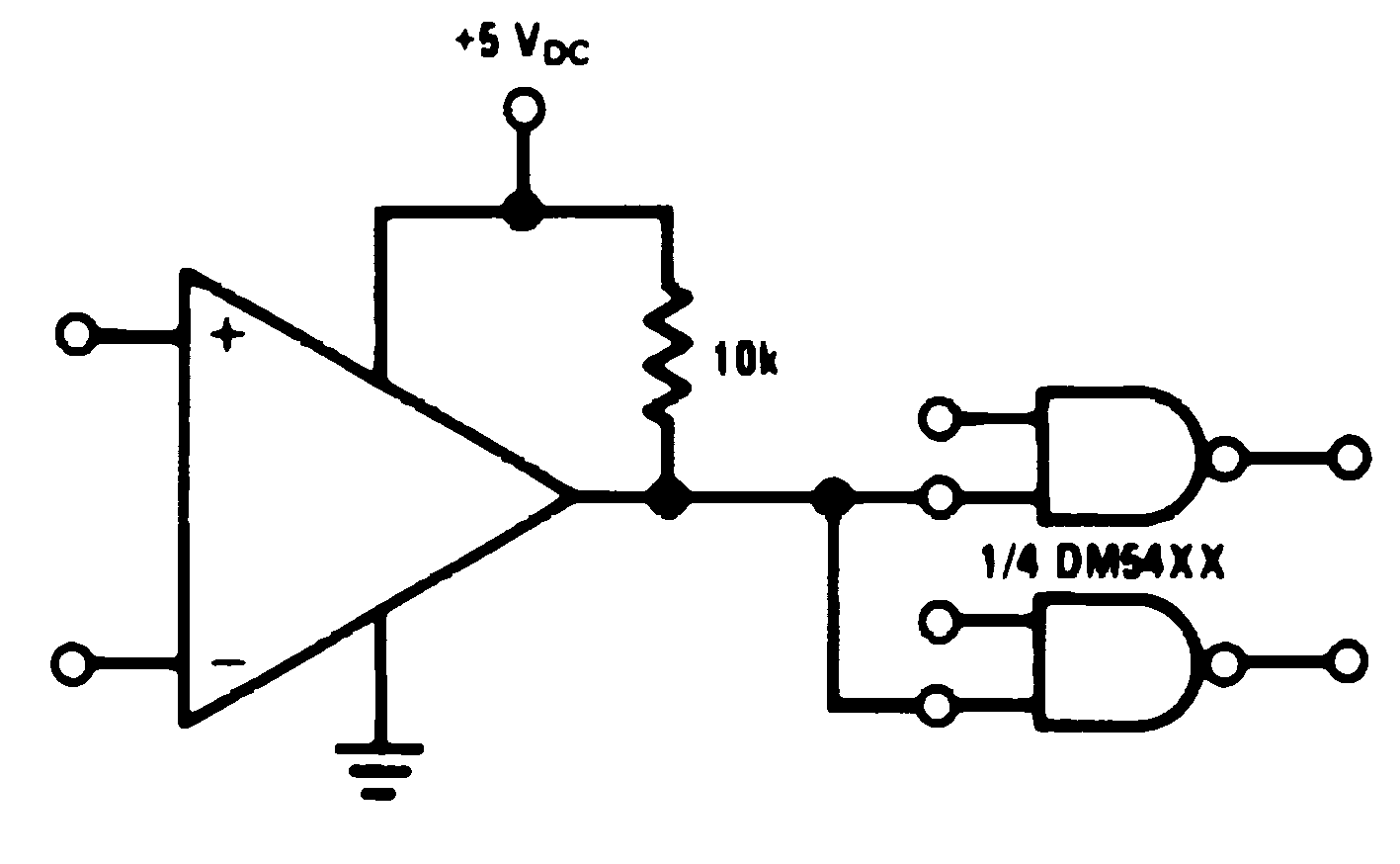

Figure 16. Driving TTL
| * For large ratios of R1/R2, | ||
| D1 can be omitted. |
| V* = +30 VDC | ||
| +250 mVDC ≤ VC ≤ +50 VDC | ||
| 700Hz ≤ fo ≤ 100kHz |

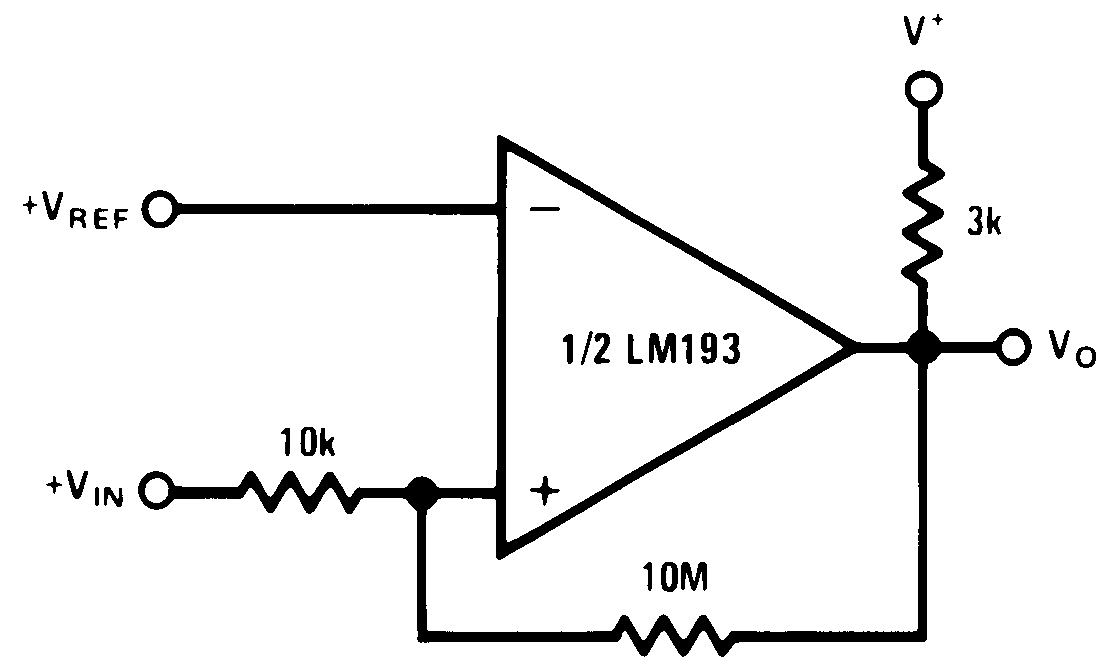

Figure 22. Non-Inverting Comparator With Hysteresis

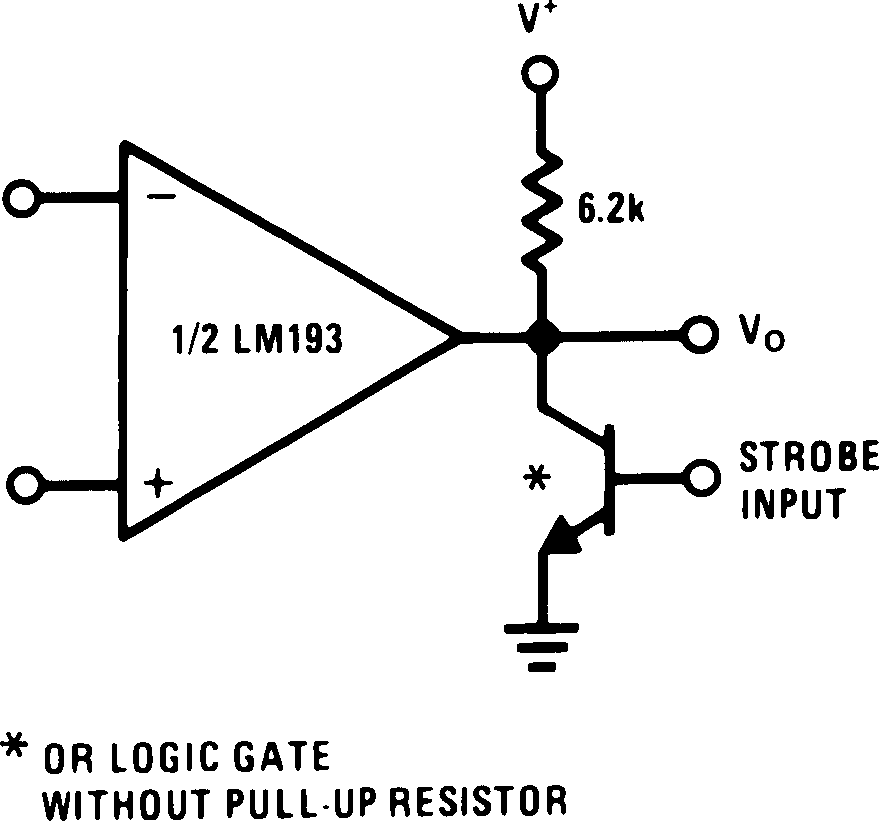

Figure 24. Output Strobing

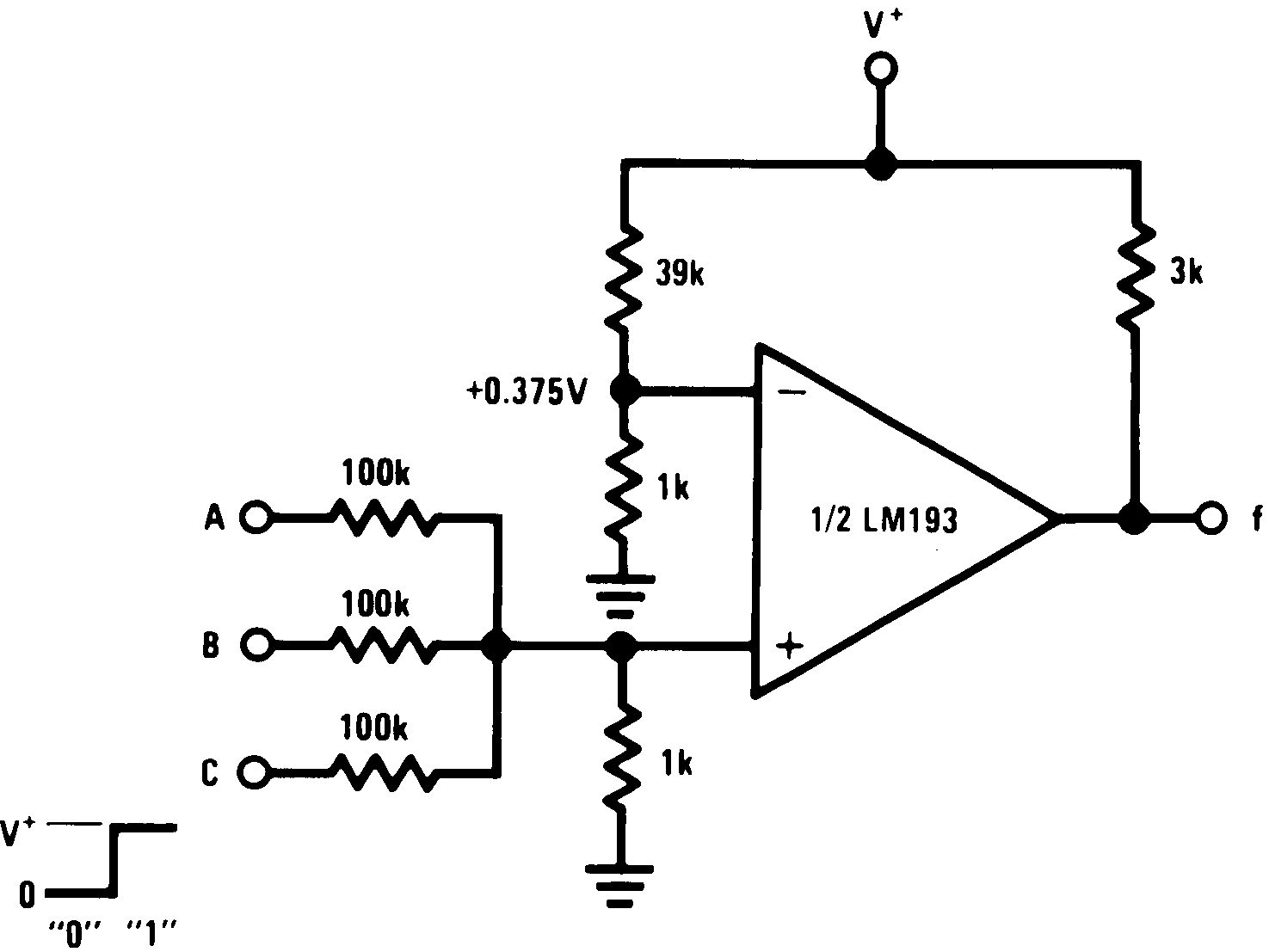

Figure 26. Or Gate

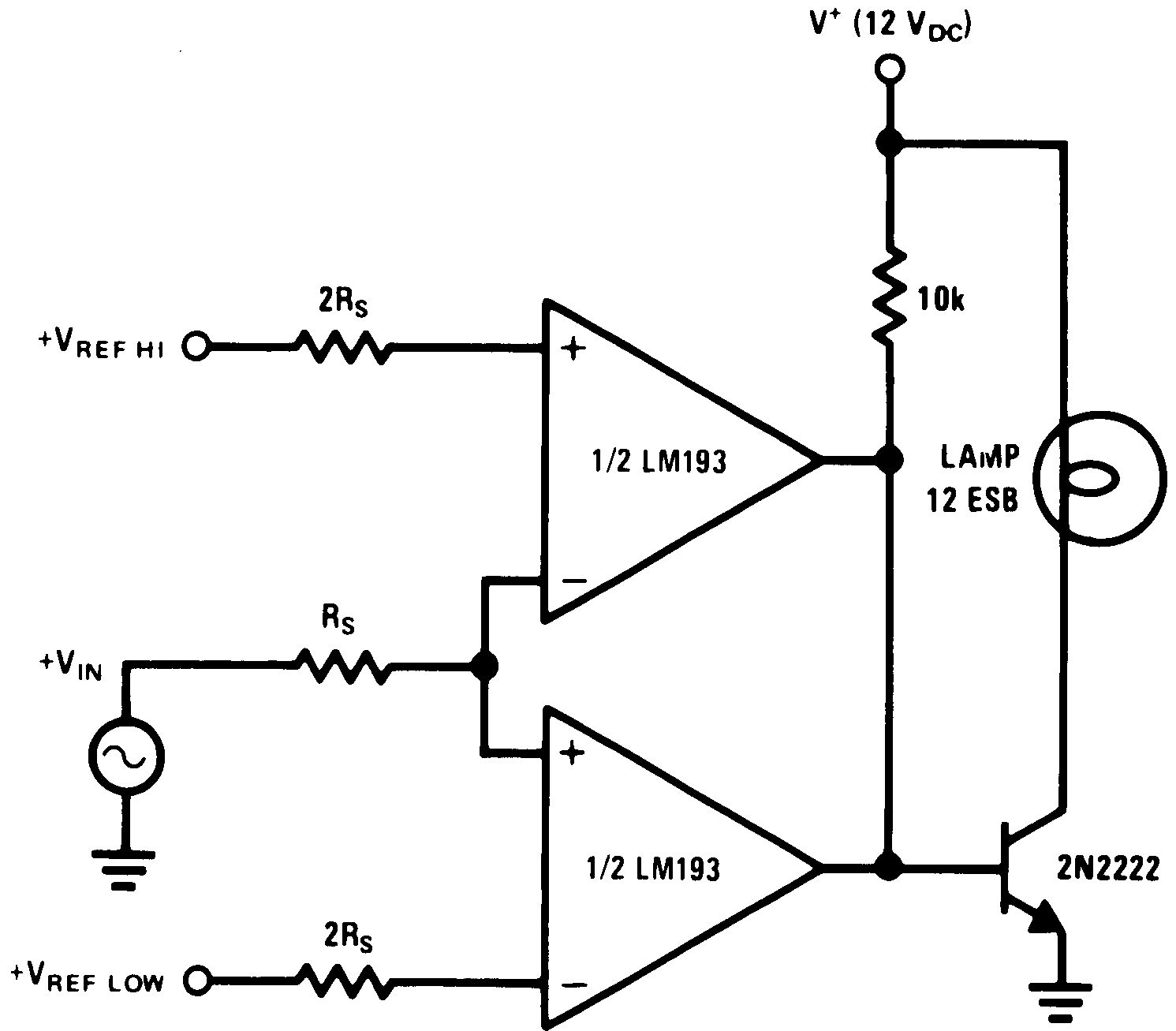

Figure 28. Limit Comparator

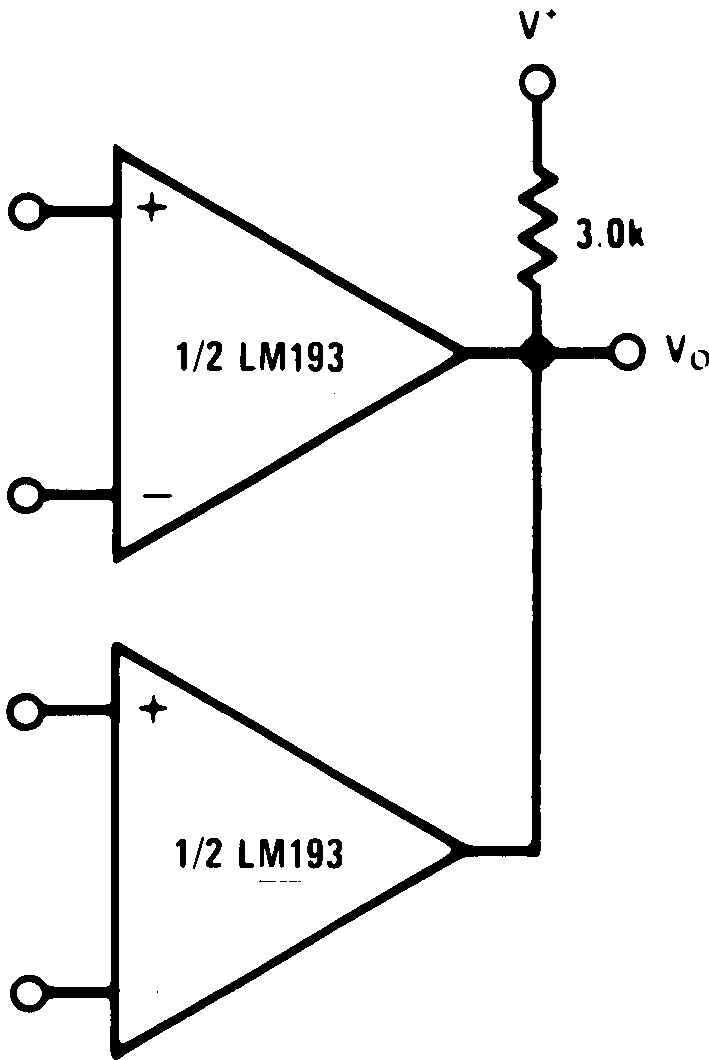

Figure 30. Oring the Outputs

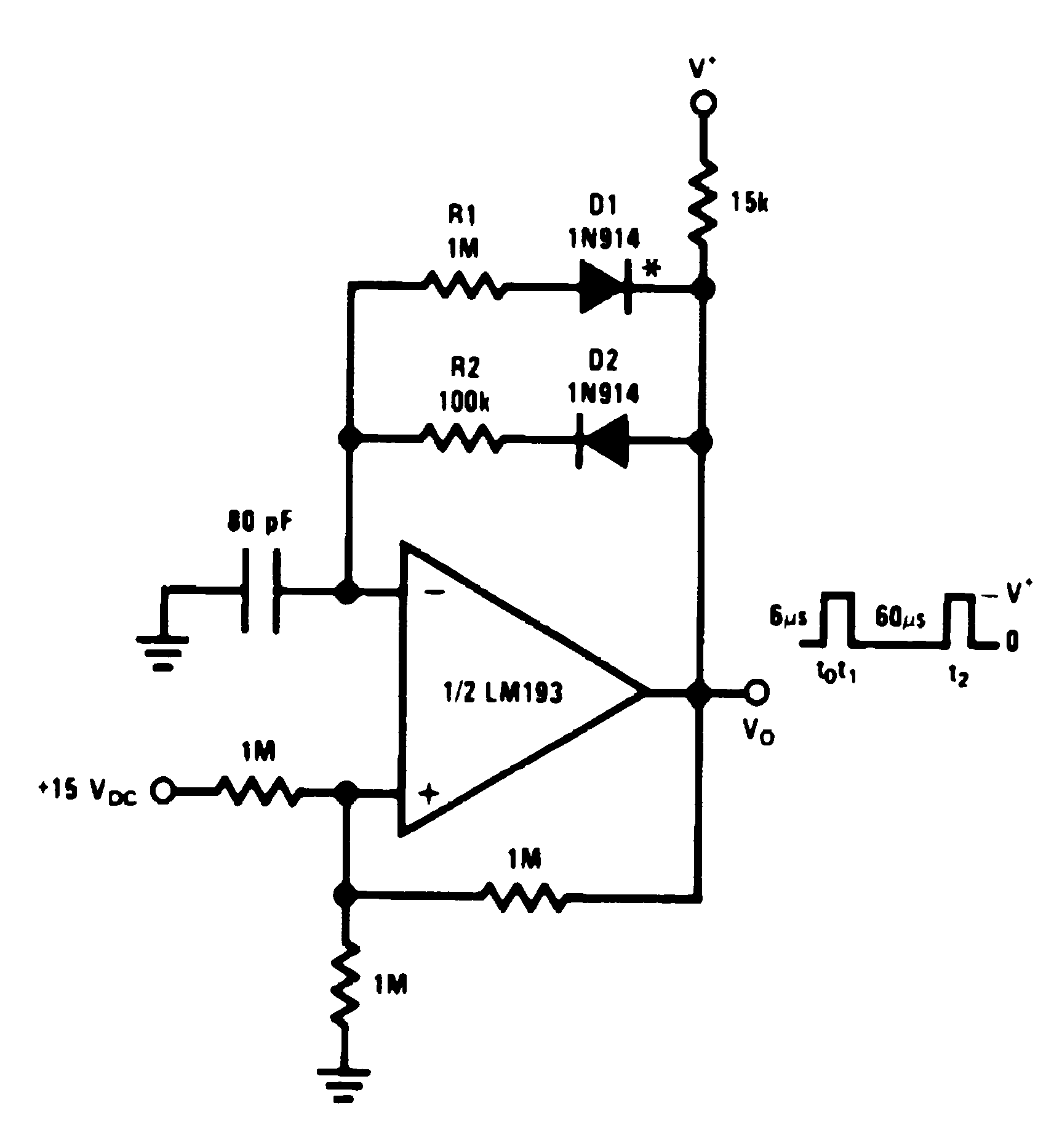

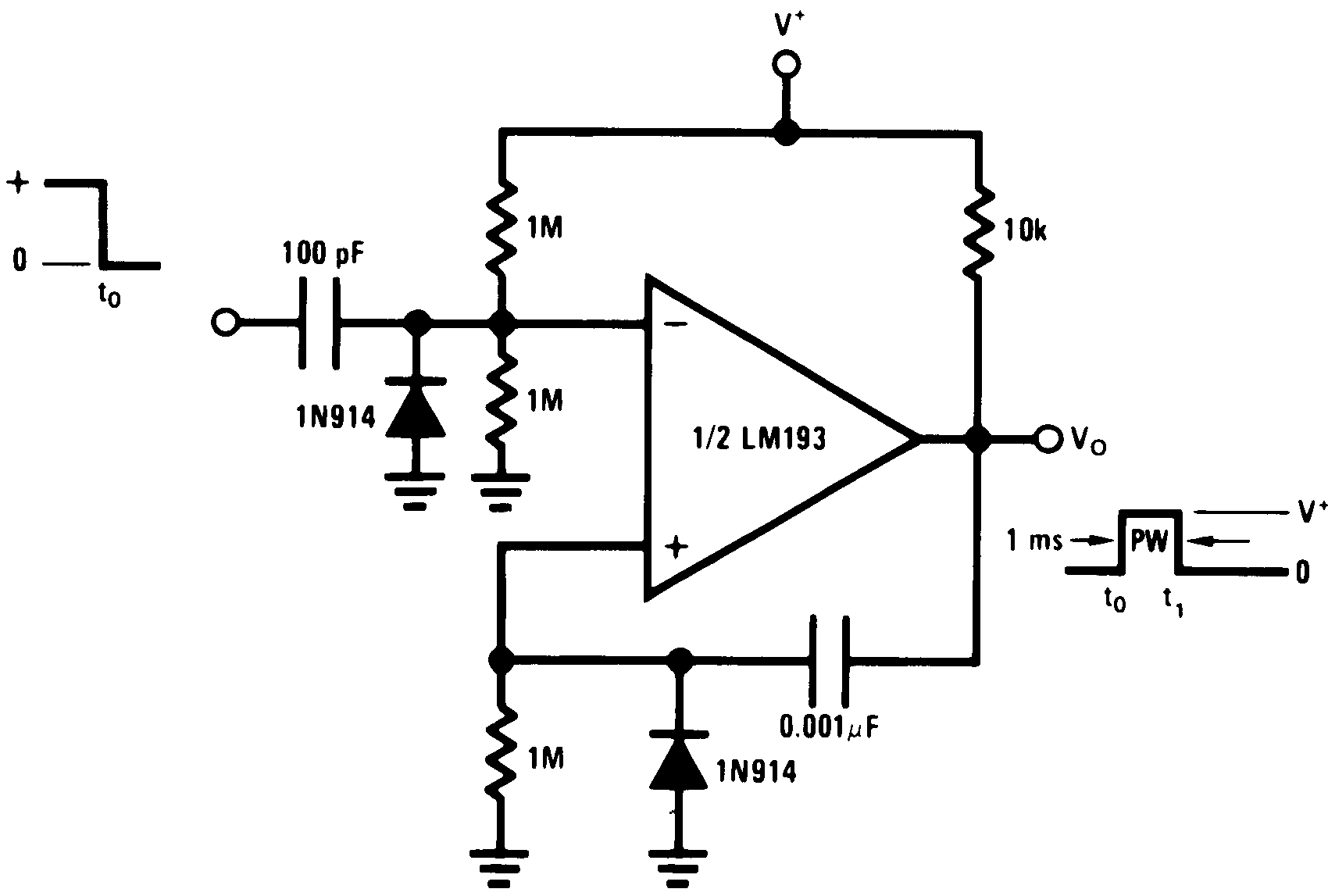

Figure 32. One-Shot Multivibrator

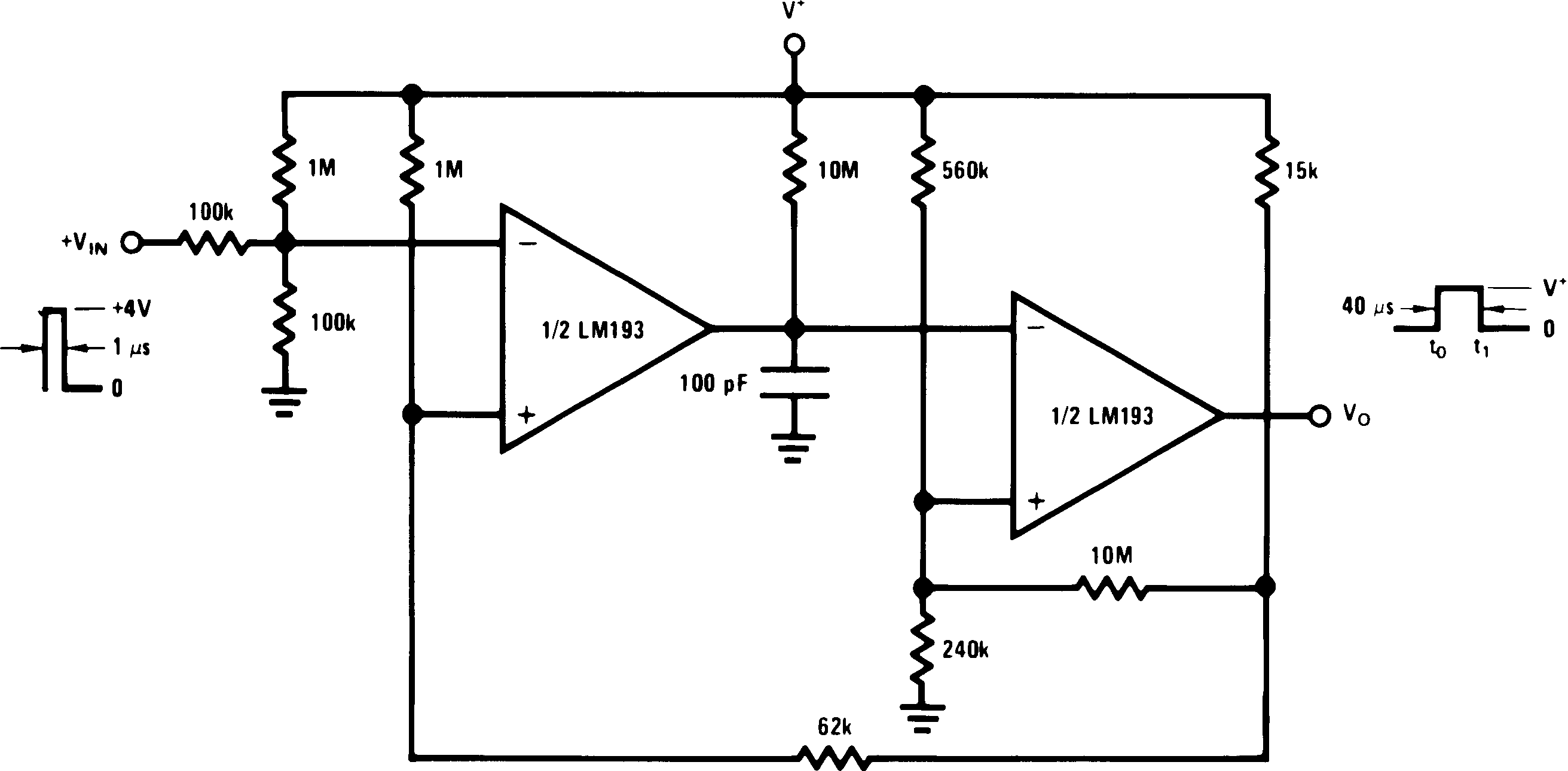

Figure 34. One-Shot Multivibrator With Input Lock Out
Figure 36. Comparator With a Negative Reference
