SNVS005E November 1999 – December 2014 LM2664
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Parameter Measurement Information
- 8 Detailed Description
- 9 Application and Implementation
- 10Power Supply Recommendations
- 11Layout
- 12Device and Documentation Support
- 13Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
- DBV|6
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
7 Parameter Measurement Information
7.1 Test Circuit
*C1 and C2 are 3.3 µF, SC series OS-CON capacitors.

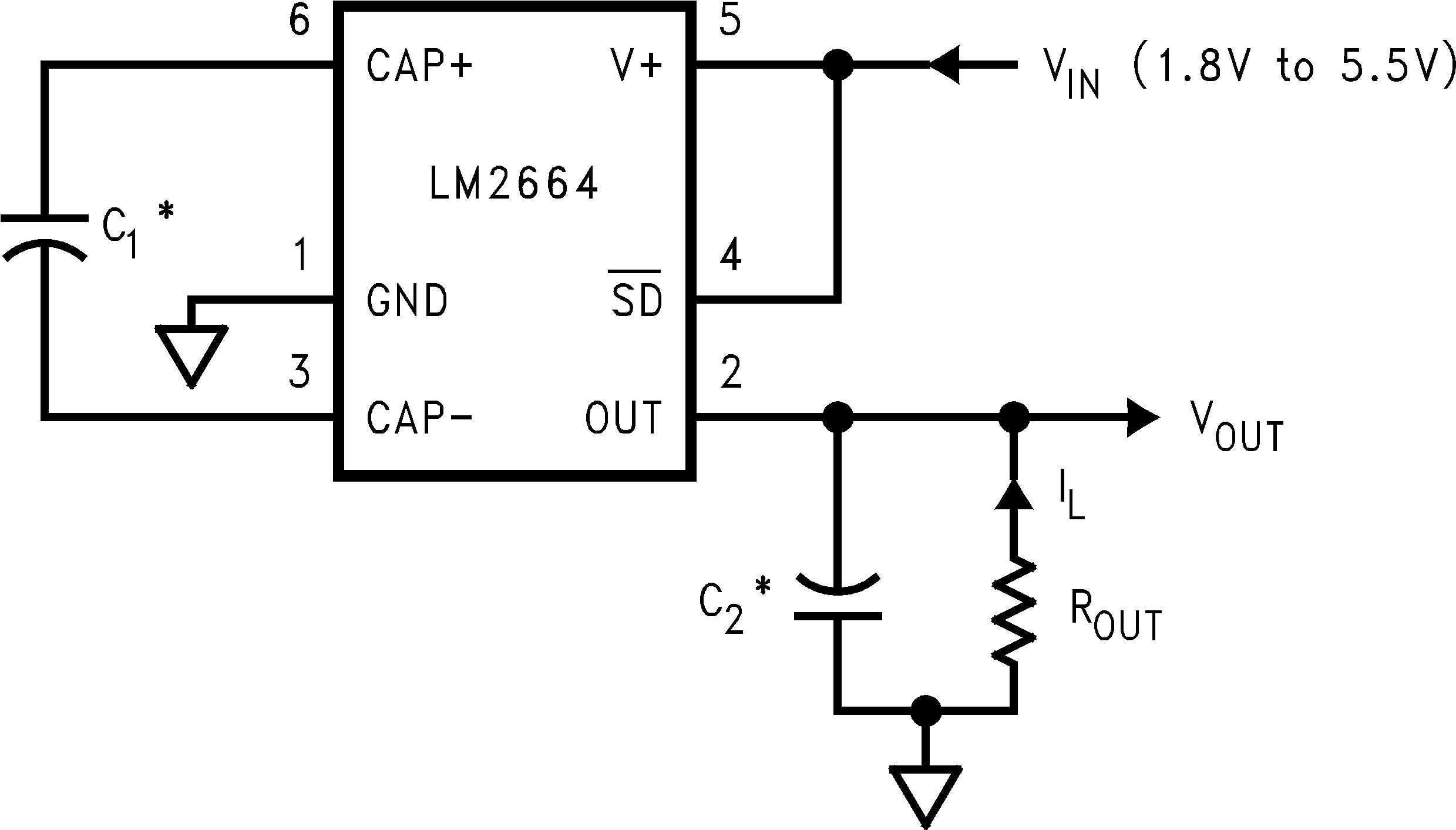

Figure 9. LM2664 Test Circuit
