8.2.6 LM26420Y 550-kHz, 2.5-V Typical High-Efficiency Application Circuit

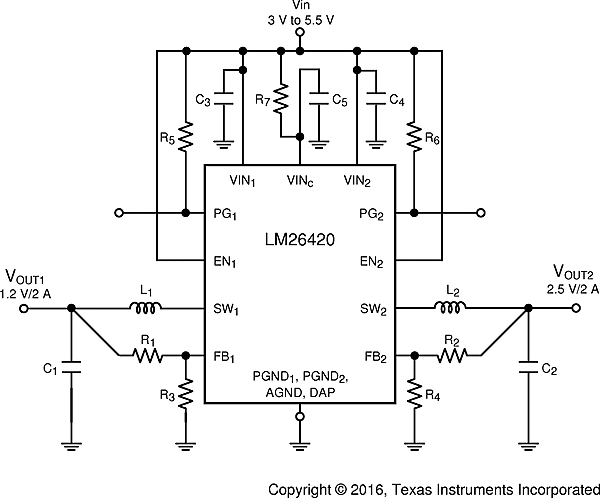

Figure 46. LM26420Y (550 kHz): VIN = 5 V, VOUT1 = 1.2 V at 2 A and VOUT2 = 2.5 V at 2 A
