7.3.1 Cuk Converter

Figure 13. Operating Cycles of a Cuk Converter

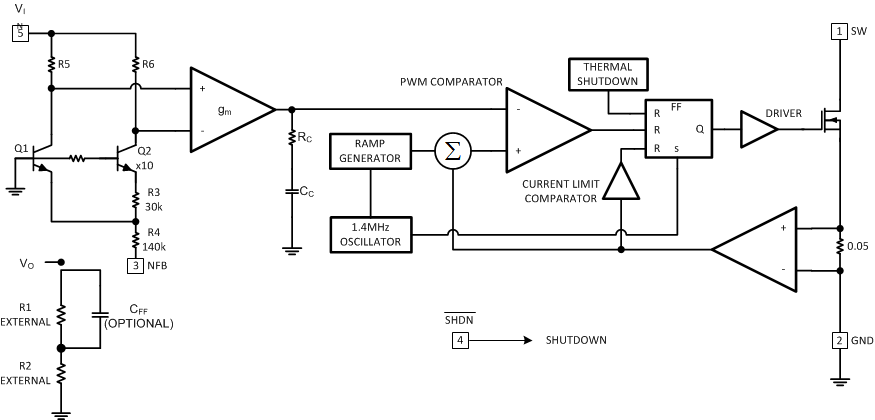

The LM2611 is a current mode, fixed frequency PWM switching regulator with a −1.23-V reference that makes it ideal for use in a Cuk converter. The Cuk converter inverts the input and can step up or step down the absolute value. Using inductors on both the input and output, the Cuk converter produces very little input and output current ripple. This is a significant advantage over other inverting topologies such as the buck-boost and flyback.

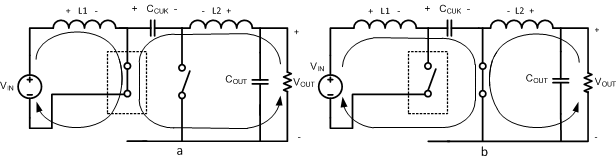

The operating states of the Cuk converter are shown in Figure 13. During the first cycle, the transistor switch is closed and the diode is open. L1 is charged by the source and L2 is charged by C_CUK, while the output current is provided by L2. In the second cycle, L1 charges C_CUK and L2 discharges through the load. By applying the volt-second balance to either of the inductors, use Equation 1 to determine the relationship of V_OUT to the duty cycle (D).

Equation 1.

The following sections review the steady-state design of the LM2611 Cuk converter.

7.3.2 Output and Input Inductor

Figure 14 and Figure 15 show the steady-state voltage and current waveforms for L1 and L2, respectively. Referring to Figure 13 (a), when the switch is closed, V_IN is applied across L1. In the next cycle, the switch opens and the diode becomes forward biased, and V_OUT is applied across L1 (the voltage across C_CUK is V_IN − V_OUT.)

Figure 14. Voltage and Current Waveforms in Inductor L1 of a Cuk Converter

The voltage and current waveforms of inductor L2 are shown in Figure 15. During the first cycle of operation, when the switch is closed, V_IN is applied across L2. When the switch opens, V_OUT is applied across L2.

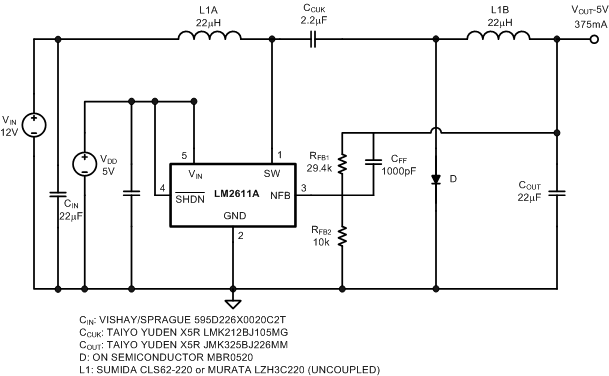

Figure 15. Schematic of the Cuk Converter Using LM2611

Equation 2 to Equation 5 define the values given in Figure 14 and Figure 15:

Equation 3.

Equation 4.

Equation 5.

Use these equations to choose correct core sizes for the inductors. The design of the LM2611's internal compensation assumes L1 and L2 are equal to 10 to 22 µH, thus TI recommends staying within this range.

7.3.3 Switch Current Limit

The LM2611 incorporates a separate current limit comparator, making current limit independent of any other variables. The current limit comparator measures the switch current versus a reference that represents current limit. If at any time the switch current surpasses the current limit, the switch opens until the next switching period. To determine the maximum load for a given set of conditions, both the input and output inductor currents must be considered. The switch current is equal to i_L1 + i_L2, and is drawn in Figure 16. In summary, Equation 6 shows:

Equation 6.

I_SW(PEAK) must be less than the current limit (1.2 A typical), but will also be limited by the thermal resistivity of the LM2611 device's 5-pin, SOT-23 package (θ_JA = 265°C/W).

The peak value is equal to the sum of the average currents through L1 and L2 and the average-to-peak current ripples through L1 and L2.

Figure 16. Switch Current Waveform in a Cuk Converter.

7.3.4 Input Capacitor

The input current waveform to a Cuk converter is continuous and triangular, as shown in Figure 14. The input inductor insures that the input capacitor sees fairly low ripple currents. However, as the input inductor gets smaller, the input ripple goes up. The RMS current in the input capacitor is shown in Equation 7.

Equation 7.

The input capacitor should be capable of handling the RMS current. Although the input capacitor is not so critical in a Cuk converter, a 10-µF or higher value good quality capacitor prevents any impedance interactions with the input supply. TI recommends connecting a 0.1-µF or 1-µF ceramic bypass capacitor on the V_IN pin (pin 5) of the IC. This capacitor must be connected very close to pin 5 (within 0.2 inches).

7.3.5 Output Capacitor

Like the input current, the output current is also continuous, triangular, and has low ripple (see I_L2 in Figure 15). The output capacitor must be rated to handle its RMS current:

Equation 8.

For example, I_COUT(RMS) can range from 30 mA to 180 mA with 10 µH ≤ L_1,2 ≤ 22 µH, −10 V ≤ V_OUT ≤ −3.3 V, and 2.7 V ≤ V_IN ≤ 30 V (V_IN may be 30 V if using separate power and analog supplies, see Split Supply Operation in the Typical Application section). The worst case conditions are with L_1,2, V_OUT(MAX), and V_IN(MAX). Many capacitor technologies will provide this level of RMS current, but ceramic capacitors are ideally suited for the LM2611. Ceramic capacitors provide a good combination of capacitance and equivalent series resistance (ESR) to keep the zero formed by the capacitance and ESR at high frequencies. Use Equation 9 to calculate the ESR zero.

Equation 9.

A general rule of thumb is to keep f_ESR > 80 kHz for LM2611 Cuk designs. Low ESR tantalum capacitors will usually be rated for at least 180 mA in a voltage rating of 10 V or above. However the ESR in a tantalum capacitor (even in a low ESR tantalum capacitor) is much higher than in a ceramic capacitor and could place f_ESR low enough to cause the LM2611 to become unstable.

7.3.6 Improving Transient Response and Compensation

The compensator in the LM2611 is internal. However, a zero-pole pair can be added to the open-loop frequency response by inserting a feed-forward capacitor, C_FF, in parallel to the top feedback resistor (R_FB1). Phase margin and bandwidth can be improved with the added zero-pole pair. This in turn improves the transient response to a step load change (see Figure 17 and Figure 18). The position of the zero-pole pair is a function of the feedback resistors and the capacitor value:

Equation 10.

Equation 11.

The optimal position for this zero-pole pair will vary with circuit parameters such as D, I_OUT, C_OUT, L1, L2, and C_CUK. For most cases, the value for the zero frequency is between 5 kHz to 20 kHz. Notice how the pole position, ω_p, is dependant on the feedback resistors R_FB1 and R_FB2, and therefore also dependant on the output voltage. As the output voltage becomes closer to −1.26 V, the pole moves towards the zero, tending to cancel it out. If the absolute magnitude of the output voltage is less than 3.3 V, adding the zero-pole pair will not have much effect on the response.

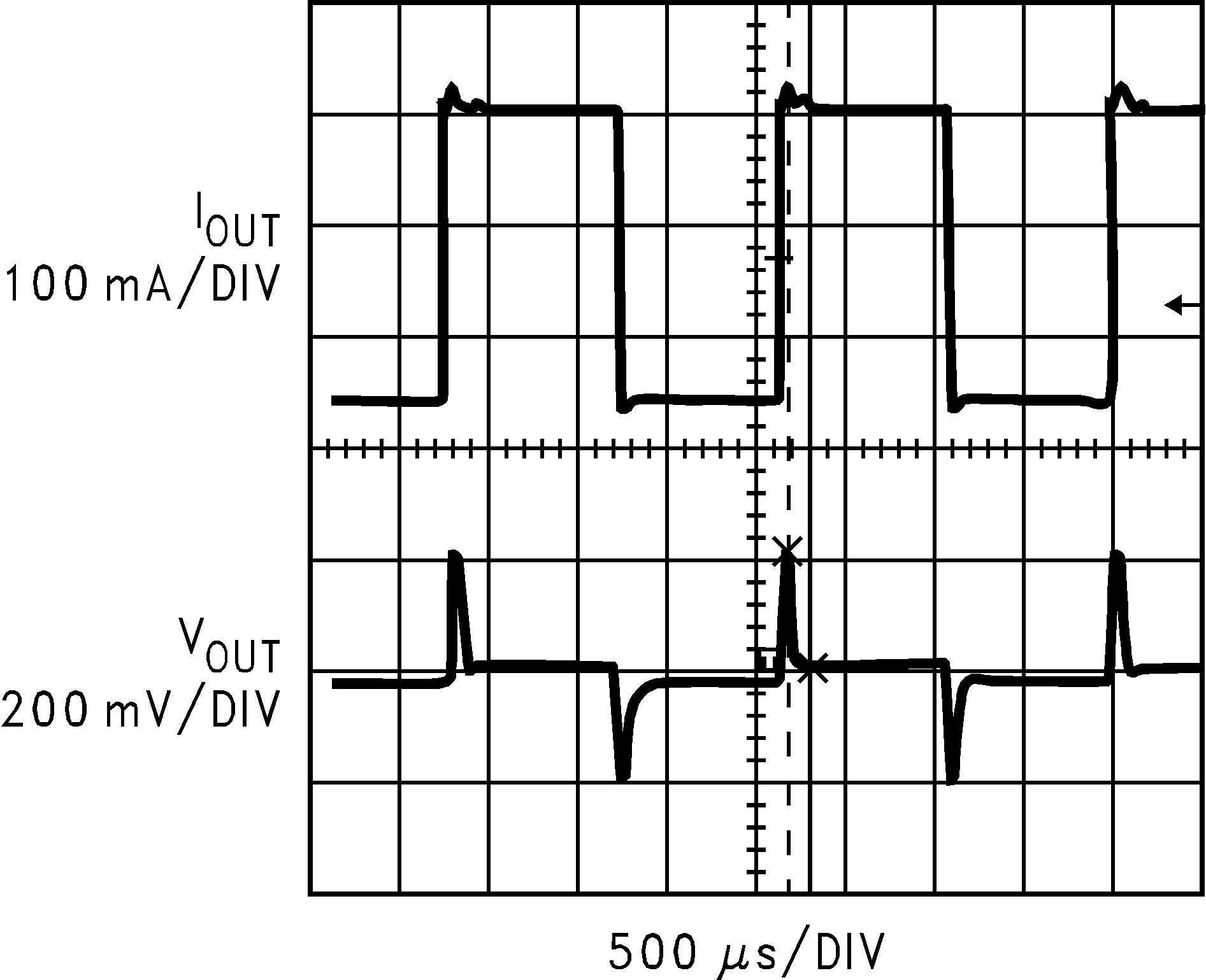

Figure 17. 130-mA to 400-mA Transient Response
of the Circuit in Figure 24 With C_FF= 1 nF

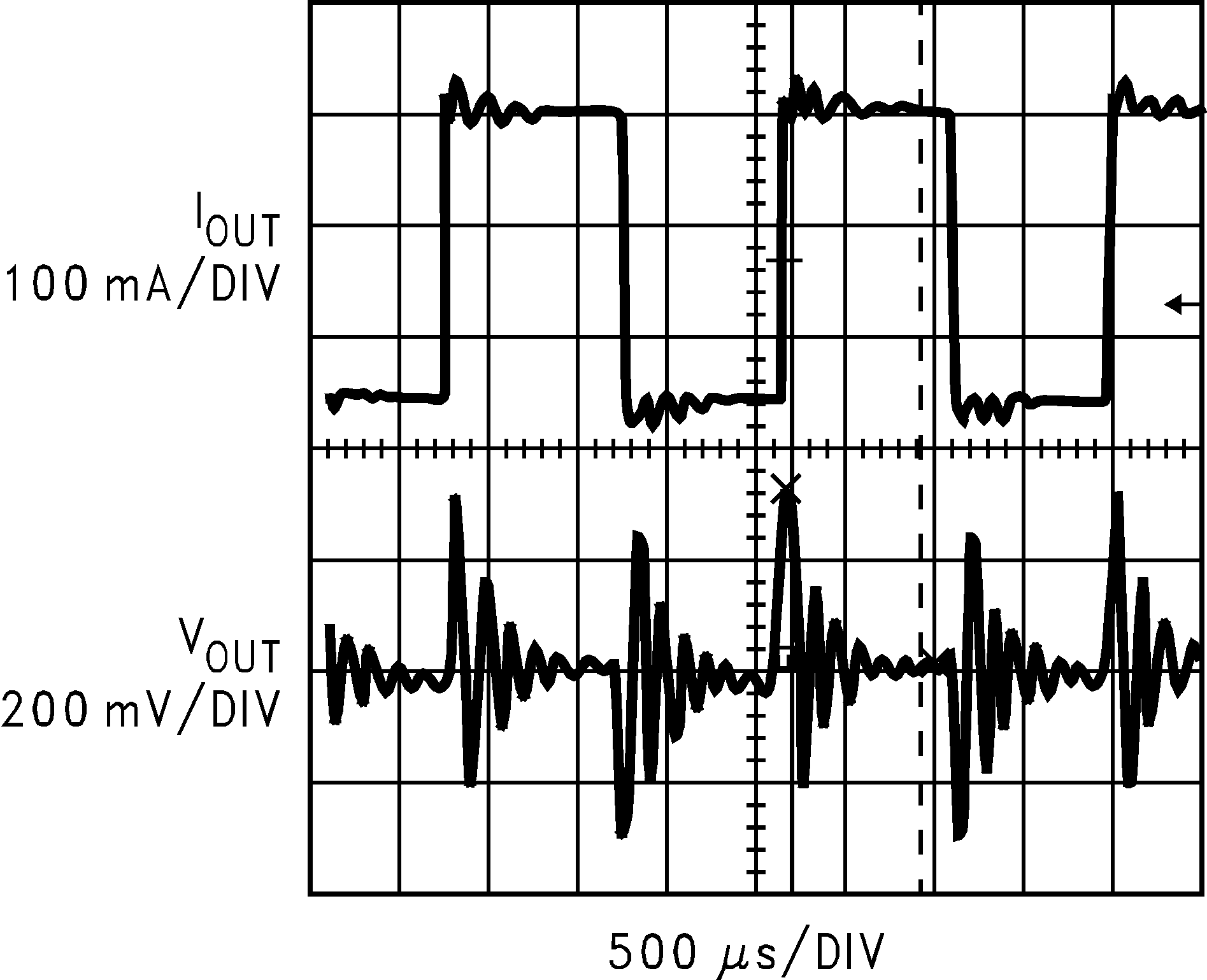

Figure 18. 130-mA to 400-mA Transient Response
of the Circuit in Figure 24 With C_FF Disconnected

7.4.1 Hysteretic Mode

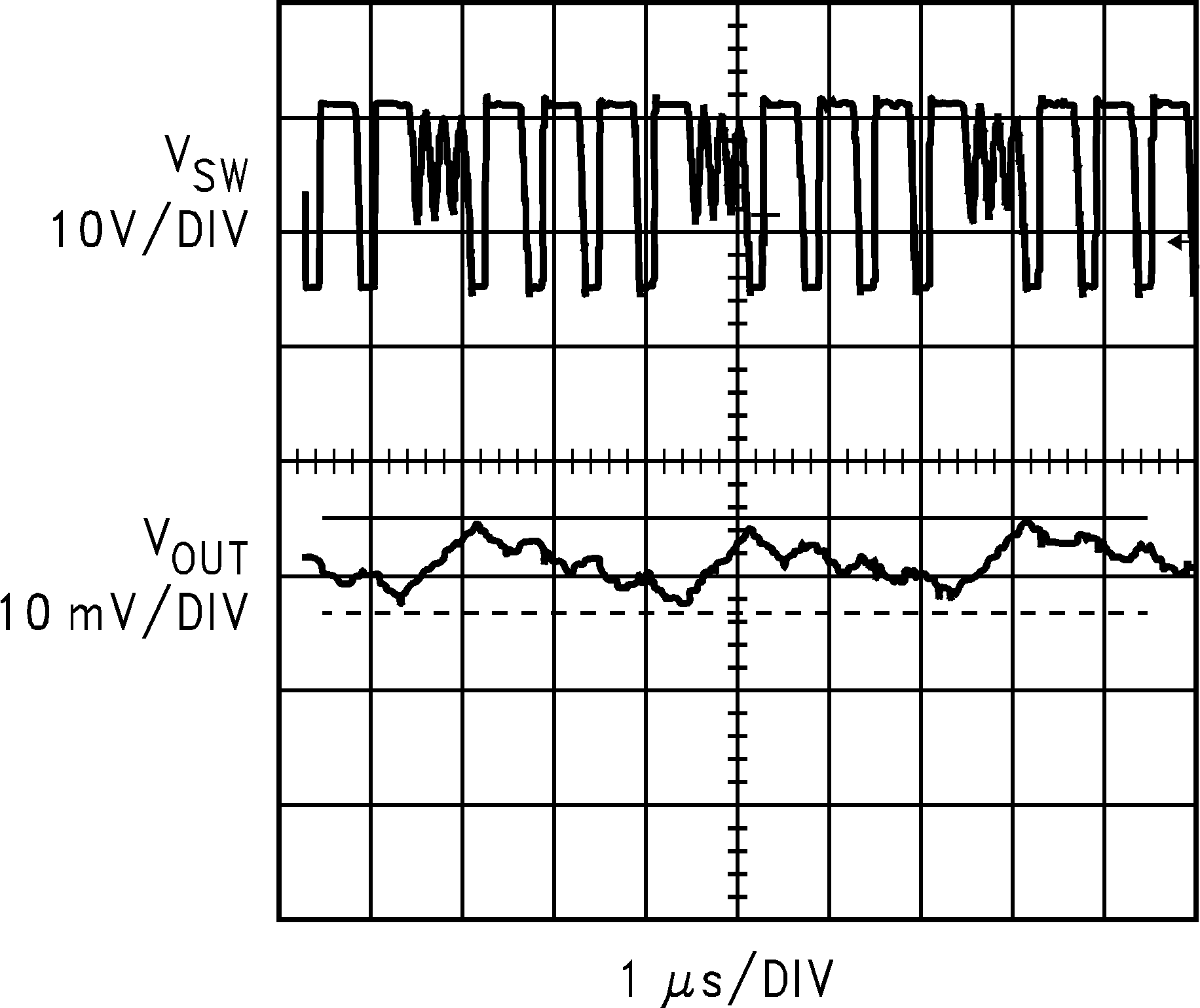

As the output current decreases, the energy stored in the Cuk capacitor eventually exceeds the energy required by the load. The excess energy is absorbed by the output capacitor, causing the output voltage to increase out of regulation. The LM2611 detects when this happens and enters a pulse-skipping, or hysteretic mode. In pulse-skipping mode, the output voltage increases as illustrated in Figure 20 as opposed to the regular PWM operation shown in Figure 19. Figure 19 shows the LM2611 in PWM Mode with very-low ripple. Figure 20 shows the LM2611 in pulse-skipping mode at low loads. In this mode, the output ripple increases slightly.

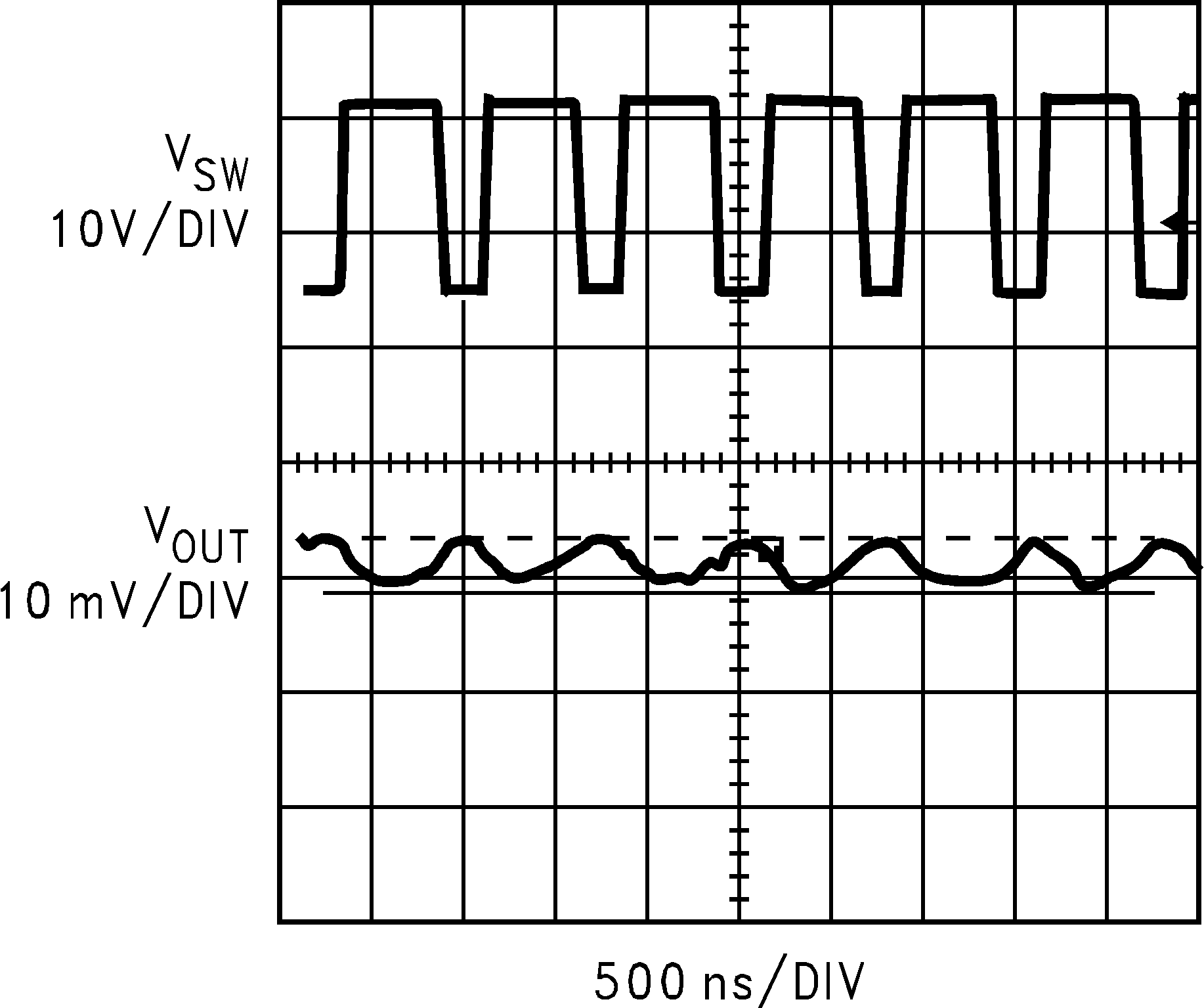

Figure 19. PWM Mode

Figure 20. Pulse-Skipping Mode
