8.2.2 Typical Flyback Regulator Applications
Figure 24Figure 25Figure 26 show six typical flyback applications, varying from single output to triple output. Each drawing contains the part number(s) and manufacturer(s) for every component except the transformer. For the transformer part numbers and manufacturers names, see the table in . For applications with different output voltages—requiring the LM2587-ADJ—or different output configurations that do not match the standard configurations, refer to the Switchers Made Simple software.

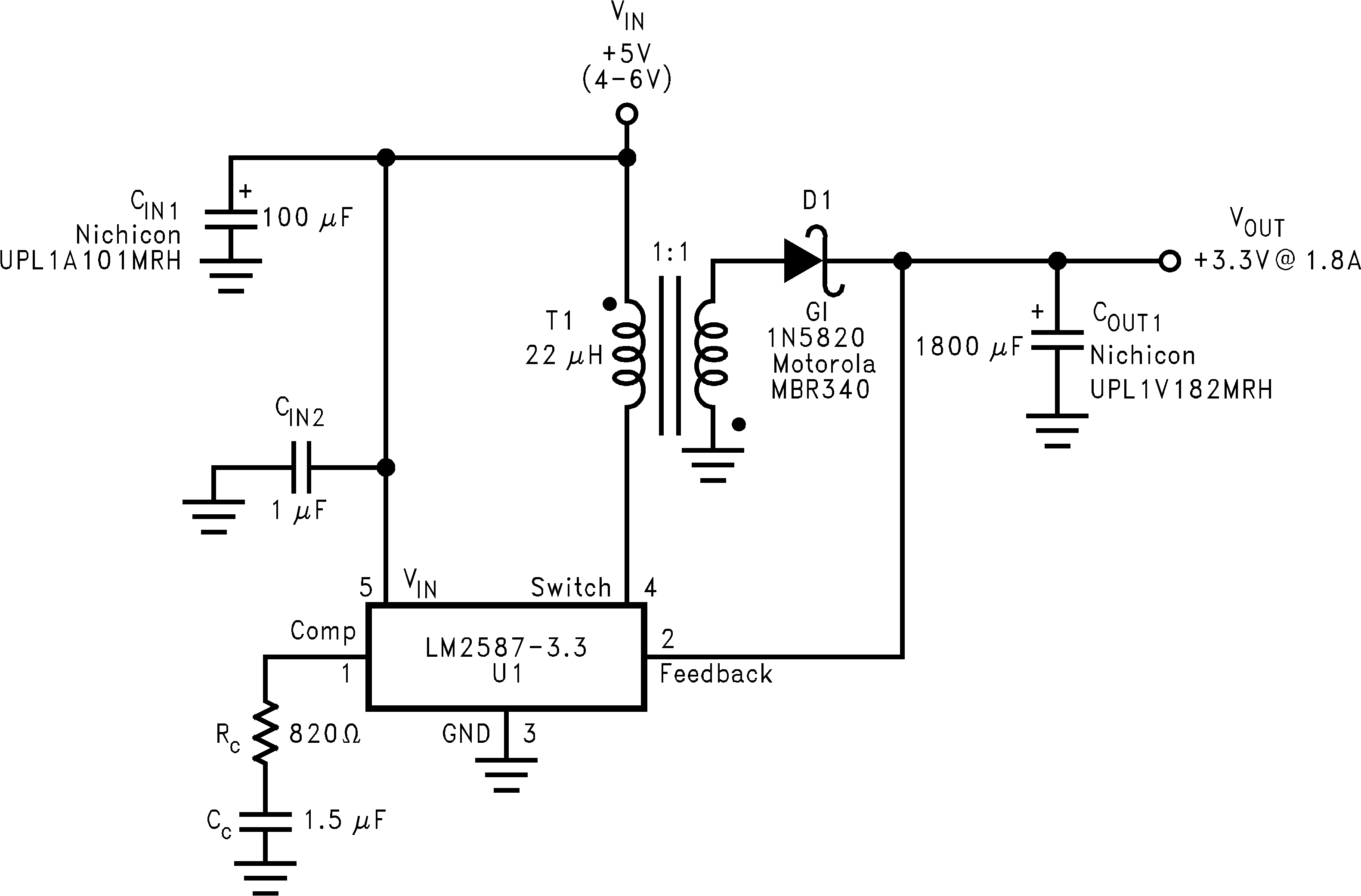

Figure 22. Single-Output Flyback Regulator

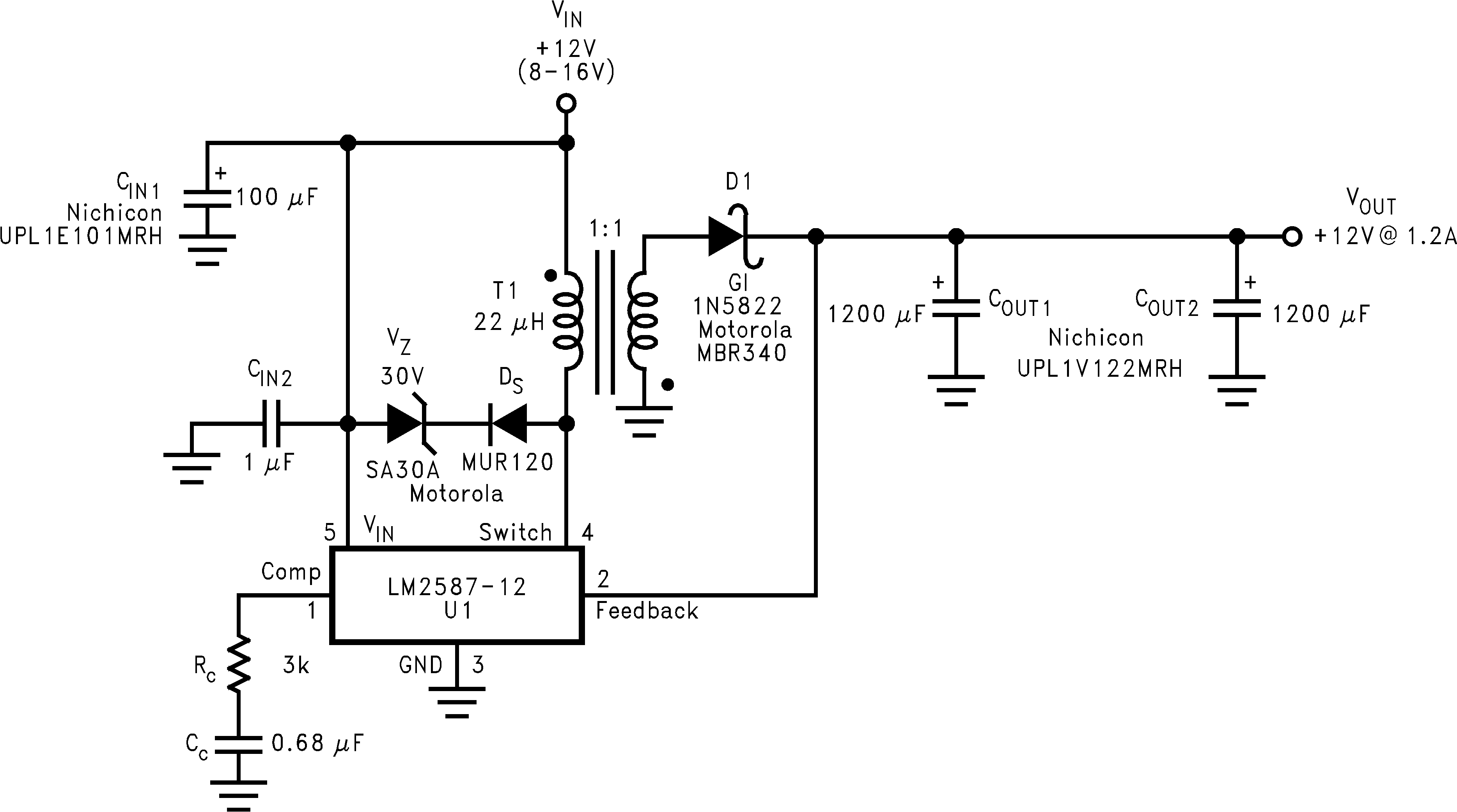

Figure 23. Single-Output Flyback Regulator

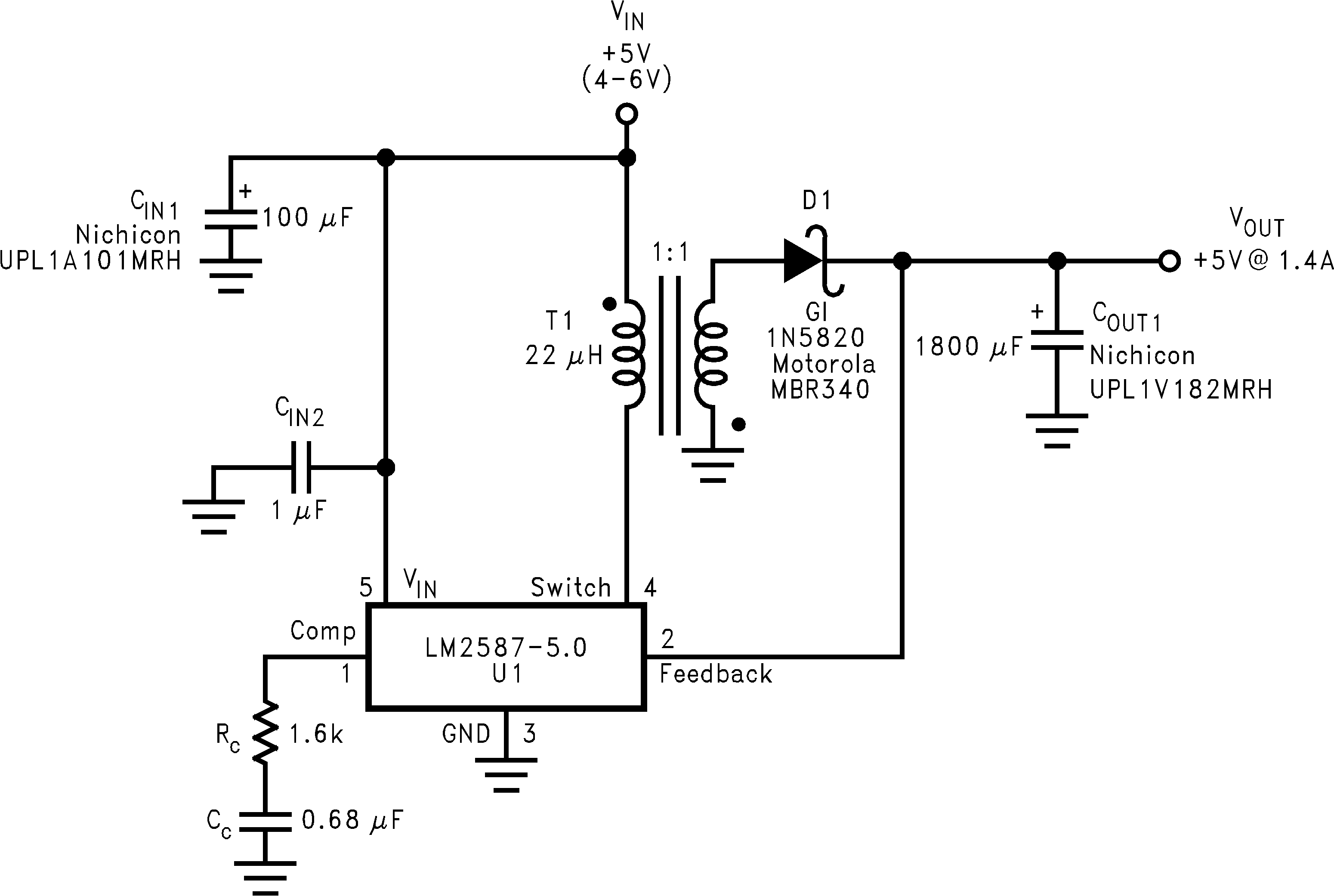

Figure 24. Single-Output Flyback Regulator

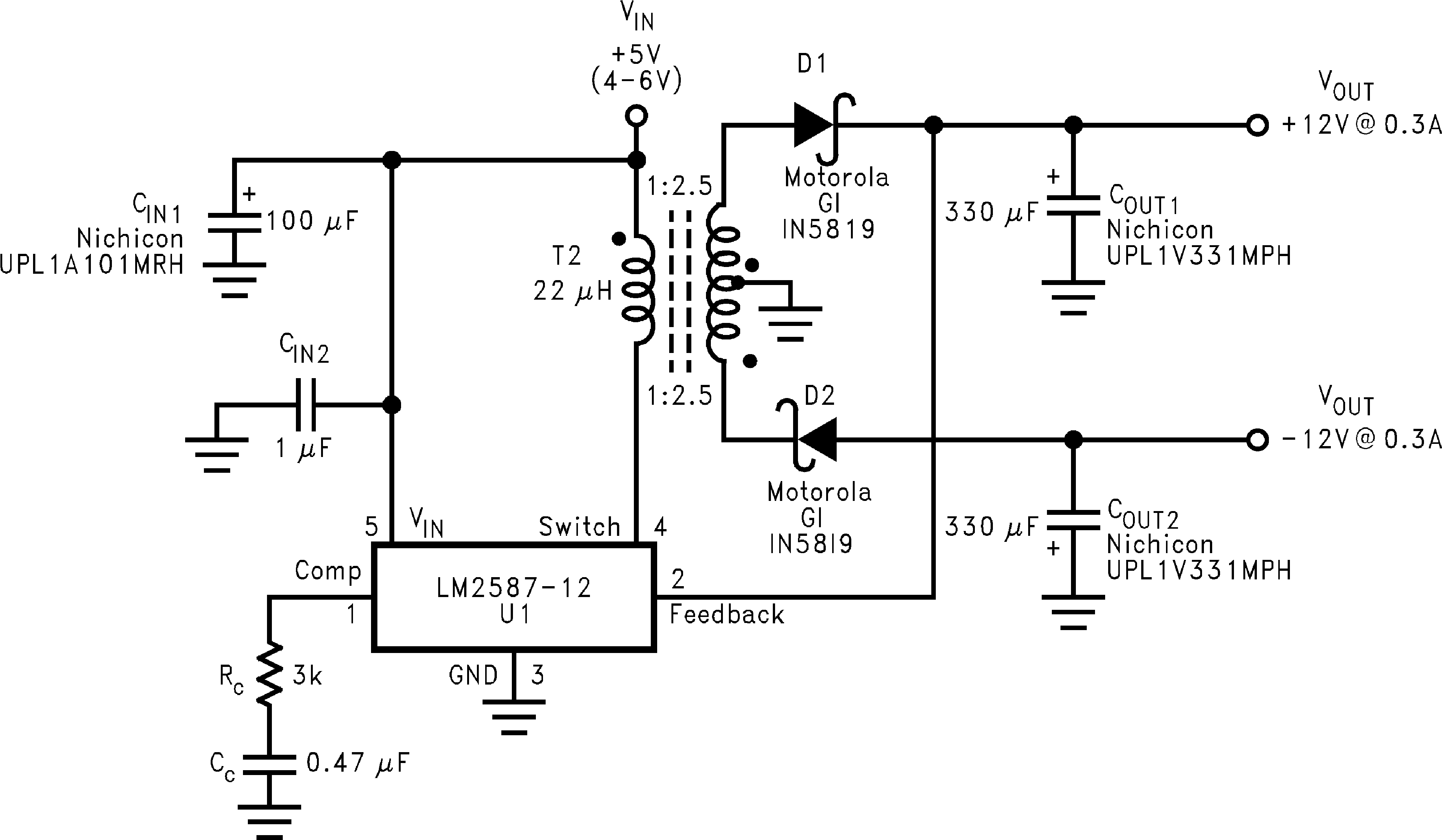

Figure 25. Dual-Output Flyback Regulator

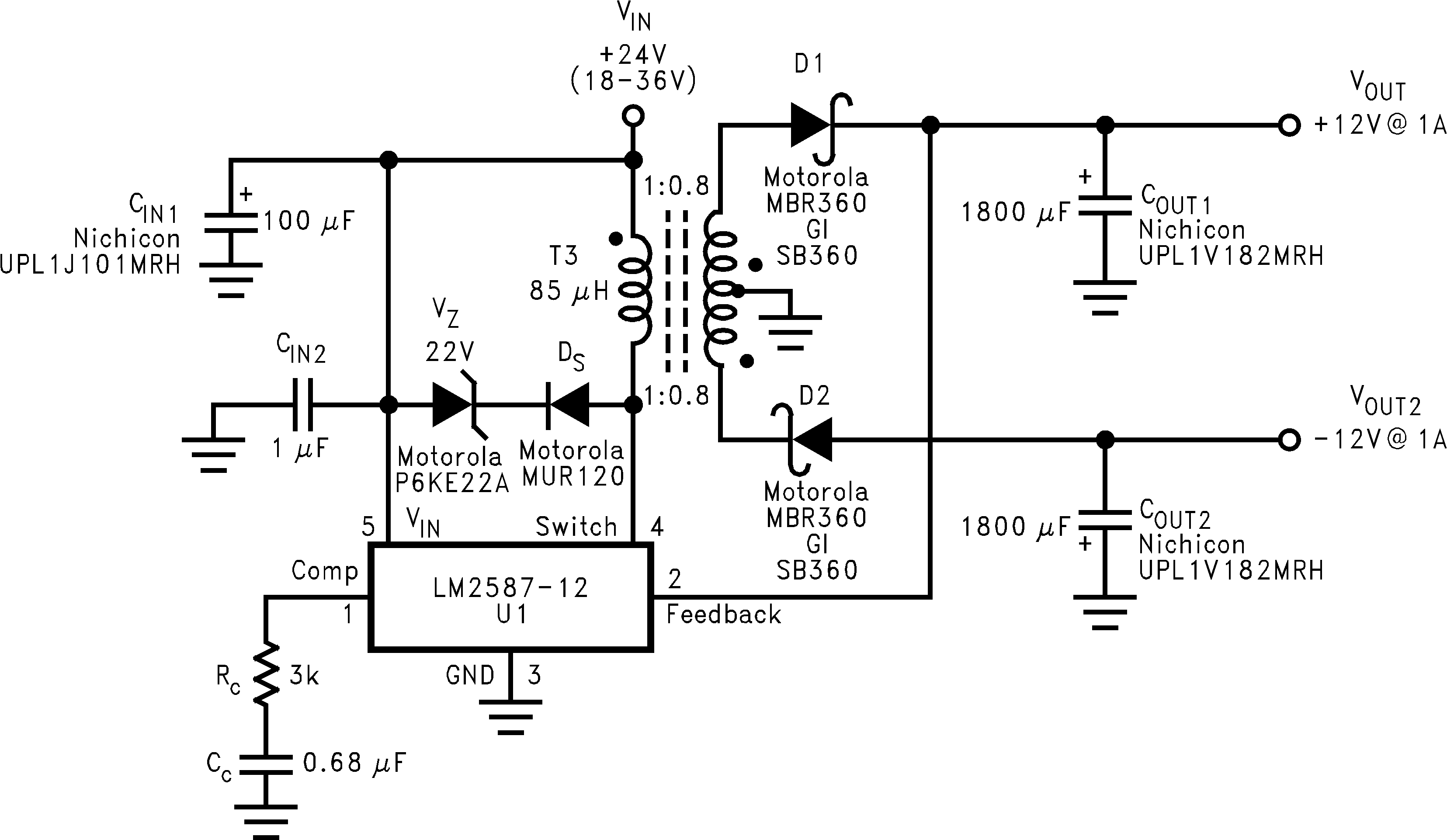

Figure 26. Dual-Output Flyback Regulator

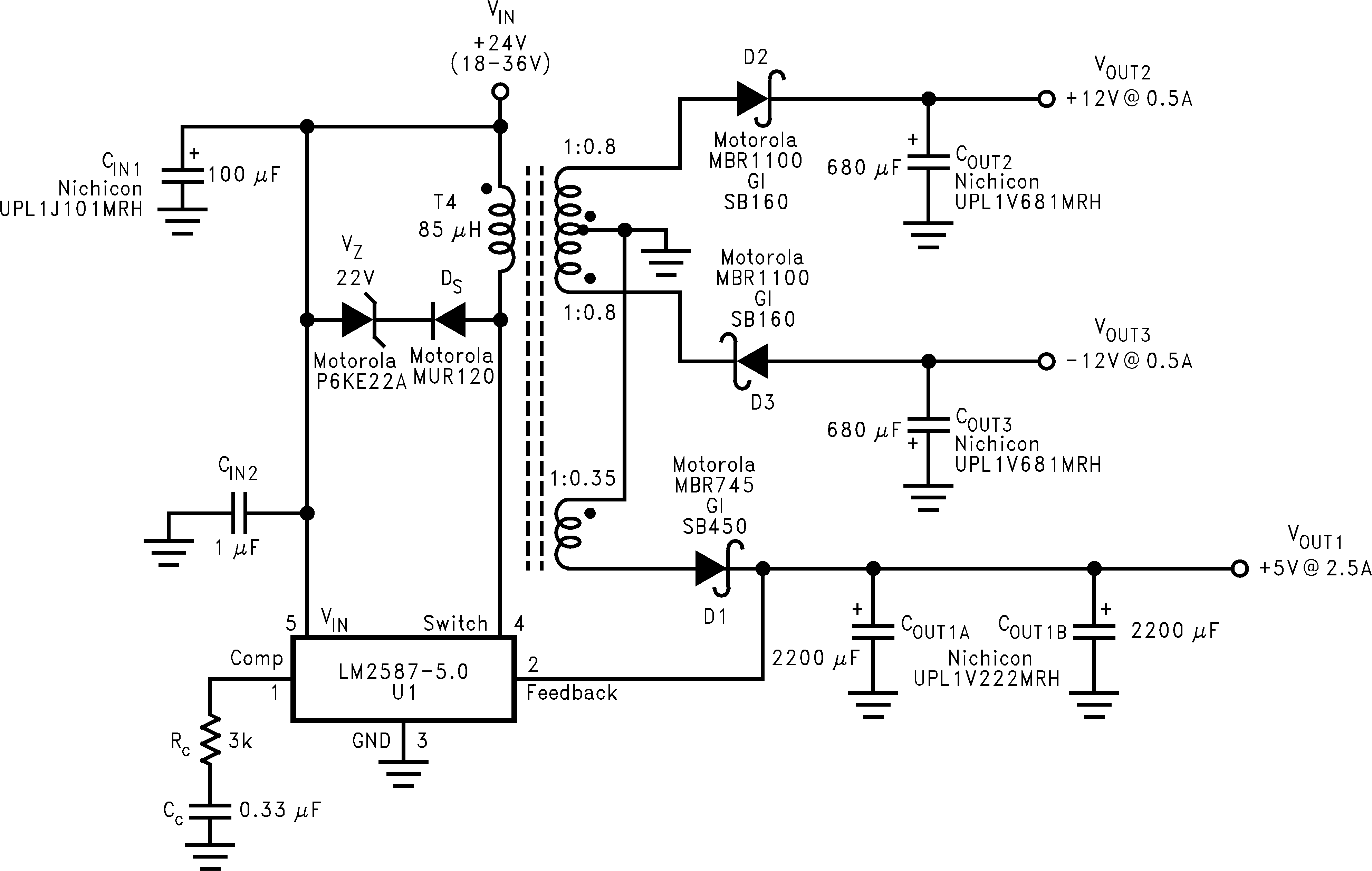

Figure 27. Triple-Output Flyback Regulator
