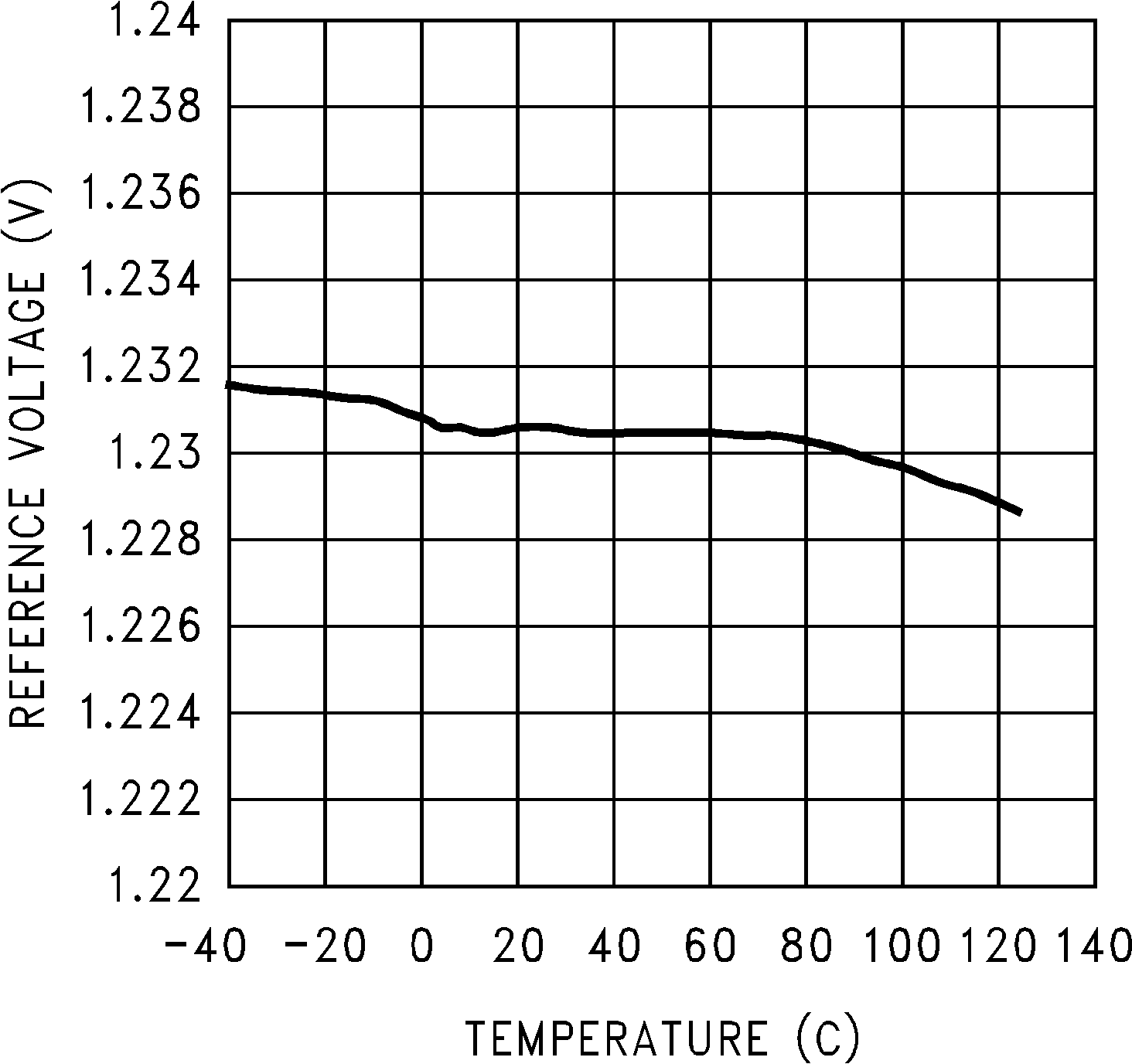

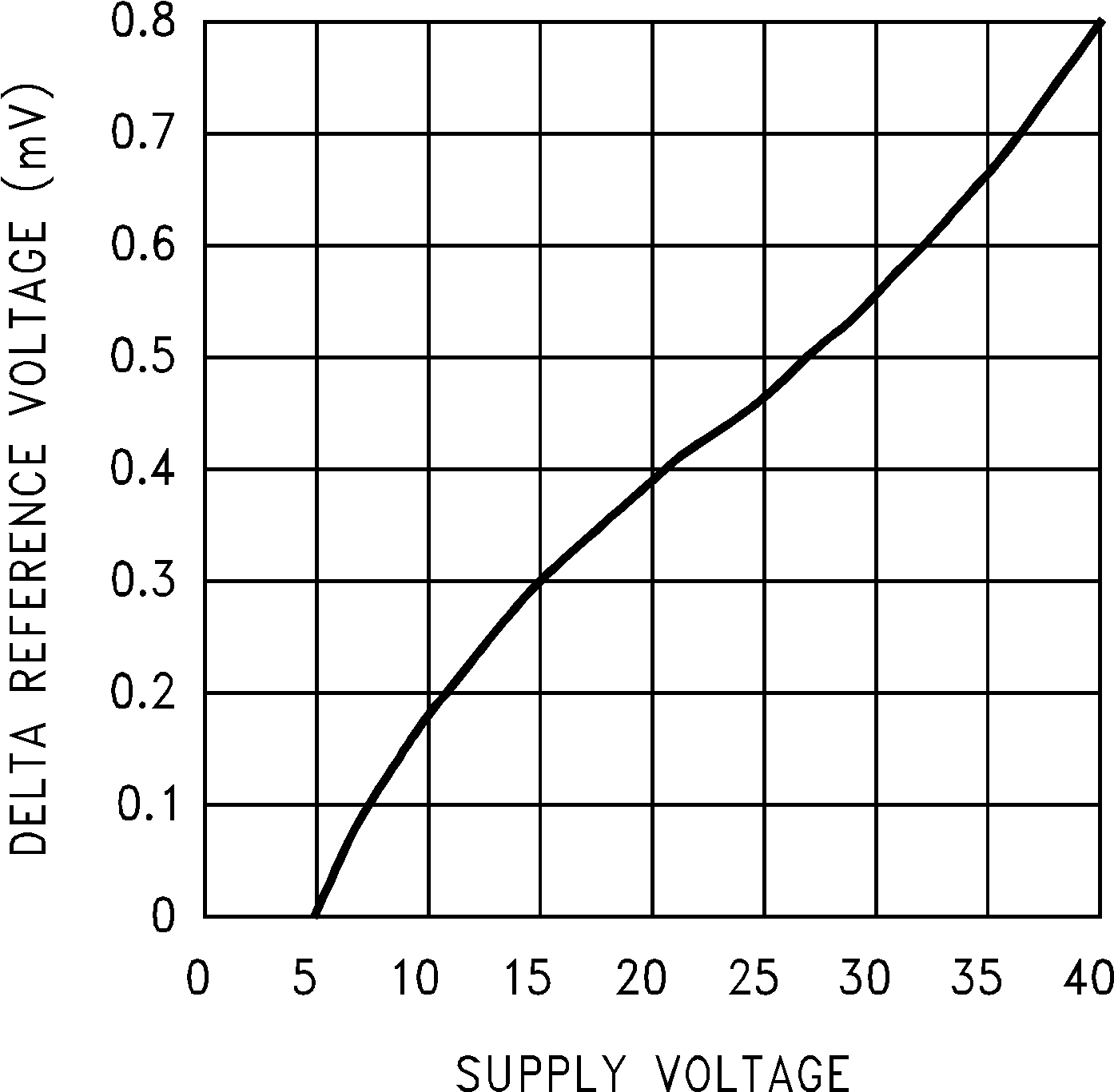

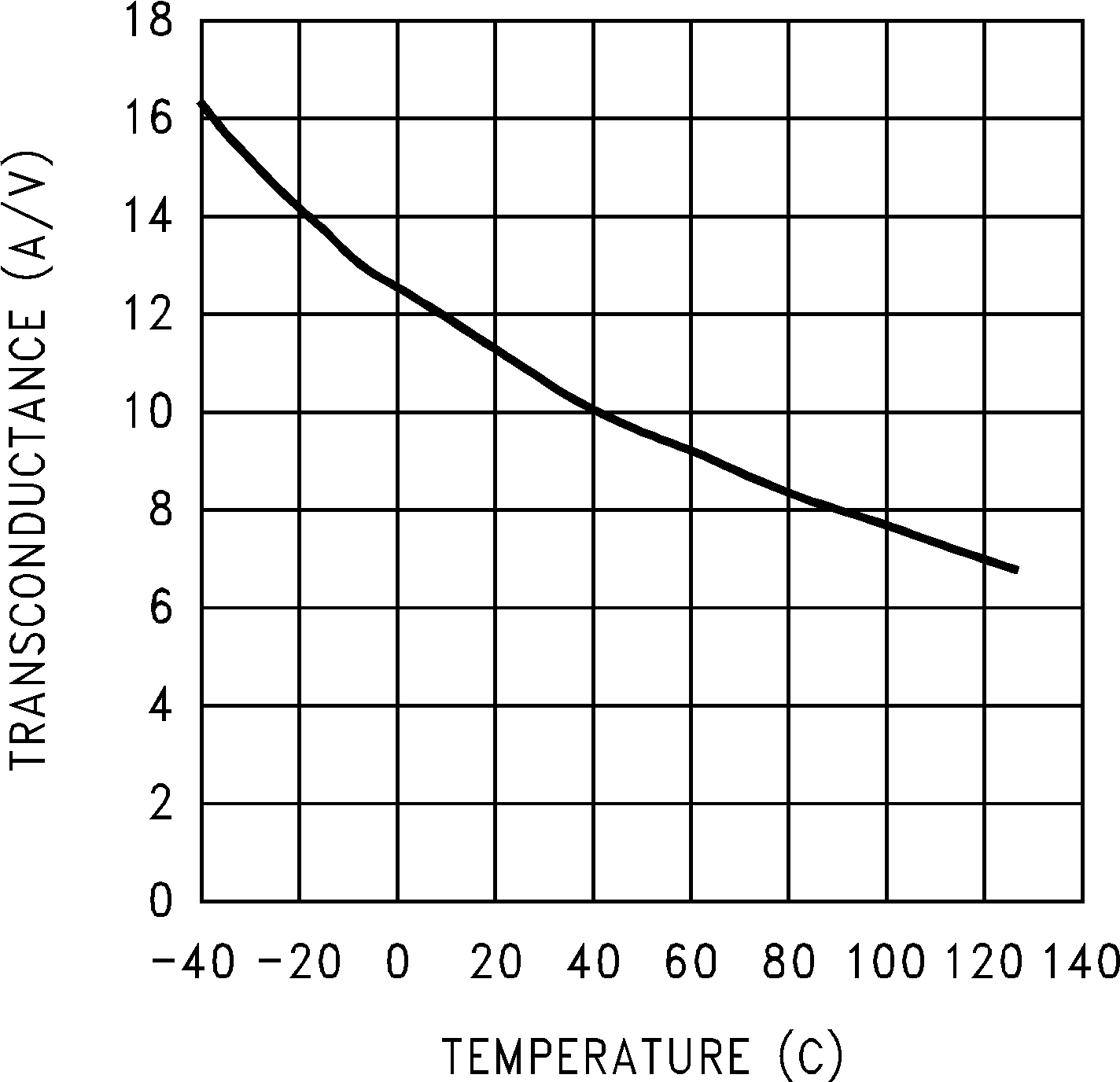

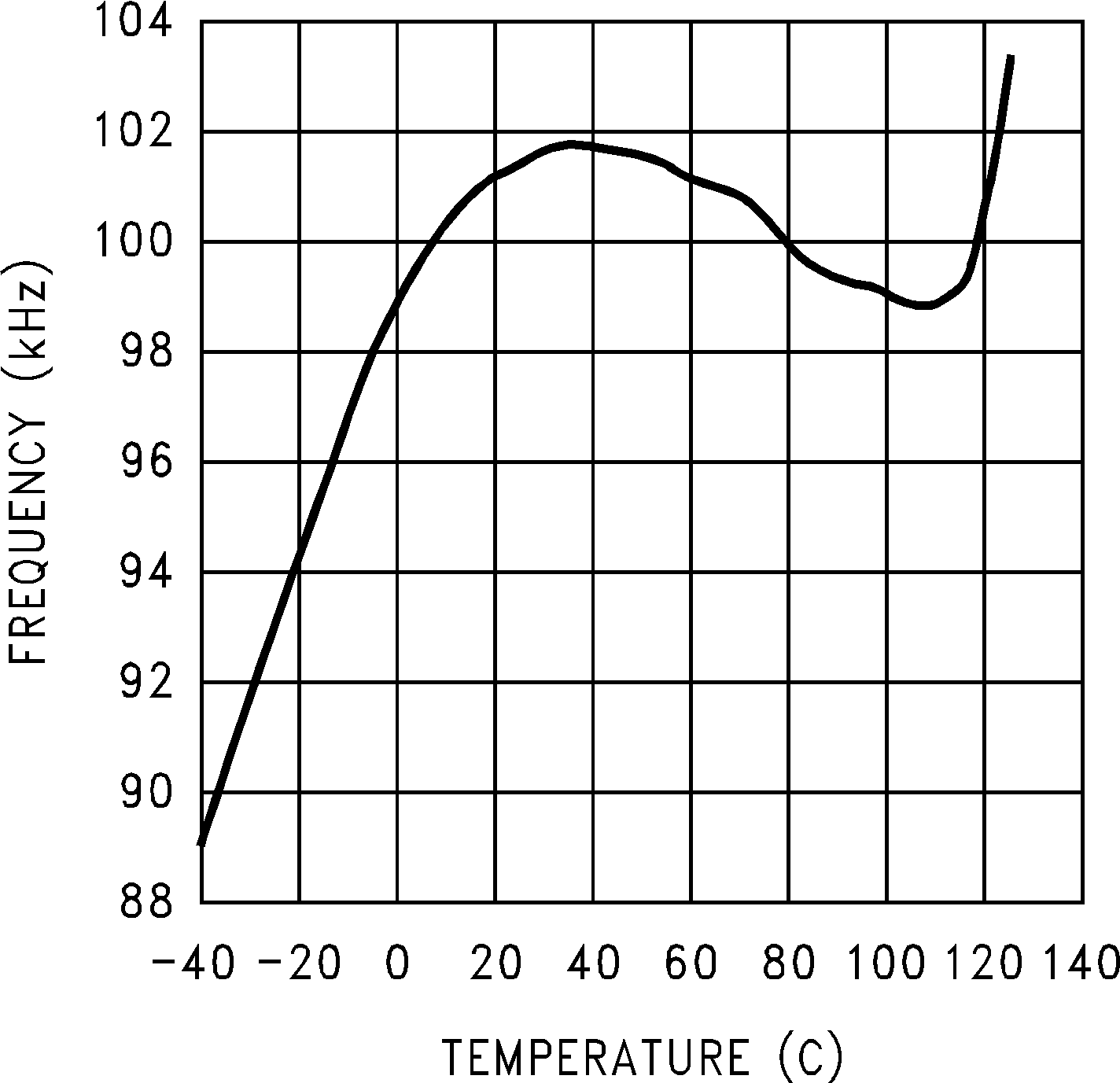

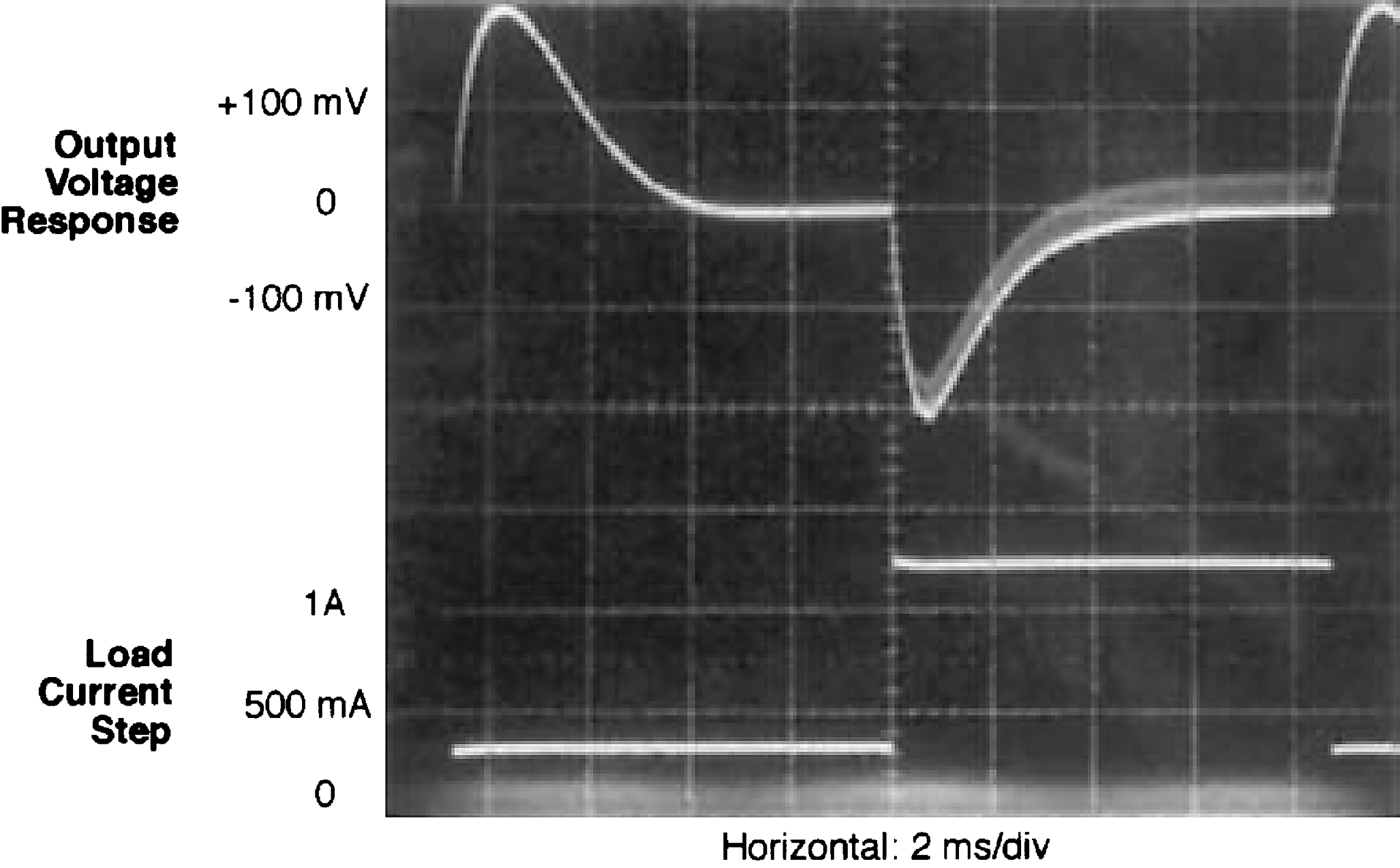

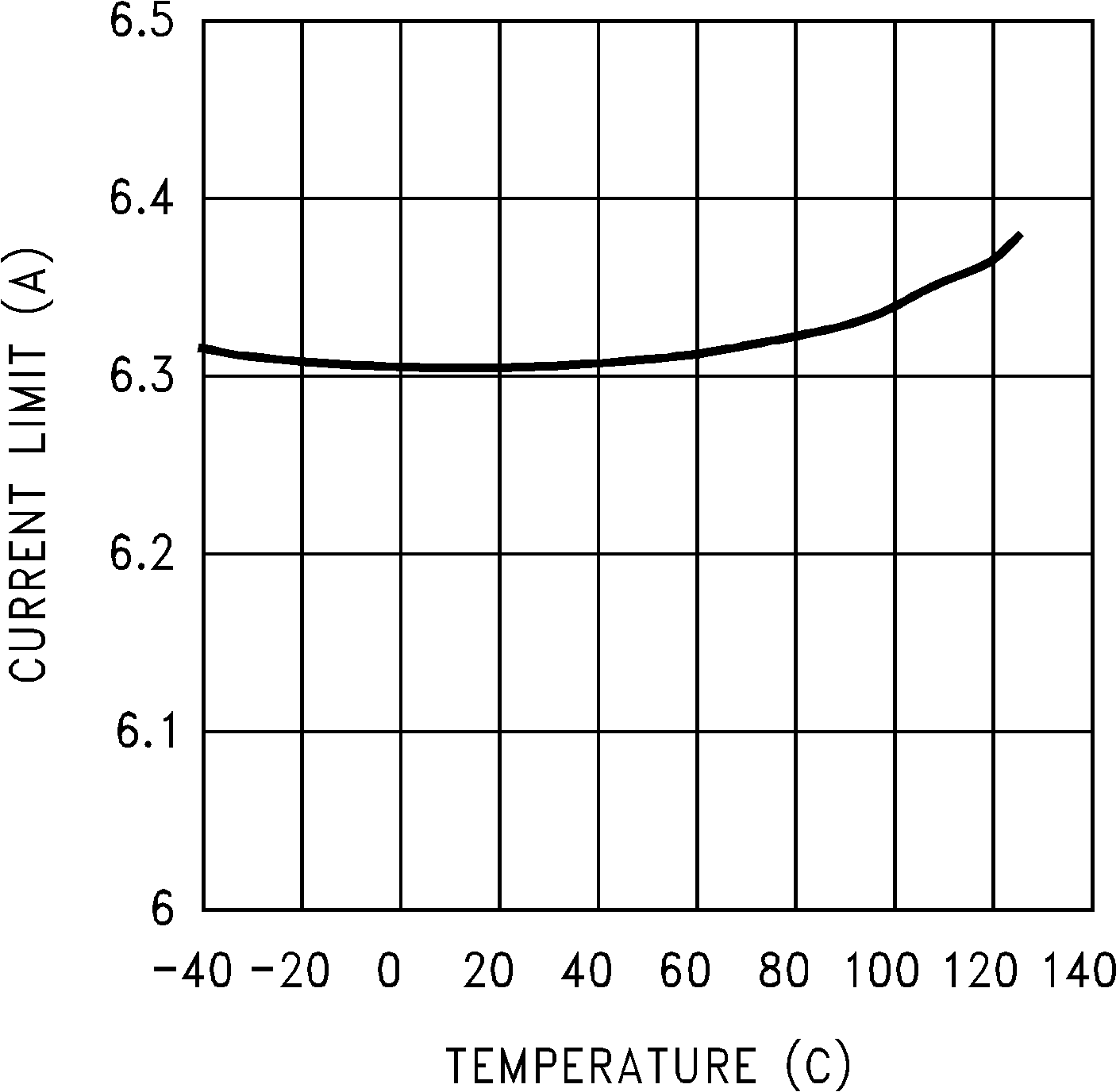

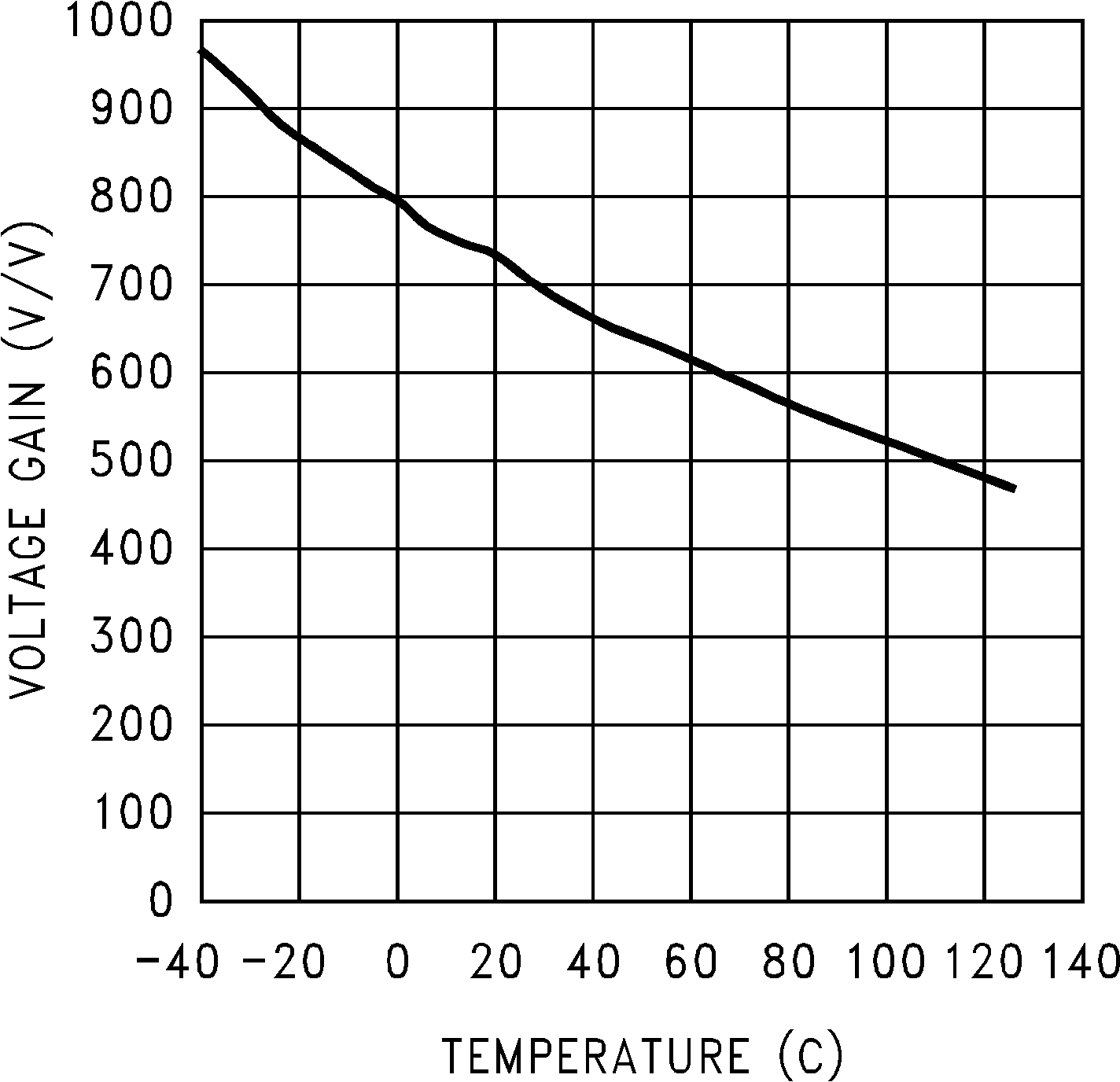

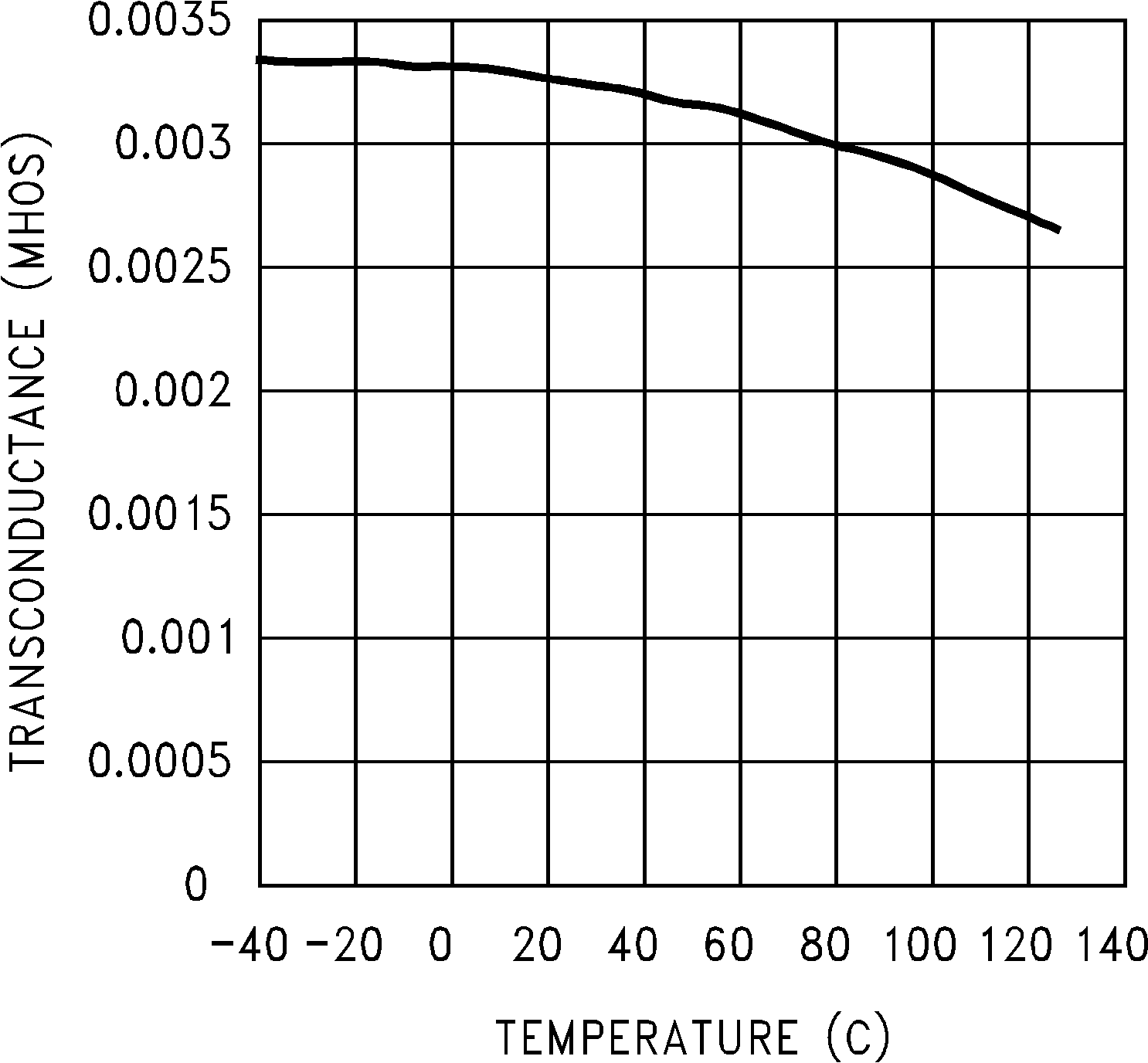

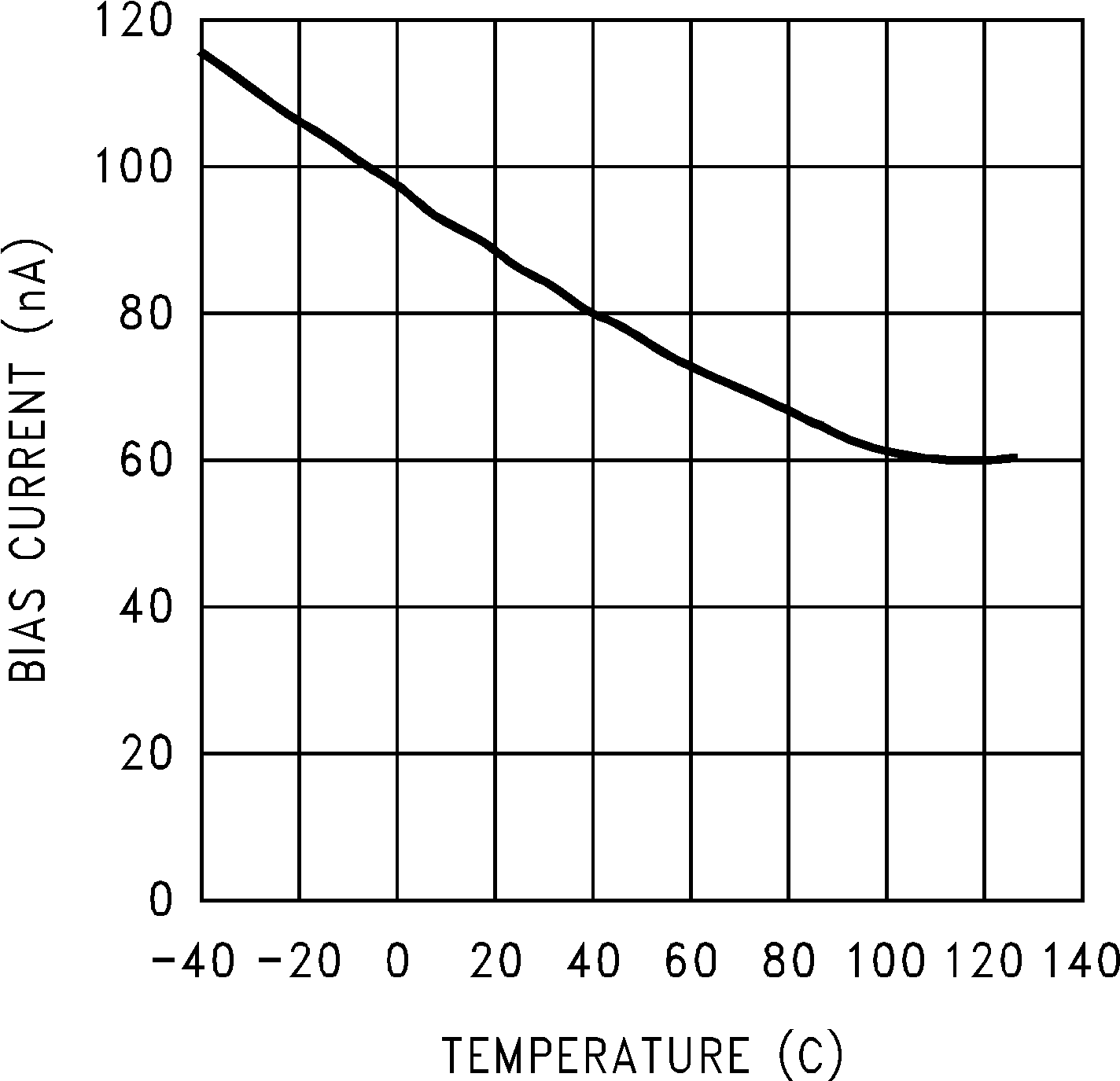

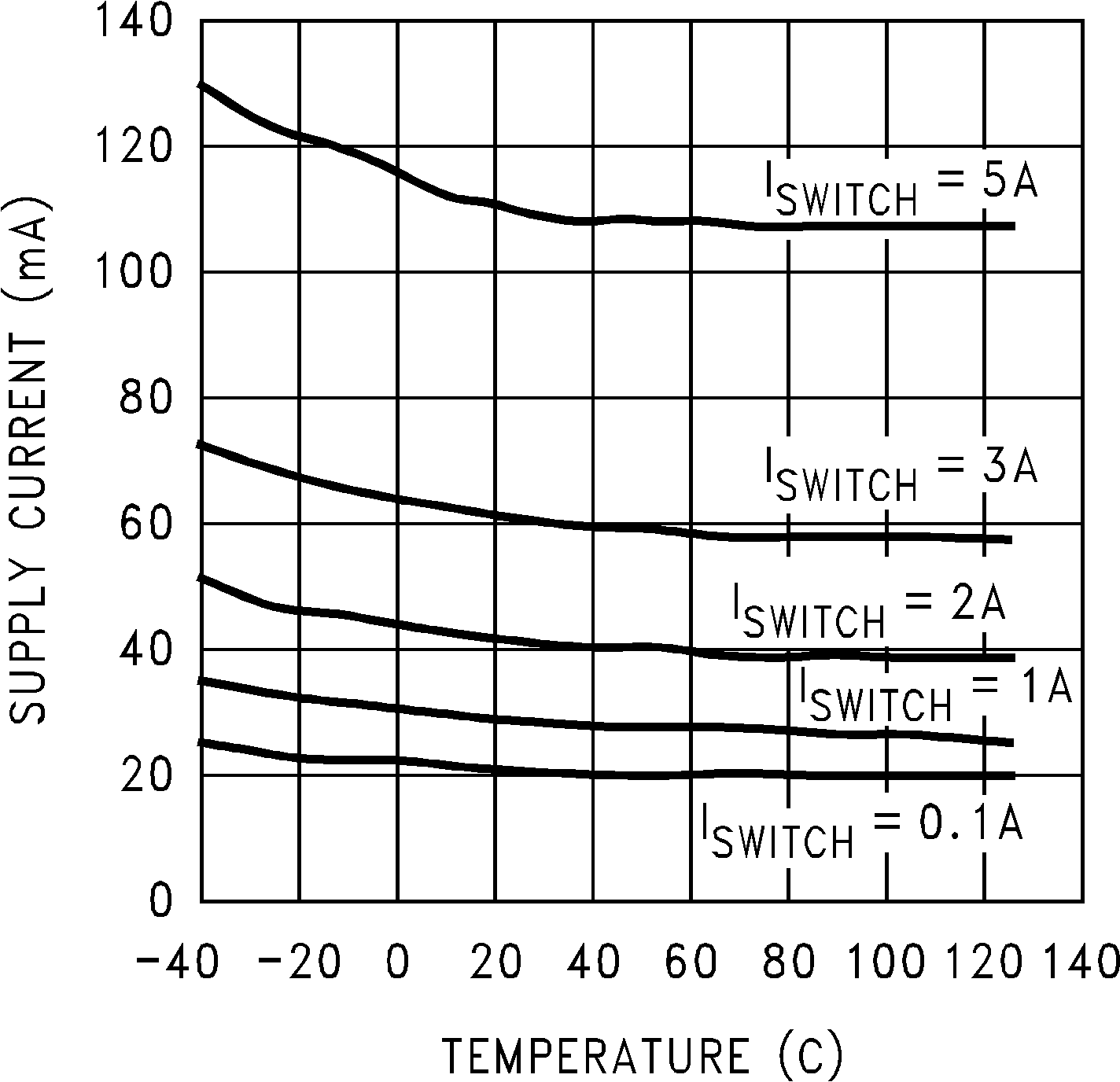

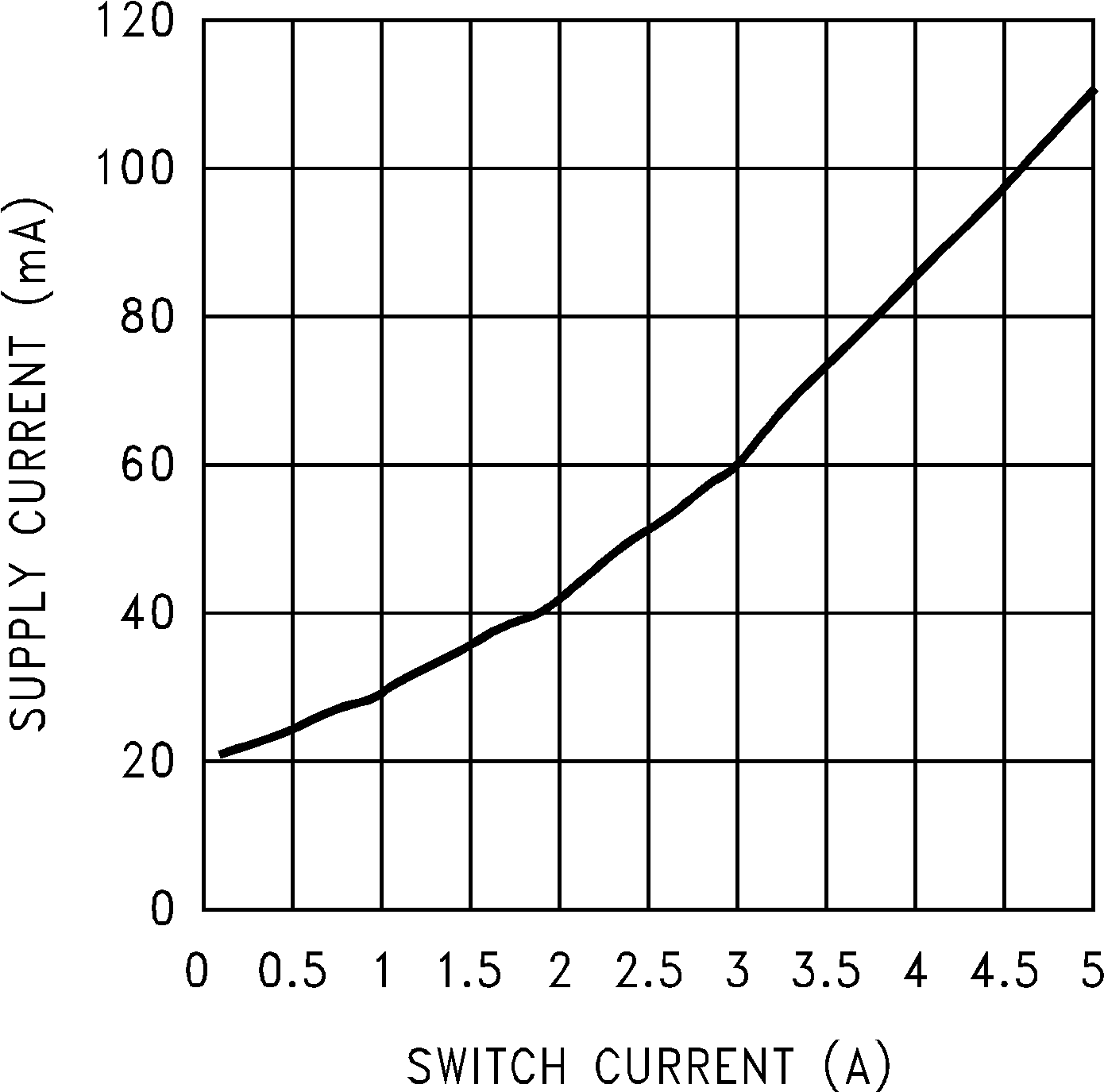

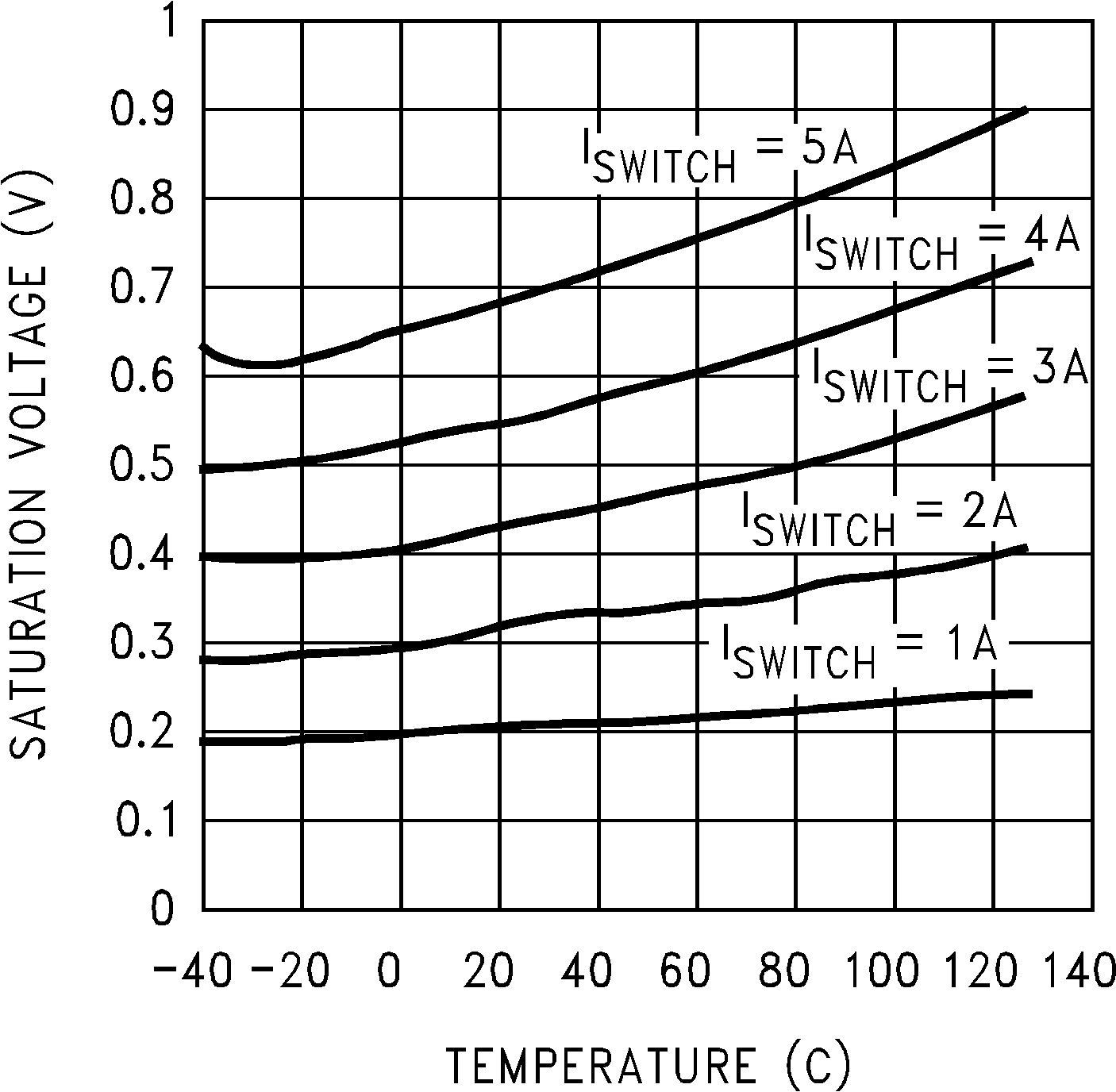

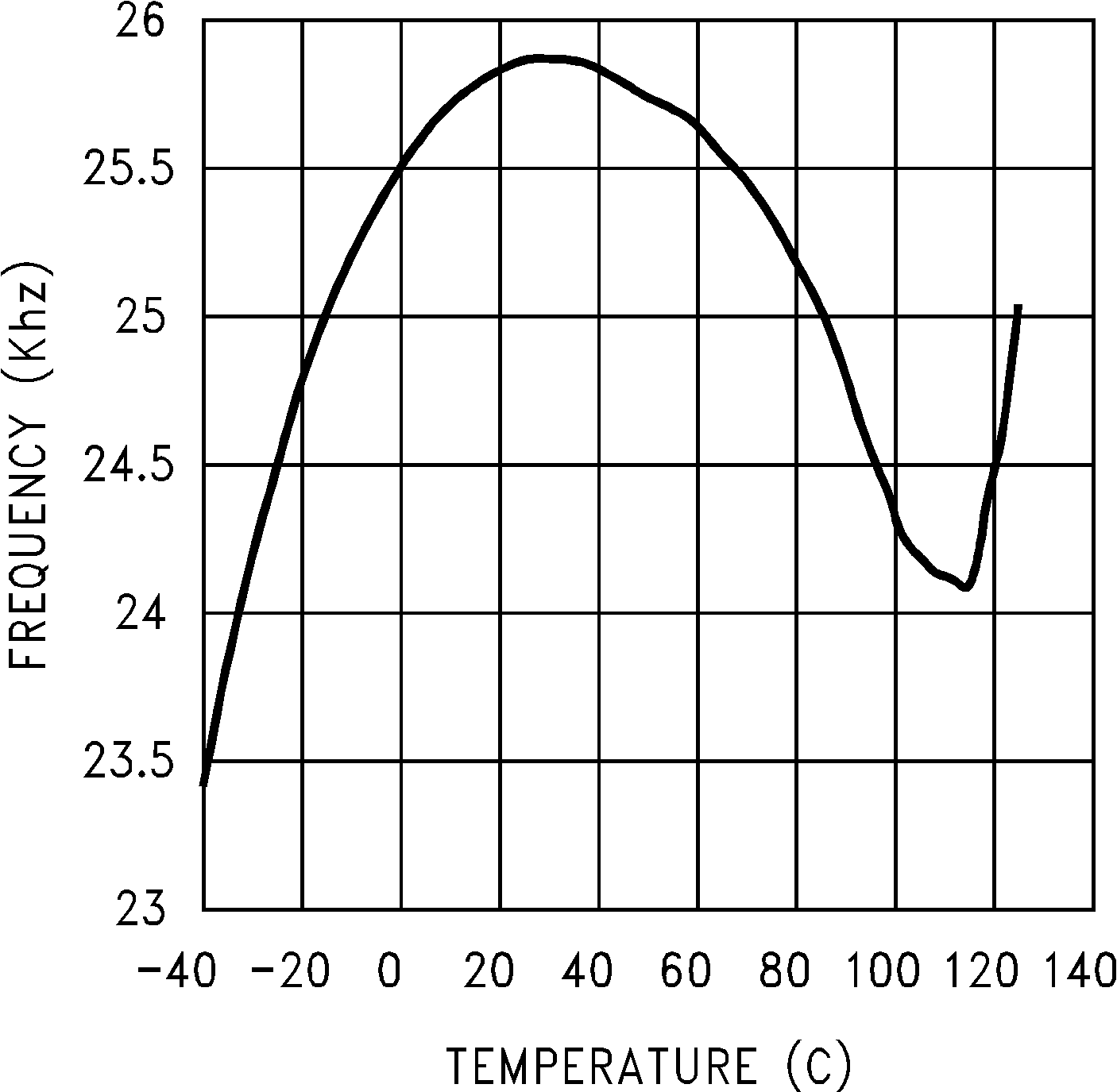

6.10 Typical Characteristics

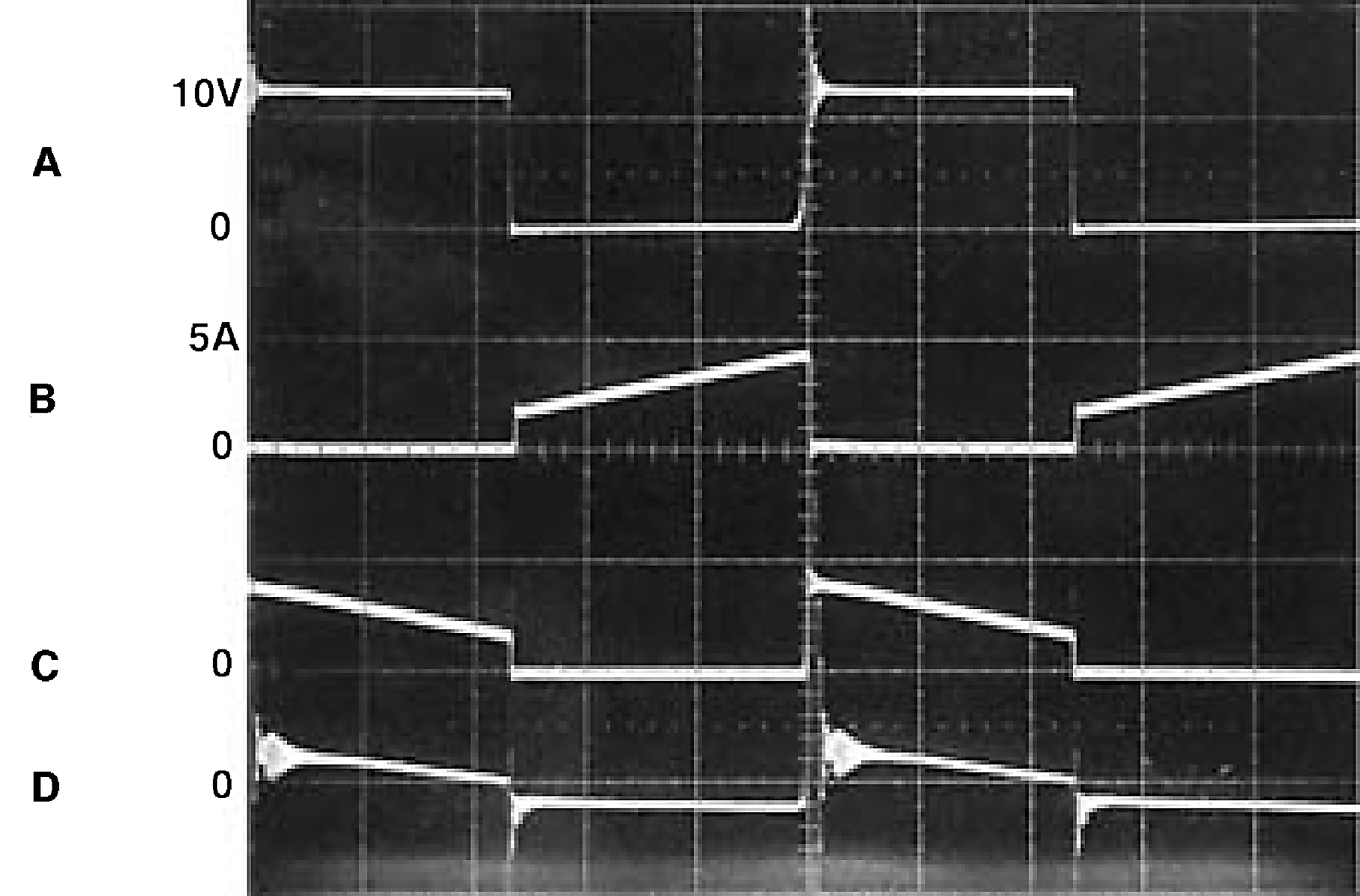

A: Switch Voltage, 10 V/div B: Switch Current, 5 A/div C: Output Rectifier Current, 5 A/div D: Output Ripple Voltage, 100 mV/div
AC-Coupled
Horizontal: 2 μs/div
Figure 13. Switching Waveforms AC-Coupled
Horizontal: 2 μs/div
