8.2.2 Typical Flyback Regulator Applications
Figure 22 through Figure 27 show six typical flyback applications, varying from single output to triple output. Each drawing contains the part number(s) and manufacturer(s) for every component except the transformer. For the transformer part numbers and manufacturers names, the table in Table 1.

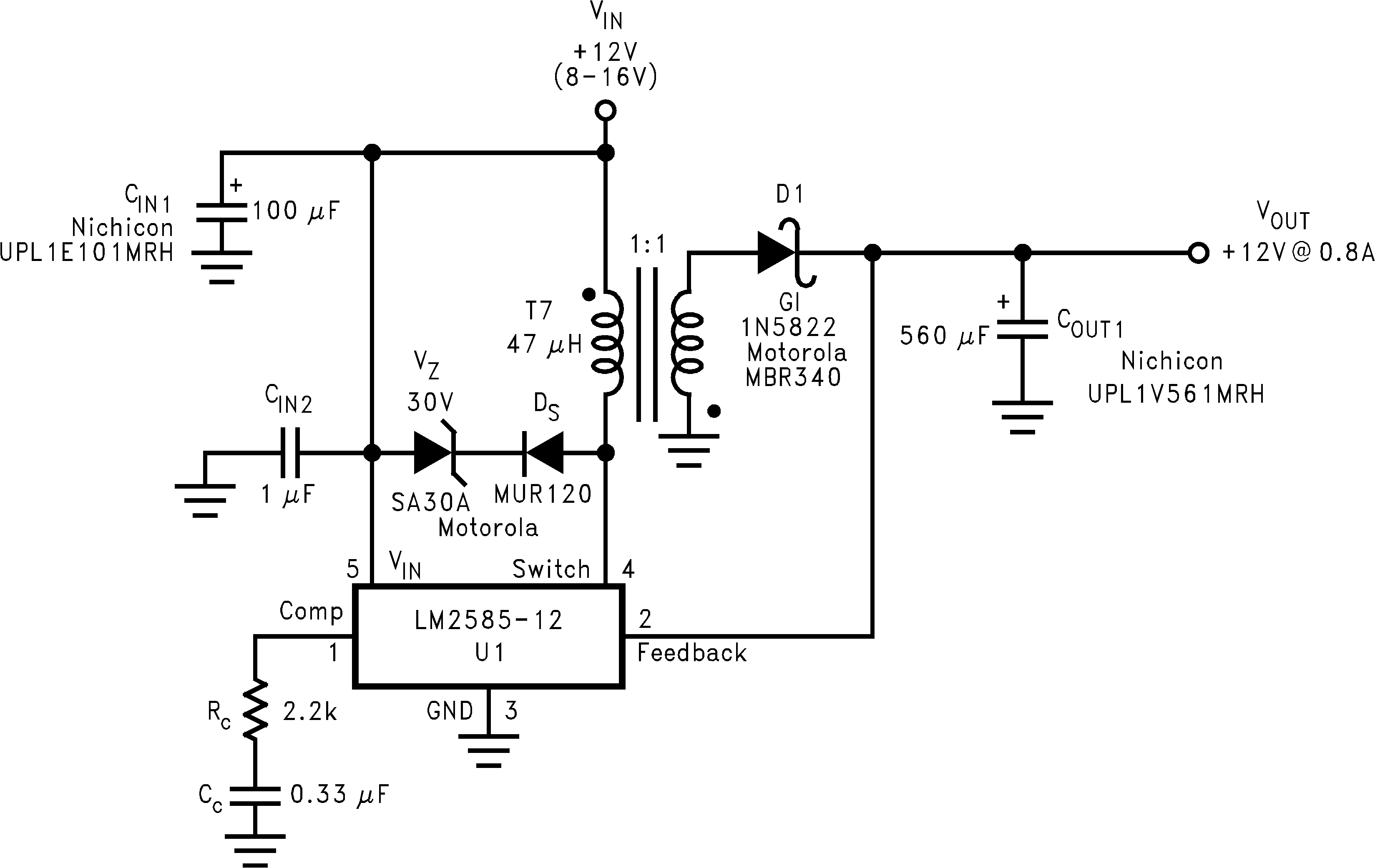

Figure 22. Single-Output Flyback Regulator

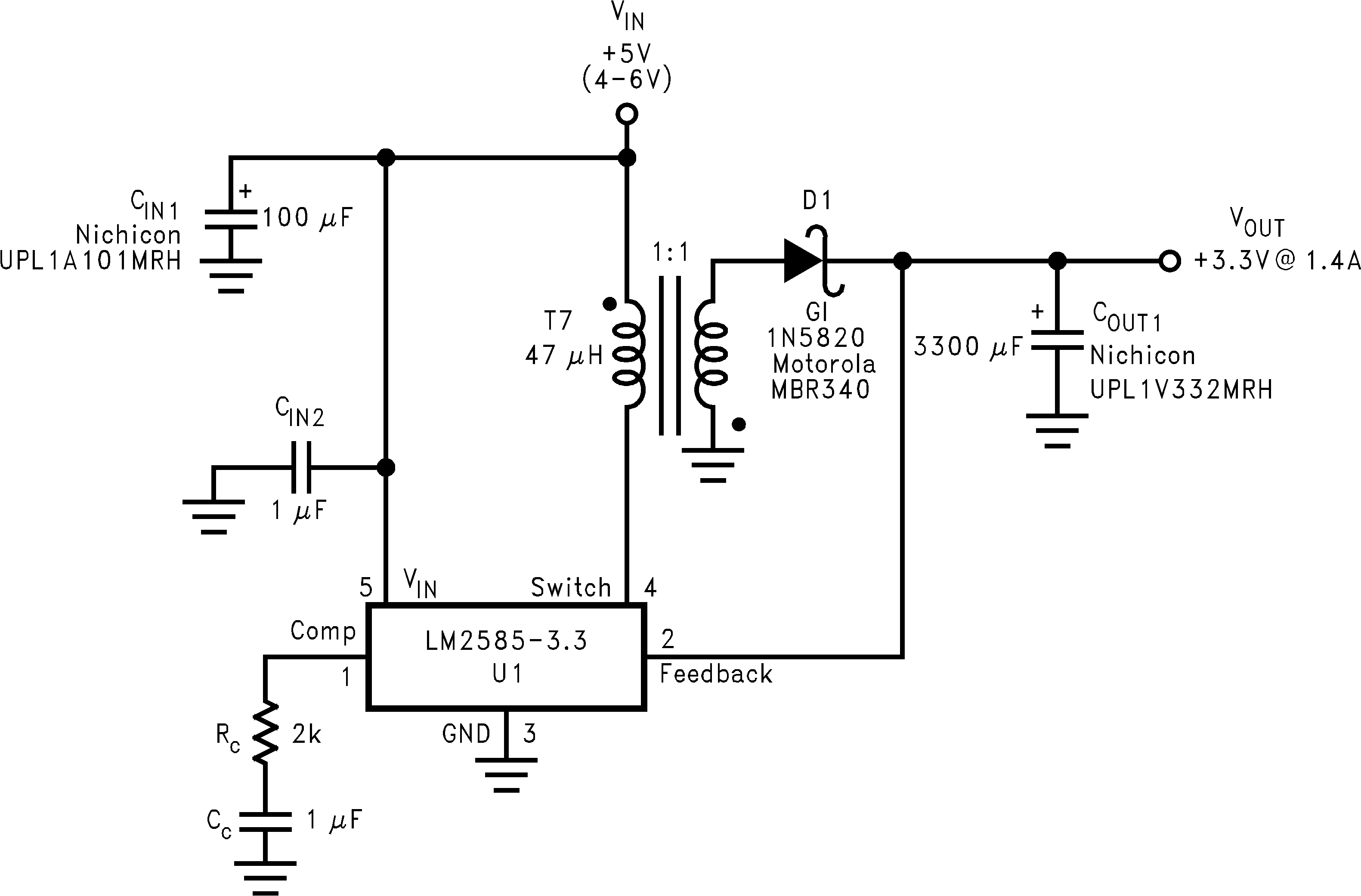

Figure 23. Single-Output Flyback Regulator

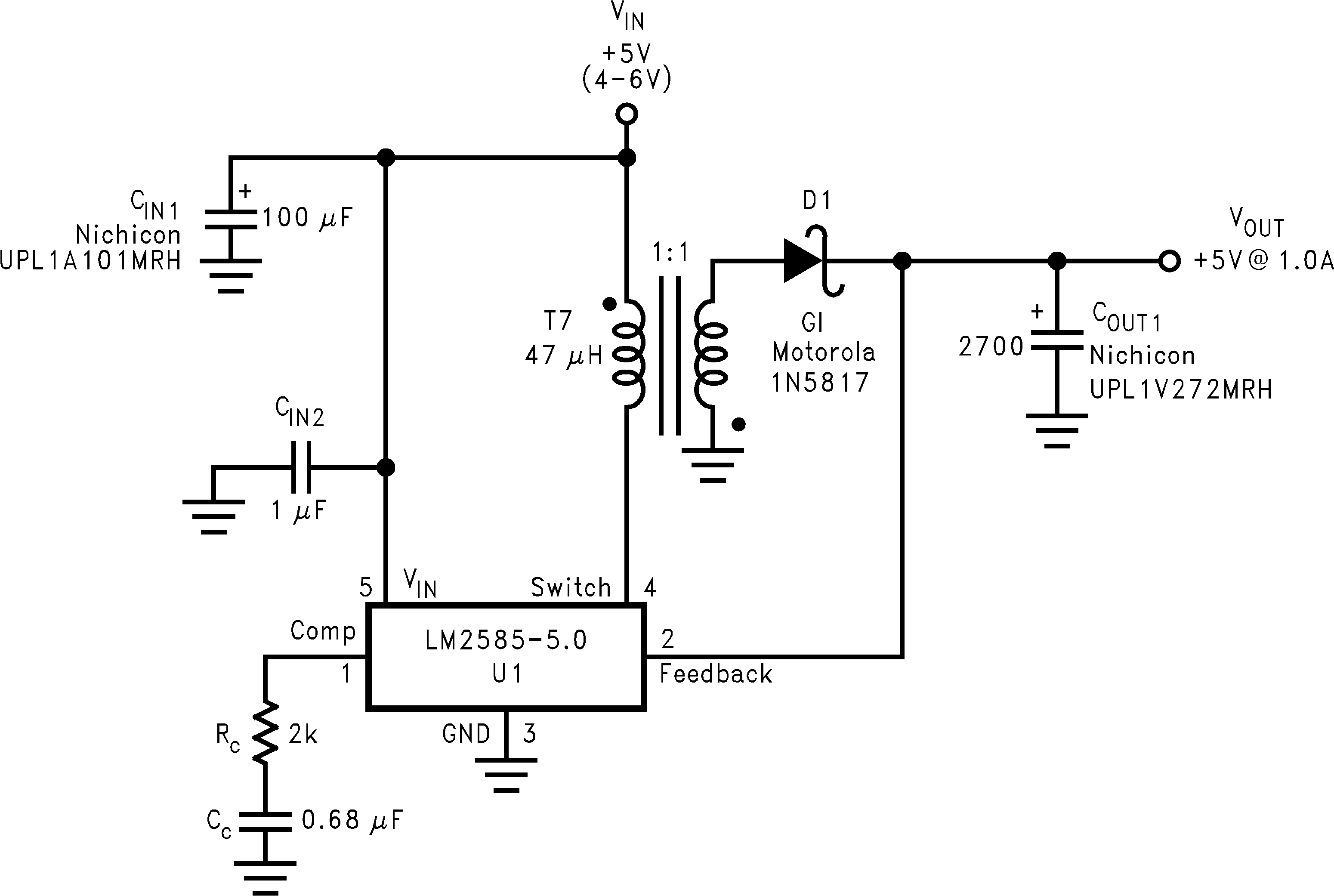

Figure 24. Single-Output Flyback Regulator

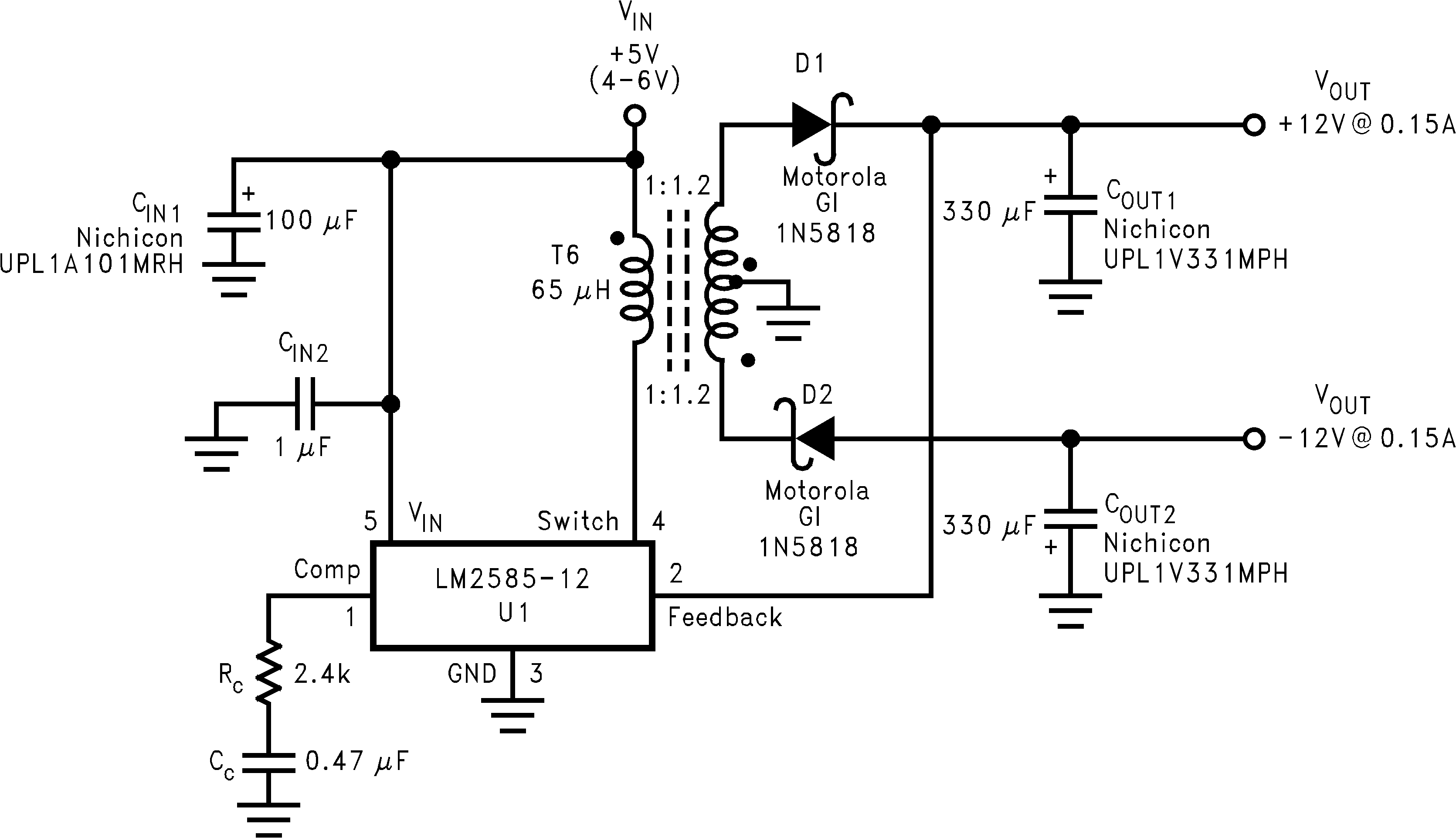

Figure 25. Dual-Output Flyback Regulator

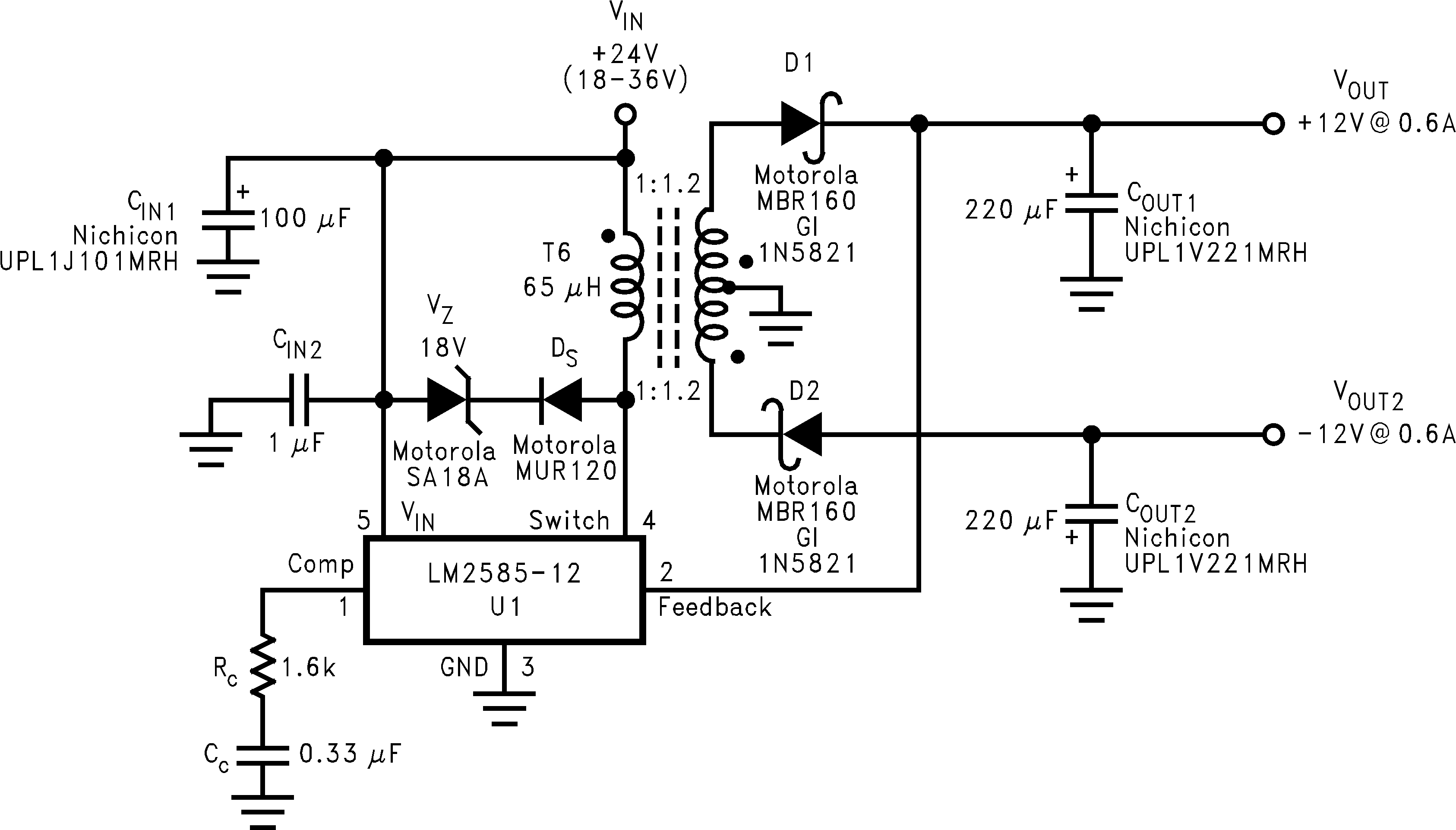

Figure 26. Dual-Output Flyback Regulator

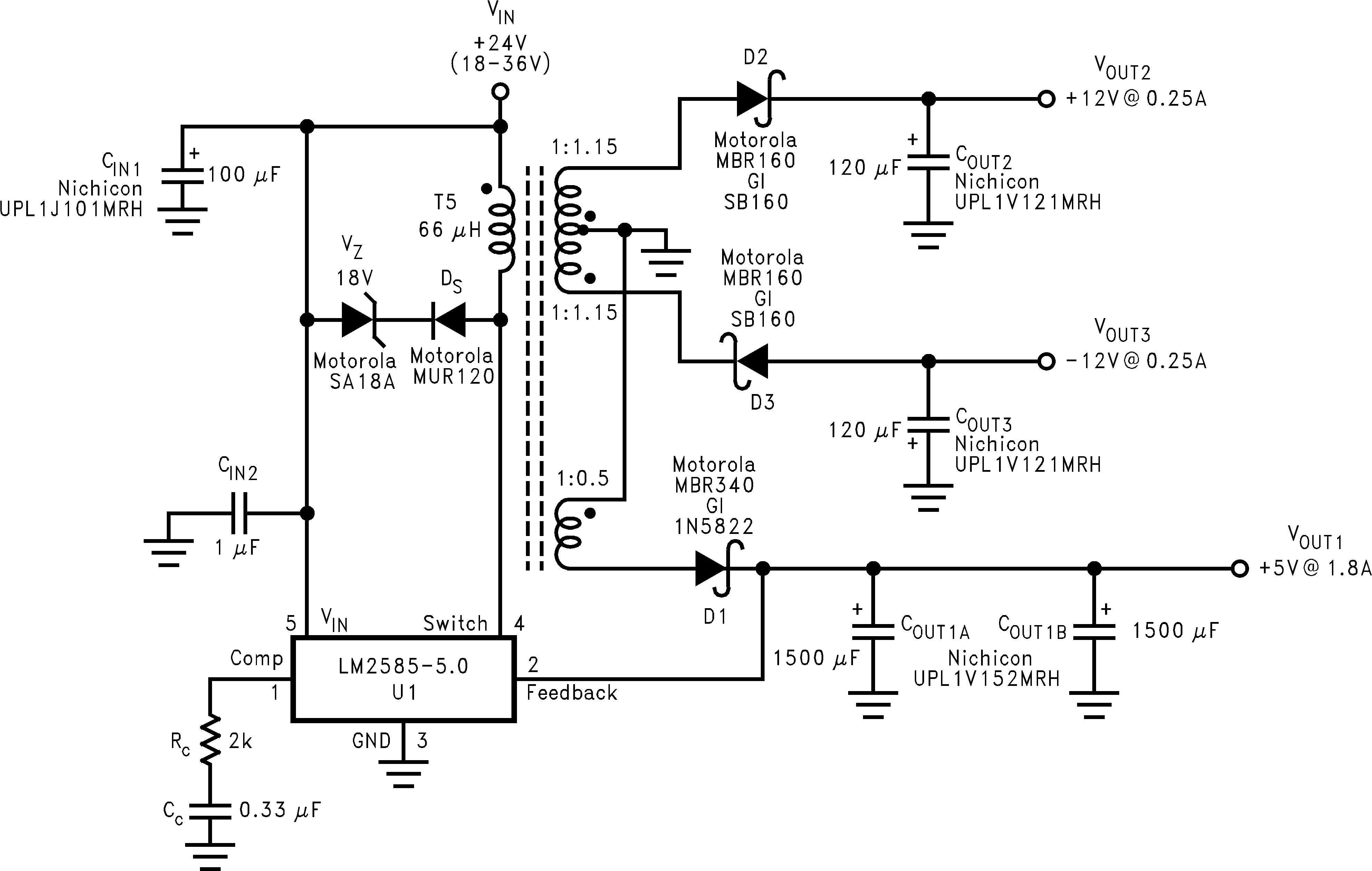

Figure 27. Triple-Output Flyback Regulator
