SNIS160E May 1999 – February 2015 LM135 , LM135A , LM235 , LM235A , LM335 , LM335A
PRODUCTION DATA.
- 1 Features
- 2 Applications
- 3 Description
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
- 7 Detailed Description
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11Device and Documentation Support
- 12Mechanical, Packaging, and Orderable Information
封裝選項
機械數據 (封裝 | 引腳)
- NDV|3
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)(3)(2)(4)| MIN | MAX | UNIT | ||
|---|---|---|---|---|
| Reverse Current | 15 | mA | ||
| Forward Current | 10 | mA | ||
| Storage temperature, Tstg | 8-Pin SOIC Package | −65 | 150 | °C |
| TO / TO-92 Package | −60 | 150 | °C | |
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) If Military/Aerospace specified devices are required, please contact the TI Sales Office/Distributors for availability and specifications.
(3) Refer to RETS135H for military specifications.
(4) Soldering process must comply with the Reflow Temperature Profile specifications. Refer to http://www.ti.com/packaging.
6.2 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)| MIN | NOM | MAX | UNIT | |||
|---|---|---|---|---|---|---|
| Specified Temperature | LM135, LM135A | Continuous (TMIN ≤ TA ≤ TMAX) | −55 | 150 | °C | |
| Intermittent (1) | 150 | 200 | ||||
| LM235, LM235A | Continuous (TMIN ≤ TA ≤ TMAX) | −40 | 125 | °C | ||
| Intermittent (1) | 125 | 150 | ||||
| LM335, LM335A | Continuous (TMIN ≤ TA ≤ TMAX) | −40 | 100 | °C | ||
| Intermittent (1) | 100 | 125 | ||||
| Forward Current | 0.4 | 1 | 5 | mA | ||
(1) Continuous operation at these temperatures for 5,000 hours for LP package may decrease life expectancy of the device.
6.3 Thermal Information
| THERMAL METRIC(1) | LM335 / LM335A | LM235 / LM235A | LM135 / LM135A | UNIT | |
|---|---|---|---|---|---|
| SOIC (D) | TO-92 (LP) | TO-46 (NDV) | |||
| 8 PINS | 3 PINS | 3 PINS | |||
| RθJA | Junction-to-ambient thermal resistance | 165 | 202 | 400 | °C/W |
| RθJC | Junction-to-case thermal resistance | — | 170 | — | |
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
6.4 Temperature Accuracy: LM135/LM235, LM135A/LM235A(1)
| PARAMETER | TEST CONDITIONS | LM135A/LM235A | LM135/LM235 | UNIT | |||||
|---|---|---|---|---|---|---|---|---|---|
| MIN | TYP | MAX | MIN | TYP | MAX | ||||
| Operating Output Voltage | TC = 25°C, IR = 1 mA | 2.97 | 2.98 | 2.99 | 2.95 | 2.98 | 3.01 | V | |
| Uncalibrated Temperature Error | TC = 25°C, IR = 1 mA | 0.5 | 1 | 1 | 3 | °C | |||
| Uncalibrated Temperature Error | TMIN ≤ TC ≤ TMAX, IR = 1 mA | 1.3 | 2.7 | 2 | 5 | °C | |||
| Temperature Error with 25°C | TMIN ≤ TC ≤ TMAX, IR = 1 mA | 0.3 | 1 | 0.5 | 1.5 | °C | |||
| Calibration | Calibrated Error at Extended | TC = TMAX (Intermittent) | 2 | 2 | °C | ||||
| Temperature | Non-Linearity | IR = 1 mA | 0.3 | 0.5 | 0.3 | 1 | °C | ||
6.5 Temperature Accuracy: LM335, LM335A(1)
| PARAMETER | TEST CONDITIONS | LM335A | LM335 | UNIT | |||||
|---|---|---|---|---|---|---|---|---|---|
| MIN | TYP | MAX | MIN | TYP | MAX | ||||
| Operating Output Voltage | TC = 25°C, IR = 1 mA | 2.95 | 2.98 | 3.01 | 2.92 | 2.98 | 3.04 | V | |
| Uncalibrated Temperature Error | TC = 25°C, IR = 1 mA | 1 | 3 | 2 | 6 | °C | |||
| Uncalibrated Temperature Error | TMIN ≤ TC ≤ TMAX, IR = 1 mA | 2 | 5 | 4 | 9 | °C | |||
| Temperature Error with 25°C | TMIN ≤ TC ≤ TMAX, IR = 1 mA | 0.5 | 1 | 1 | 2 | °C | |||
| Calibration | Calibrated Error at Extended | TC = TMAX (Intermittent) | 2 | 2 | °C | ||||
| Temperature | Non-Linearity | IR = 1 mA | 0.3 | 1.5 | 0.3 | 1.5 | °C | ||
6.6 Electrical Characteristics
See (1).| PARAMETER | TEST CONDITIONS | LM135/LM235/LM135A/LM235A | LM335/LM335A | UNIT | ||||
|---|---|---|---|---|---|---|---|---|
| MIN | TYP | MAX | MIN | TYP | MAX | |||
| Operating Output Voltage Change with Current | 400 μA ≤ IR ≤ 5 mA, At Constant Temperature | 2.5 | 10 | 3 | 14 | mV | ||
| Dynamic Impedance | IR = 1 mA | 0.5 | 0.6 | Ω | ||||
| Output Voltage Temperature Coefficient | 10 | 10 | mV/°C | |||||
| Time Constant | Still Air | 80 | 80 | sec | ||||
| 100 ft/Min Air | 10 | 10 | sec | |||||
| Stirred Oil | 1 | 1 | sec | |||||
| Time Stability | TC = 125°C | 0.2 | 0.2 | °C/khr | ||||
(1) Accuracy measurements are made in a well-stirred oil bath. For other conditions, self heating must be considered.
6.7 Typical Characteristics

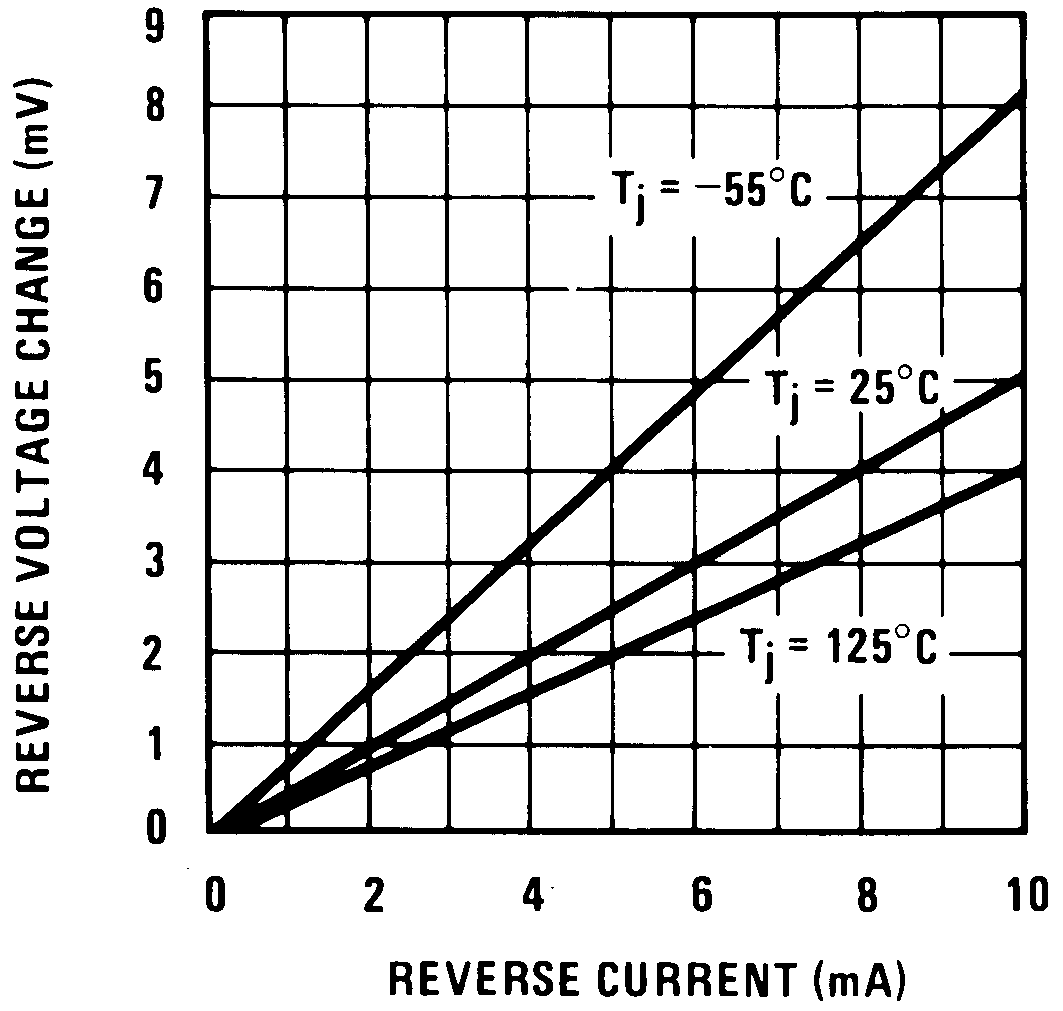

Figure 1. Reverse Voltage Change

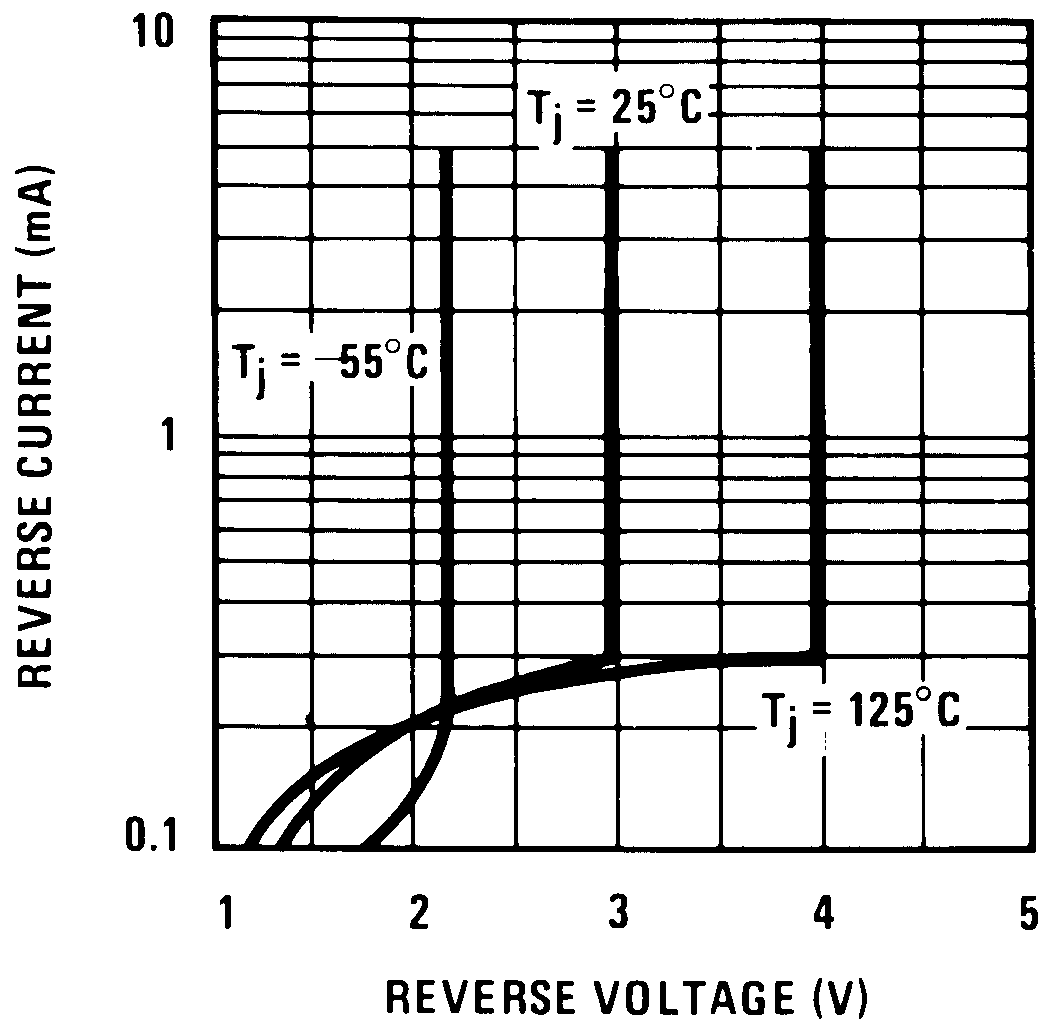

Figure 3. Reverse Characteristics

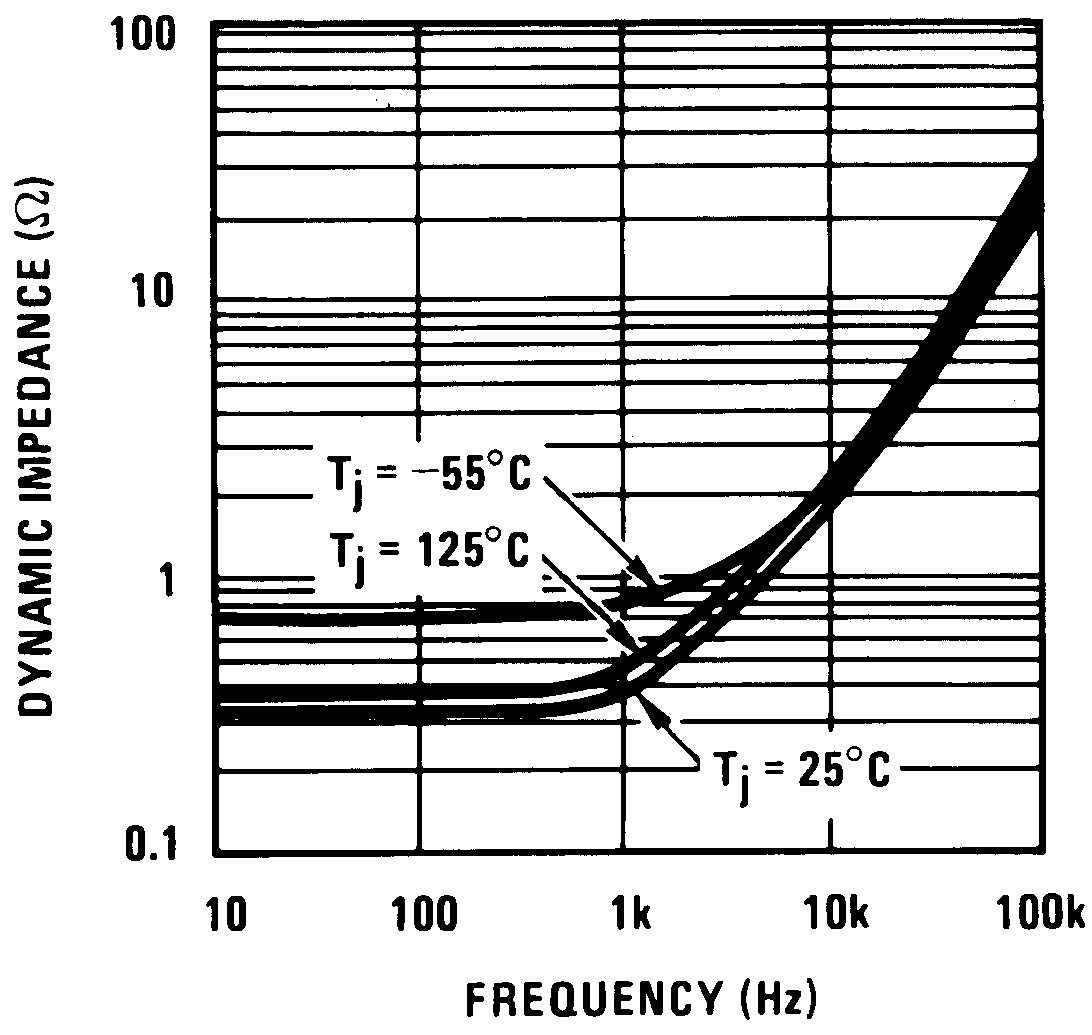

Figure 5. Dynamic Impedance

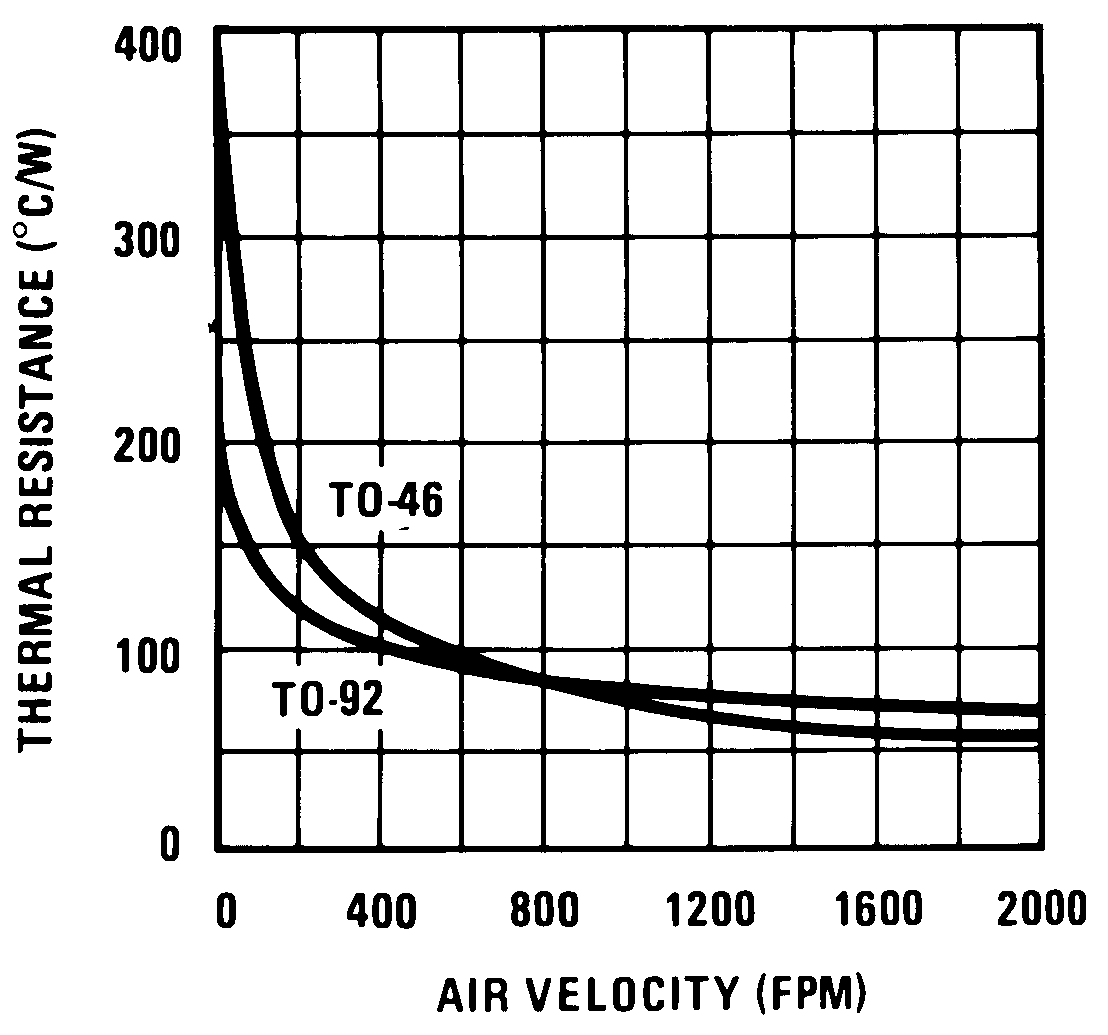

Figure 7. Thermal Resistance Junction To Air

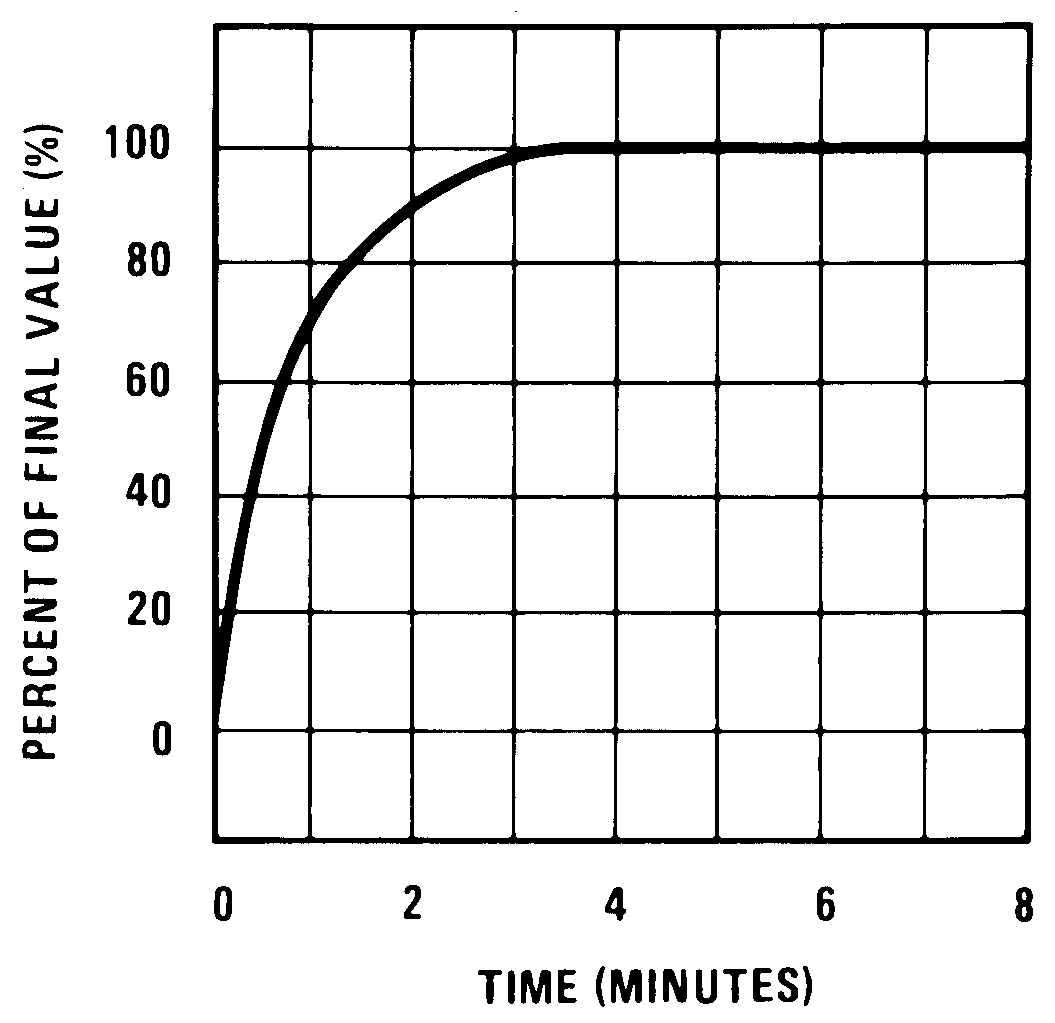

Figure 9. Thermal Response In Still Air

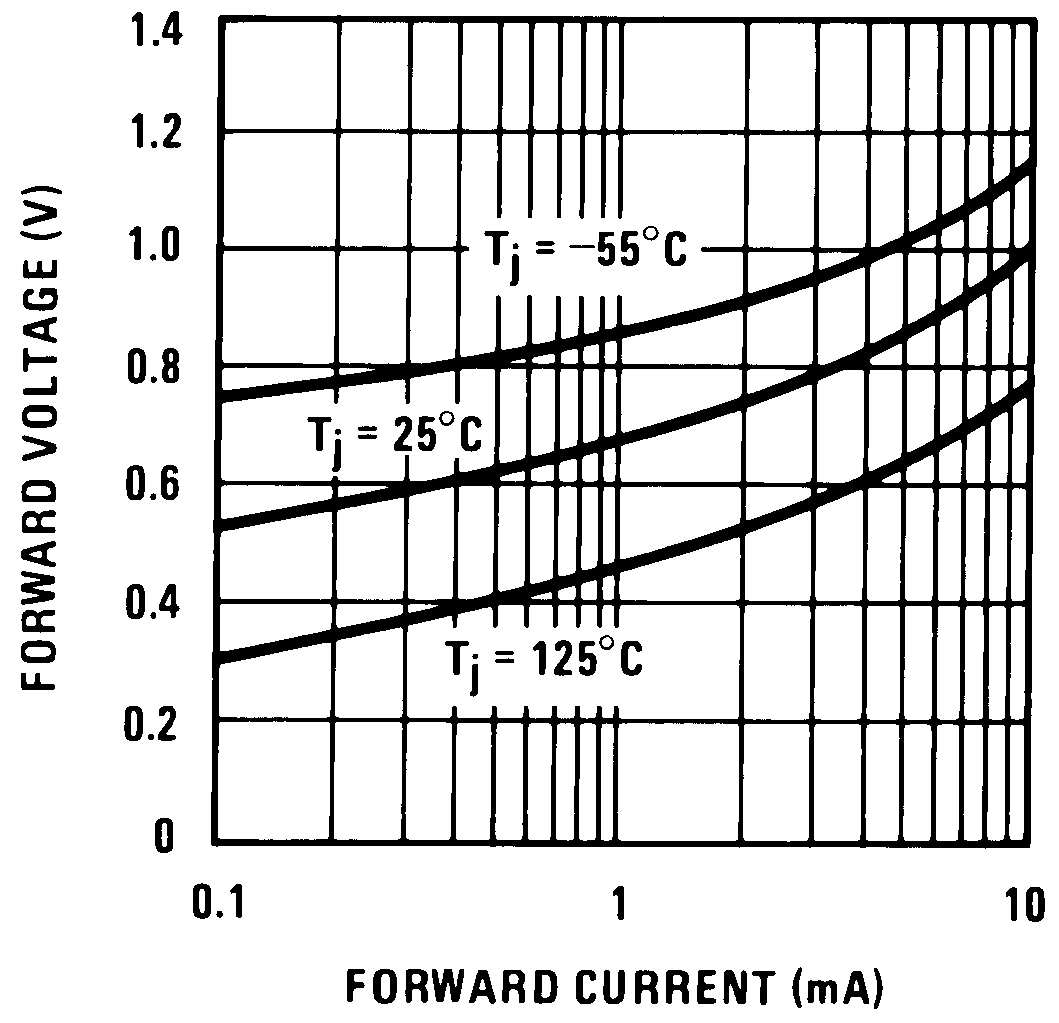

Figure 11. Forward Characteristics

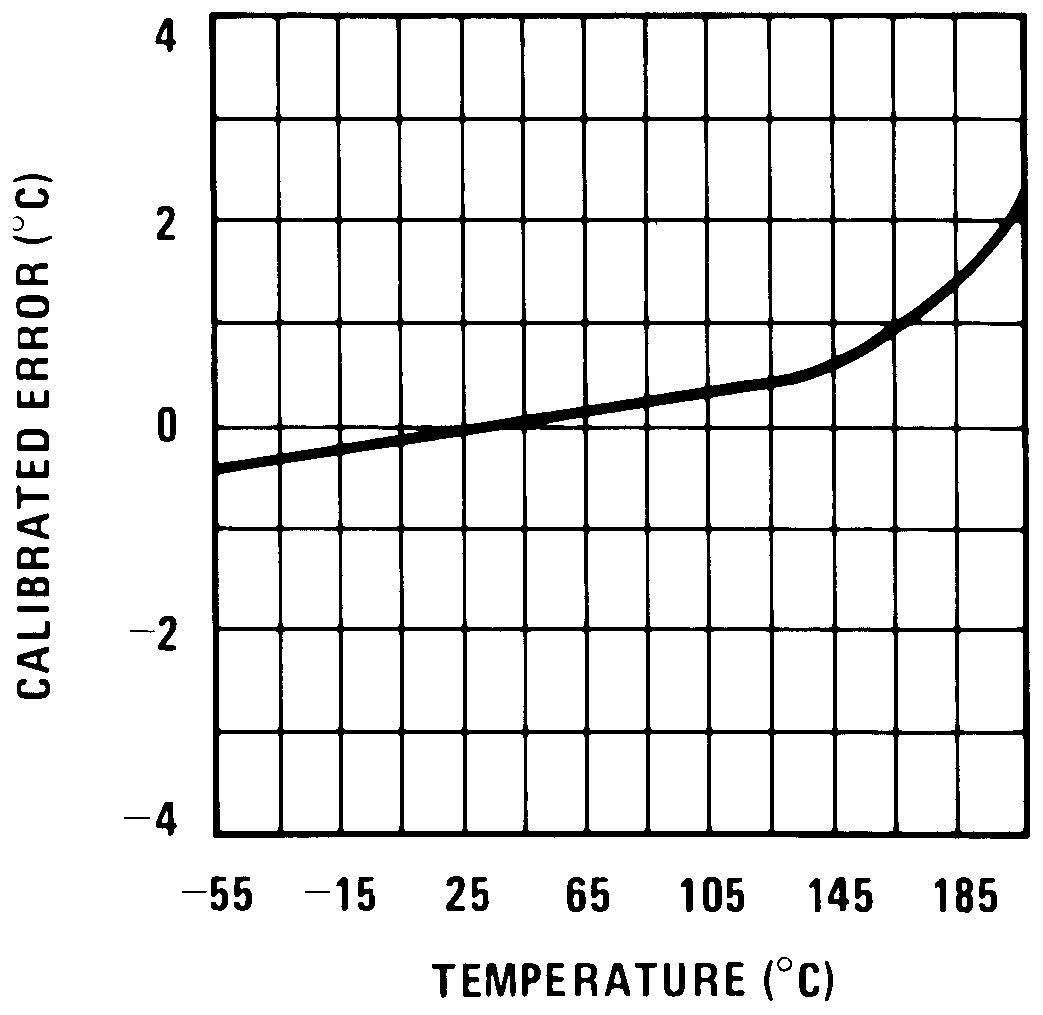

Figure 2. Calibrated Error
Figure 4. Response Time

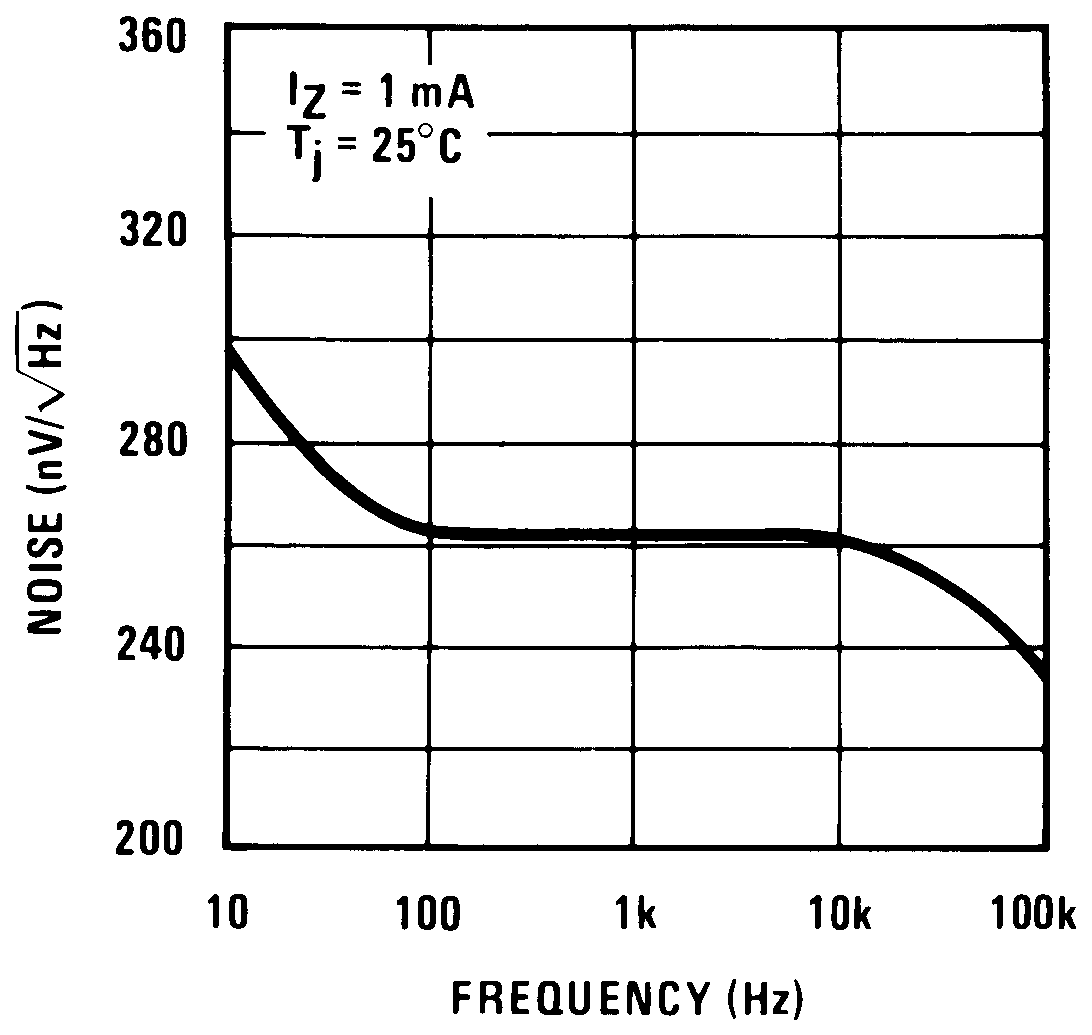

Figure 6. Noise Voltage

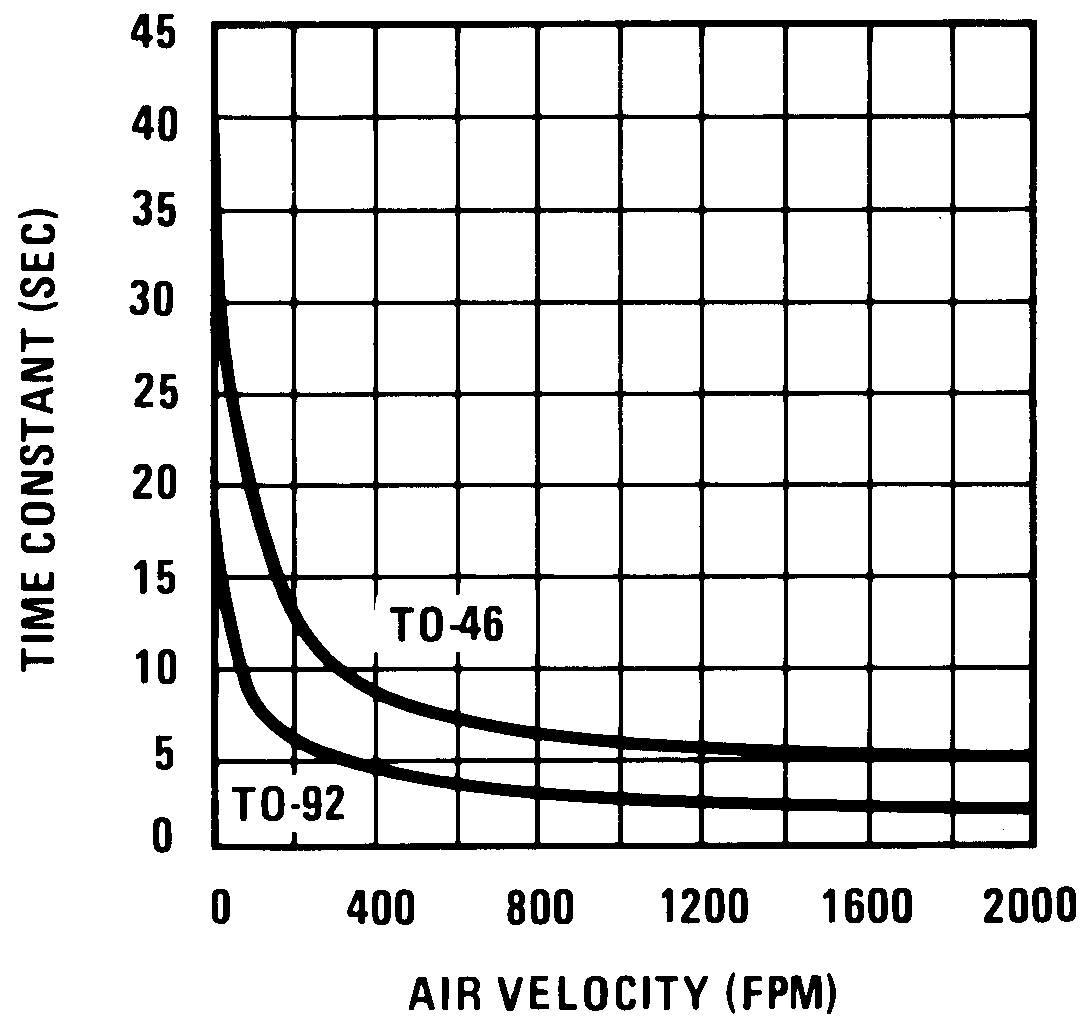

Figure 8. Thermal Time Constant

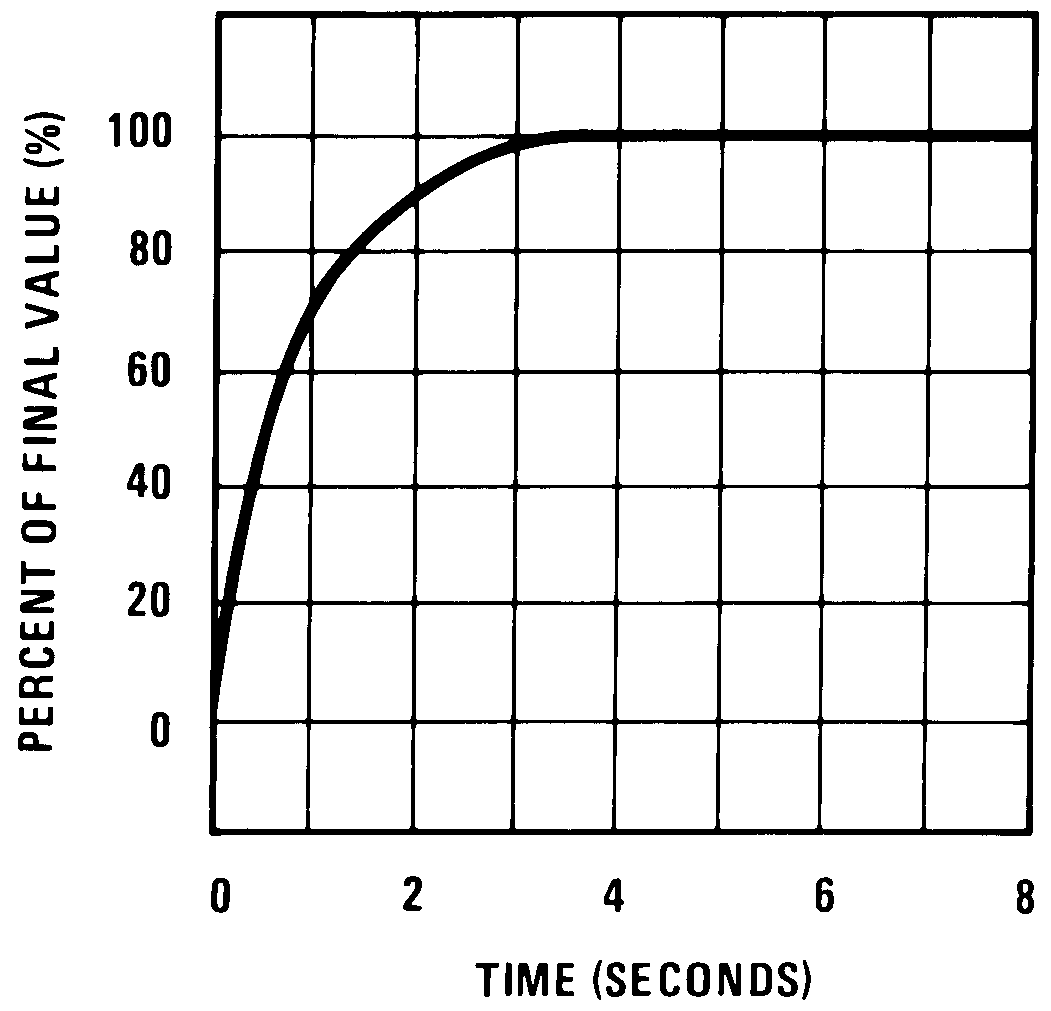

Figure 10. Thermal Response In Stirred Oil Bath
