9 Parameter Measurement Information
Figure 9-1 Driver Voltage,
Current and Test Definitions

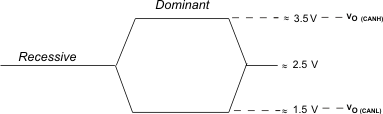

Figure 9-2 Bus Logic State
Voltage Definitions
Figure 9-3 Driver Test Circuit and Voltage
Waveforms.
A.
The input pulse is supplied by a generator having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle, tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.

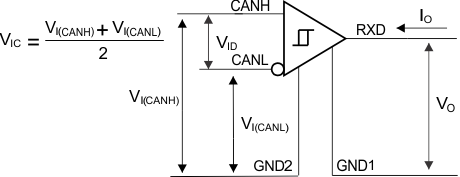

Figure 9-4 Receiver Voltage
and Current Definitions
A. The input pulse is supplied by a generator
having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle,
tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 ?.

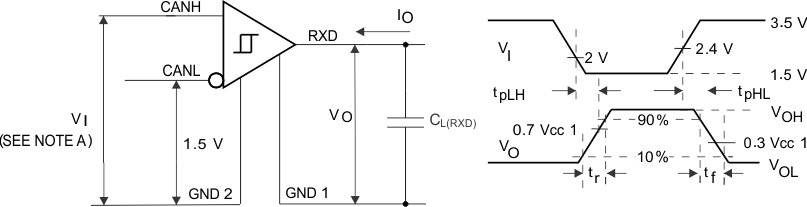

Figure 9-5 Receiver Test
Circuit and Voltage Waveformstr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 ?.
Table 9-1 Receiver Differential Input Voltage
Threshold Test
| INPUT | OUTPUT | |||
|---|---|---|---|---|
| VCANH | VCANL | |VID| | RXD | |
| -11.5 V | -12.5 V | 1000 mV | L | VOL |
| 12.5 V | 11.5 V | 1000 mV | L | |
| -8.55 V | -9.45 V | 900 mV | L | |
| 9.45 V | 8.55 V | 900 mV | L | |
| -8.75 V | -9.25 V | 500 mV | H | VOH |
| 9.25 V | 8.75 V | 500 mV | H | |
| -11.8 V | -12.2 V | 400 mV | H | |
| 12.2 V | 11.8 V | 400 mV | H | |
| Open | Open | X | H | |

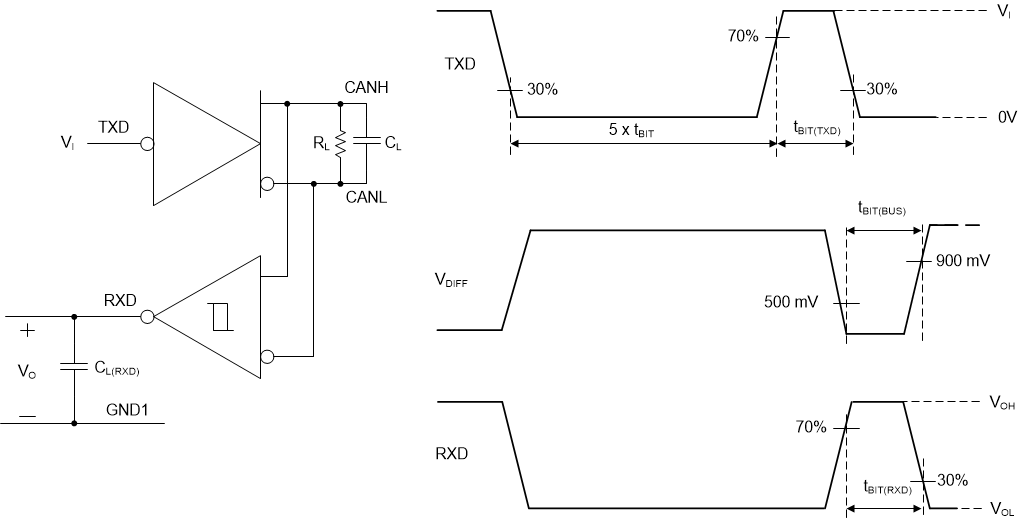

Figure 9-6 tLOOP
and CAN FD Timing Parameter Measurement
A. The input pulse is supplied by a
generator having the following characteristics: tr ≤ 6 ns, tf ≤ 6
ns, ZO = 50 ?.

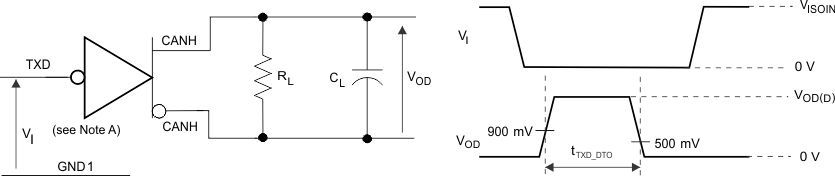

Figure 9-7 Dominant Time-out
Test Circuit and Voltage Waveforms

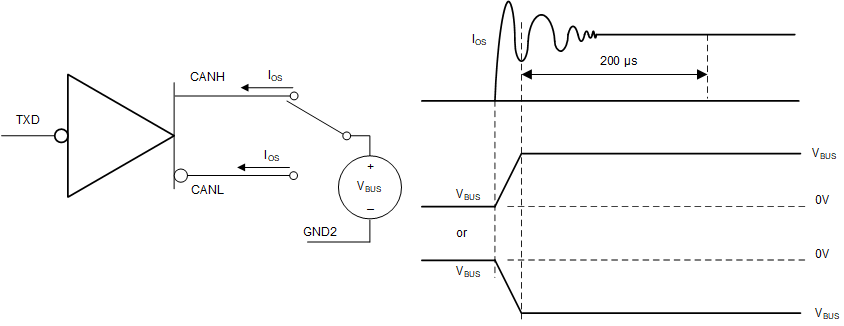

Figure 9-8 Driver
Short-Circuit Current Test Circuit and Waveforms

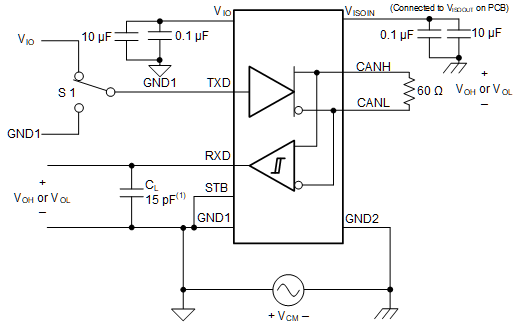

Figure 9-9 Common-Mode
Transient Immunity Test Circuit
A. VCCI and VCCO
refers to the power supplies VIO and VISOIN, respectively.
CL = 15 pF and The input pulse is supplied by a generator having the
following characteristics: PRR ≤ 50 kHz, 50% duty cycle, tr ≤ 3 ns,
tf ≤ 3ns, ZO = 50 Ω. At the input, 50 Ω resistor is required to
terminate Input Generator signal. It is not needed in actual application.
B. B. CL = 15 pF and includes
instrumentation and fixture capacitance within ±20%.

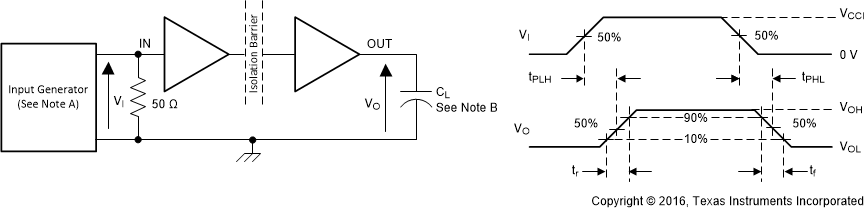

Figure 9-10 Switching
Characteristics Test Circuit and Voltage Waveforms
