10.2 Typical Application
For automotive applications, the ISO672x-Q1 device can also be used with Texas Instruments' Piccolo? microcontroller, CAN transceiver, transformer driver, and voltage regulator to create an isolated CAN interface.

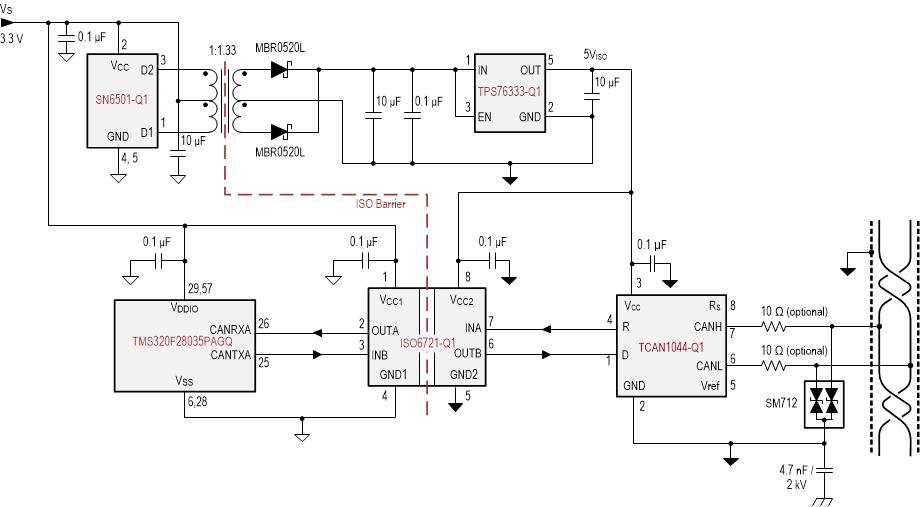

Figure 10-1 Typical Isolated CAN Application Circuit
