6.14 Typical Characteristics

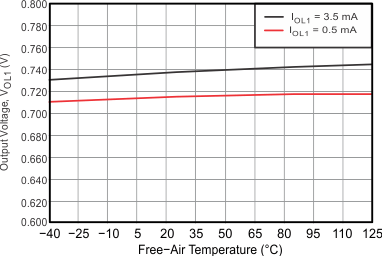

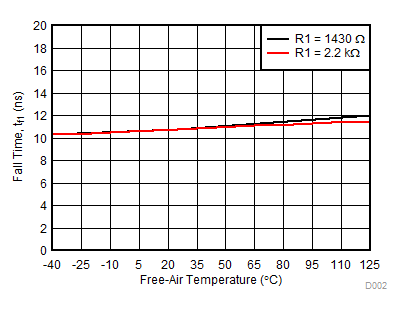

| VCC1 = 3.3 V | C1 = 40 pF | |
| Fall time measured from 70% to 30% VCC1 | ||

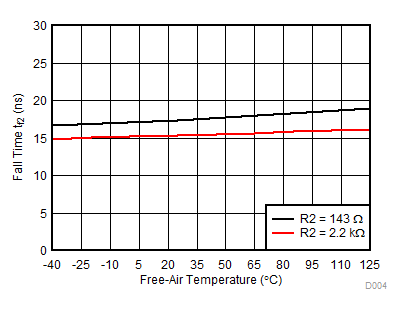

| VCC2 = 3.3 V | C2 = 400 pF | |
| Fall time measured from 70% to 30% VCC2 | ||

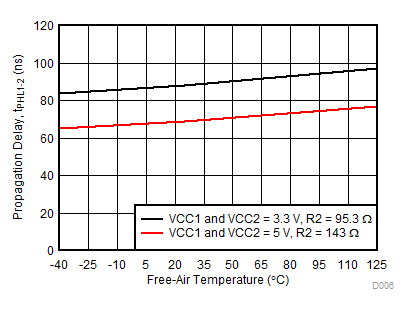

| C2 = 10 pF |
| R2 = 2.2 kΩ | C2 = 400 pF |

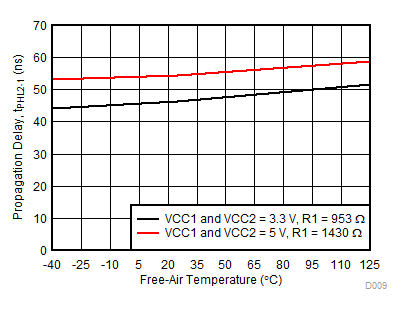

| C1 = 10 pF |
| R1 = 2.2 kΩ | C1 = 40 pF |
| C1 = 40 pF | C2 = 400 pF | |
| TA = 25°C |
| VCC1 = 5 V | C1 = 40 pF | |
| Fall time measured from 70% to 30% VCC1 | ||
| VCC2 = 5 V | C2 = 400 pF | |
| Fall time measured from 70% to 30% VCC2 | ||

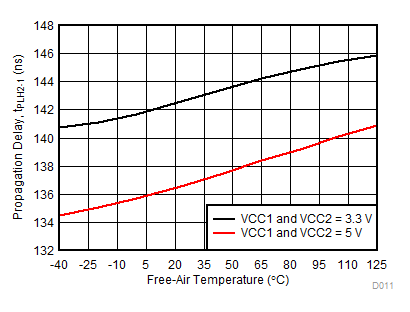

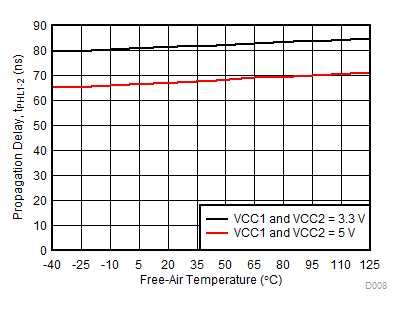

| C2 = 10 pF |
| R2 = 2.2 kΩ | C2 = 400 pF |

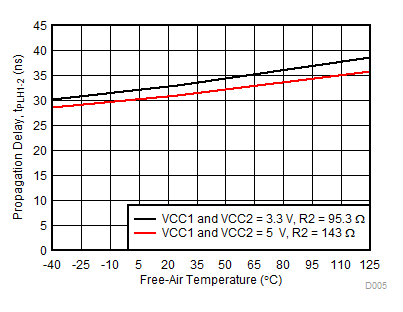

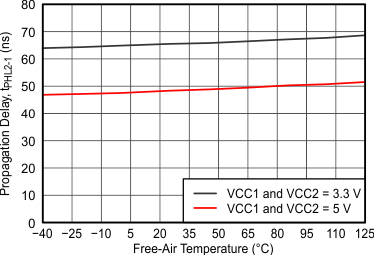

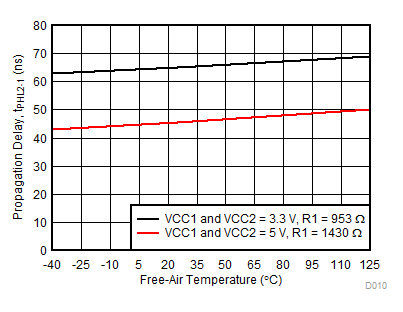

| C1 = 10 pF |
| R1 = 2.2 kΩ | C1 = 40 pF |

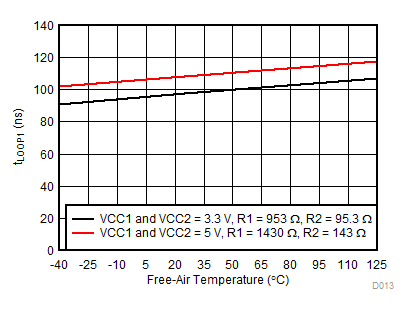

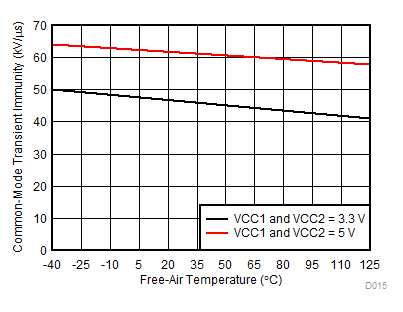

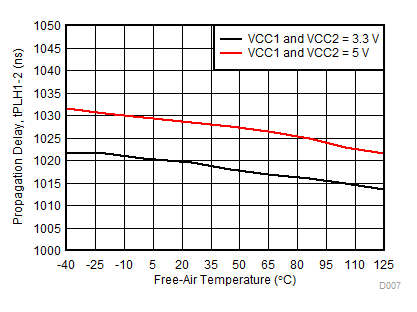

| C1 = 40 pF | C2 = 400 pF | |
| R1 = 2.2 kΩ | R2 = 2.2 kΩ |
