8.3 Device Functional Modes
Table 8-1 Driver Function Table
| VCC1 | VCC2 | POWER VALID (PV) (ISO1176) | INPUT (D) | ENABLE INPUT (DE) | ENABLE OUTPUT (ISODE) | OUTPUTS | |
|---|---|---|---|---|---|---|---|
| A | B | ||||||
| PU | PU | H or open | H | H | H | H | L |
| PU | PU | H or open | L | H | H | L | H |
| PU | PU | H or open | X | L | L | Z | Z |
| PU | PU | H or open | X | open | L | Z | Z |
| PU | PU | H or open | open | H | H | H | L |
| PD | PU | X | X | X | L | Z | Z |
| PU | PD | X | X | X | L | Z | Z |
| PD | PD | X | X | X | L | Z | Z |
| X | X | L | X | X | L | Z | Z |
Table 8-2 Receiver Function Table
| VCC1 | VCC2 | POWER VALID (PV) (ISO1176) | DIFFERENTIAL INPUT VID = (VA – VB) | ENABLE ( RE) | OUTPUT (R) |
|---|---|---|---|---|---|
| PU | PU | H or open | –0.01 V ≤ VID | L | H |
| PU | PU | H or open | –0.2 V < VID < –0.01 V | L | ? |
| PU | PU | H or open | VID ≤ –0.2 V | L | L |
| PU | PU | H or open | X | H | Z |
| PU | PU | H or open | X | open | Z |
| PU | PU | H or open | Open-circuit | L | H |
| PU | PU | H or open | Short-circuit | L | H |
| PU | PU | H or open | Idle (terminated) bus | L | H |
| PD | PU | X | X | X | Z |
| PU | PD | H or open | X | L | H |
| PD | PD | X | X | X | Z |
| X | X | L | X | X | Z |

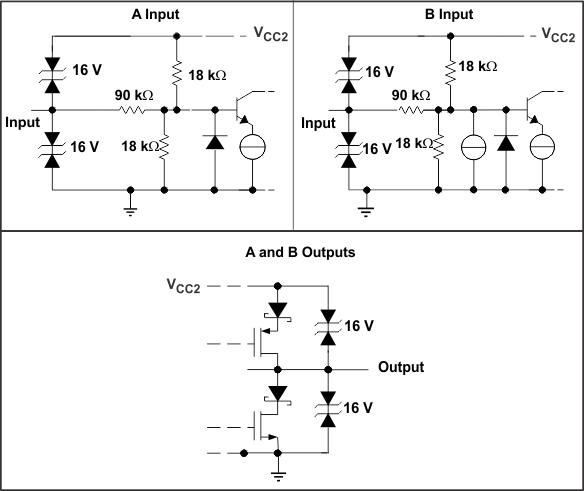

Figure 8-1 Equivalent I/O Schematics
Figure 8-2 Equivalent I/O Schematics for A and B Inputs and Outputs
