9.2.3 Application Curve
At maximum working voltage, ISO1176 isolation barrier has more than 28 years of life.

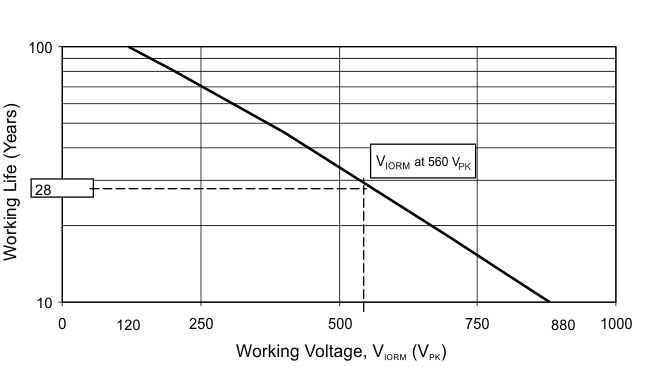

Figure 9-4 Time-Dependent Dielectric Breakdown Test Results
