7 Parametric Measurement Information

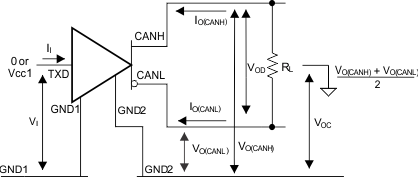

Figure 7-1 Driver Voltage, Current and Test Definitions

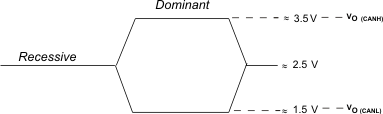

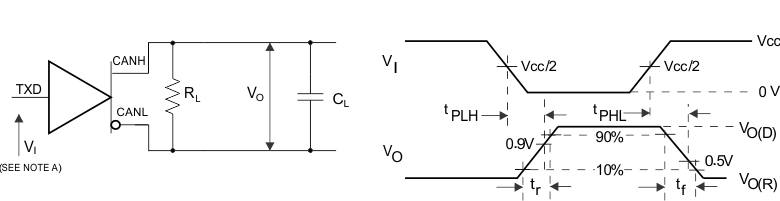

Figure 7-2 Bus Logic State Voltage DefinitionsFigure 7-3 Driver Test Circuit and Voltage Waveforms.
The input pulse is supplied by a generator having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle, tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 Ω.

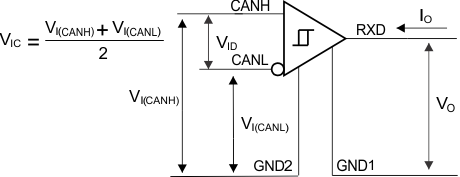

Figure 7-4 Receiver Voltage and Current Definitions
The input pulse is supplied by a generator having the following characteristics: PRR ≤ 125 kHz, 50% duty cycle,
tr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 ?.

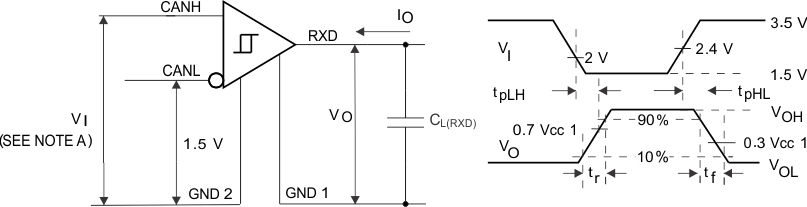

Figure 7-5 Receiver Test Circuit and Voltage Waveformstr ≤ 6 ns, tf ≤ 6 ns, ZO = 50 ?.
Table 7-1 Receiver Differential Input Voltage Threshold Test
| INPUT | OUTPUT | |||
|---|---|---|---|---|
| VCANH | VCANL | |VID| | RXD | |
| -11.5 V | -12.5 V | 1000 mV | L | VOL |
| 12.5 V | 11.5 V | 1000 mV | L | |
| -8.55 V | -9.45 V | 900 mV | L | |
| 9.45 V | 8.55 V | 900 mV | L | |
| -8.75 V | -9.25 V | 500 mV | H | VOH |
| 9.25 V | 8.75 V | 500 mV | H | |
| -11.8 V | -12.2 V | 400 mV | H | |
| 12.2 V | 11.8 V | 400 mV | H | |
| Open | Open | X | H | |

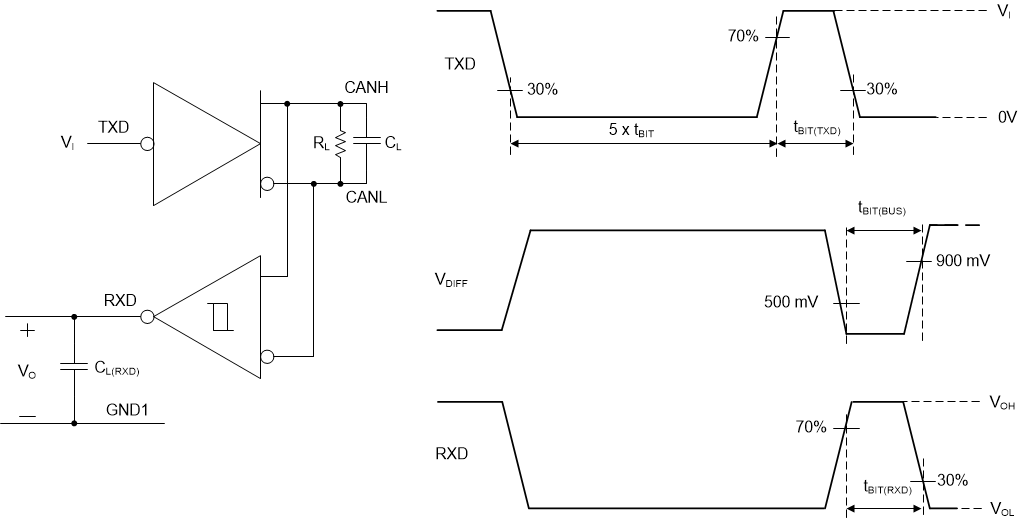

Figure 7-6 tLOOP and CAN
FD Timing Parameter Measurement
The input pulse is supplied by a
generator having the following characteristics: tr ≤ 6 ns,
tf ≤ 6 ns, ZO = 50 ?.

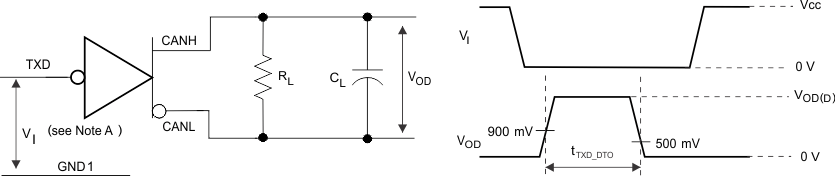

Figure 7-7 Dominant
Time-out Test Circuit and Voltage Waveforms
Figure 7-8 Driver Short-Circuit Current Test Circuit and Waveforms

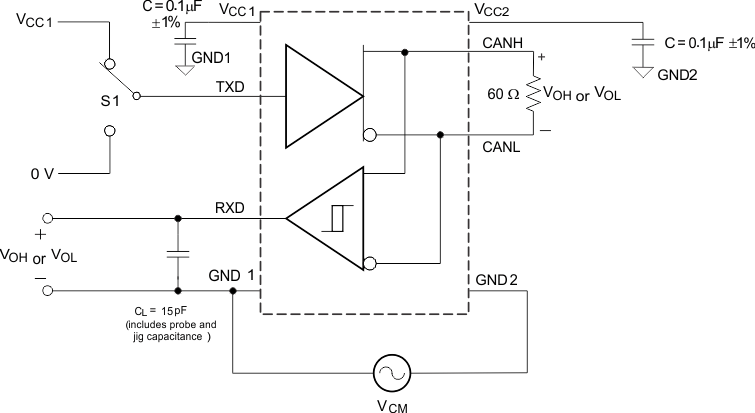

Figure 7-9 Common-Mode Transient Immunity Test Circuit
