6.7 Typical Characteristics

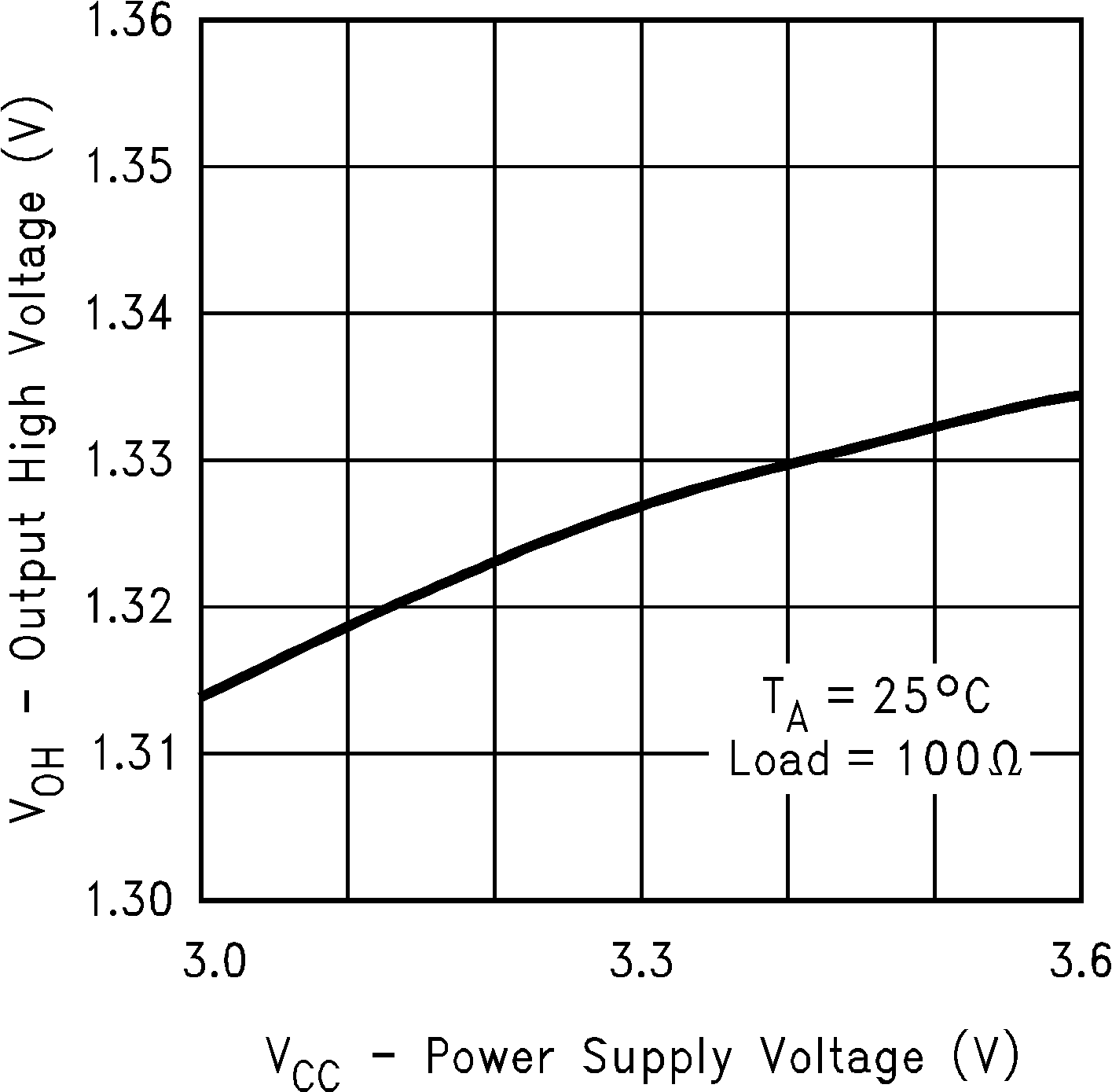

Figure 1. Output High Voltage vs Power Supply Voltage

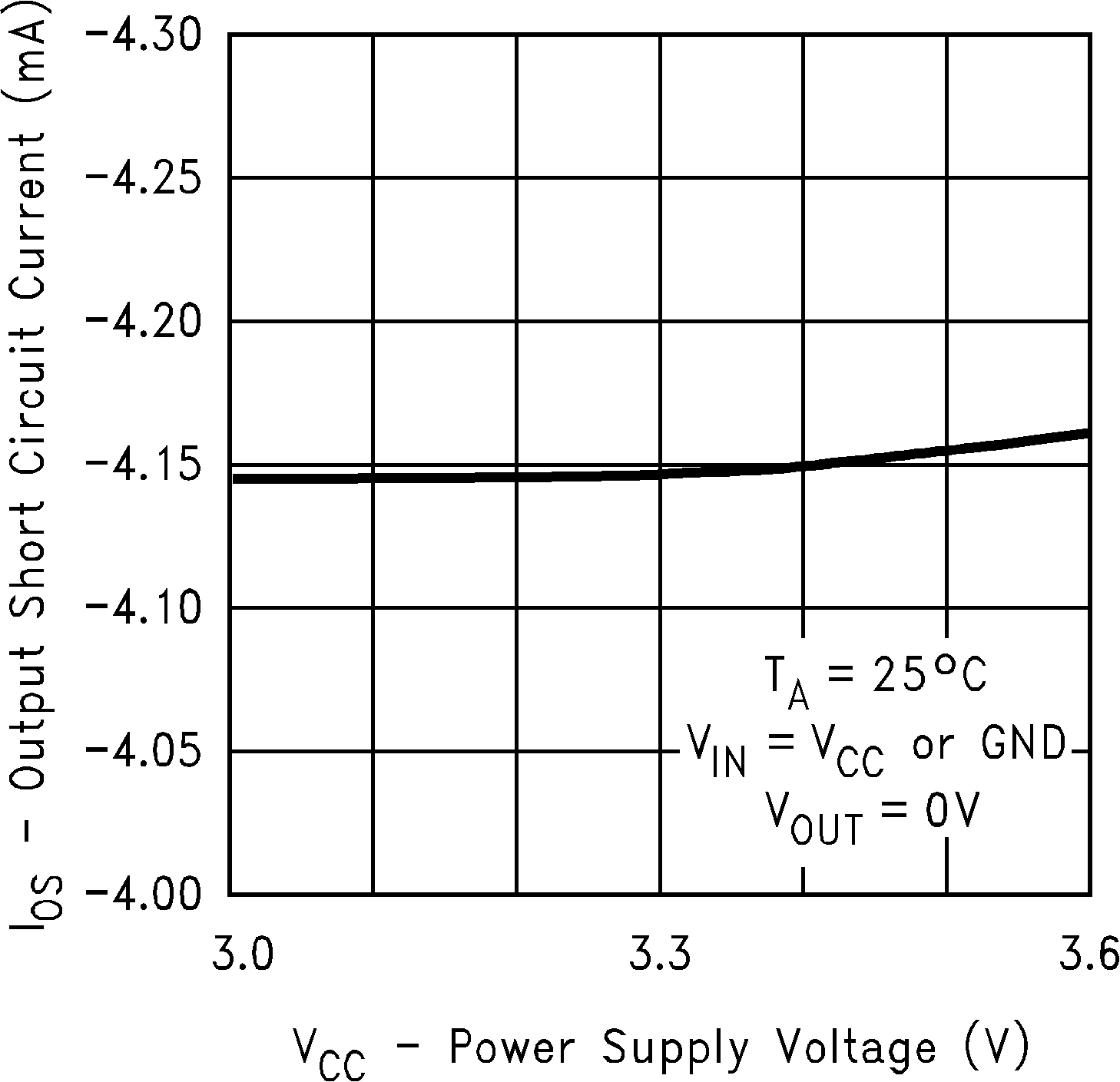

Figure 3. Output Short Circuit Current vs
Power Supply Voltage

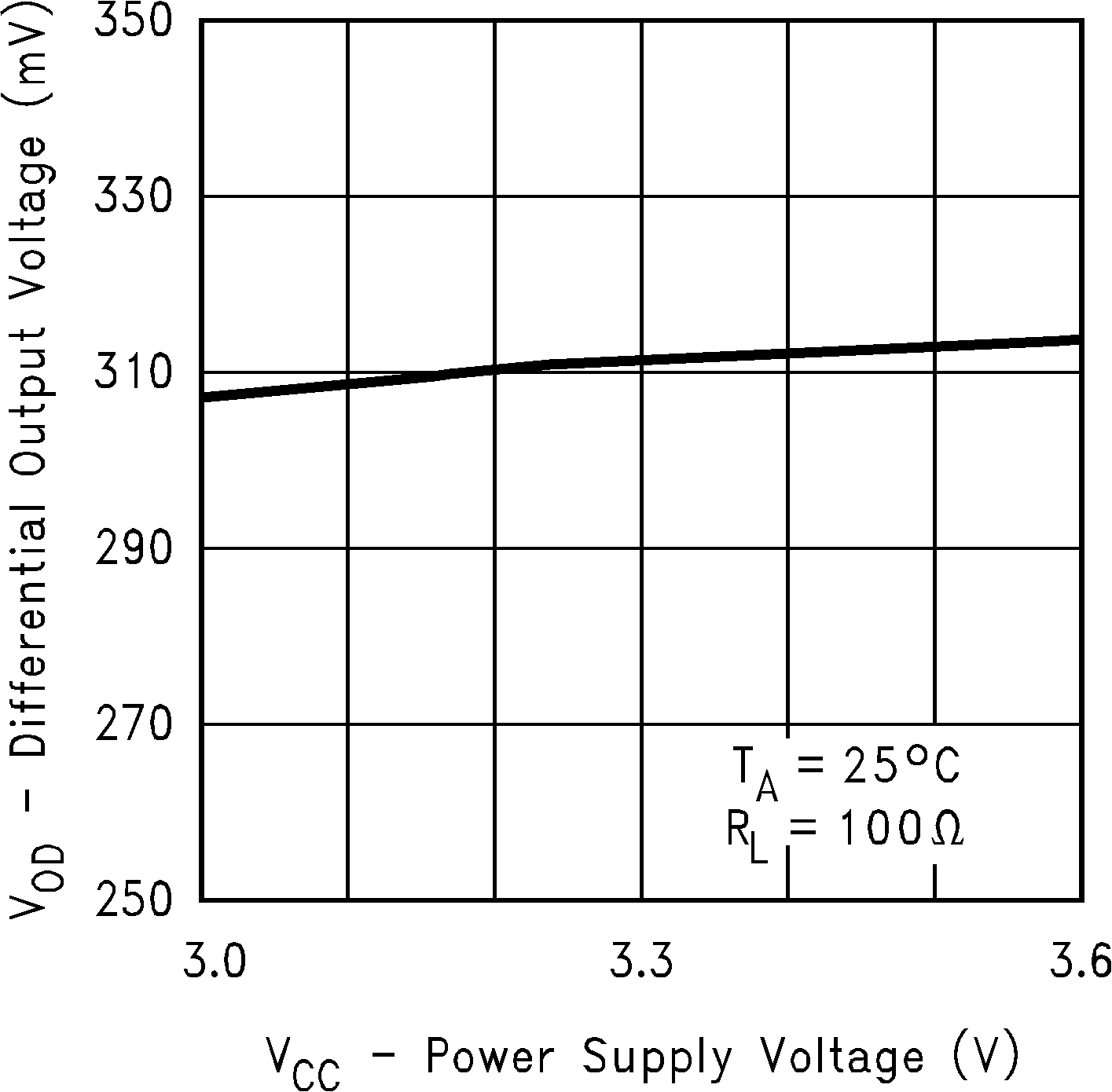

Figure 5. Differential Output Voltage vs
Power Supply Voltage

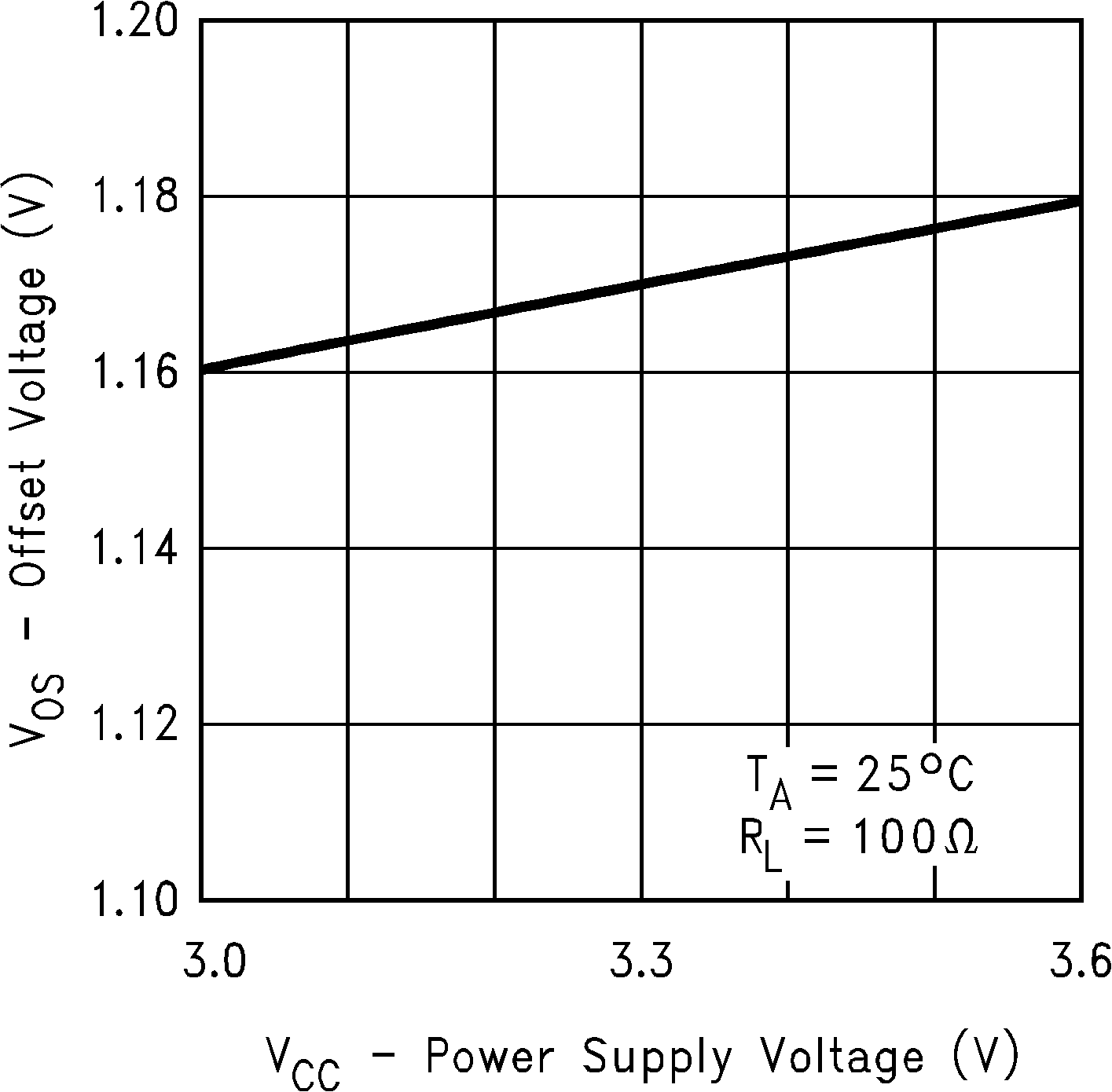

Figure 7. Offset Voltage vs Power Supply Voltage

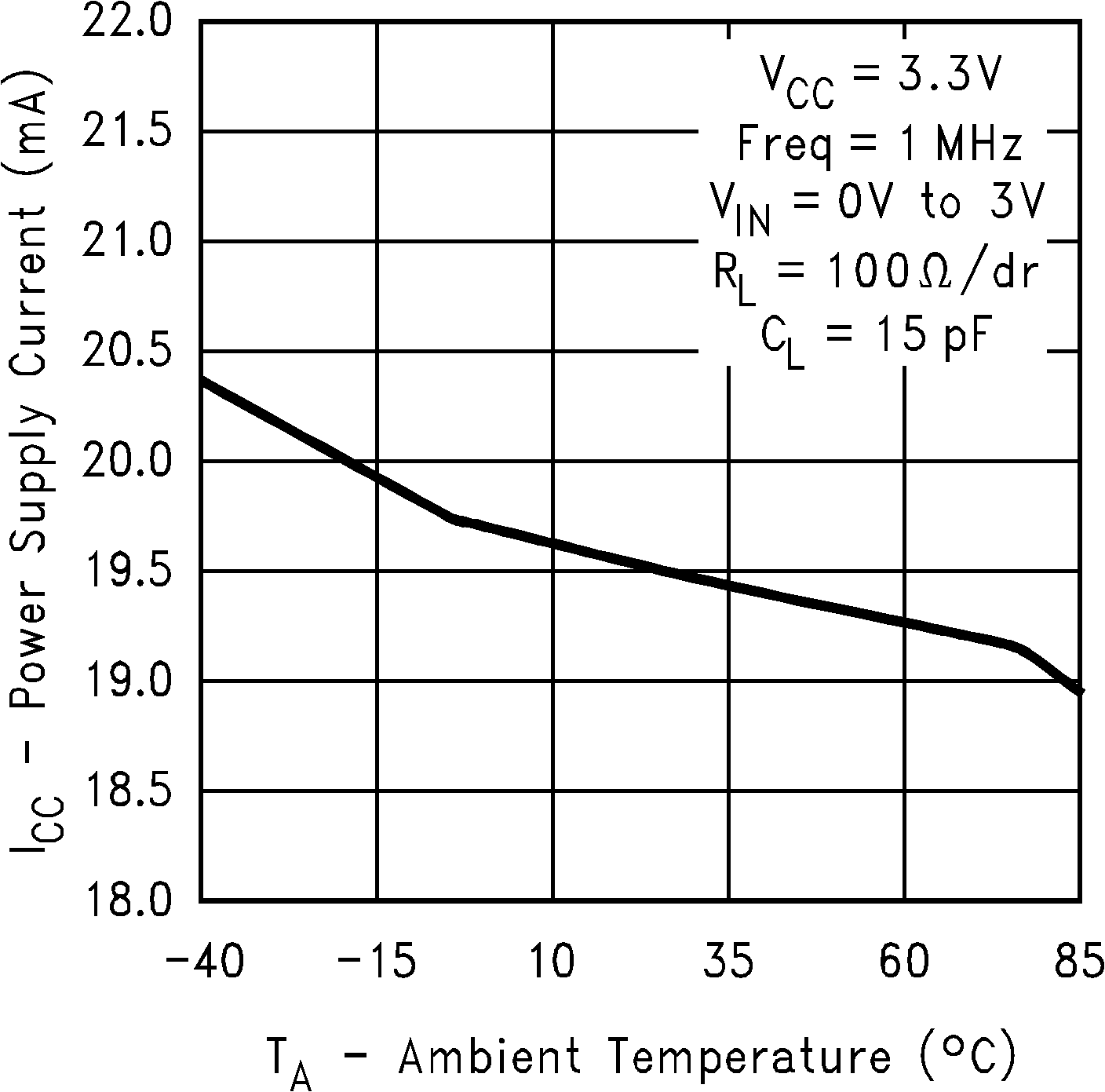

Figure 9. Power Supply Current vs Ambient Temperature

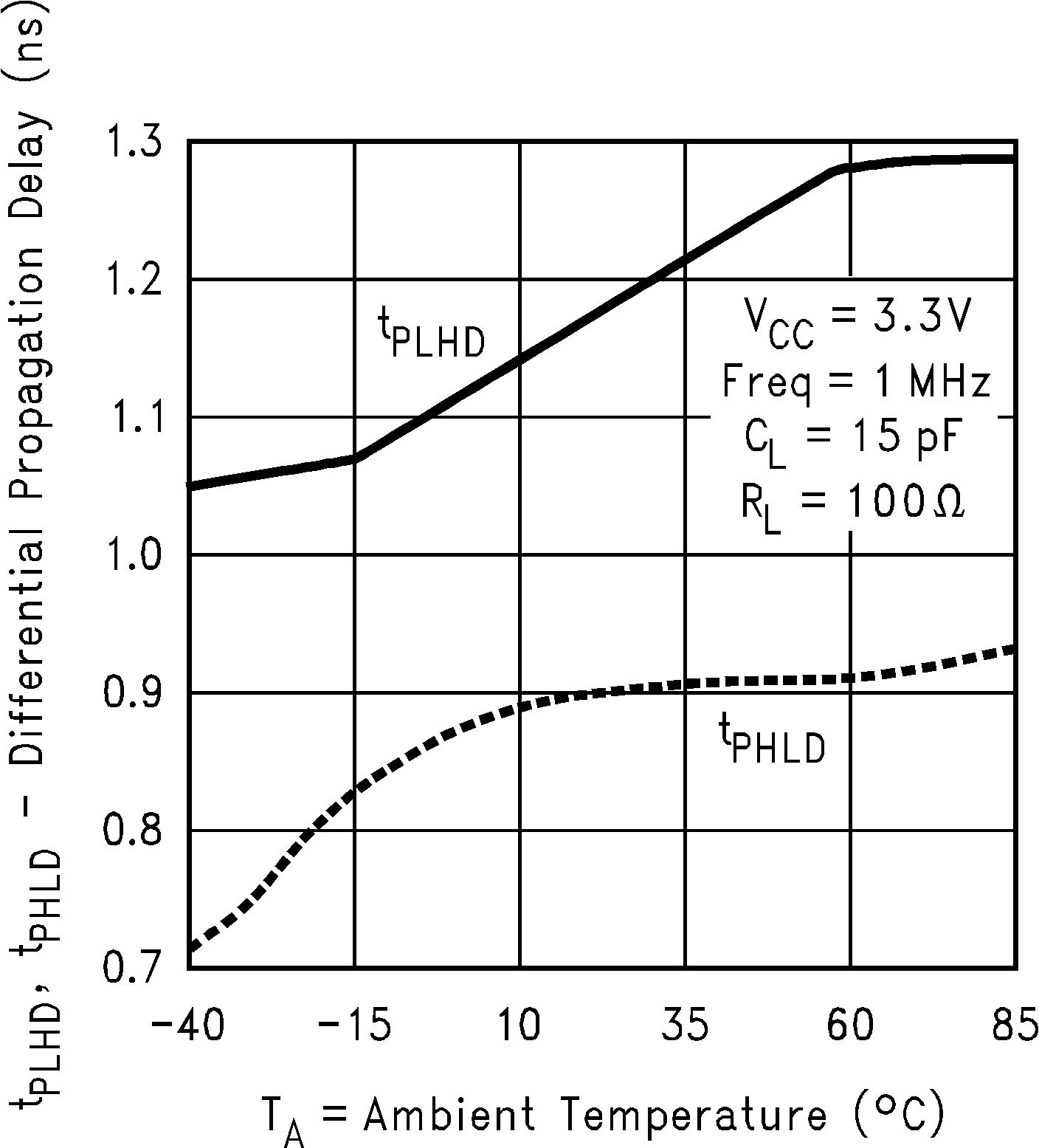

Figure 11. Differential Propagation Delay vs
Ambient Temperature

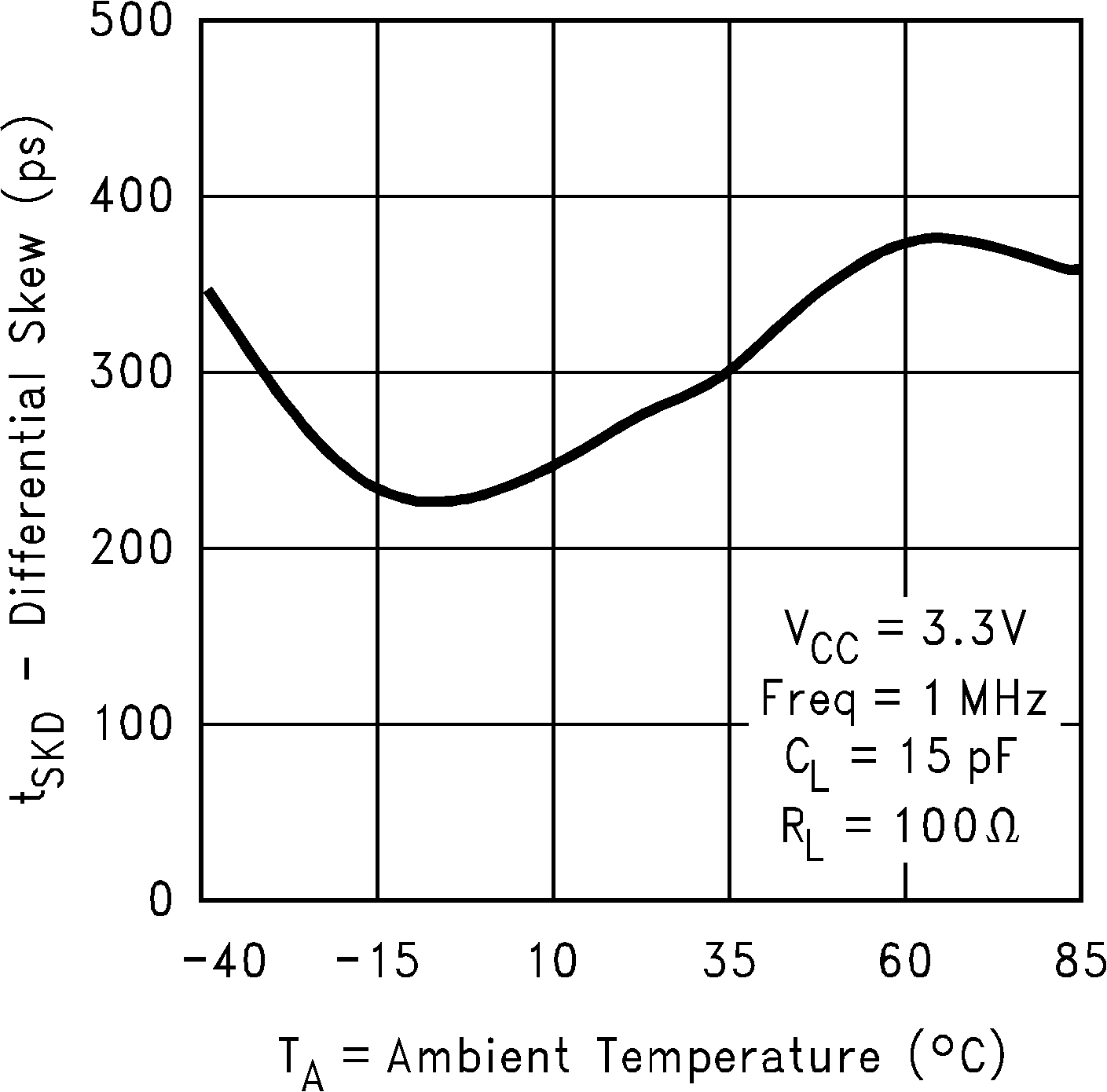

Figure 13. Differential Skew vs Ambient Temperature

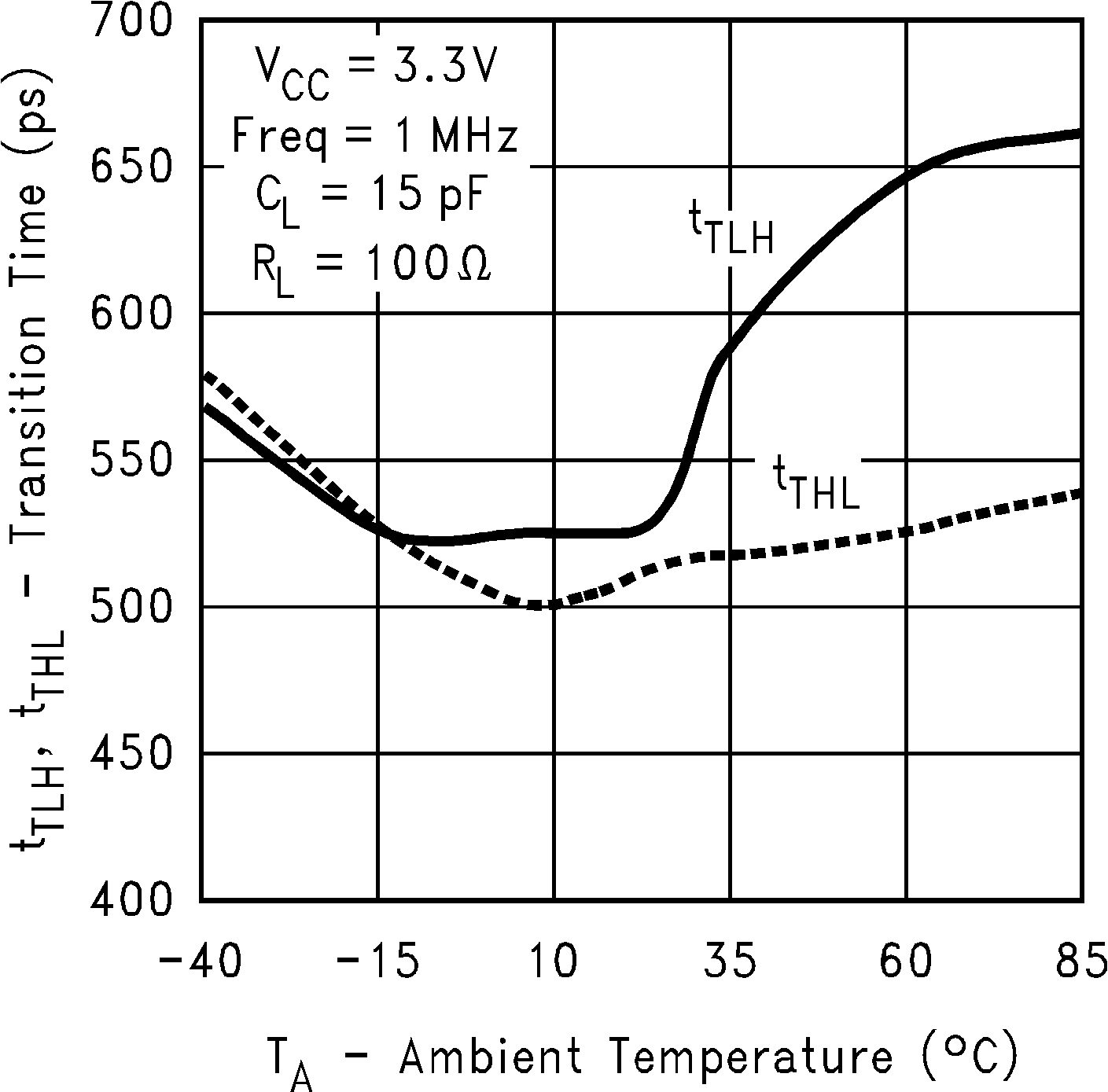

Figure 15. Transition Time vs Ambient Temperature

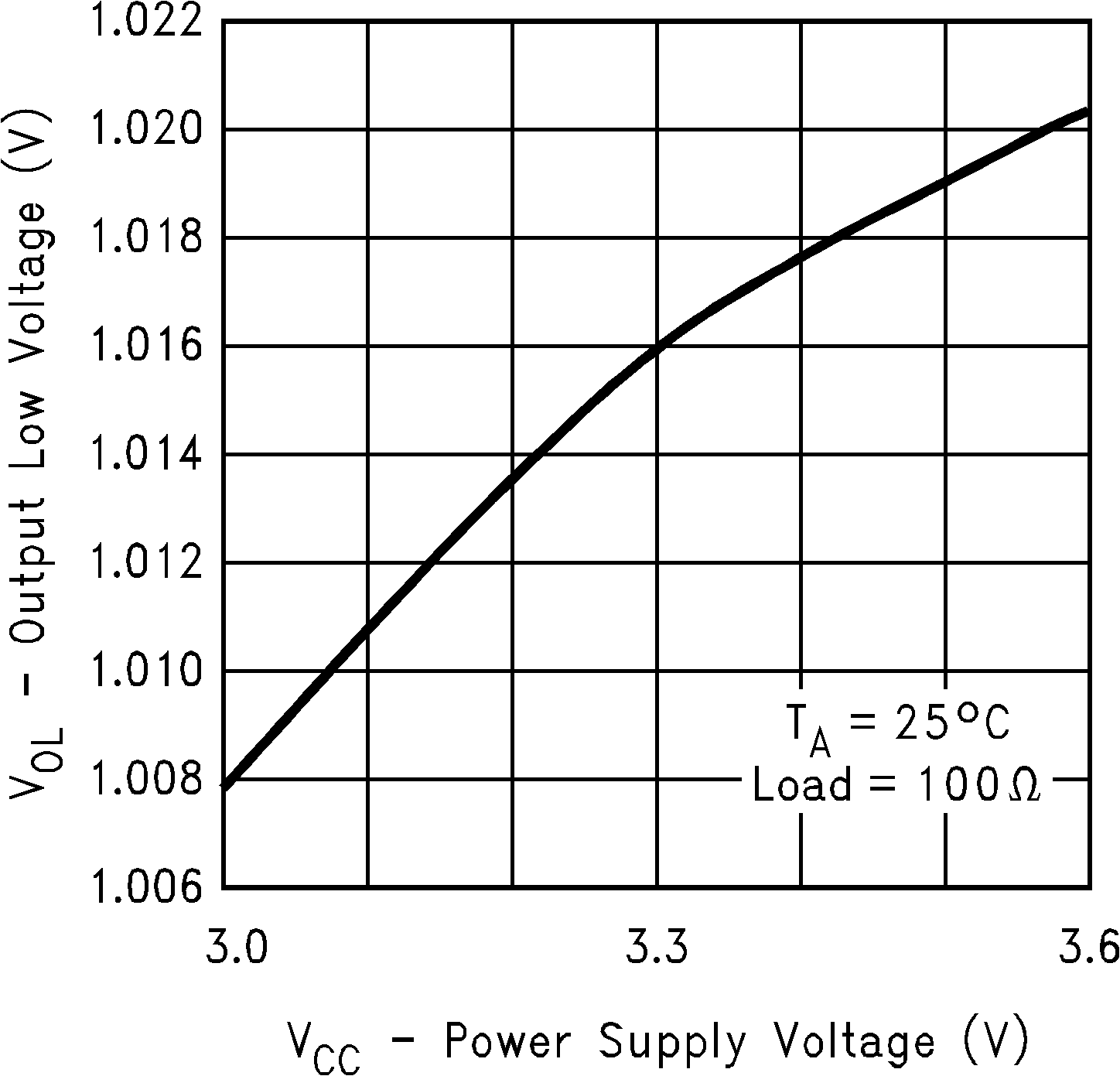

Figure 2. Output Low Voltage vs Power Supply Voltage

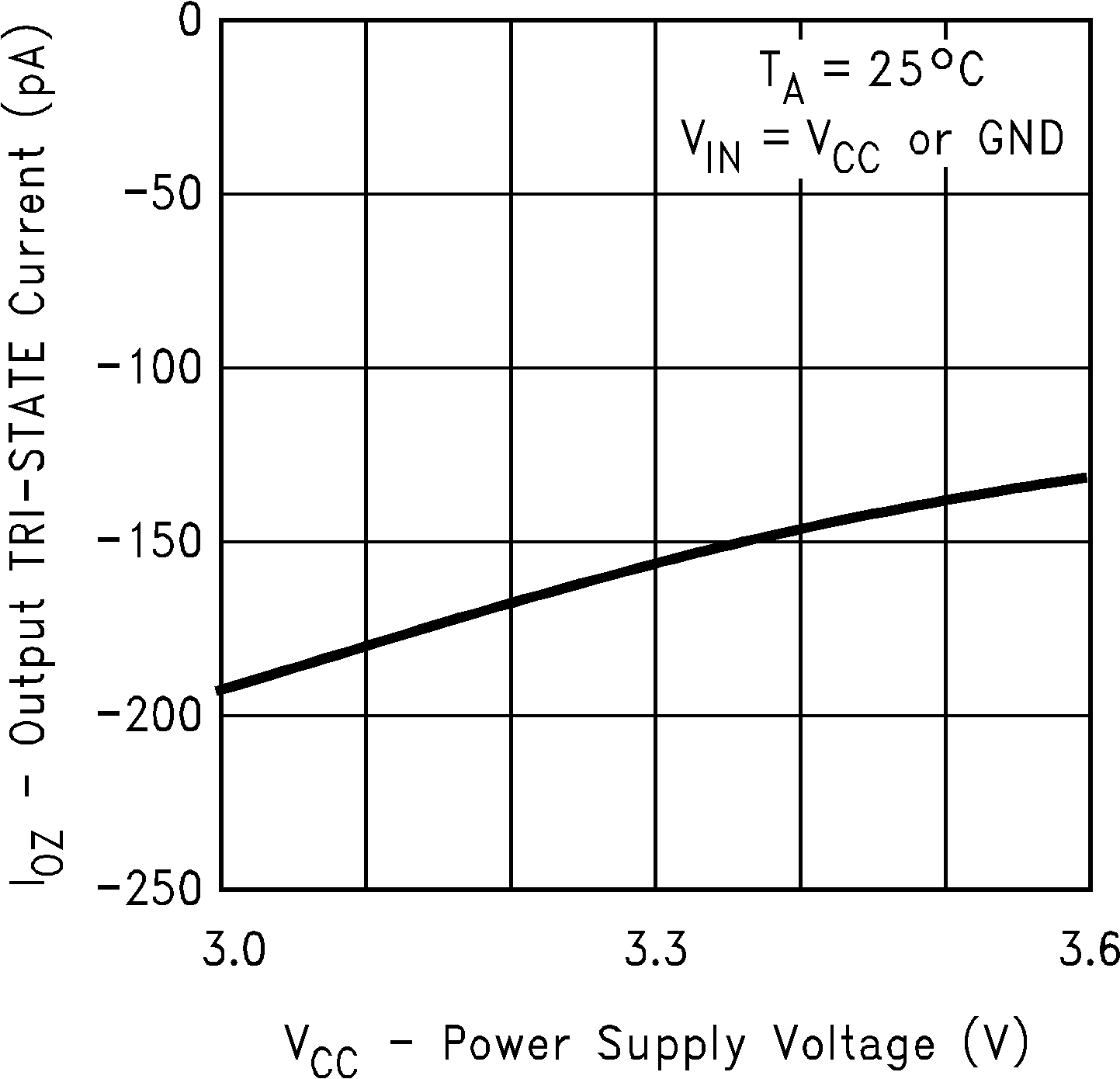

Figure 4. Output TRI-STATE Current vs
Power Supply Voltage

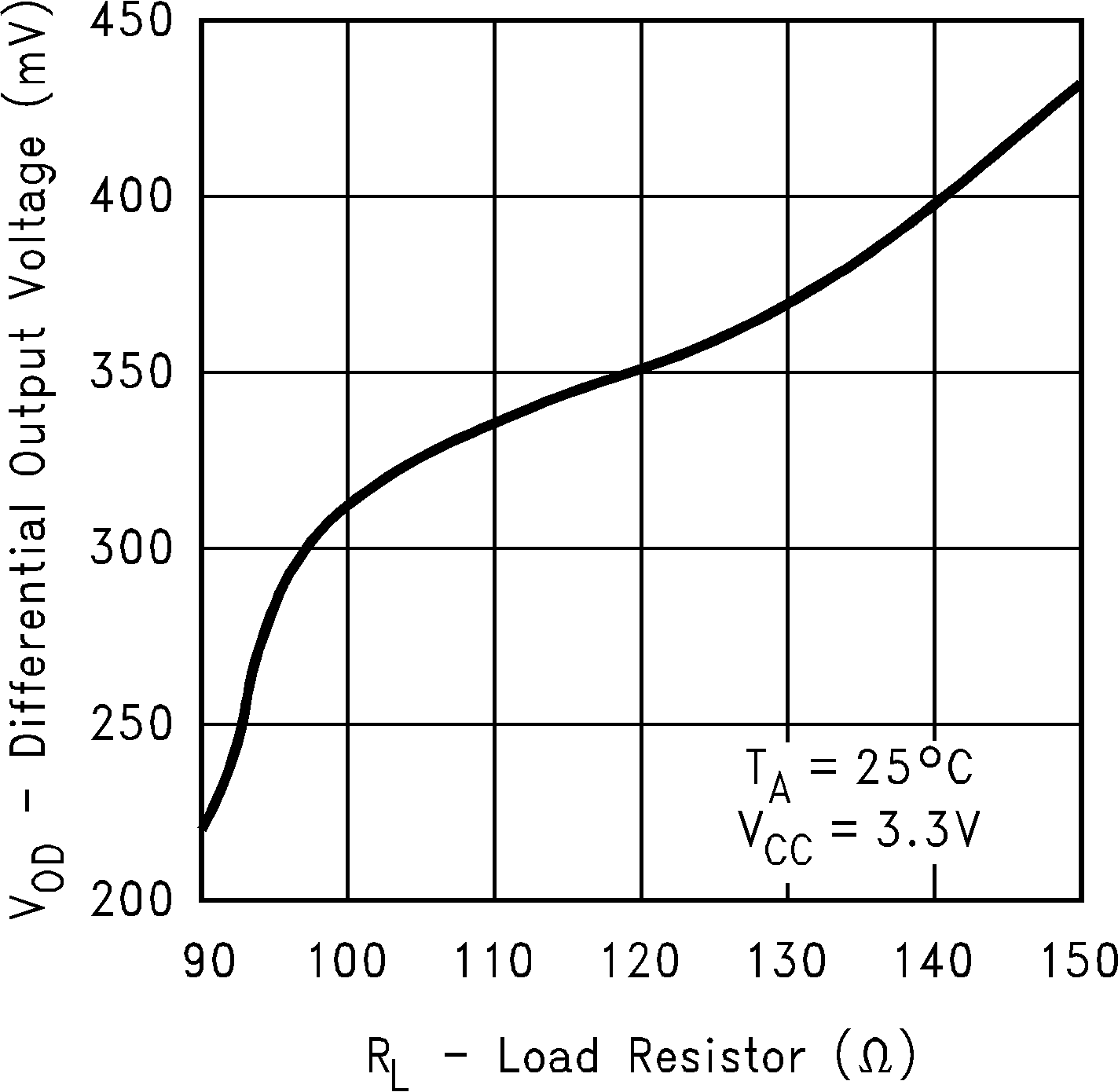

Figure 6. Differential Output Voltage vs Load Resistor

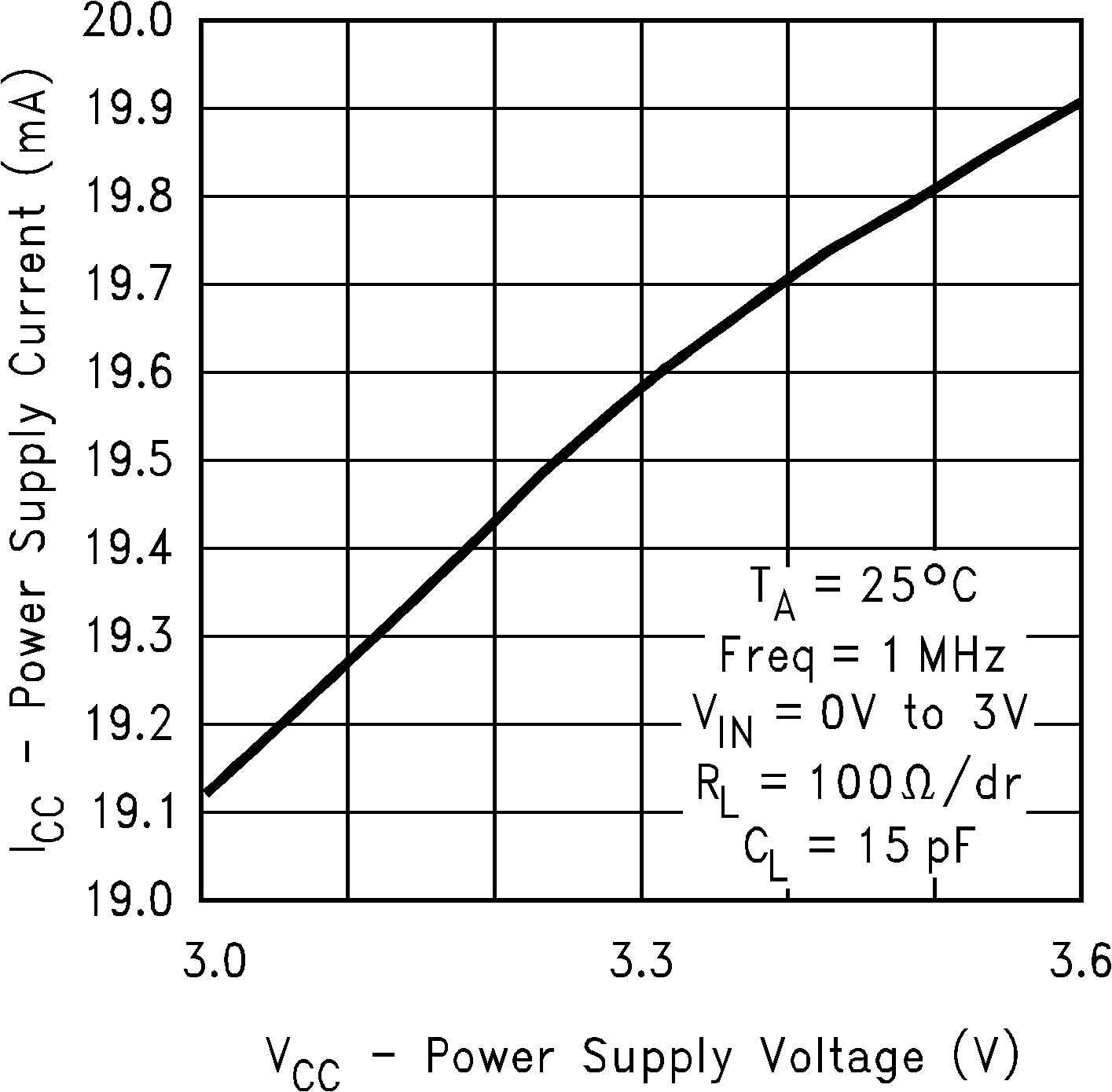

Figure 8. Power Supply Current vs Power Supply Voltage

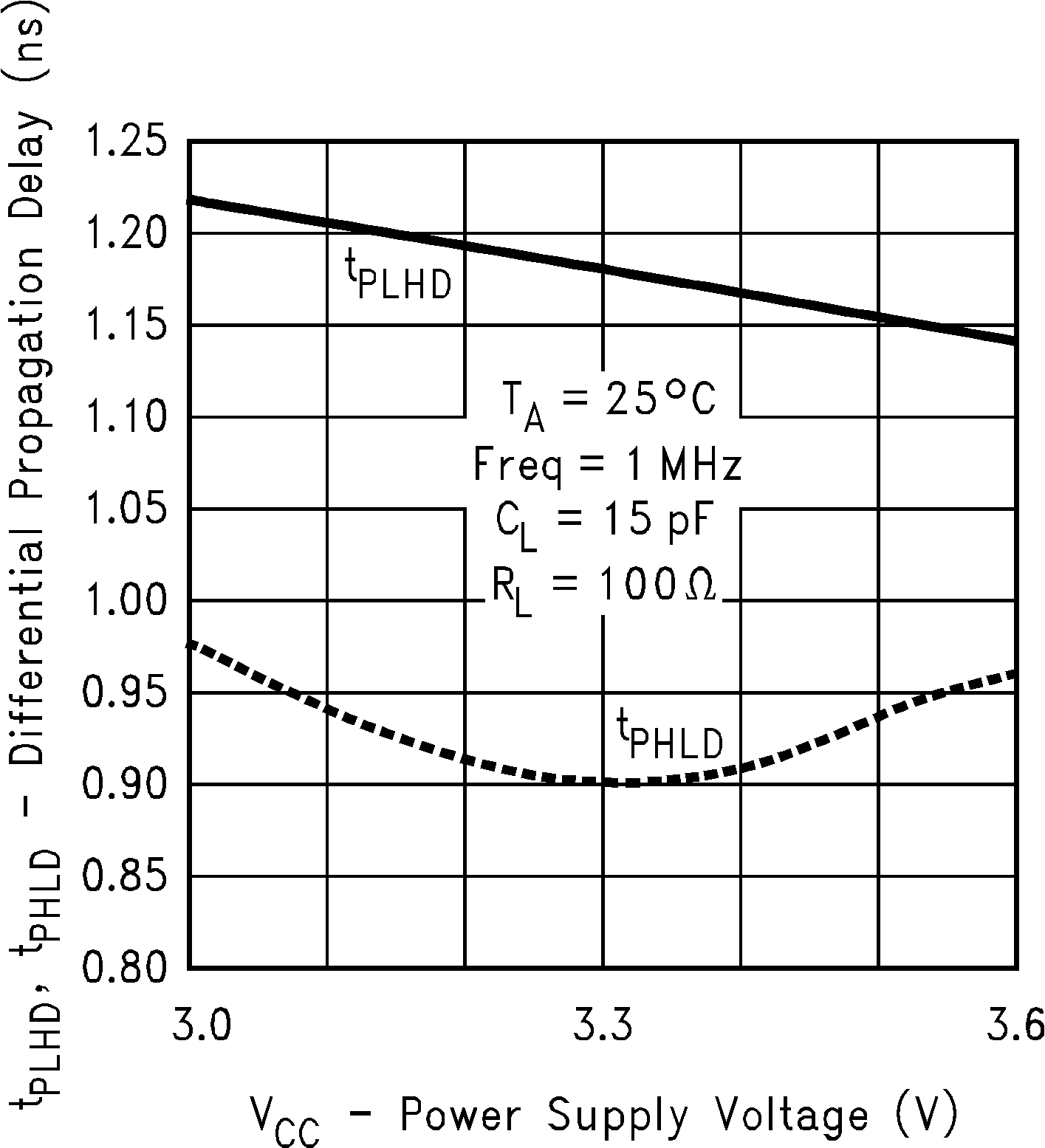

Figure 10. Differential Propagation Delay vs
Power Supply Voltage

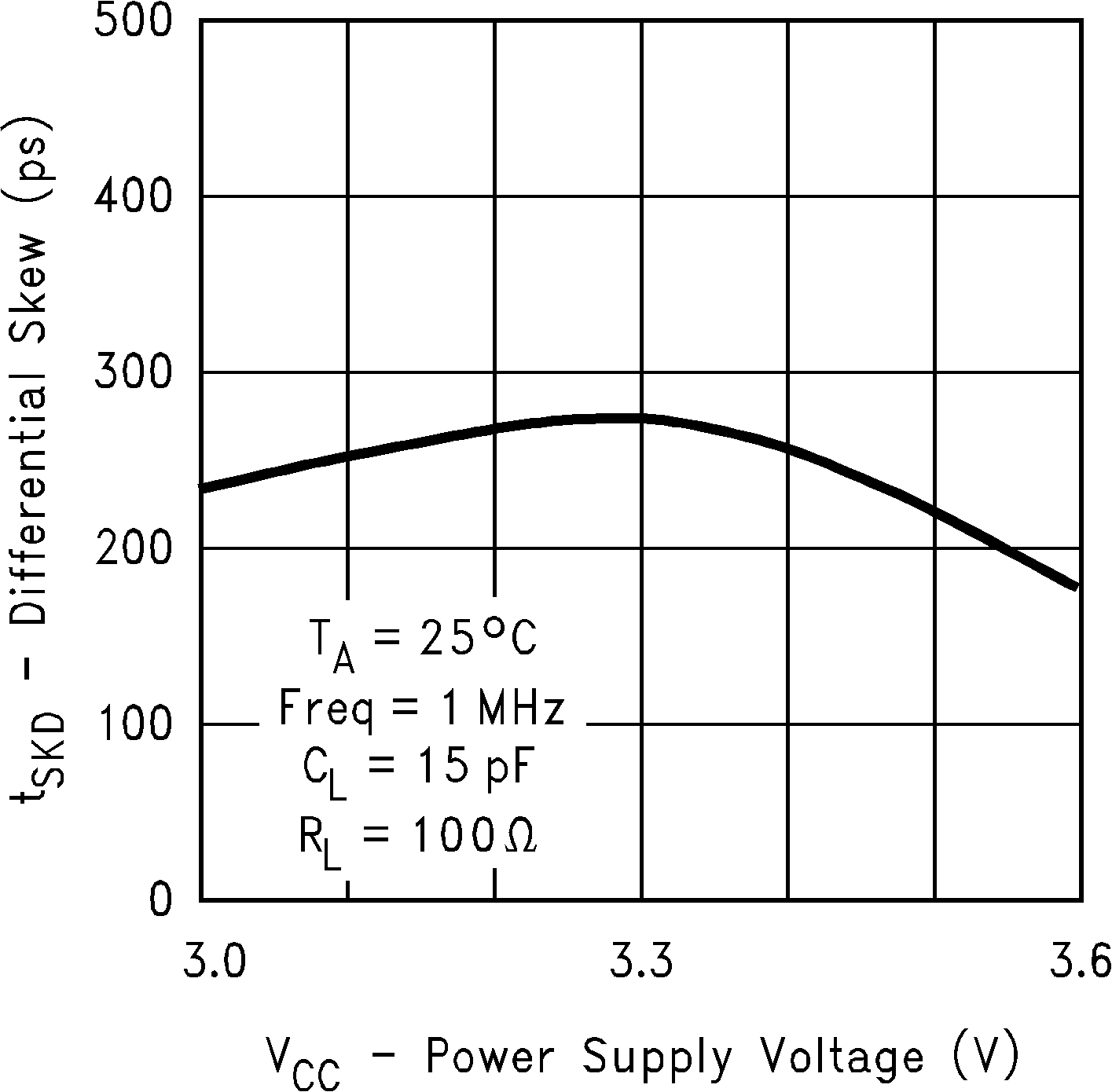

Figure 12. Differential Skew vs Power Supply Voltage

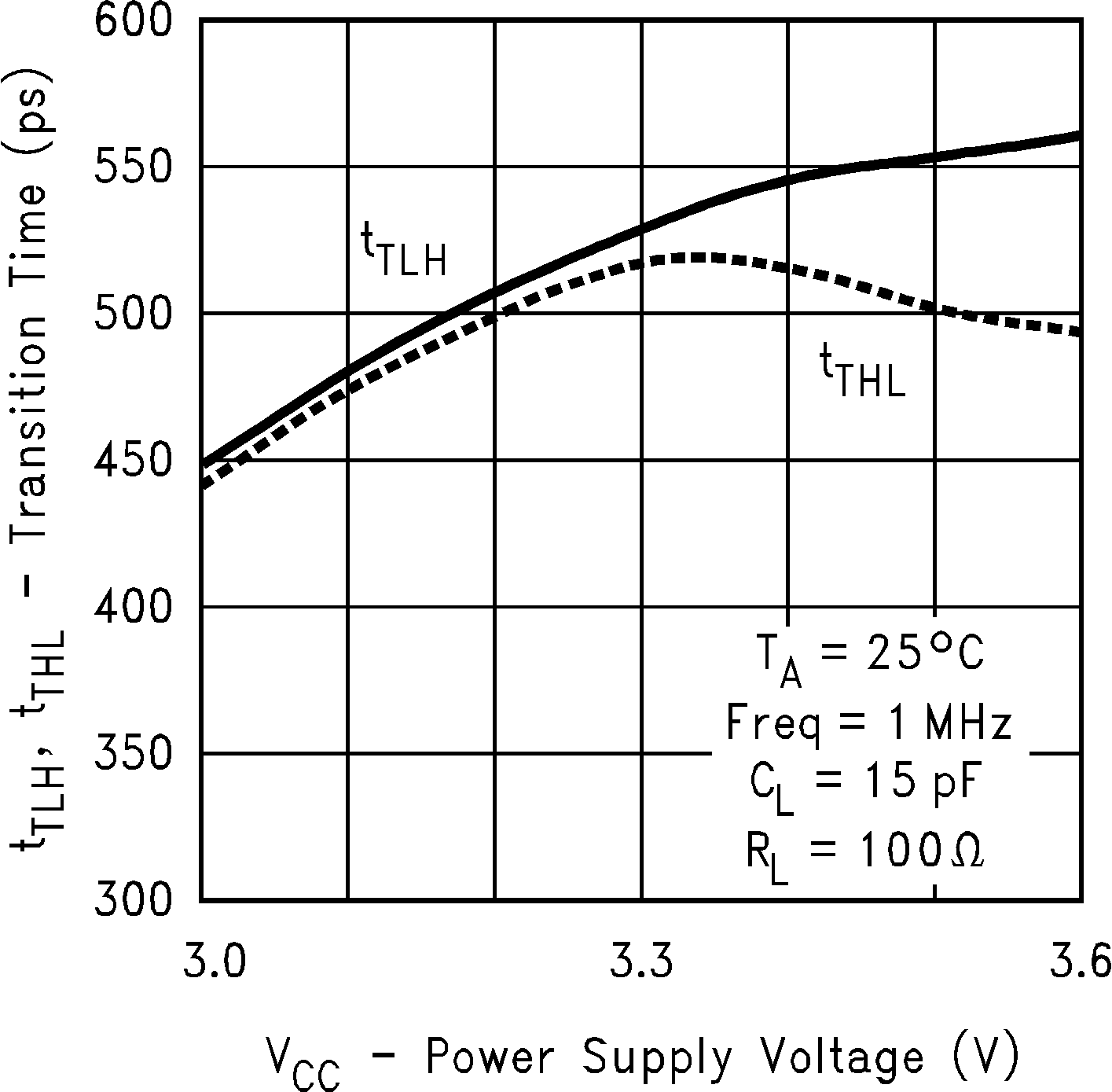

Figure 14. Transition Time vs Power Supply Voltage

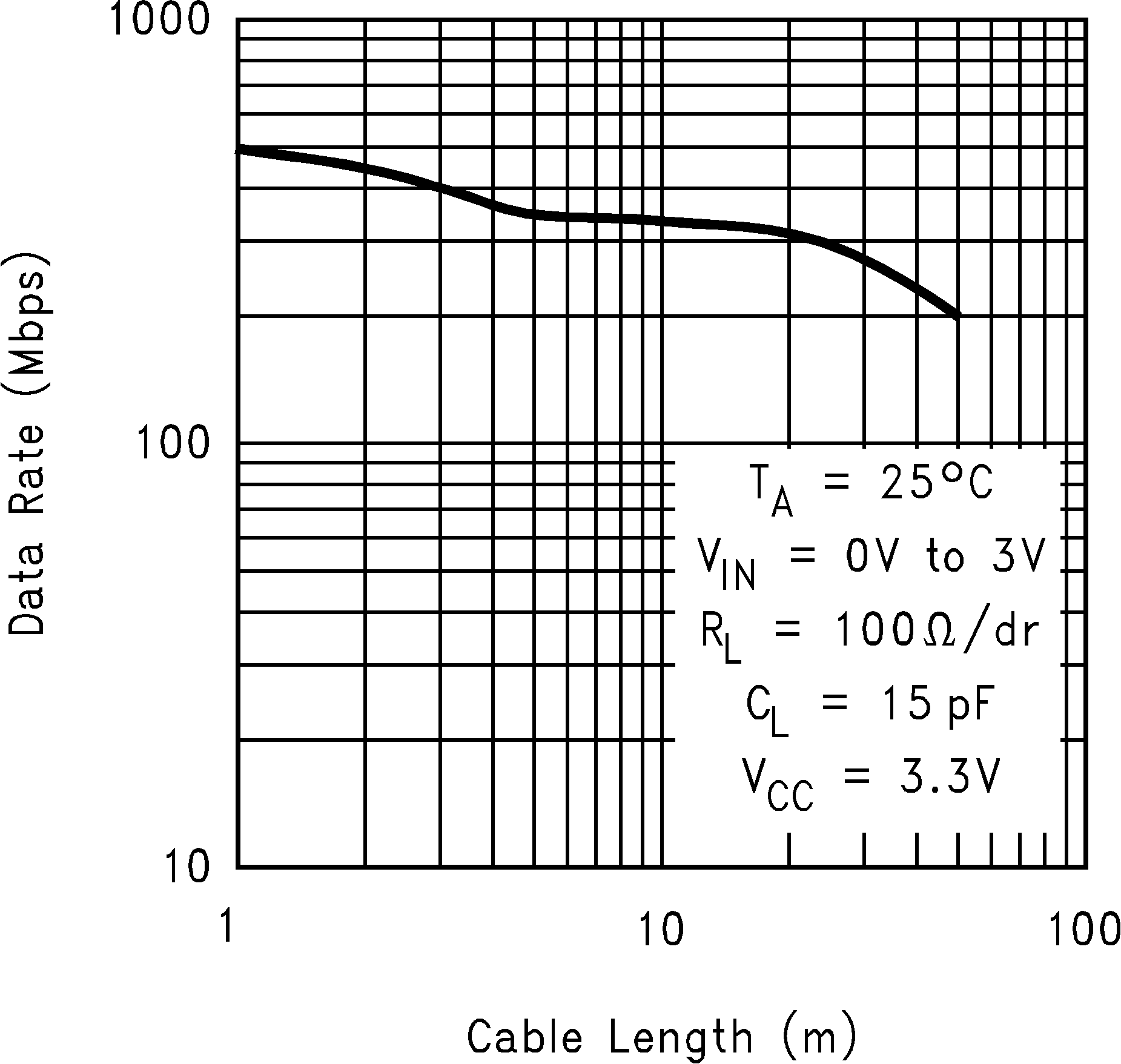

Figure 16. Data Rate vs Cable Length
