Bypass capacitors should be placed near the power supply pins. A capacitor and resistor are placed on the PDB pin to delay the enabling of the device until the power is stable. See and typical STP and coax connection diagrams.

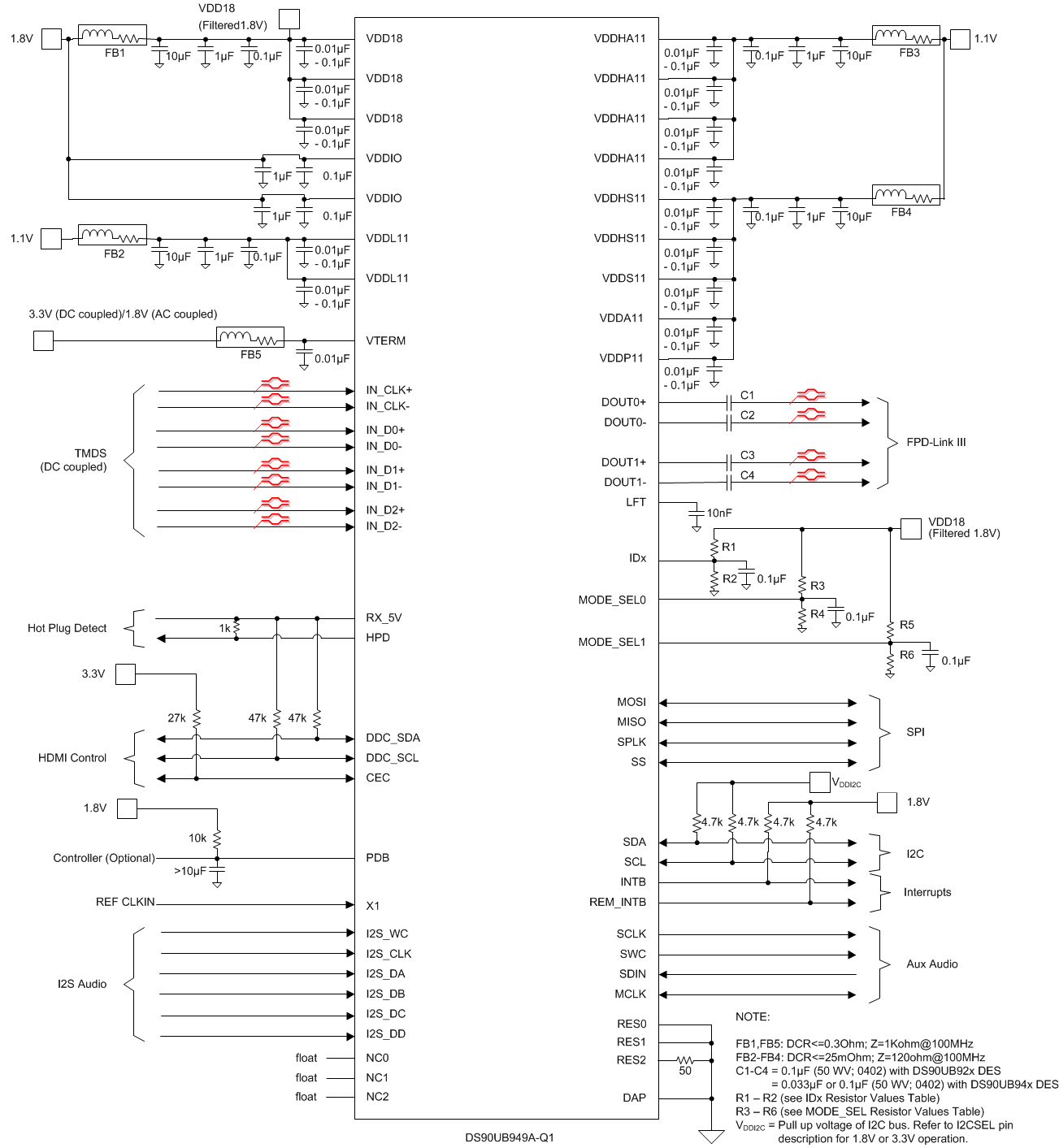

Figure 25. Typical Application Connection -- STP

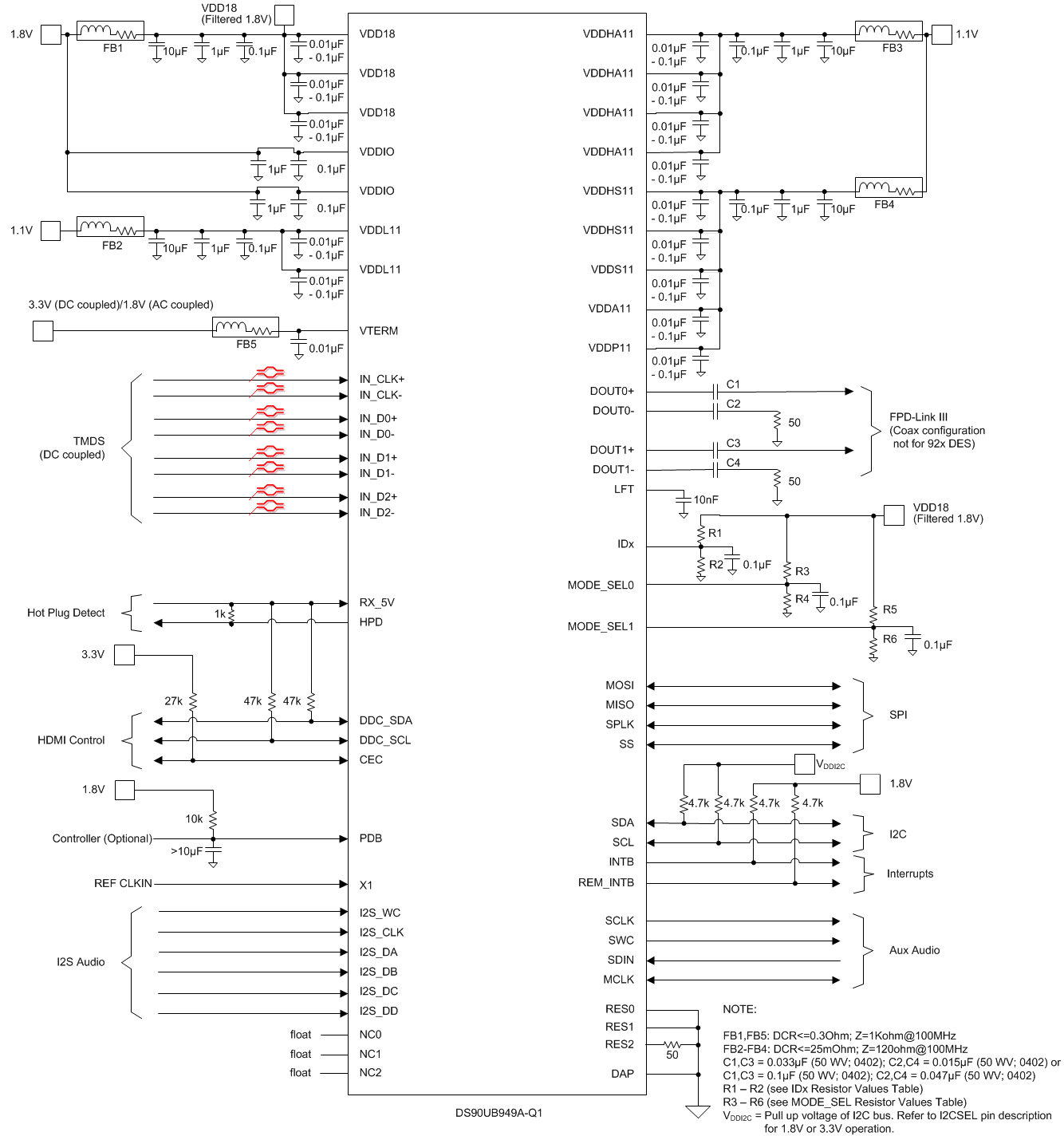

Figure 26. Typical Application Connection -- Coax
Figure 27. Typical System Diagram
