5 Pin Configuration and Functions

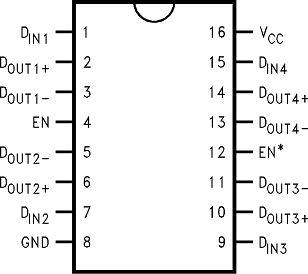

D or PW Package
16-Pin SOIC or TSSOP
Top View
Pin Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| DIN | 1, 7, 9, 15 | I | Driver input pin, TTL/CMOS compatible |
| DOUT+ | 2, 6, 10, 14 | O | Noninverting driver output pin, LVDS levels |
| DOUT– | 3, 5, 11, 13 | O | Inverting driver output pin, LVDS levels |
| EN | 4 | I | Active high enable pin, OR-ed with EN |
| EN | 12 | I | Active low enable pin, OR-ed with EN |
| GND | 8 | — | Ground pin |
| VCC | 16 | — | Power supply pin, 3.3 V ± 0.3 V |
